12/24v dc triac constant voltage dimmable led driver power supply indoor led transformer price

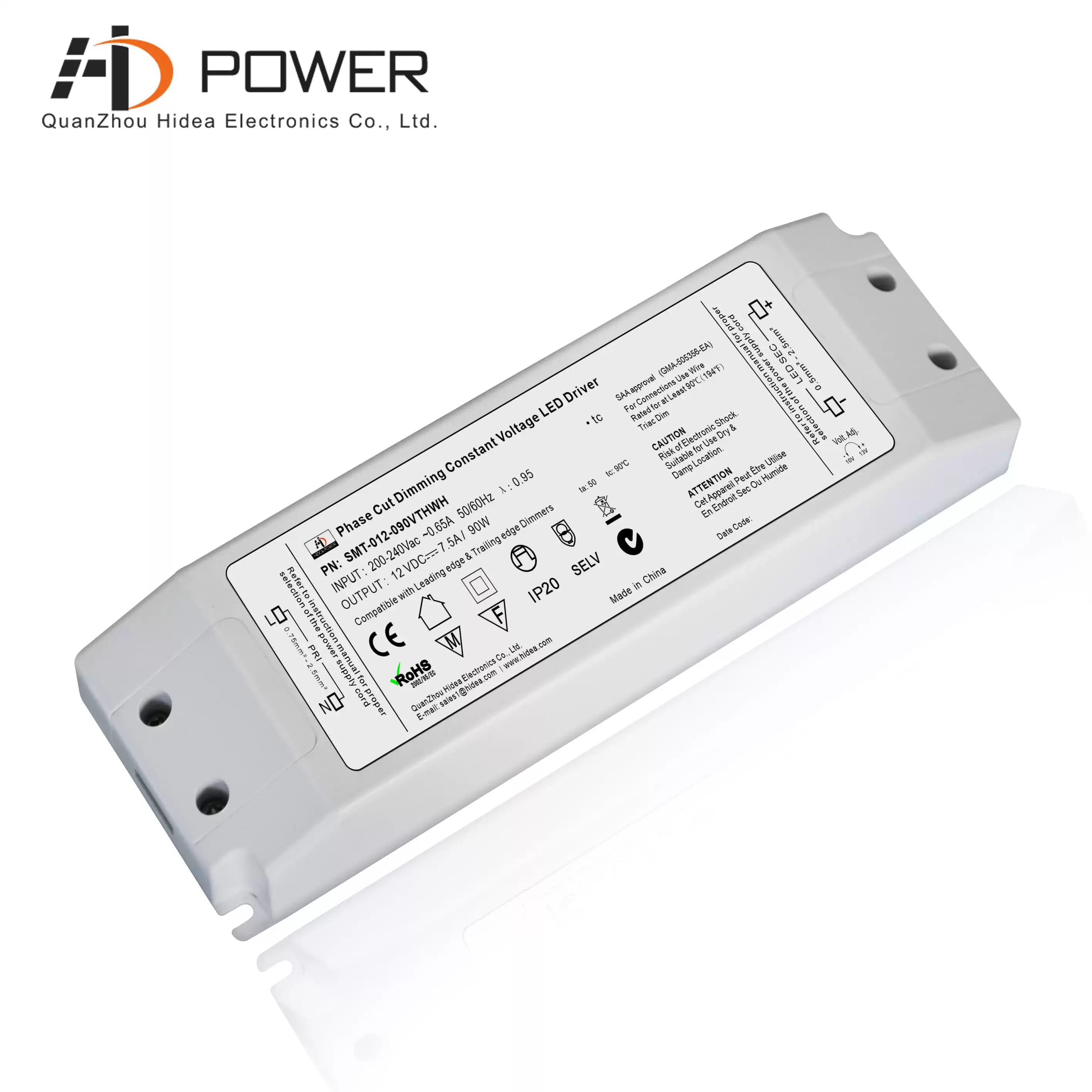

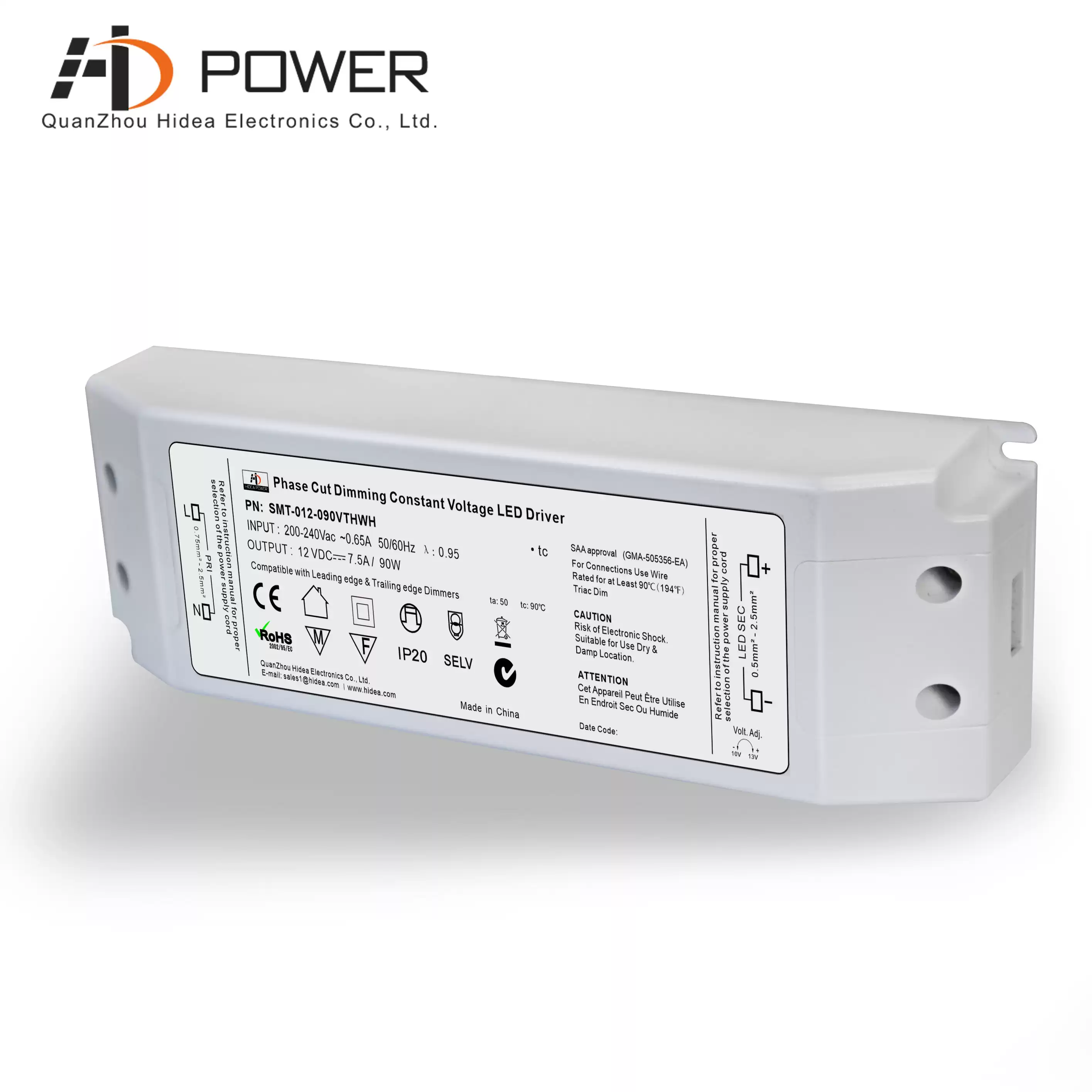

Triac Dimming, a 86%work efficiency, is packaged by the Constant voltage LED Driver 90W plastic shell, waterproof level IP20, removable at both ends, convenient installation and fast installation, suitable for indoor lighting projects
Specification
|
model
|
SMT-012-090VTHWH
|
SMT-024-090VTHWH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
7.5A
|
3.75A
|
|
Rated power
|
90W
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor
|
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
86%
|
86%
|
|
AC Current (Max.)
|
0.65A
|
0.65A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≦120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over Current
|
≦ 1.2 *Iout
|
|
Over Temperature
|
100℃± 10℃ shut down o/p voltage ,re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40-+70℃
|
|
Working Humidity
|
20-90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10-95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes.
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧60%loading)
|
|
Others
|
Net.Weight
|
0.45KG
|
|
Size
|
180*60*35mm (L*W*H)
|
|
packing
|
355*2150*215mm , outside carton 20PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
|
|
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|
|
4. Loading range from 10% to 100%
|
Related Products
|

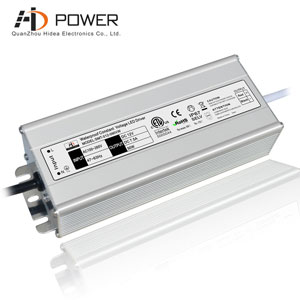

IP67 waterproof constant voltage insertation 90W LED driver, CE certification
