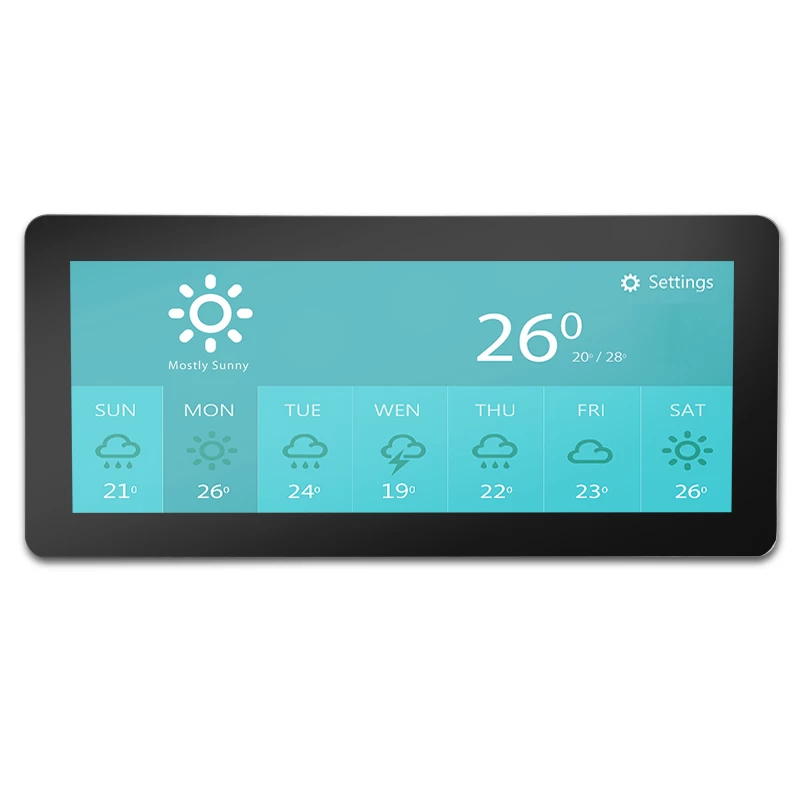

12.3 inch IPS LCD display 1920x720 resolution with custom Capacitive touch screen

12.3 inch IPS LCD display 1920x720 resolution with custom Capacitive touch screen



Facebook Twitter Pinterest LinkedIn 分享

12.3 inch IPS LCD display 1920x720 resolution with custom Capacitive touch screen



Specification
LCD type 12.3 inch ips tft lcd
Display type 12.3 inch TFT
Driver element color active matrix thin film transistor
Backlight white LED
Outline Dimension(mm)
312.6x131.65x13.3
Display Area.(mm)

292.03x109.51

Resolution(dots) 1920xRGBx720
Viewing Direction 80/80/80/80
Operating temperature(°C) -30-85
Storage temperature(°C) -40-90
Backlight
 white LEDs
Brightness
 1000 nits
Touch panel
 availabe to custom
Surface treatment
 Anti-Glare
Application Automotive
Weight
 460g
Interface  LVDS
Module lifetime(Hours) 50,000-100,000
