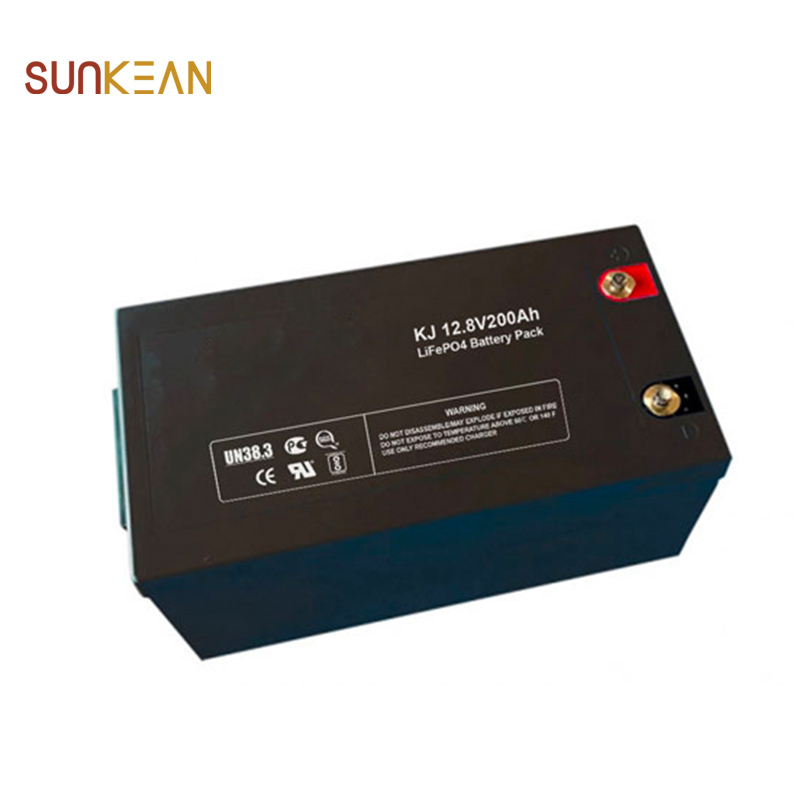

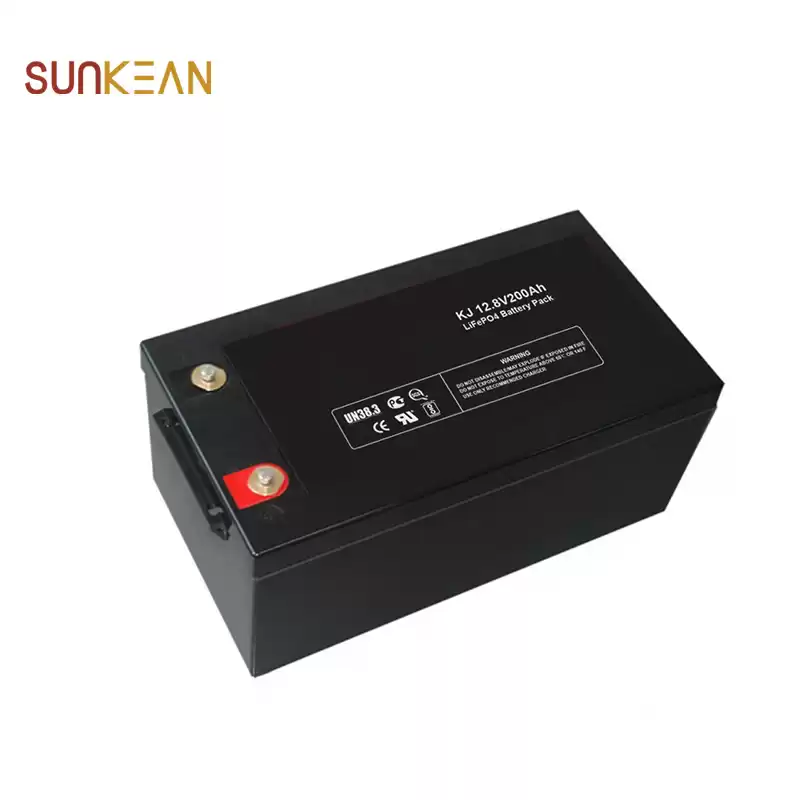

12.8V 200Ah Lithium iron phosphate battery
This Lithium Iron Phosphate Battery 200ah is ideal for large battery packs that require high amounts of energy. Because each cell has a high-capacity, it's much easier and more safe to manage very high capacity battery packs.
Also since lifepo4 batteries do not explode or catch fire when batteries are shorted or punctuated resulting in internal shorts, this prismatic LFP batteries are often used for electric power series and energy storage field, such as EV, car, truck, forklift,RV caravan, Marine,AGV,Aircraft tractor,Solar & Wind power generation, solar home off-grid/grid-connected ESS, commercial & industrial UPS/ESS, Back up power/ emergency power supply for Electric system and so on.
|
L mm('')
|
W mm('')
|
H mm('')
|
HT mm('')
|
|
522(20.55)
|
240(9.45)
|
208(8.19)
|
|
Lithium Iron Phosphate Battery Specifications:
ELECTRICAL PERFORMANCE
|
Nominal Voltage
|
12.8 V
|
Nominal Capacity
|
200 Ah
|
Capacity @ 8.4A
|
300 min
|
Energy
|
2560 Wh
|
Resistance
|
≤50 mΩ @ 50% SOC
|
Self Discharge
|
<3% / Month
|
Cells
|
Square Cell 3.2V100Ah
|
CHARGE PERFORMANCE
|
Recommended Charge Current
|
20 A
|
Maximum Charge Current
|
100 A
|
Recommended Charge Voltage
|
14.6 V
|
BMS Charge Cut-Off Voltage
|
<15.2 V (0.5 ~ 1.5 s)
|
Reconnect Voltage
|
>14.4 V
|
Balancing Voltage
|
<14 V
|
Maximum Batteries in Series
|
4
|
DISCHARGE PERFORMANCE
|
Continuous Discharge Current
|
50 A
|
Max Discharge Current
|
100 A
|
BMS Discharge Cut-Off Current
|
300 A(5 ~15 ms)
|
Recommended Low Voltage Disconnect
|
10 V
|
BMS Discharge Cut-Off Voltage
|
>8.4 V (50 ~ 150 ms)
|
Reconnect Voltage
|
>10 V
|
Short Circuit Protection
|
200 ~ 600 μs
|
MECHANICAL PERFORMANCE
|
Dimension (L x W x H)
|
522 x 240 x 218 mm 20.55 x 9.45 x 8.58”
|
Approx. Weight
|
20.23 kg
|
Terminal Type
|
M8
|
Terminal Torque
|
80 ~ 100 in-lbs (9 ~ 11 N-m)
|
Case Material
|
ABS
|
Enclosure Protection
|
IP65
|
TEMPERATURE PERFORMANCE
|
Discharge Temperature
|
-4 ~ 140 ºF (-20 ~ 60 ºC)
|
Charge Temperature
|
32 ~ 113 ºF (0 ~ 45 ºC)
|
Storage Temperature
|
23 ~ 95 ºF (-5 ~ 35 ºC)
|
BMS High Temperature Cut-Off
|
149 ºF (65 ºC)
|
Reconnect Temperature
|
118 ºF (48 ºC)
|
COMPLIANCE
|
Certifications
|
CE UN38.3
UL1642 & IEC62133
|
Shipping Classification
|
UN 3480, CLASS 9
|
Product Features：
------High cycle life
>2000 cycles @80% DoD for effectively lower total cost of ownership.
------Longer service life
Low maintenance batteries with stable chemistry. Easily monitor state of charge (SoC) of smart models.
------Built in circuit protection
Battery Management Systems (BMS) are incorporated against abuse.
------Better storage
Up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.
------Quickly recharge
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
------Extreme heat tolerance
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
------Lightweight
Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.
Applications:
Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.
Suitable applications include:Caravan，Marine，Golf Car，Buggies，Solar Storage，Remote Monitoring，Switching applications and more.
