12.8V 7Ah LiFePO4 Battery Lead Acid Replacement Lithium Battery
12.8v lithium battery high power 7Ah LiFePO4 battery module, with compact green shell, built-in BMS , is a key plug and play battery solution, which can directly replace typical lead-acid (AGM / gel) battery applications. With about half of the weight of the relatively large lead-acid battery, it provides twice the running time, and more than 5000 times of excellent floating charge and cycle life can bring low operating cost and high return on investment for end-user applications
Product Parameters Of Lead Acid Replacement Battery
Battery Pack Specifications：12.8V 7Ah
Chemistry：Lifepo4
Nominal Voltage(V)：12.8V
Capacity(AH)：7Ah

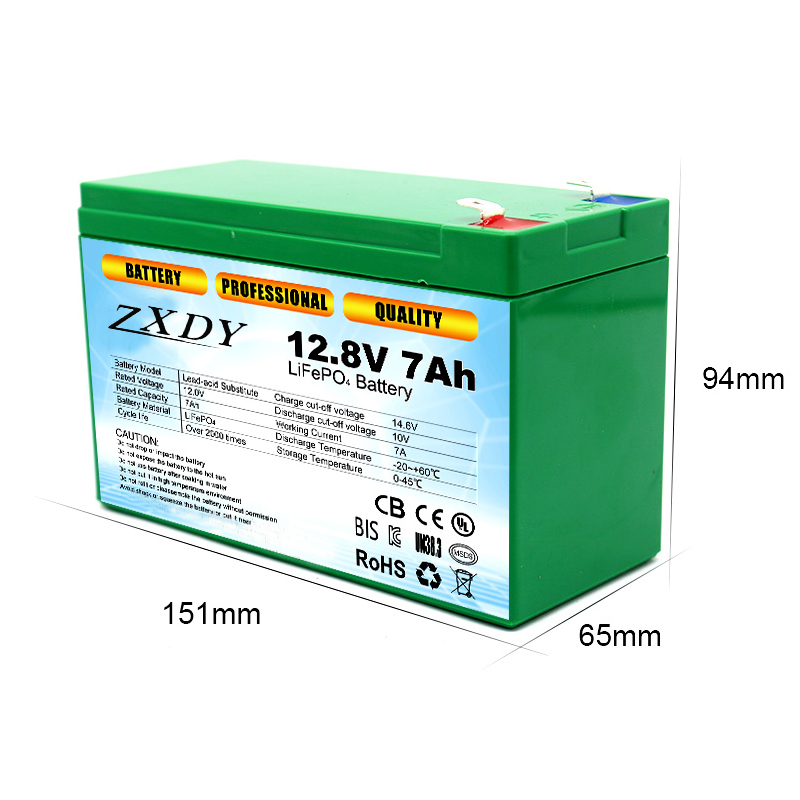

Battery Box Size：151*65*94mm
Weight：0.75KG
Battery cell：26650 3.2V 3500mah lifepo4 Battery cell
Number of Cells in Series：4S
Number of cell in Parallel：2P
Total Number of Cells：8pcs
KWH：89.6WH
BMS Type：4S 10A some port BMS(can be customized)
Operating Voltage range (V)：10V~14.6V
Charge voltage：14.6V
Charging Mode：CC/CV
Cycle life：5000 times（@ 85 DOD）
Service life：2 years
Battery Box Material：ABS
Cabinet design ( IP Rating)：IP 65
Discharge Cut-off Voltage：10V±0.2V
Discharge Temperature：-10 ℃ to 60 ℃ (-4F to 140F) @60±25%
The deep circulating lead acid lithium battery has a compact structure. It adopts ABS plastic box and built-in BMS design to prevent overcharge, overdischarge, overcurrent, overvoltage, overheating and short circuit of the battery.
Lithium battery is widely used in RV, camper, RV, solar energy system (off grid system), ships, ships, tug motors, yatch, and can replace lead-acid / AGM / gel battery.

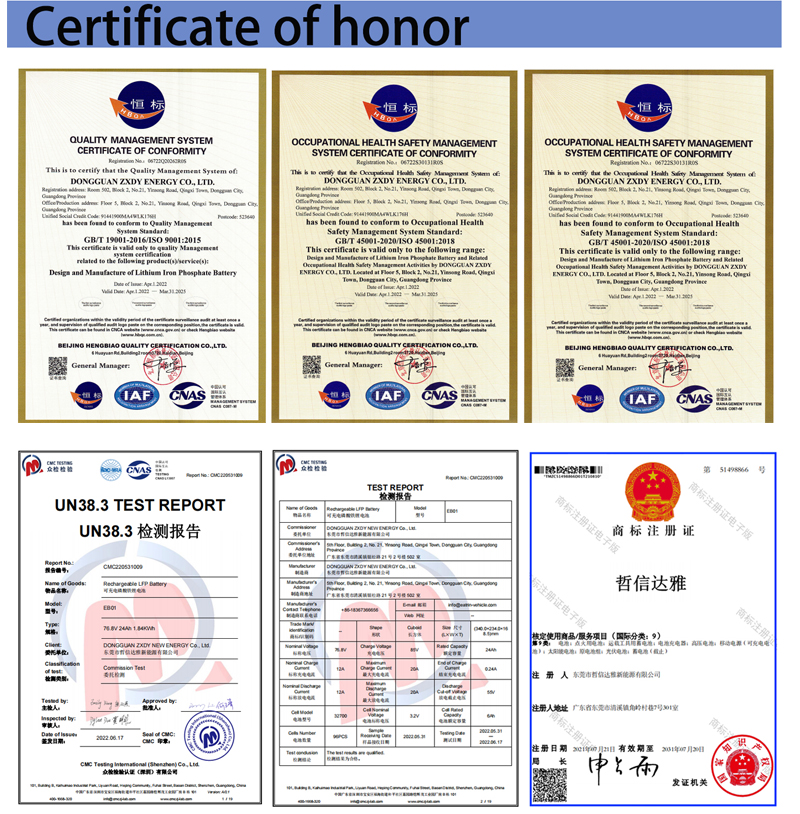

In order to provide more efficient and cost-effective lead acid replacement battery products to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
