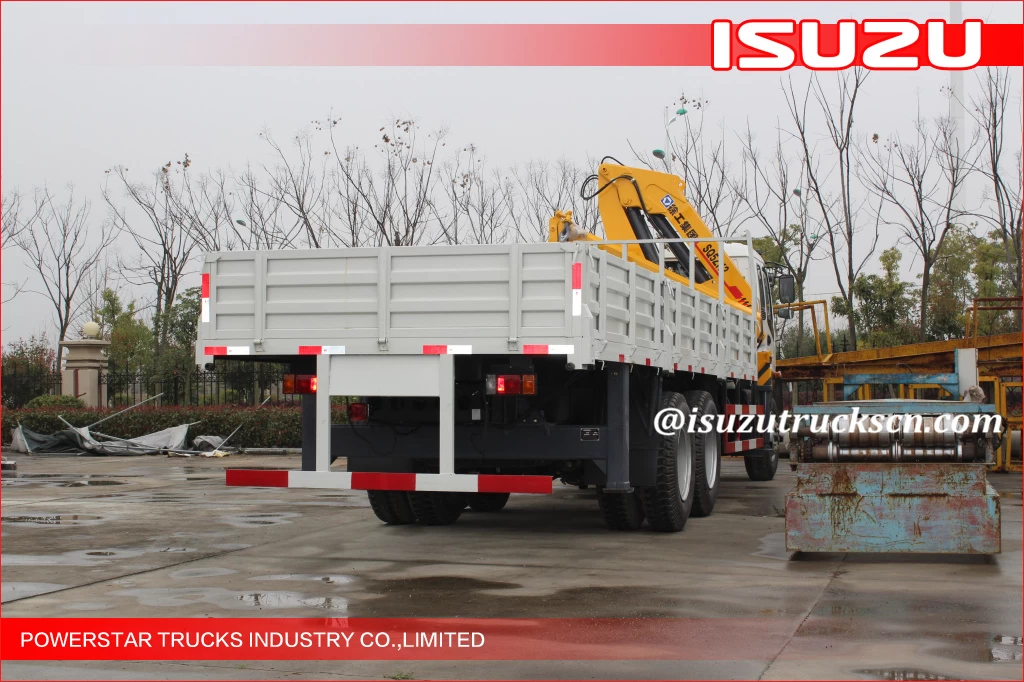

12 Ton Cargo Truck Mounted Crane with Isuzu chassis

12 Ton Cargo Truck Mounted Crane with Isuzu chassis

Durable Truck Loader Knuckle Boom Crane, 12 Ton Cargo Truck Mounted Crane

1. Name: Knuckle boom crane, Lorry mounted crane, Cargo truck crane, Truck loader crane, Hydraulic truck crane
2. Max Lifting Capacity: 12 ton
3. Max Lifting Moment: 30 t.m
4. Max Oil Flow of Hydraulic System: 55 L/min
5. Max. Lifting height: 13meters
6. Brand: XCMG
7. Crane Weight: 4130 kg
8. Oil Tank Capacity: 160 L
9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope
10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.

Description:

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.

Knuckle boom crane SQ12ZK3Q is lifting capacity is 12tons, moment is 30T.M.

Applications:

It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Specifications:

Optional parts:

1, Moment limited device

2, Remote control equipment

3, Anti-overwind magnet valve

4, High seat on column

5, Work light

6, Assistant stabilizer leg
