12 volt 100w led driver dimmable led driver with UL listed

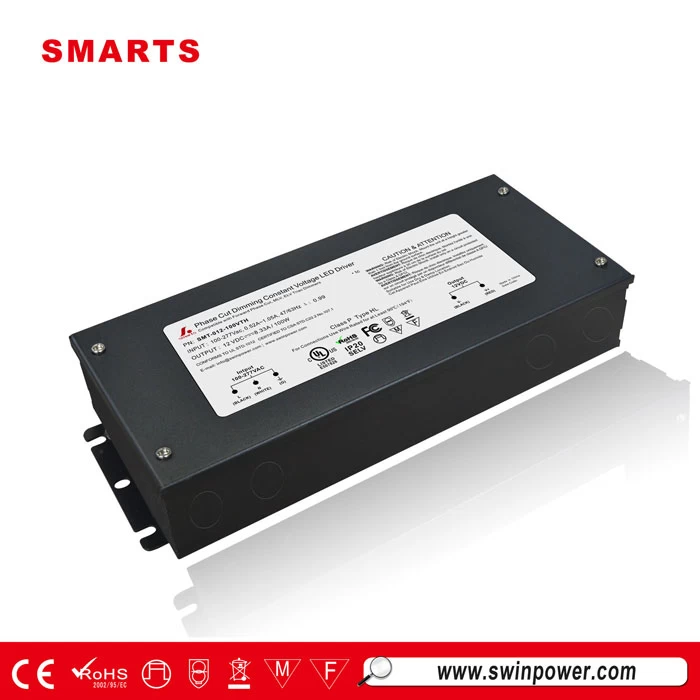

The SMT-012-100VTH LED Driver is 12 volt led driver dimmable and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.
Features of ul listed power supply 12v 100w
·Output constant voltage
·Input voltage range 110-277VAC
·Built-in PFC function, PF> 0.95
·Efficiency > 85% / load:0~100%
·Protections:short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers available
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification of 277v to 12v 100w dc transformer
|
Model
|
SMT-012-100VTH
|
SMT-024-096VTH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.3A
|
4.0A
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
110~277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF ≥0.98/110V , PF ≥0.95/277V
|
|
Full Load Efficiency
|
>84%
|
>84%
|
|
AC Current(Typ.)
|
1.3A @110VAC
|
|
Leakage current
|
< 0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed.
|
|
Over voltage
|
≤ 140VAC(90~135V) , ≤ 270VAC(170~265V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
220*93*41mm (L*W*H)
|
|
packing
|
10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. In the diagram spec sheet it show the dimmer on the N (neutral)? Normally Triac the dimmer is on the L Line?
Answer: Dimmer can be connected on the N (neutral) or on the L (Line). Depending on you.
|
|
Label
|
|
Mechanical Specification of 12v 277v electronic transformer
Dimming Operation
1) The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase/triac dimmer.
2) Usually matching with Forward phase , leading edge , Magnetic low voltage, triac dimmers, or Reverse phase, trailing edge ,Electric low voltage Dimmers.
3) lease try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
