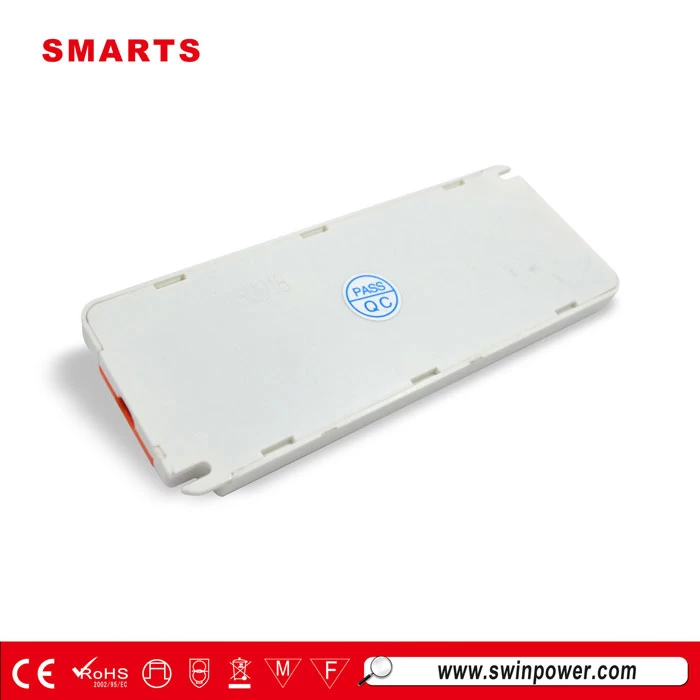

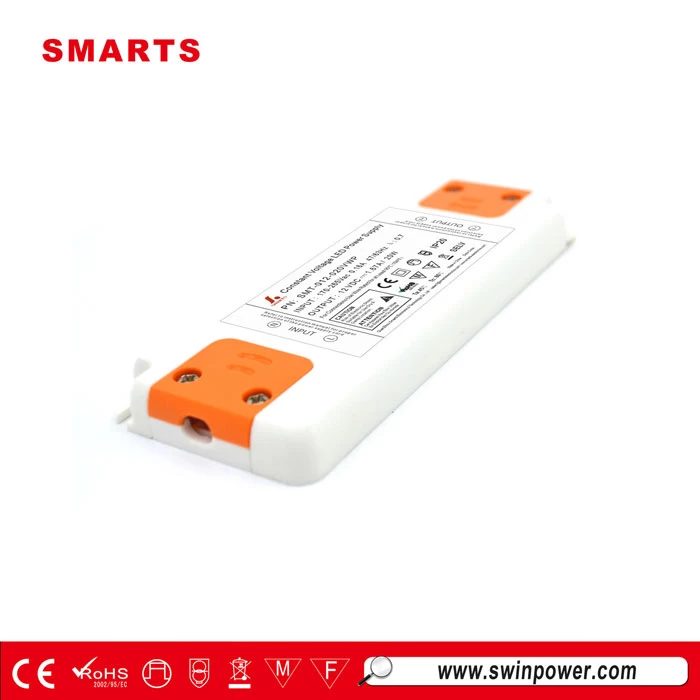

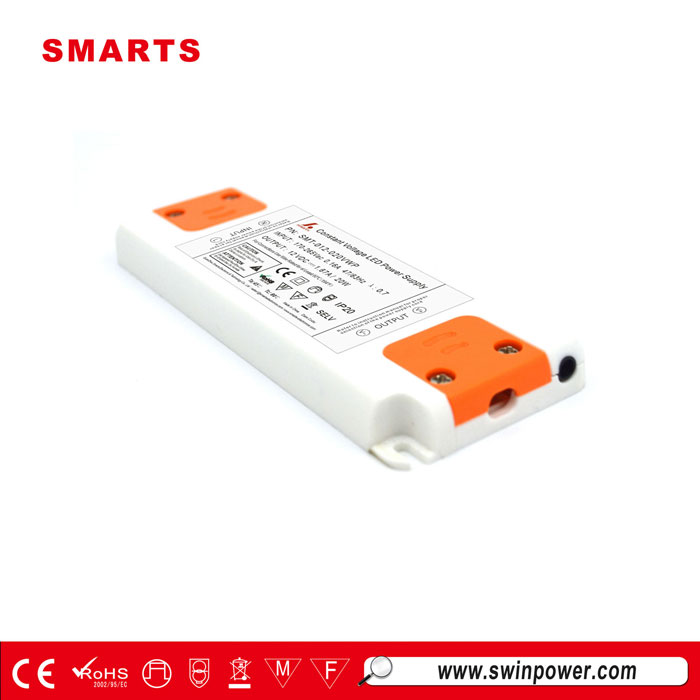

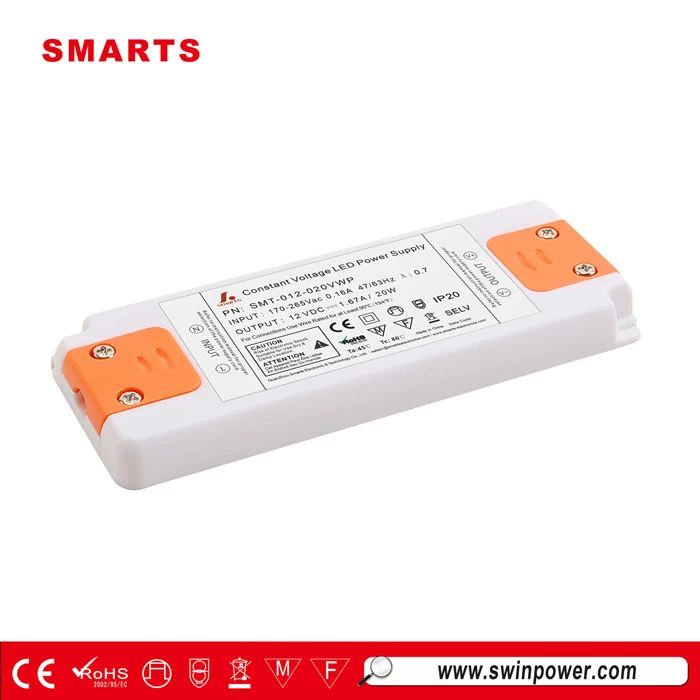

12 volt 20w lighting power supply with plastic case

SCREW TERMINAL CONNECTIONS for easy installation to electrical code.  LED Driver 20w have Super slim size / 127.5*50*12mm for your LED Light projects which limited with space.led flood light power supply


  • Output Voltage12vdc
  • Output Current1.66amp
  • Working Modeconstant voltage
  • Dimming modenon-dimmable
  • Input Voltage100-240V
  • Size127.5*50*12mm
  • Certificationce

12 volt 20w lighting power supply with plastic case

Smarts SMT-012-020VWP is 12 volt lighting power supply  features an IP20 rated non-waterproof design, making it suitable for indoor use and includes integral short circuit and overload protection.


  Feture
  Label for 20w led driver
● IP20 design for indoor installations
● Protections:Short circuit/Overload/Over temperature
● Cooling by free air convection
● 100% full load burn-in test
● Suitable for LED lighting
● Products through CE Certification
● 2 years warranty
12 volt lighting power supply


  Specification

MODEL SMT-012-020VWP SMT-024-020VWP
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 1.66Amp 0.83Amp
VOLTAGE RANGE
RATED POWER 20Watt 20Watt
RIPPLE&NOISE(max) 300mV 300mV
VOLTAGE TOLERANCE ±5% ±5%
LINE REGULATION ±1% ±1%
LOAD REGULATION ±2% ±2%
INPUT VOLTAGE RANGE 200-240VAC 200-240VAC
FREQUENCY RANGE 47-63Hz 47-63Hz
POWER FACTOR(Typ.)
EFFICIENCY(Typ.) >83% >83%
AC CURRENT(Typ.) 0.18A/220VAC
PROTECTION SHORT CIRCUIT Protection type:recovers automatically after condition is removed
OVER CURRENT overload protected@145-160% above peak rating
OVER LOAD 2.8A 1.2A
ENVIRONMENT WORKING TEMP. -10~+50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS EN61347-1;EN61347-2-13; CE /ROHS approval
WITHSTAND VOLTAGE I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC Test Standards EN55015;EN61000-3-2;EN61000-3-3;
EN61547;EN61000-4-2,3,4,5,6,8,11;

  Question

My applications is CCTV Camera


  Answer

If the power supply operating continuously without stopping, we will recommended our clients consider double output power.


  Packing & Shipping


inner box-white box + outer carton- standard exporting carton for packing



triac dimmable led driver

  1. MOQ: 1 pcs
  2. Delivery: 7 working days for sample order,12 working days for 500pcs.
  3. Shipping freight are quoted under your requests.
  4. Loading port: Xiamen


12 volt lighting power supply
