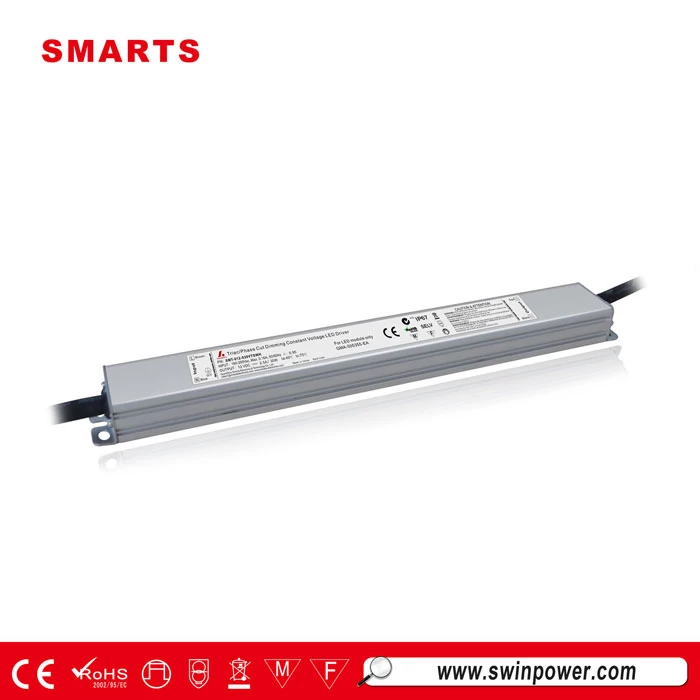

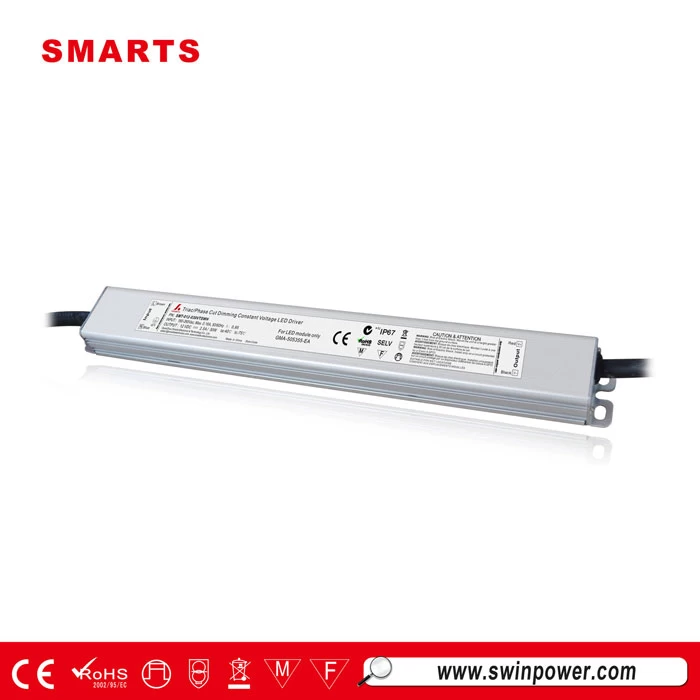

12 volt dc dimmable waterproof led power supply ip67 30w
The SMT-012-030VTSWH is wattage of 30 watt, and its able to work and use in indoor/outdoor led constant voltage lights like LED strips, led modules. its with PWM output, and no minimum load limiation. this model is 170-265vac for EU input voltage range use,power supply with 100-277vac version is also avalible.
Specification of 12v 30w waterproof led driver
|
model
|
SMT-012-030VTSWH
|
SMT-024-030VTSWH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
170-265 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.98/220V
|
|
Full Load Efficiency（Typ.）
|
>79%
|
>81%
|
|
AC Current（Typ.）
|
0.13A/220VAcC
|
|
Inrush Current（Typ.）
|
7A, 50%, 420us
|
|
Leakage current
|
﹤0.25mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:2KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.35Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
50PCS/CTN
|
|
Notes
|
1. If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .
Answer: ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.
|

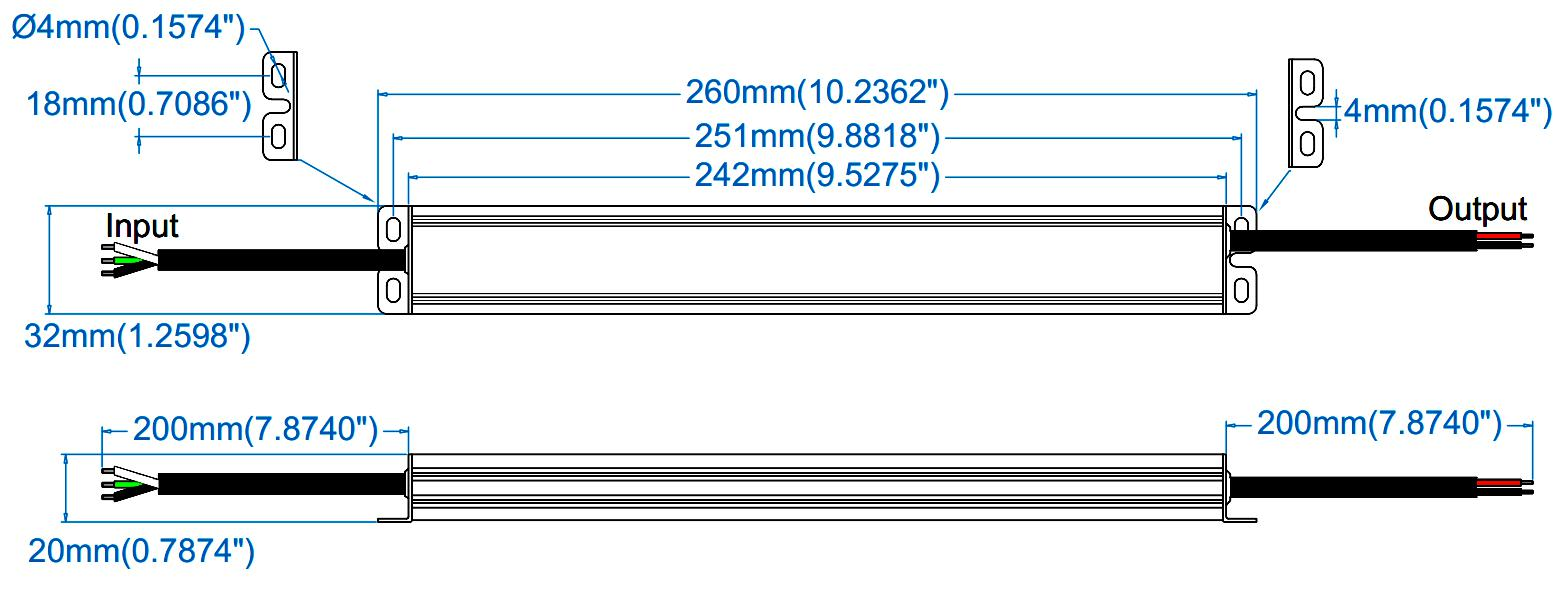

Dimension
More wattage option in super lim type led drivers 30w, 36w 60w 100w led driver, contact us for getting more details.
