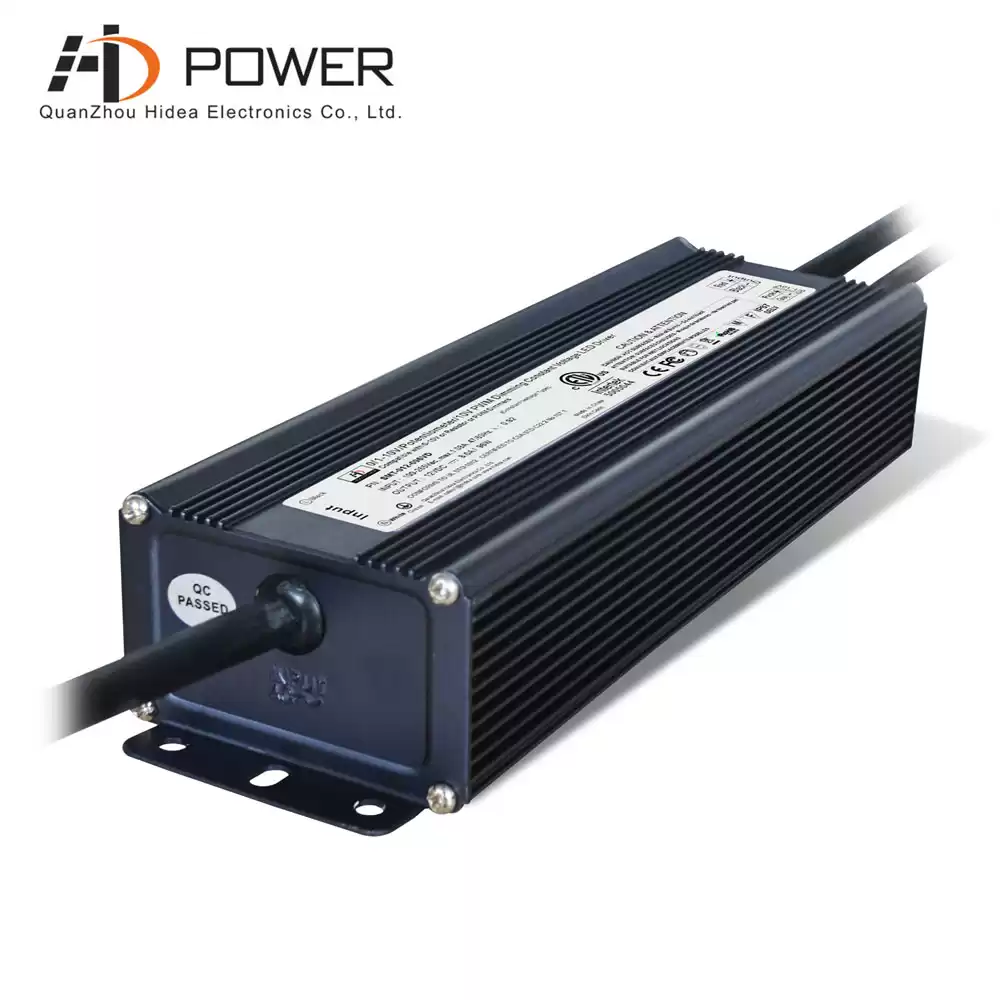

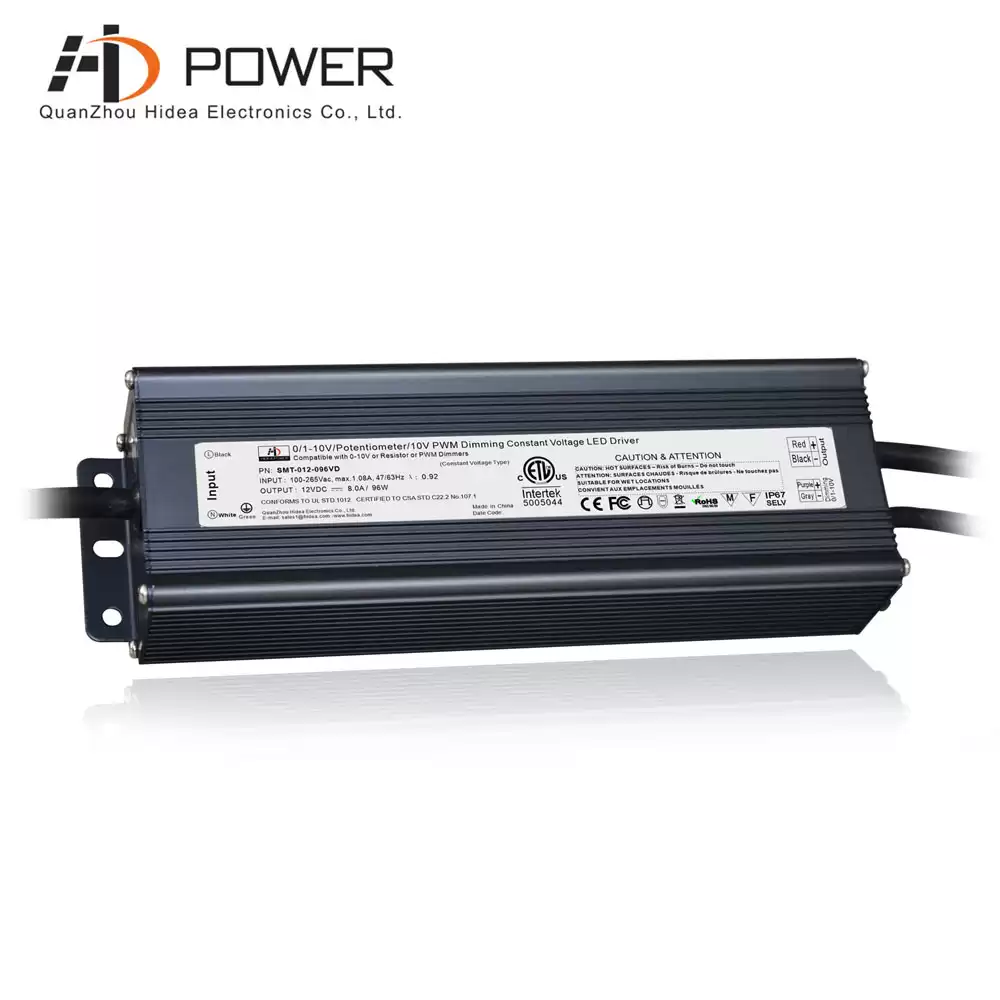

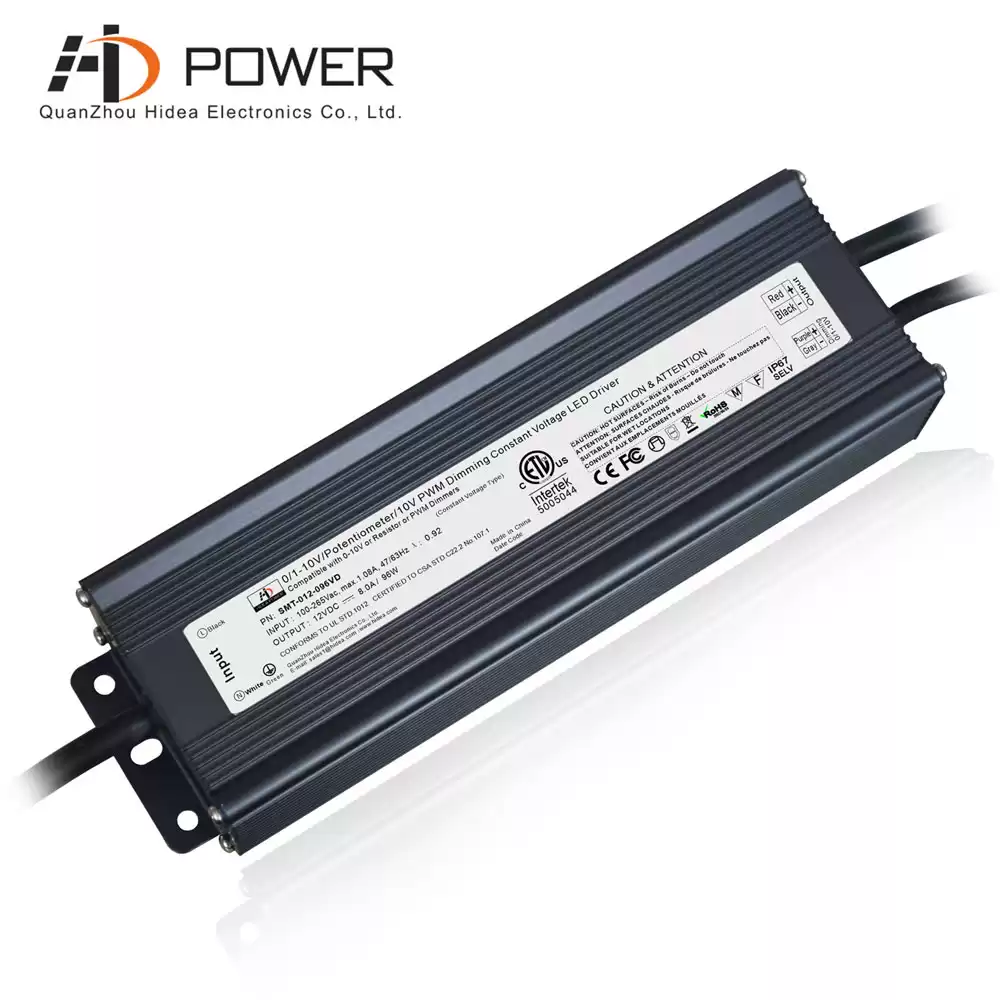

12 volt dimmable led driver conveniently comes with a 3ft power cord and (US) plug for quick and easy Home Depot LED strip lighting installations.The dimmable LED driver allows one to make clean connections inside of the external junction boxes.
Specification
|
Model
|
SMT-012-096VD
|
SMT-024-096VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0-8.0A
|
0-4.0A
|
|
Rated power
|
96W
|
96W
|
|
Ripple&noise Max.
|
200mVp-p
|
250mVp-p
|
|
Input
|
Voltage Range
|
100~130VAC, 170~265VAC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
>0.90
|
>0.90
|
|
Full Load Efficiency(Typ.)
|
>88%
|
>88%
|
|
AC Current(Typ.)
|
1.010A/120VAC 0.713A/170VAC 0.550A/220VAC 0.457A/265VAC
|
|
Leakage current
|
﹤0.25mA/110V,220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-2-13.IP67
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance to EN55015,EN61000-3-2 (≧50%Load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level (surge4KV)
|
|
Others
|
Weight
|
1.32Kg
|
|
Size
|
230*70*47mm(L*W*H)
|
|
packing
|
329*279*176mm/10pcs
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type

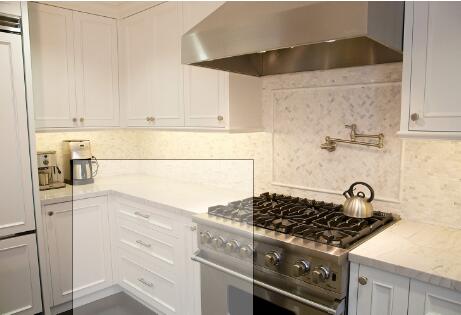

Superbright LED White flexible strip lights produce an energy-efficient, appealing, and long-lasting solution for under-cabinet lighting, task lighting, accent lighting, and more, and compatible with
12 volt dimmable led driver.
Related Products
|

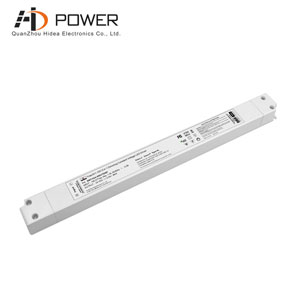

 The slim and compact design makes this 12 volt dimmable led driver an excellent solution for under-cabinet LED lighting.
Mode：SMT-012-096VDSP
Dimming Mode : 0-10V Dimming
Output Power : 96W
intput voltage：100~277V AC
Size：330*30*22MM （L*W*H）
|
