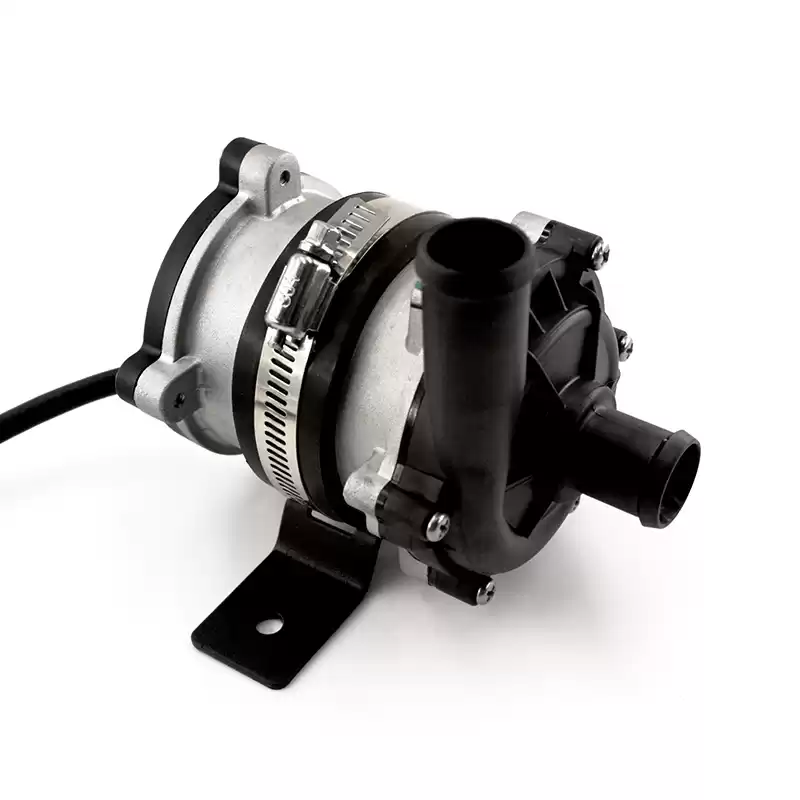

Our High-Performance Coolant Water Pump -- 12 Volt Inline Electric Coolant Water Pump, unmatched Reliability for EV Thermal Management & Ultra-Fast Charging Stations
As the leading manufacturer of electric Auto Water Pump, we are proud to introduce our cutting-edge Coolant Water Pump, specifically designed for electric vehicle (EV) thermal management systems and liquid-cooled ultra-fast charging stations / piles. Our pump is engineered to deliver consistent, reliable cooling performance in the most demanding environments, ensuring your EV systems operate efficiently and safely.
Advanced Protection Features:
- Dry-Running Protection: Prevents damage if the pump runs without fluid.
- Over-Current Protection: Automatically shuts off to prevent overload.
- Blocked Protection: Ensures the pump stops if the rotor is blocked.
- Over-Voltage & Lower-Voltage Protection: Safeguards the pump against voltage irregularities.
- Over-Temperature Protection: Stops the pump if the temperature exceeds safe levels.
- Constant Power Regulation: Maintains consistent performance under varying conditions.
- Reverse Polarity Protection: Prevents damage from incorrect wiring.
Our Coolant Water Pump is not just a component—it's a critical part of ensuring the safety, efficiency, and longevity of your electric vehicle or charging station systems. Here's what sets it apart:
- Superior Efficiency: With a power consumption of just 60W, our pump delivers a maximum flow rate of 45L/min and a head of up to 9 meters, ensuring your system remains cool under pressure.
- Extreme Durability: Operating effectively in temperatures ranging from -40℃ to 100℃, our pump is built to withstand harsh environments, guaranteeing a long lifespan of over 20,000H.
- Quiet Operation: A noise level of ≤45dB ensures that your systems run silently.
- Unmatched Safety: Our pump's comprehensive protection features ensure that it operates safely and reliably, even in challenging conditions.
Applications:
- Electric Vehicle Thermal Management: Keep your EV's battery and motor at optimal temperatures, preventing overheating and extending the life of your vehicle.
- Ultra-Fast Charging Stations/Piles: Enhance the performance of your charging stations with our pump, which delivers the precise cooling needed for rapid charging processes
- Electric Truck
- Cargo Truck
- Cargo Van
- Hybrid Bus
- Electric Shuttle Bus
- Micro Bus
- Electric Tourist Bus
- Camping Trailer
- Small RV
- Motorcycle
- Liquid Cooled Ultra-fast Charging
- Coolant Transfer
- Cooling System

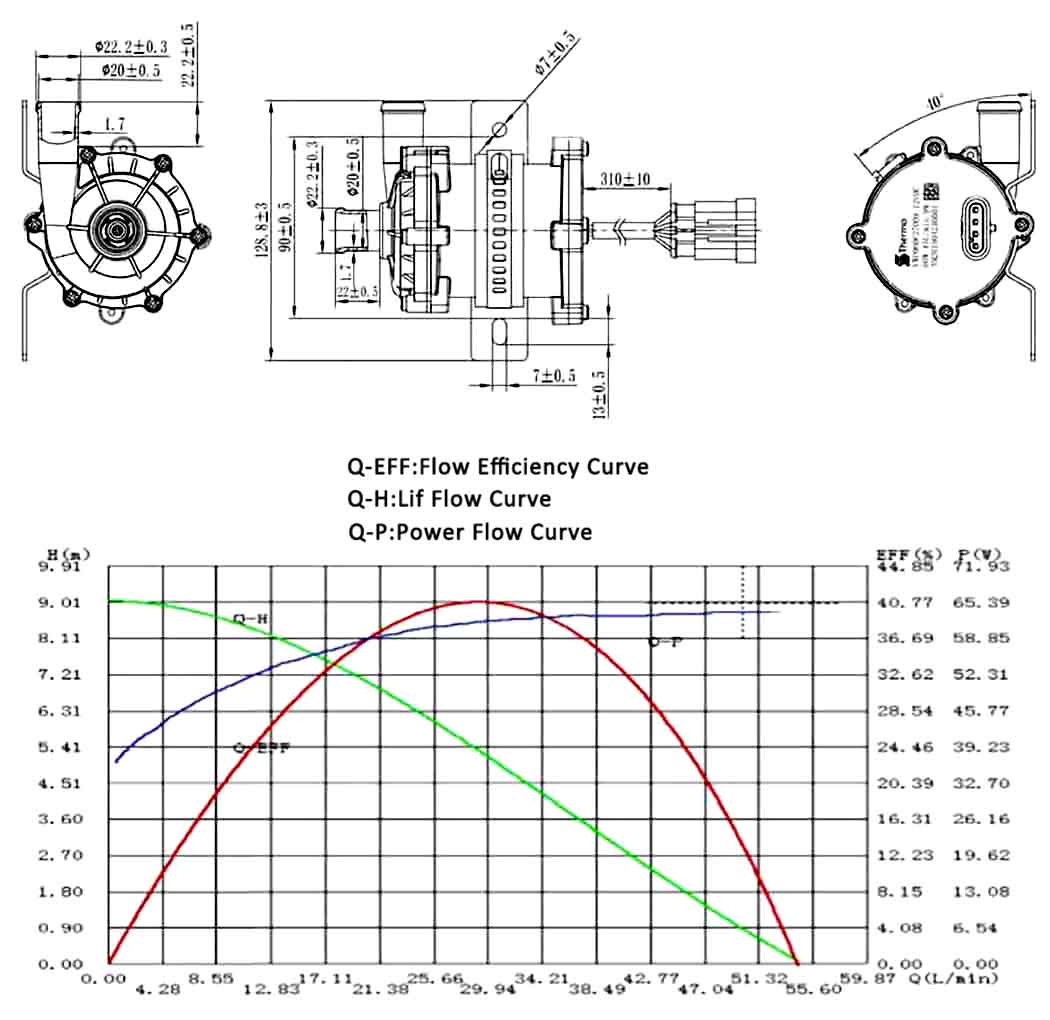

| EWP060F |
| SPECIFICATION |
|
FEATURE |
| Rated Voltage |
12V DC |
Ambient Temperature |
-40~100℃ |
| Rated Current |
5A(1±10）% |
Medium Temperature |
-40~100℃ |
| Rated Power |
60W(1±10%） |
Lifetime |
≥20,000H |
| Max Flow |
≥45L/min |
PWM |
Customization |
| Max Head |
9M±1 |
FG Signal |
Customization |
| Noise: |
≤45dB@1m |
Weight |
650g |
| Insulation |
F (155℃） |
Waterproof |
IP67 |
Get in Touch
Elevate your thermal management solutions with our high-performance Coolant Water Pump. Whether you're manufacturing electric vehicles or developing charging infrastructure, our pump is the reliable choice for keeping your systems cool and efficient.
