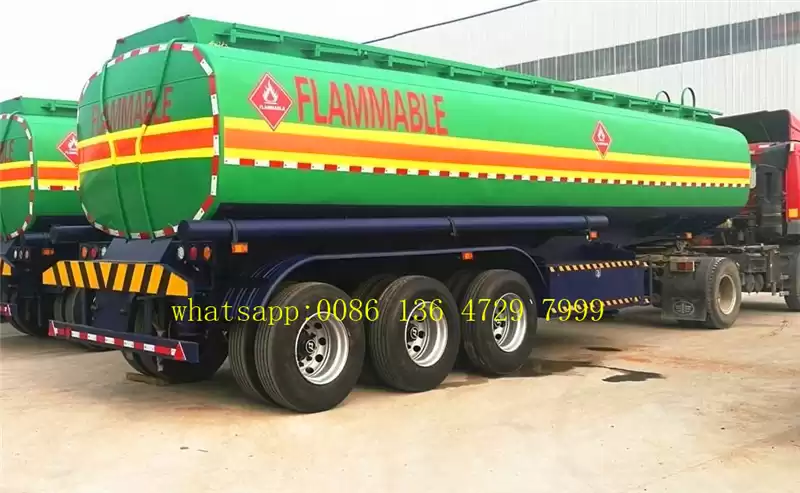

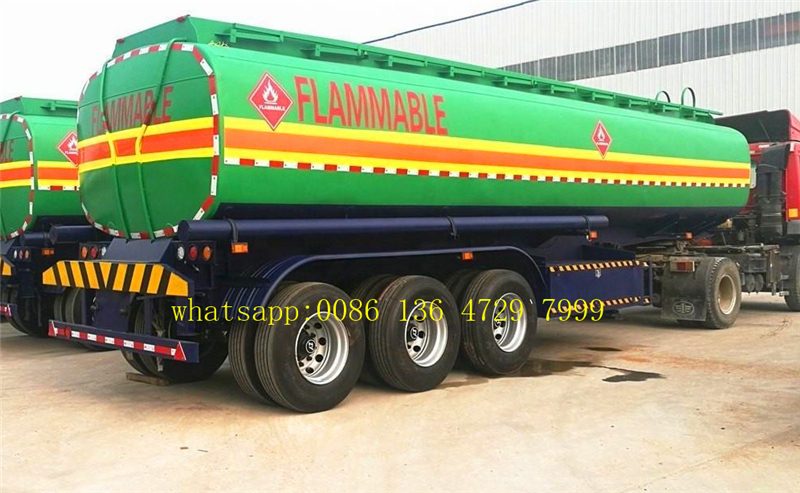

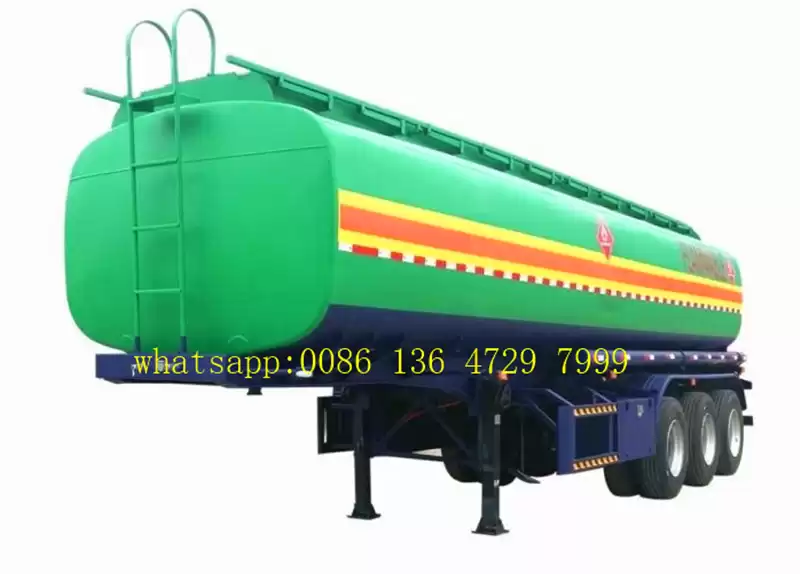

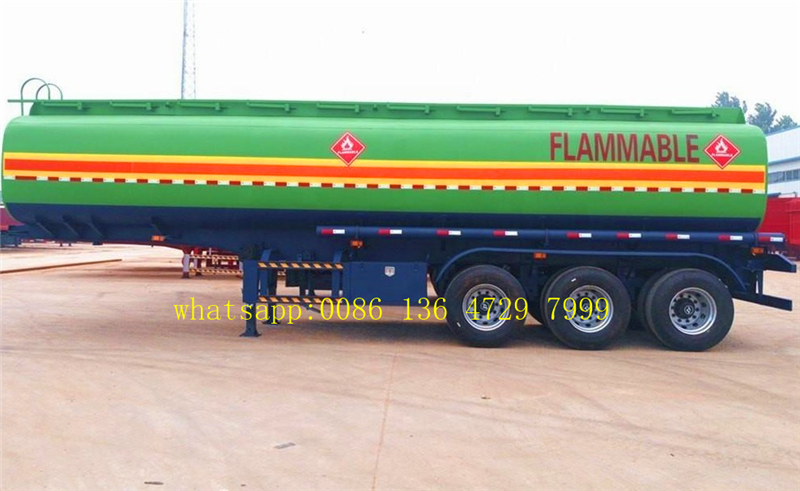

12 Wheeler 50000 Liters Oil/Fuel Tank Trailer
Applications:
12 wheeler fuel tanker semitrailer, also called as12 wheeler oil tanker semitrailer, 12 wheeler fuel wagon semitrailer africa, 10 wheeler fuel tanker body semitrailer afria . As premium africa fuel tanker semitrailer manufacturer, we aim at supply reliable oil tanker semitrailer for all africa customers.
** fuel tanker trailer Tank material could be carbon steel, stainless steel, alluminum……
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** OPW (Civacon) bottom loading
system can be equipped: API connections, over-fill detection system ,
vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic
control, bottom emergent valve……
** Tube or tubeless tyres, off-road single tyre for bad roads.
Key Features:
---- 30 years on semitrailer manufacturing, germany benz technology assurance.
---- All genuine spare parts , 20,000 km maintenance
---- 12 months after sale service guarantee
---- Service for more than 200 horned customer , export more than 100 countries.
---- Patented design on semitrailer, reliable and
Specifications:
Dimension and Weight
|
Overall Dimension(mm)
|
12500x2500x4000mm
|
Wheelbase
|
8,500mm+1,310mm+1,310mm
|
Payload
|
50,000kg
|
Tare weight
|
9,000kg
|
G.V.W.R.
|
59,000kg
|
Function
|
transport Fuel, Oil, Diesel
|
Tank
|
Volume
|
50000L
|
Thickness(mm)
|
Material Q235 carbon steel
Tank body and separate compartment plate: 5mm
Dish end plate: 6mm
|
Welding standard
|
All welding are to be done by qualified welder per applicable national standard
|
Compartment
|
3 compartments ( 3*14000L )
|
Manhole cover
|
3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
|
Discharge valve
|
3units 3
|
Bottom valve
|
3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
|
Discharge pipe
|
3 seamless steel tube, 6m
|
Tanker body test
|
Hydrostatic test to 5 psi (35 Kpa) on each compartment
|
Running System
|
Axle
|
14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
|
Axle Number
|
Three
|
Tire
|
12R22.5, 12 pcs. Taitong brand
|
Rim
|
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
|
Suspension system
|
Mechanical Suspension
|
Steel Spring
|
10/10/10 leaf spring with 90mm(W) *13mm(thickness)
|
Electrical System
|
Chinese standard 24V lighting system
|
Brake system:
|
Dual line pneumatic brake, SAE hose and connector,no ABS
|
Brake air chamber
|
6 units T30/30 spring brake chambers
|
Emergency relay valve
|
Wabco relay valve
|
Tire Type and quantity
|
1200R22.5 12units
|
Traction/King Pin
|
2 and 3.5 removable Kingpin, bolted in type 500mm from the front face of the front bolster
|
Landing Gear
|
Zhenhua brand |
