12 wheeler tipper truck

Best Chinese beiben 8x4 Dump Truck, benz NG80 Tipper Truck with Mercedes Benz Technology, weichai 380 HP engine, FAST 12-shift manual geabox, 100T loading capacity, HYVA lifting device, Left handed drive and right handed drive available



beiben 8*4 drive dump truck supplier CEEC TRUCKS have more than 15 years experience in manufacturing beiben 3134, 3138, 3142 dumpers trucks. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 12 wheeler earth moving tipping trucks for congo, kenya, tanzania, etc.



Professional Beiben 8*4 tipper truck manufacturer in China

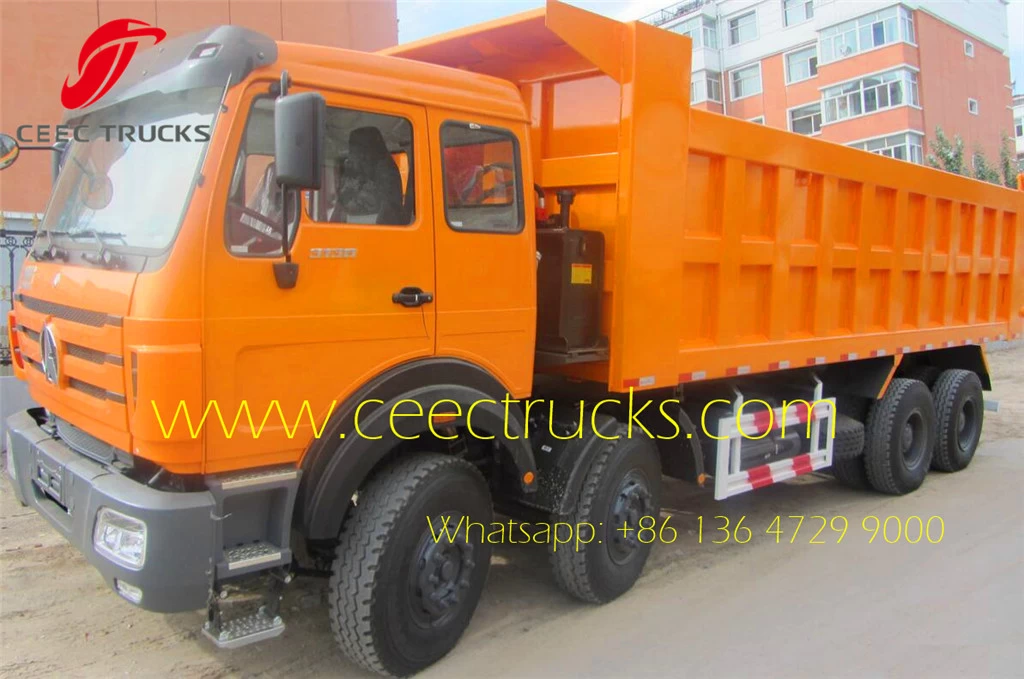

beiben 12 wheeler dumper truck



Front Lift north benz 8*4 Dump Truck advantages:

★  Widened and thickened pillars and ribs of the beiben 3134, 3138, 3142  dump body are densely distributed to ensure powerful anti-expansion performance of the beiben dump trucks dump body

★  The thickened channel steel of rear body + full welds guarantee high strength and impact / wear resistance

★  Ultra-large cast steel lock hook + manual hook feature good sealing performance and high reliability.

★  Four longitudinal beams of frame are in matts structure and the heighted and thickened cross beams are densely distributed to achieve a strong and impactresistance frame.

★  The subframe adopts rectangular tube longitudinal beams and the integral structure features high strength.

★  Beiben 380 Hp engine 12 wheeler dump truck Powerful pump and large pipes of the hydraulic system realize fast lifting speed, high dumping efficiency, and durability.



 beiben 12 wheeler dumper truck

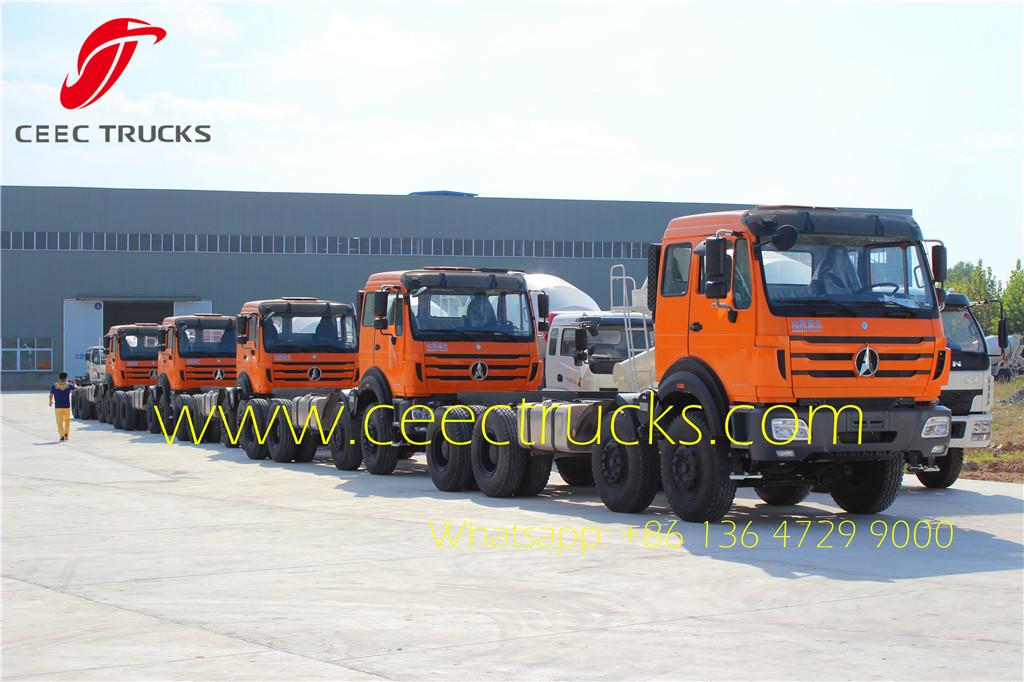

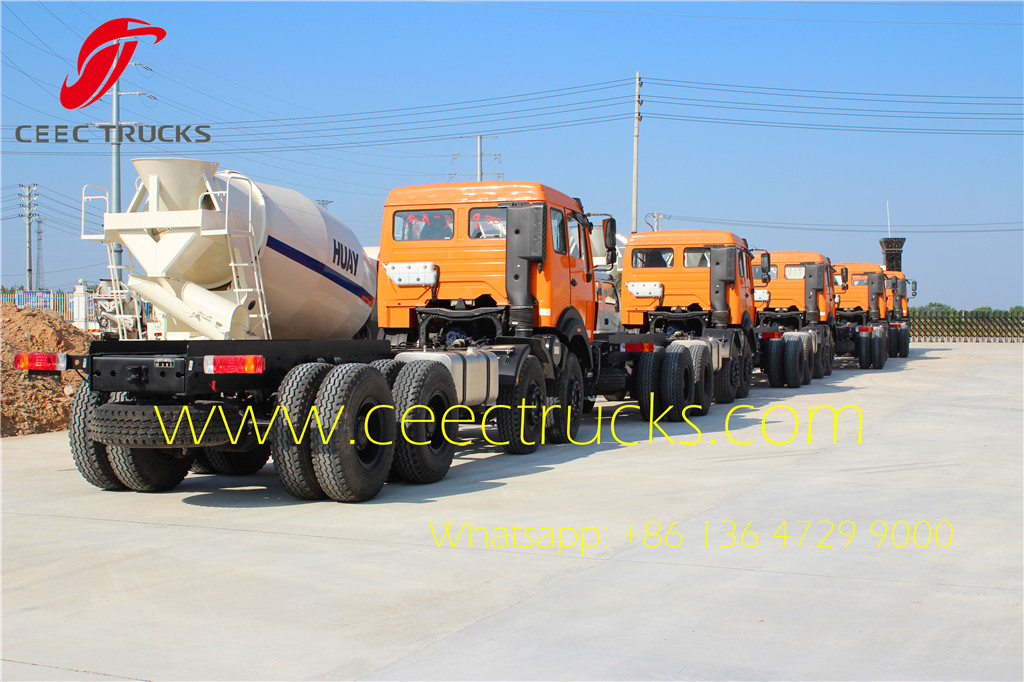

Totally 8 units beiben 8*4 Dump Truck export to Algeria:

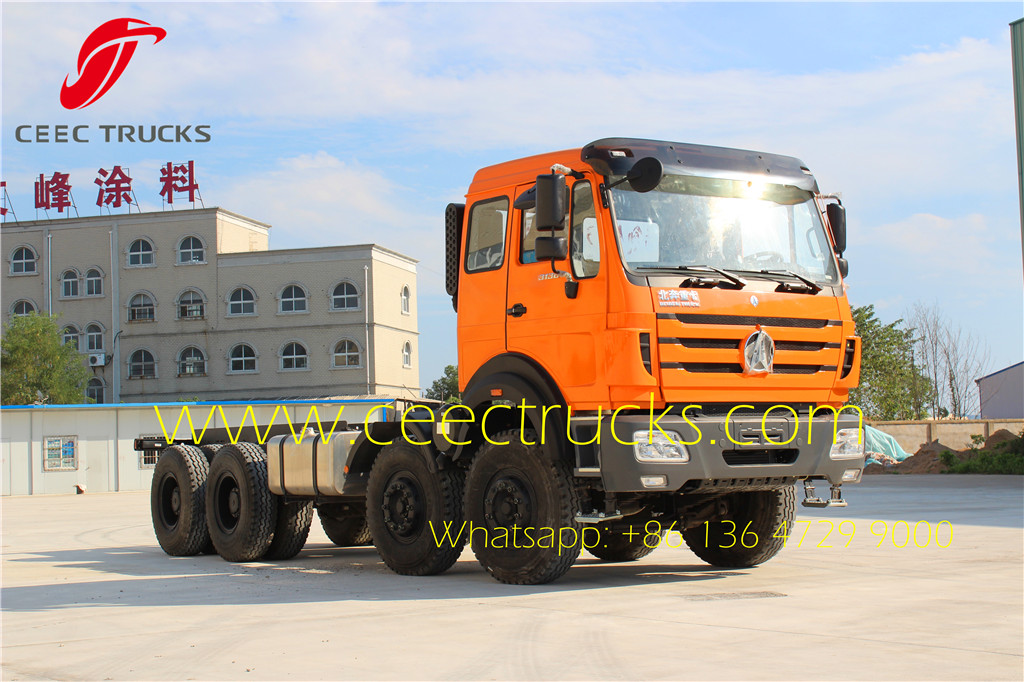

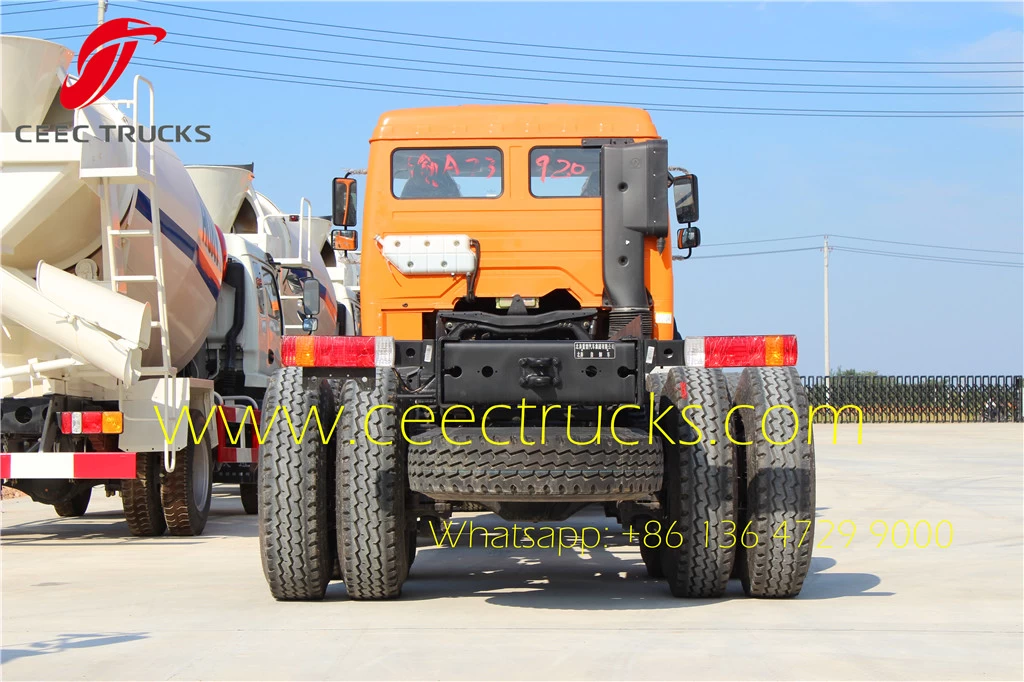

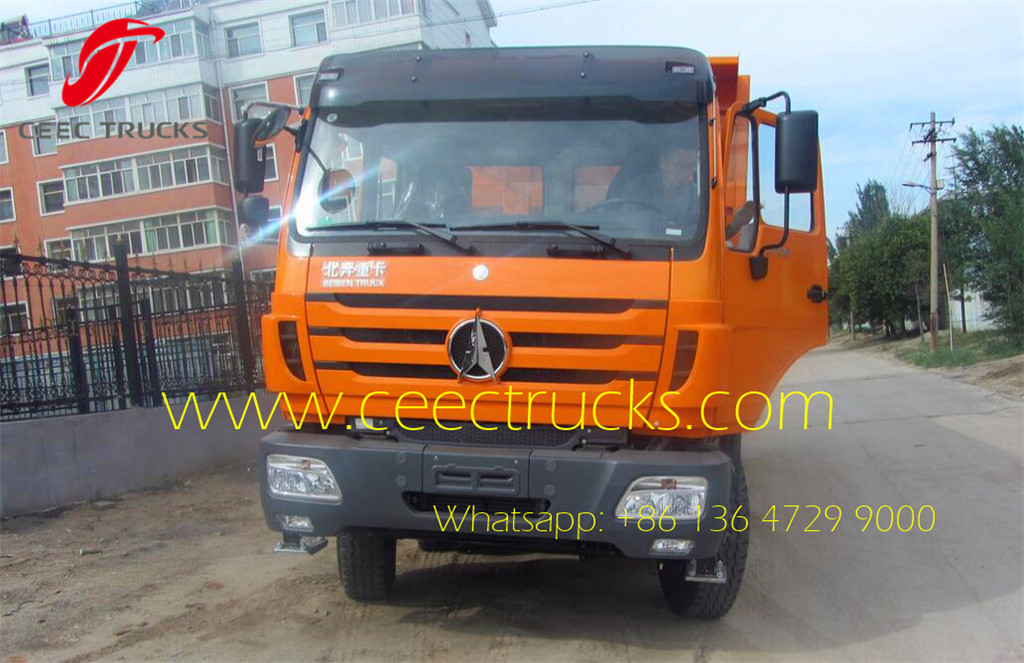

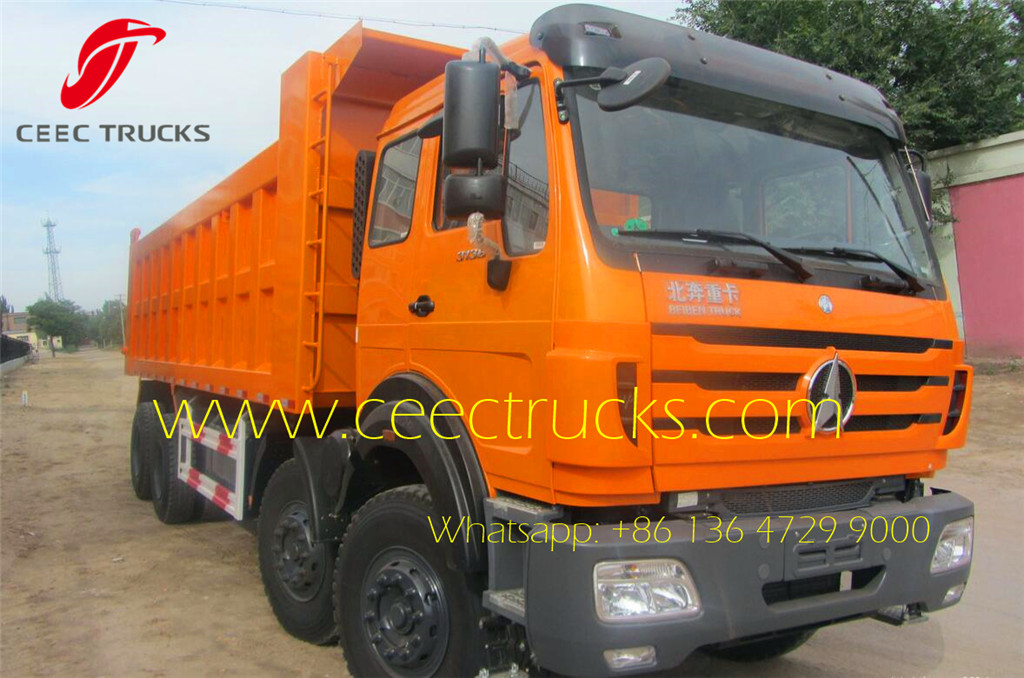

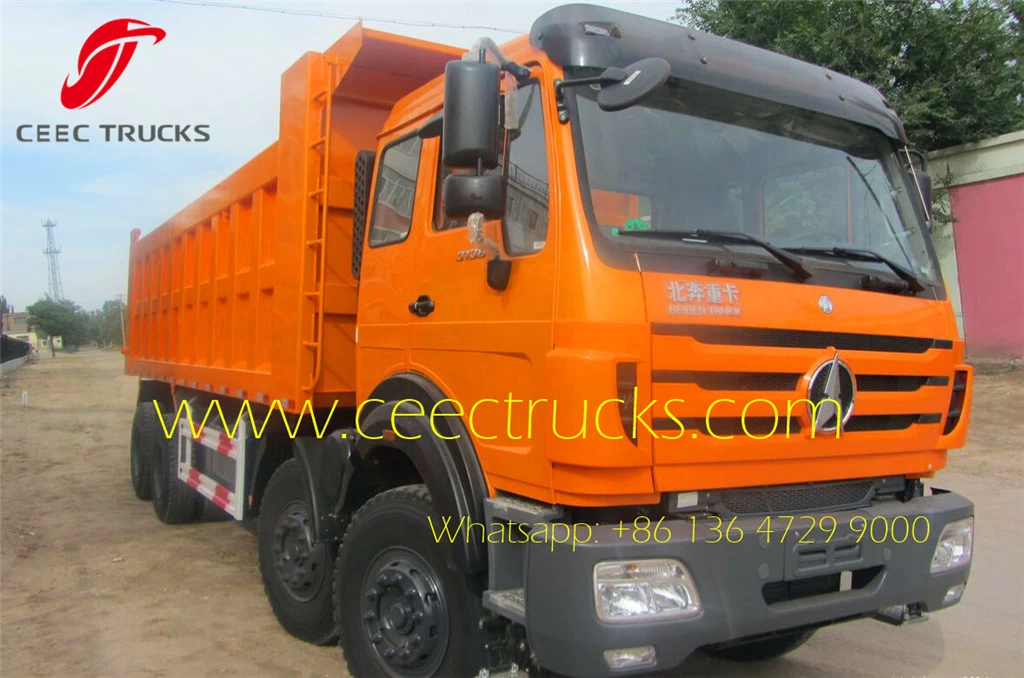

beiben 3138 tipper truck

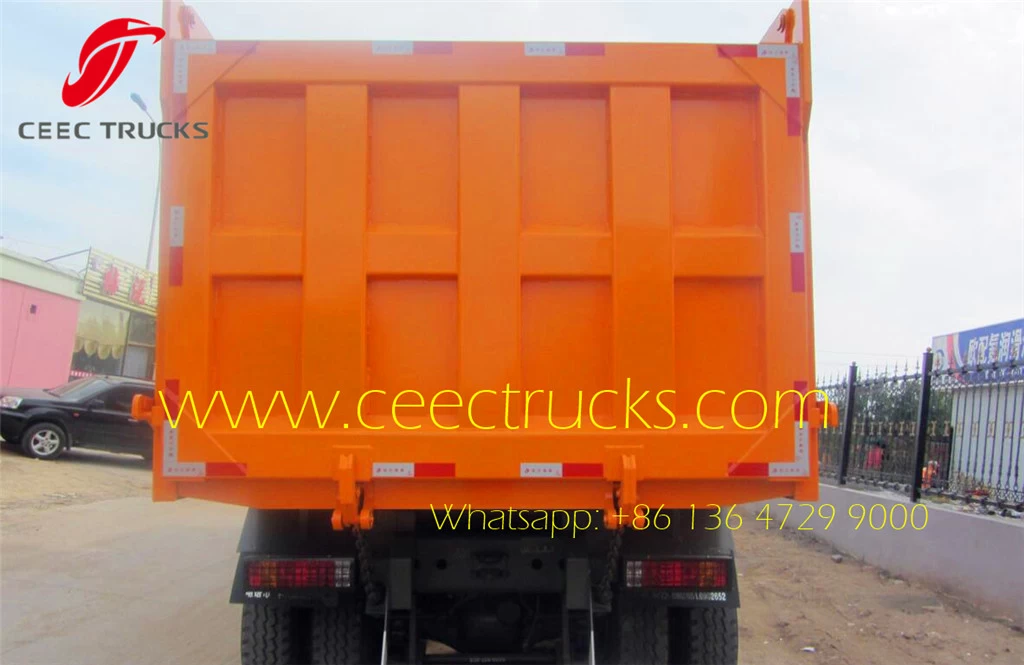

beiben 3138 tipper truck

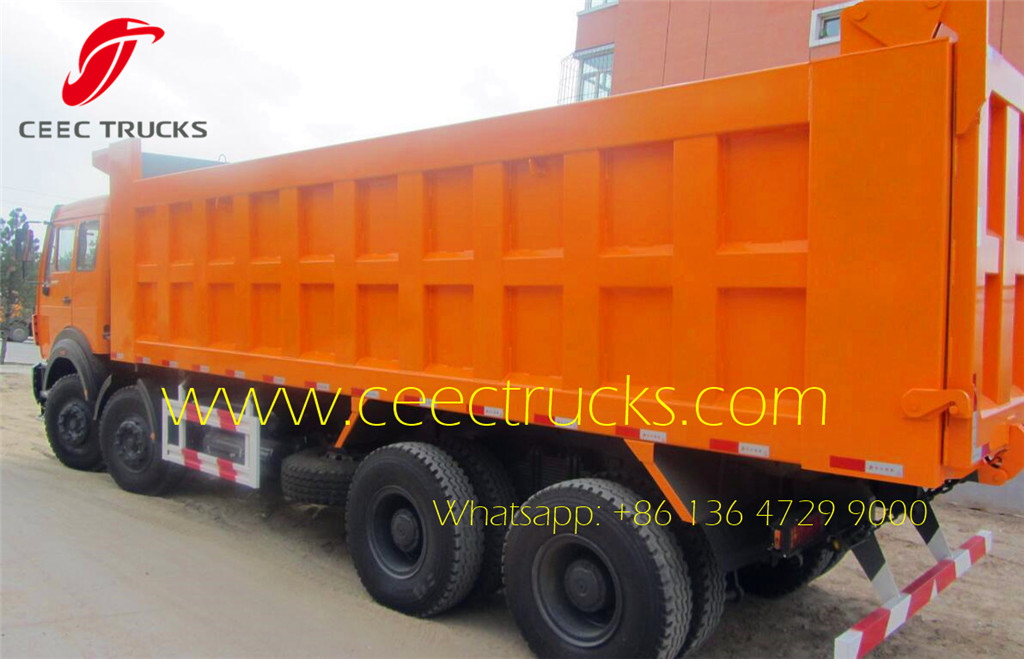

beiben 3138 tipper truck

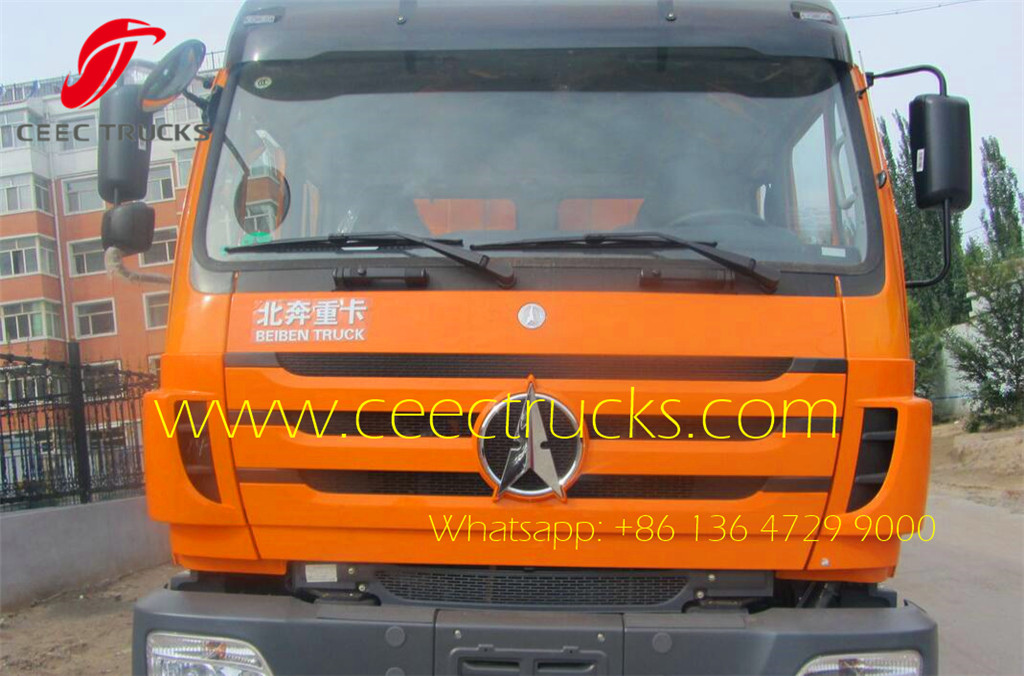

beiben 3138 tipper truck    beiben 3138 tipper truck

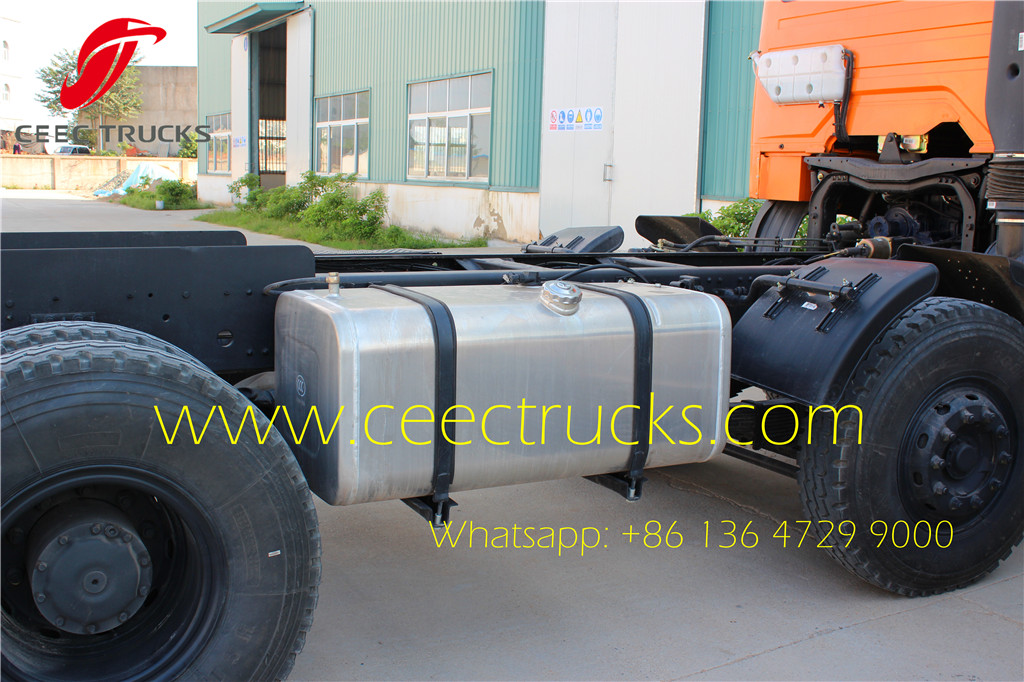

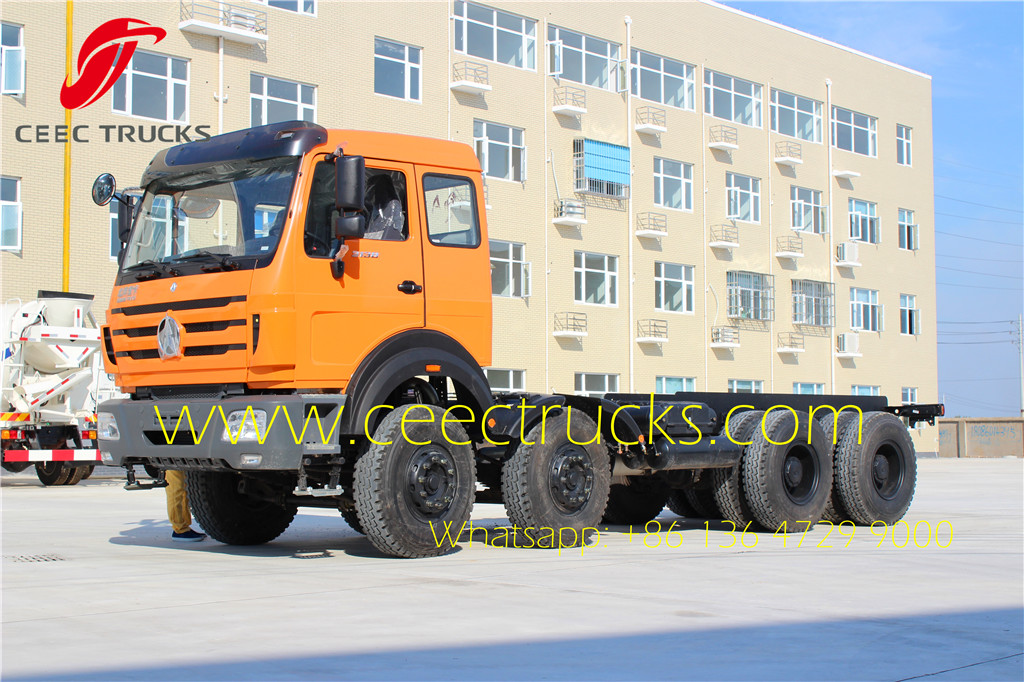

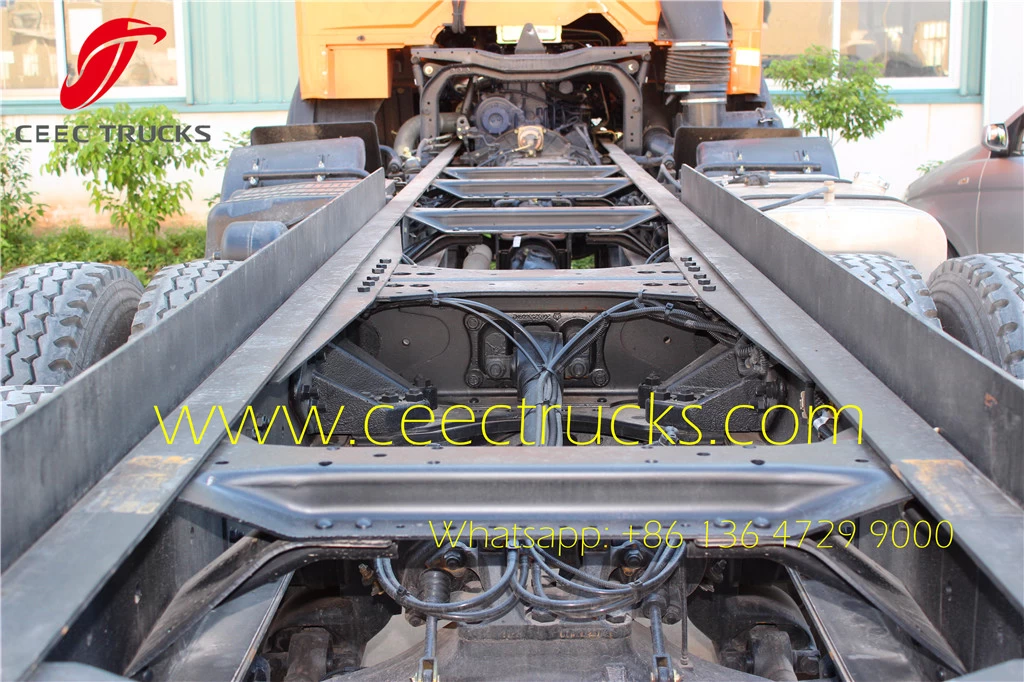

beiben 3138 tipper truck chassis    beiben 3138 tipper truck chassis



Similar key words: beiben 8*4 dumper truck, beiben 3138 tipper truck, north benz 12 wheeler dump truck, international best beiben 8*4 tipper trucks, beiben dump truck supplier

Beiben 10 wheeler dumper truck advantage

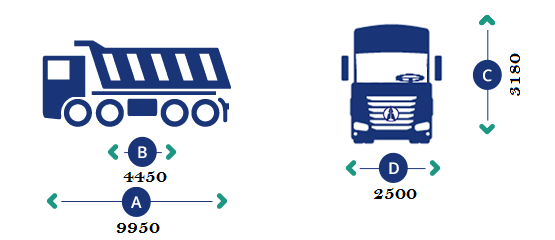

Overall dimension(mm)

9950x2500x3180

Wheel base  (mm)

1500+4450+1450

Curb weight kg

11200

Engine

Model

WP10.336(Wei Chai engine.Euro II,Based on Styre technology, made in China)

Power, max   kw/rpm

247/2200

Max torque(Nm/rpm)

1250/1200-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

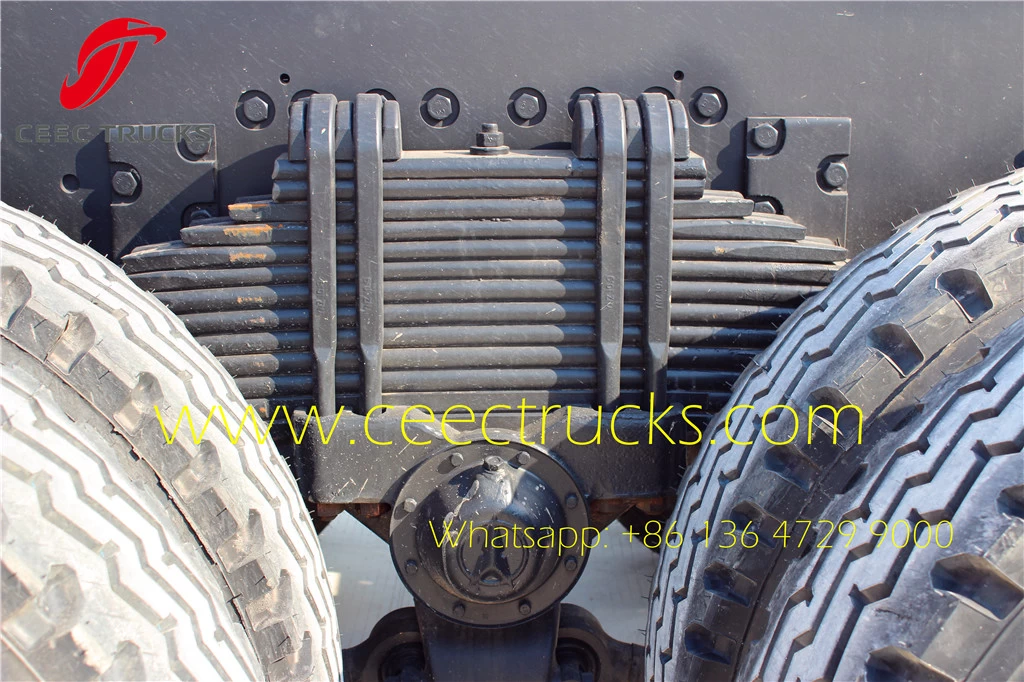

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C

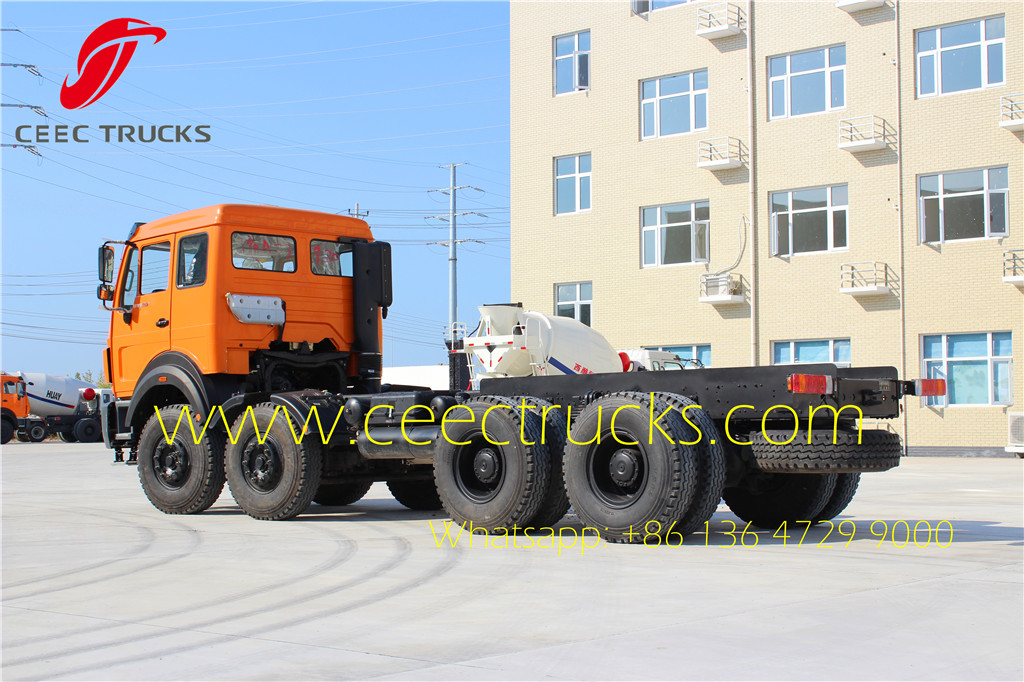

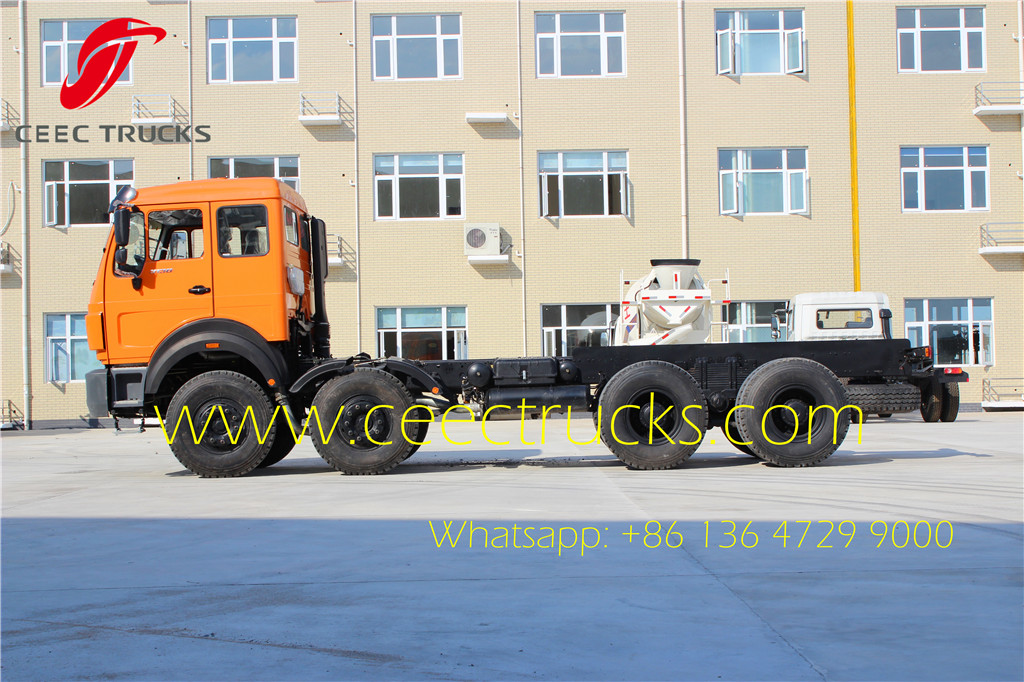

beiben 3138 tipper truck chassis
