120 volt led power supply dimmable 12vdc for led lights
120 volt led power supply dimmable 12vdc for led lights is IP20 design for indoor installation, dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386 and the dimming range from 0.1% to 100%

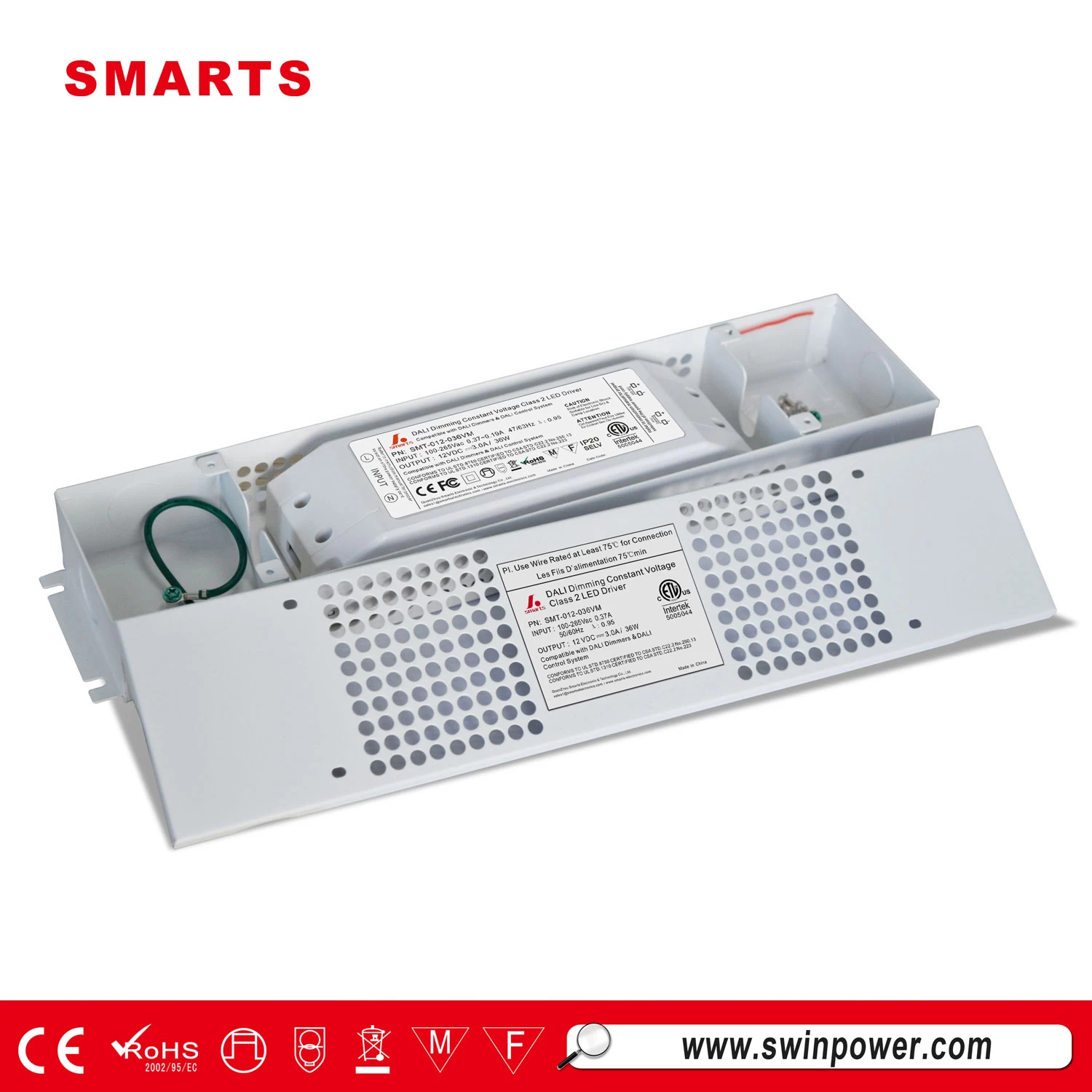

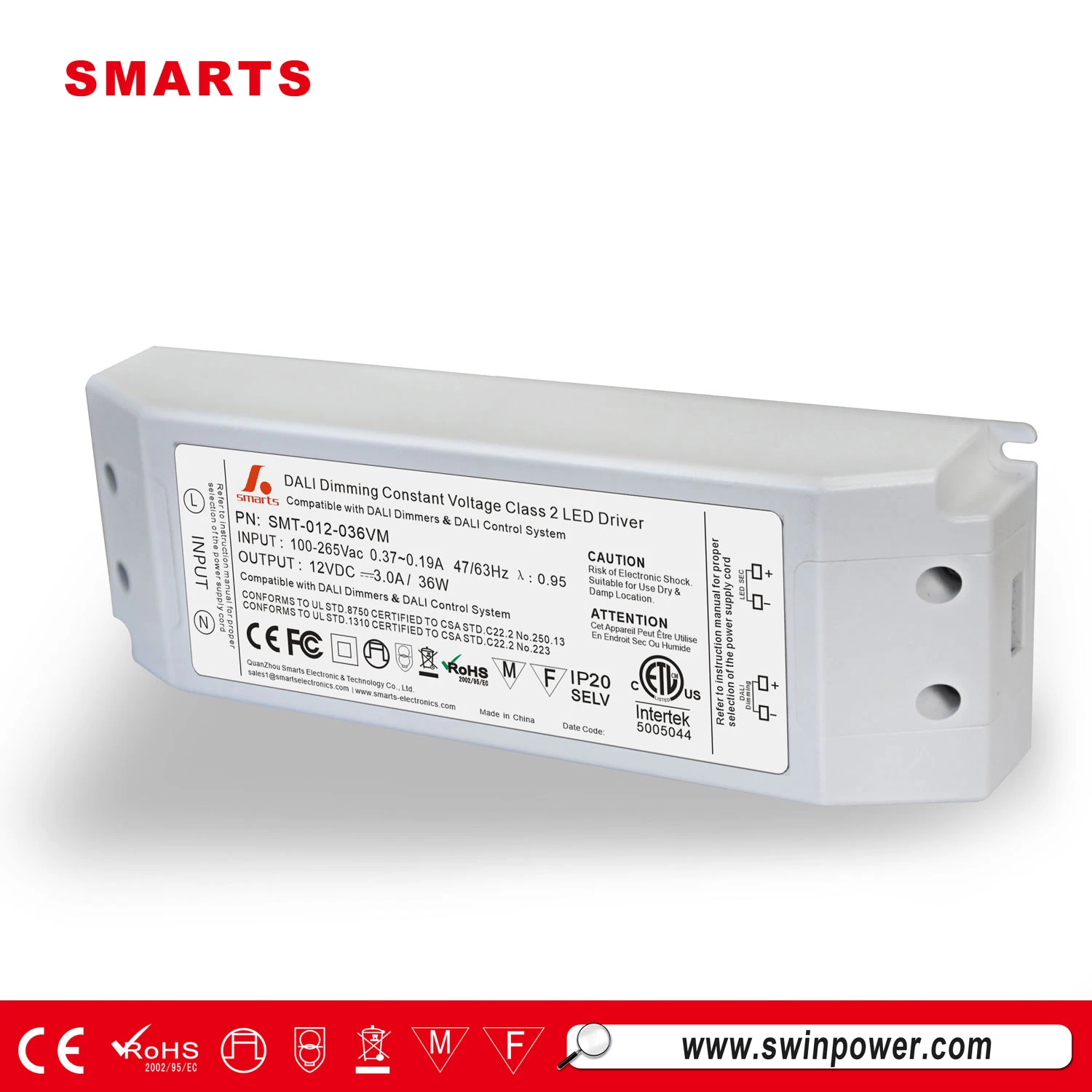

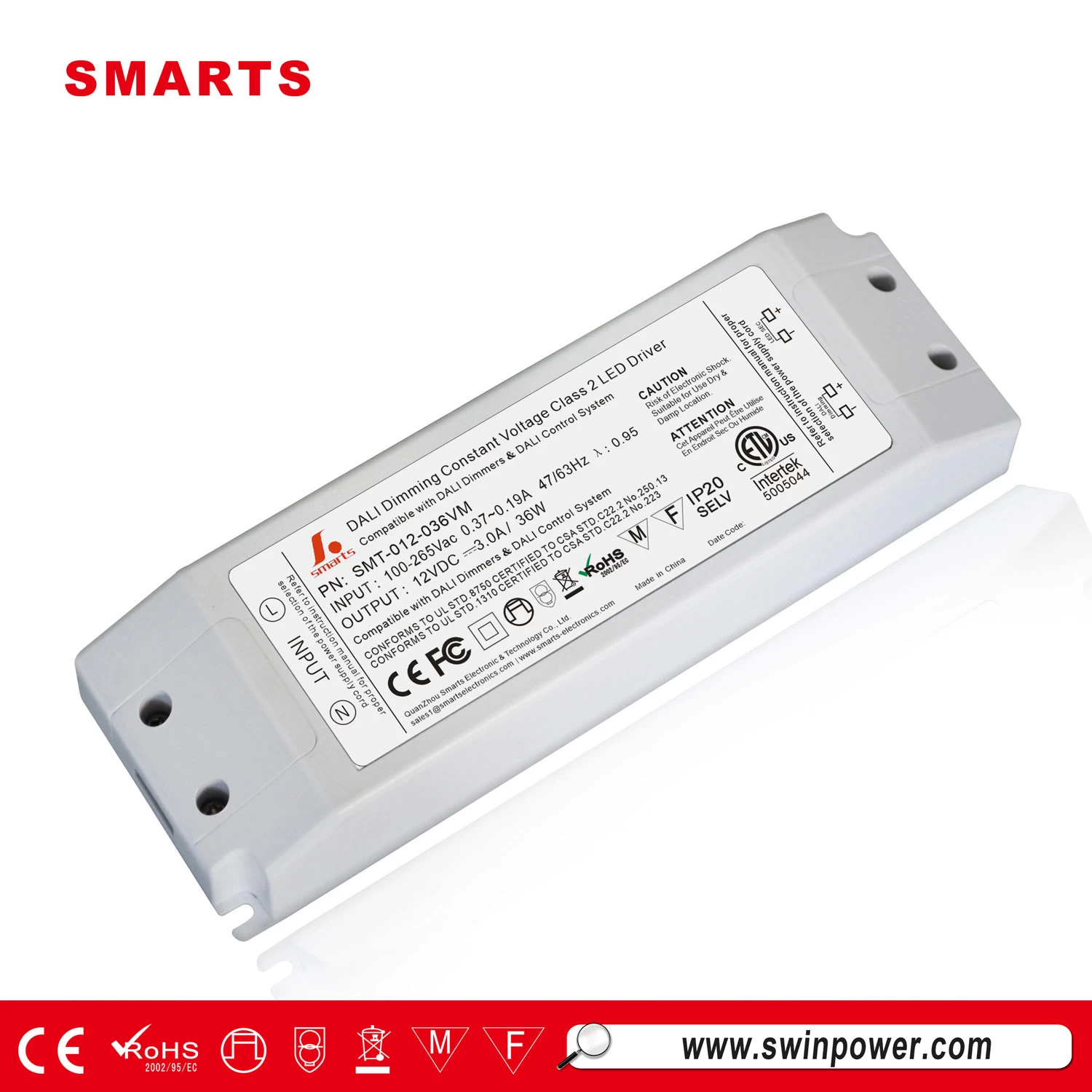

Product picture:
Specification:
|
Model
|
SMT-012-036VM
|
SMT-024-036VM
|
SMT-036-036VM
|
SMT-048-036VM
|
|
output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage Tolerance
|
±0.5V
|
|
Rated current
|
0～3.0A
|
0～1.5A
|
0～1.0A
|
0-0.75A
|
|
Rated power
|
36W
|
|
input
|
Voltage Range
|
100~130VAC, 170~265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor （Typ.）
|
PF≧0.90/110V / PF≧0.90/220V
|
|
Efficiency（Typ.）
|
>88%
|
>88%
|
>88%
|
>88%
|
|
AC Current（Typ.）
|
0.41A@110VAC
|
0.21A@VAC
|
|
Leakage current
|
﹤0.40mA/110VAC / ﹤0.50mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Loading
|
≦120%
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～90%RH, non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015,EN61000-3-2,3 (≧50%loading)
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11(Surge 4KV）
|
|
Others
|
Net.Weight
|
0.55Kg
|
|
Size
|
180*60*34mm（L*W*H）
|
|
packing
|
355*215*215mm/20pcs/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated load
and 25℃of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again
|

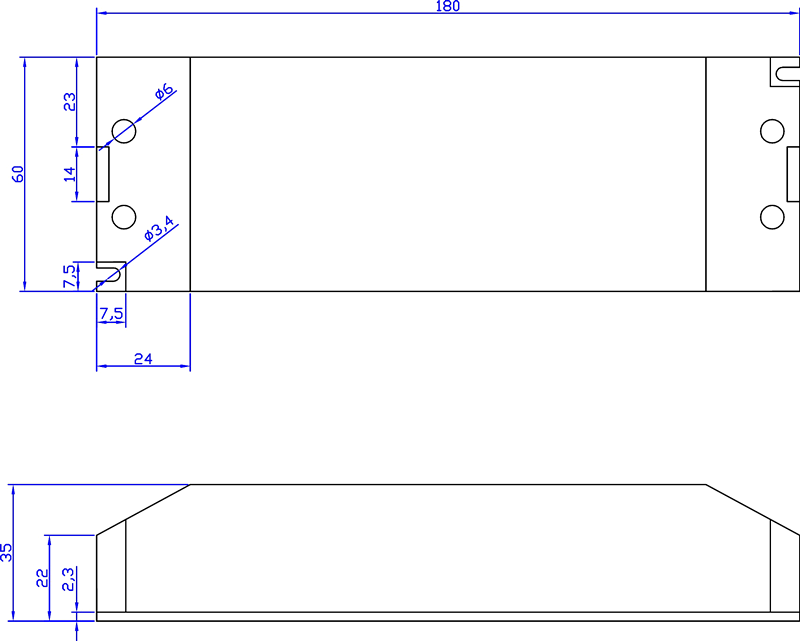

Mechanical Specification:
※Input with Live Wire(L) Neutral Wire (N)
※Output LED SEC output Positive(LED+),output negative(LED-).Connected to LED Lamps.

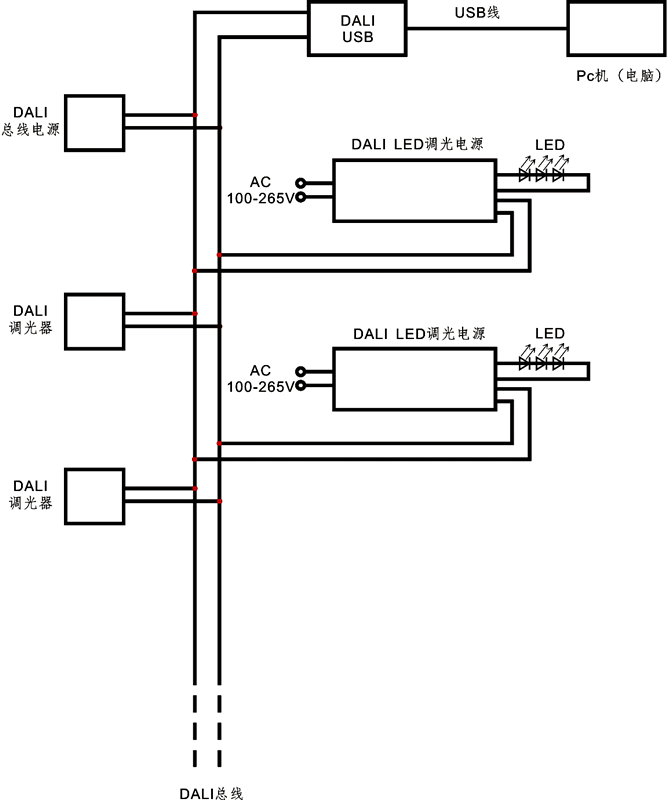

※Signal Dimming （DA1）, (DA2） DALI Non polar！Connected to the BUS of the DALI Master.
※ When installing the LED driver and making input and output connections, cross-section area of conductor for input and output terminal block:0.75mm²(cord type: H03VVH2-F or H03VV-F).
※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Opreation reference:
■Instruction:
1)This driver should be installed by qualified and professional person;
2)Please make sure the transformer is installed with adequate ventilation around it to allow for heat dissipation.
3)Ensure that wiring is correct before test in order to avoid light and power supply damage;
4)If driver Cannot work normally, don’t maintain privately; Have any question, please contact: sales1@smarts-electronics.com Thanks.
