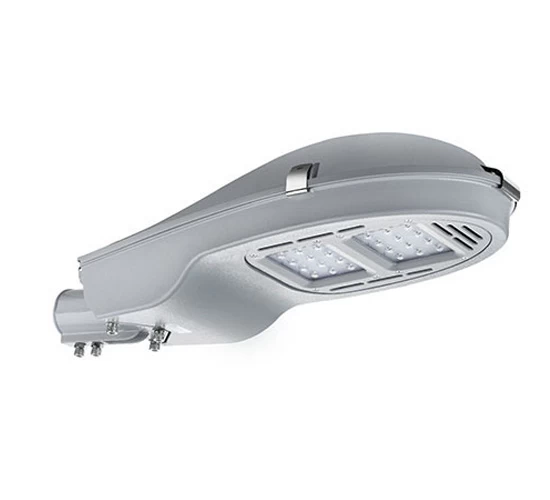

120 Watt 8 Years Warranty LED Street Lights Retrofit Kits

120Watt 8 Years Warranty LED Street Lights Retrofit Kits

Feature:

1. Led Lighting Source: Cree-Xlamp XT-E

• Max. Efficacy at binning conditions 178lm/w
• Max. Light Output 629lm
• Max. Power: 5W
• Max. Driving Cuurent up to 1500mA
• Typical Forward Voltage 2.85V@350mA
• Binning and characterization in Tj=85
• Size: 3.45*3.45mm

2. Power Supply: Meanwell HLG series

•  Constant Voltage + Constant Current mode output
•  Matal housing with Class I design
•  Built-in active PFC function
•  Class 2 power unit
•  IP67 Rating for outdoor installation
•  Function options; output adjustable via potetiometer; 3 in 1 dimming, Timer dimming
•  Typical lifetime >62000 hours
•   7 years warranty

3. Optics: Optical assembly:

• hermetically sealed providing IP67. Great light uniformity: Thanks to the advance LED Optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.

4. Housing :

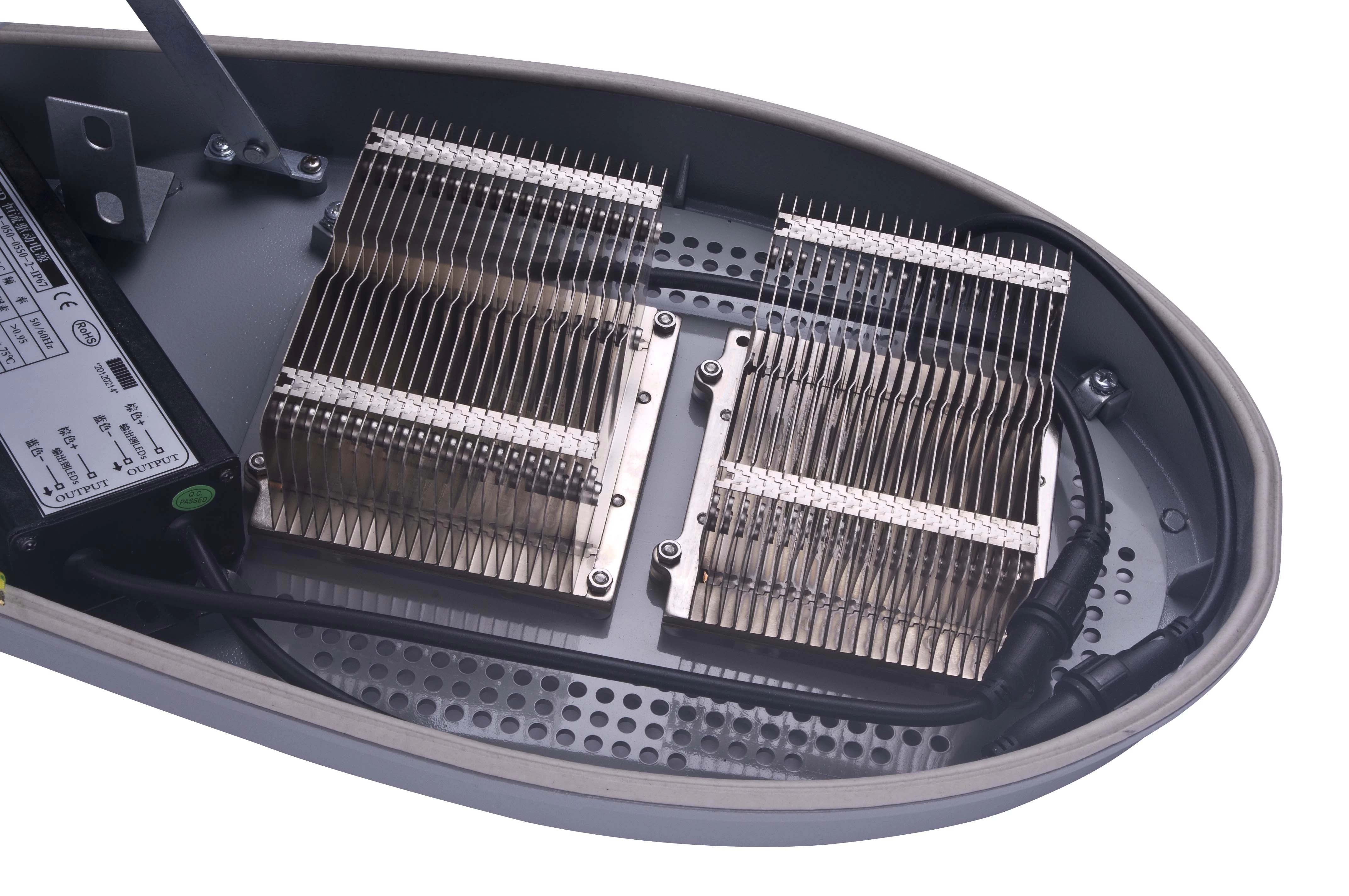

• Fishbone style high efficiency heat sink, elegant appearance and modular design, each module is 50W . Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.

5. Module design:

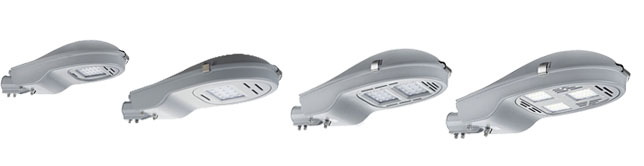

•  30W/40W/45W/50W/60W for single module wattage to pack different wattage what you want.

6. Cable:

• silicon rubber cable for power input. Fasten with screw in the cable gland.

7. Warranty:

• 5 years warranty on the entire luminaire.

8. Certification:

• ETL CE RoHS  approval.

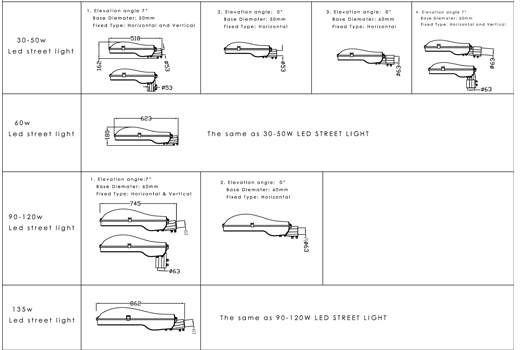

9. Datasheet:

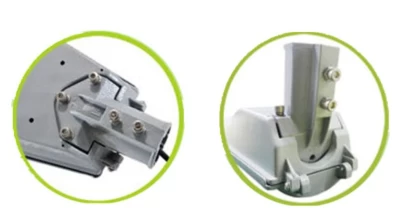

10. Installation:
