Products Introduce:

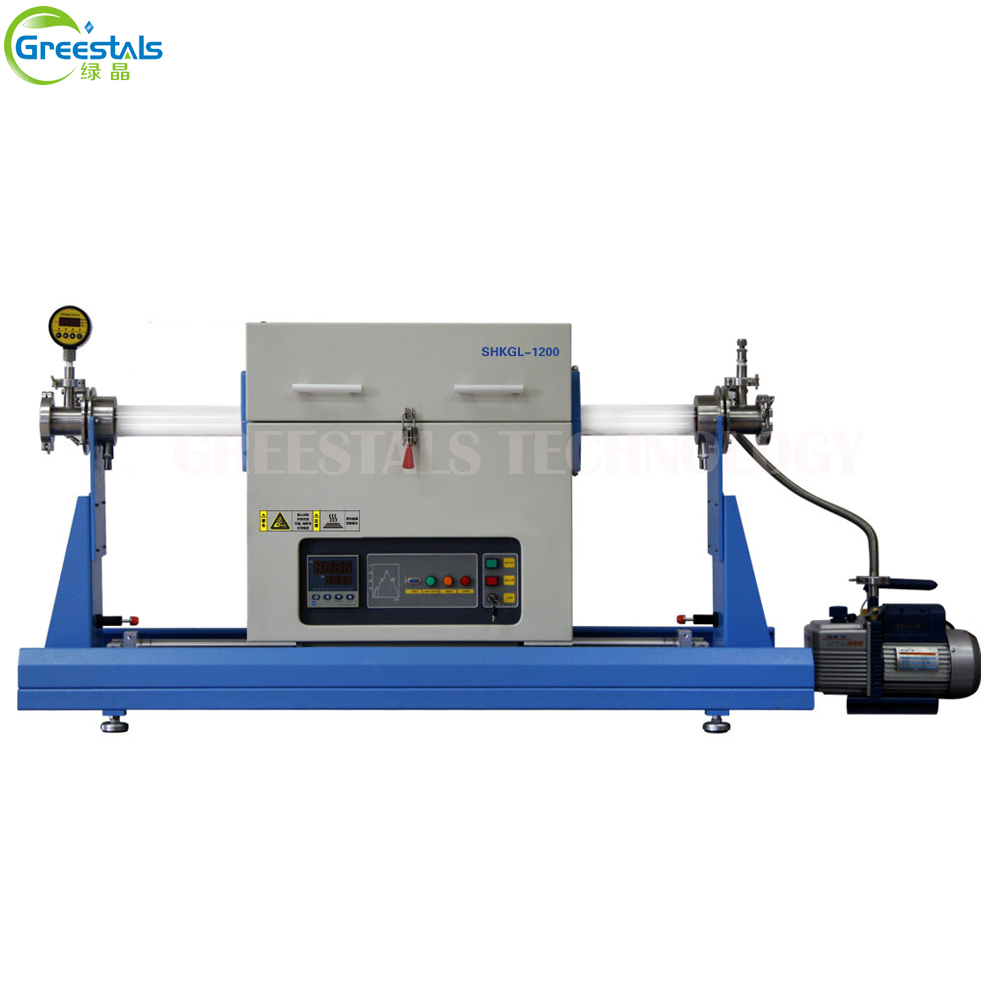

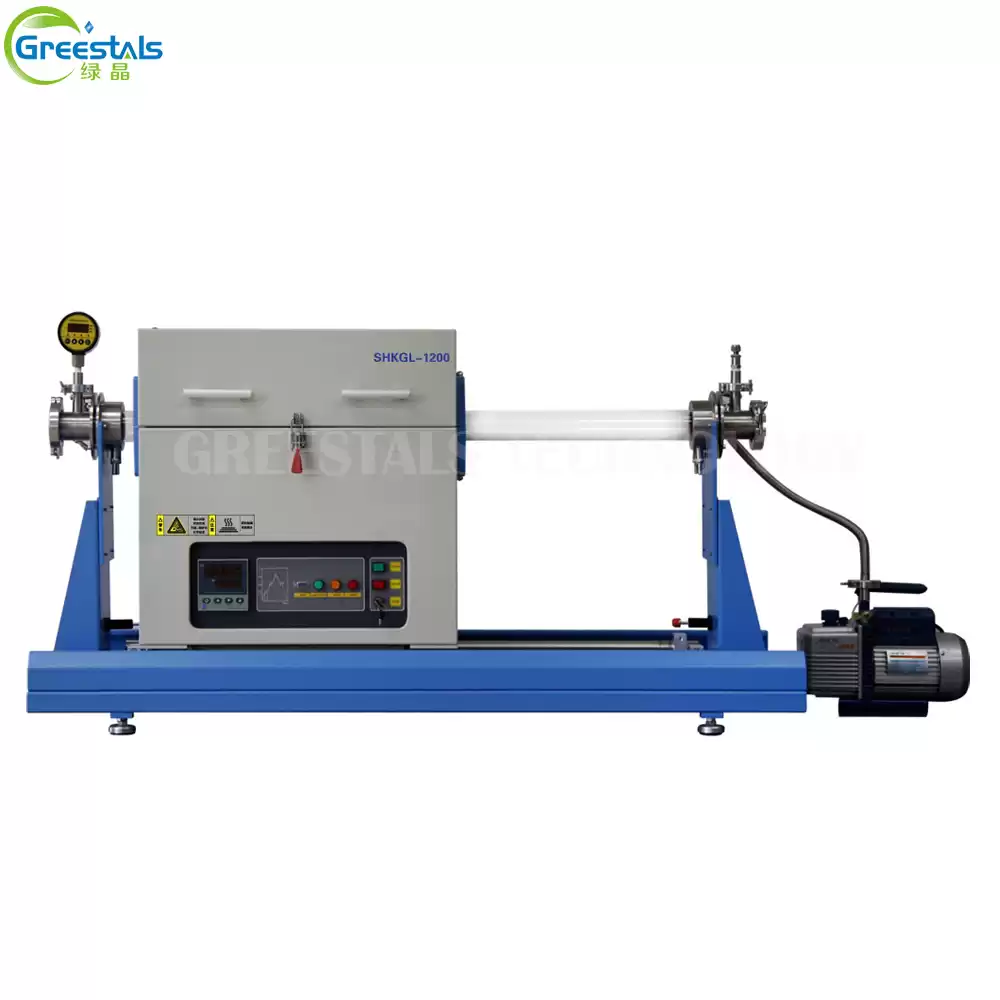

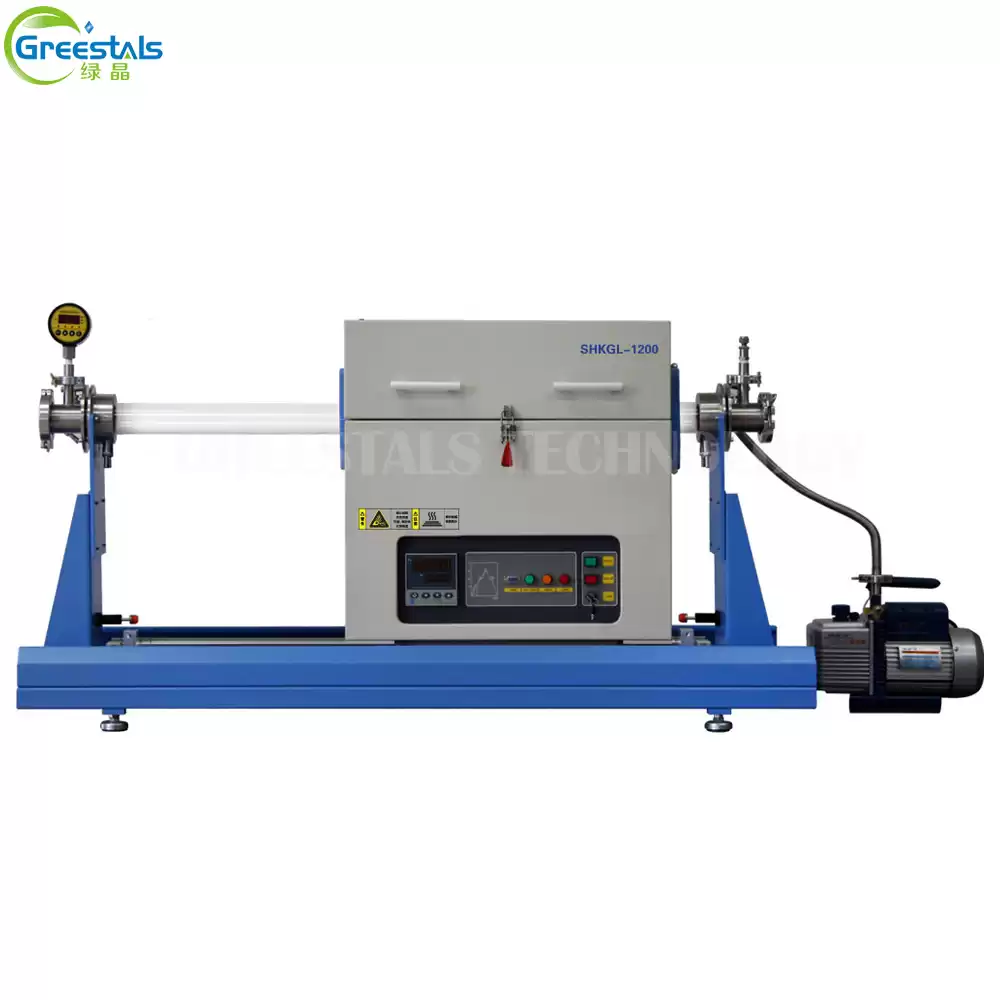

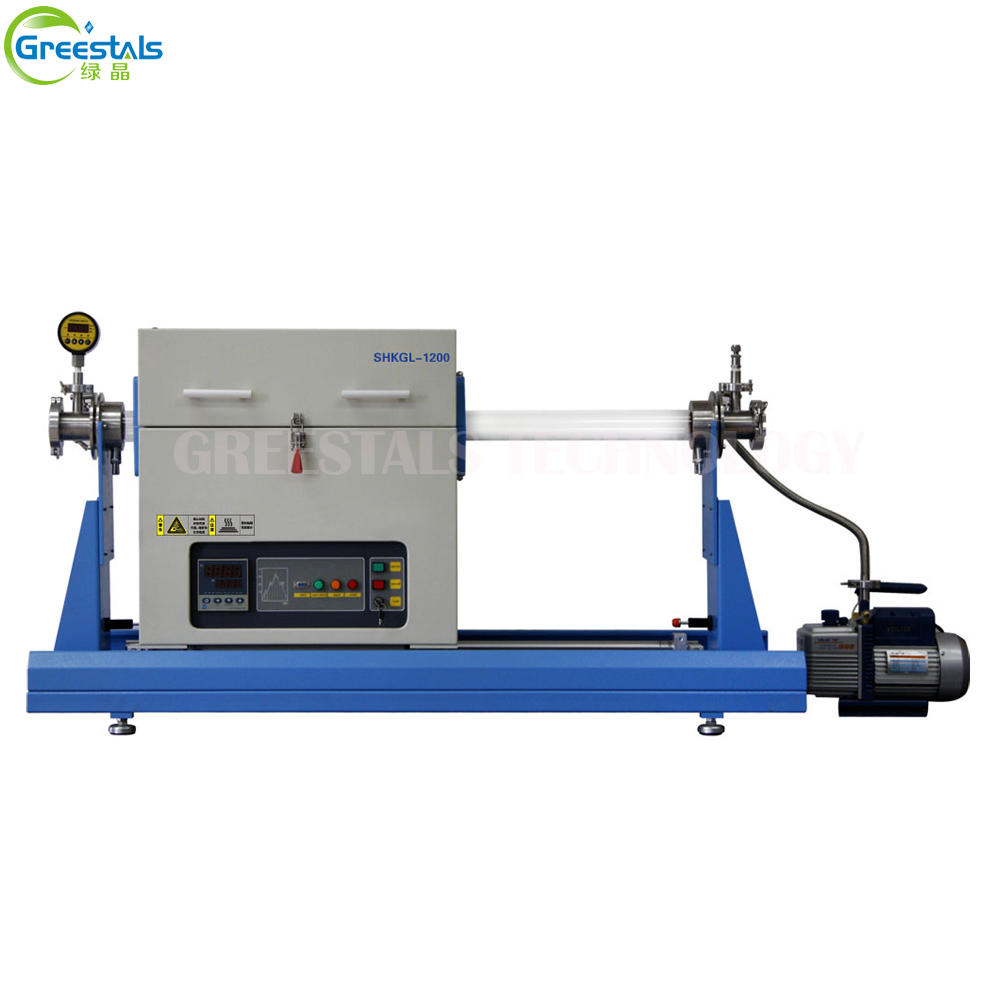

Sliding
vacuum tube furnace is a special furnace developed for the growth of graphene,
also apply to rise faster cooling speed CVD experiment. Furnace body adopt
SHKGL - 1200 open tubular furnace, bottom equipped with linear slide rail, when finish the growth, pull the furnace body around to
ensure there is enough space to make the experimental sample removed from the
furnace, realize the requirement of rapid cooling.
Function and feature:
1.Using vacuum
level rapid flange seal, only budge clamp to complete the flange connection, put
and take material conveniently , avoid the bolt seal artificial operation lead
to leakage and installation of flange lead to the heating pipe damage .

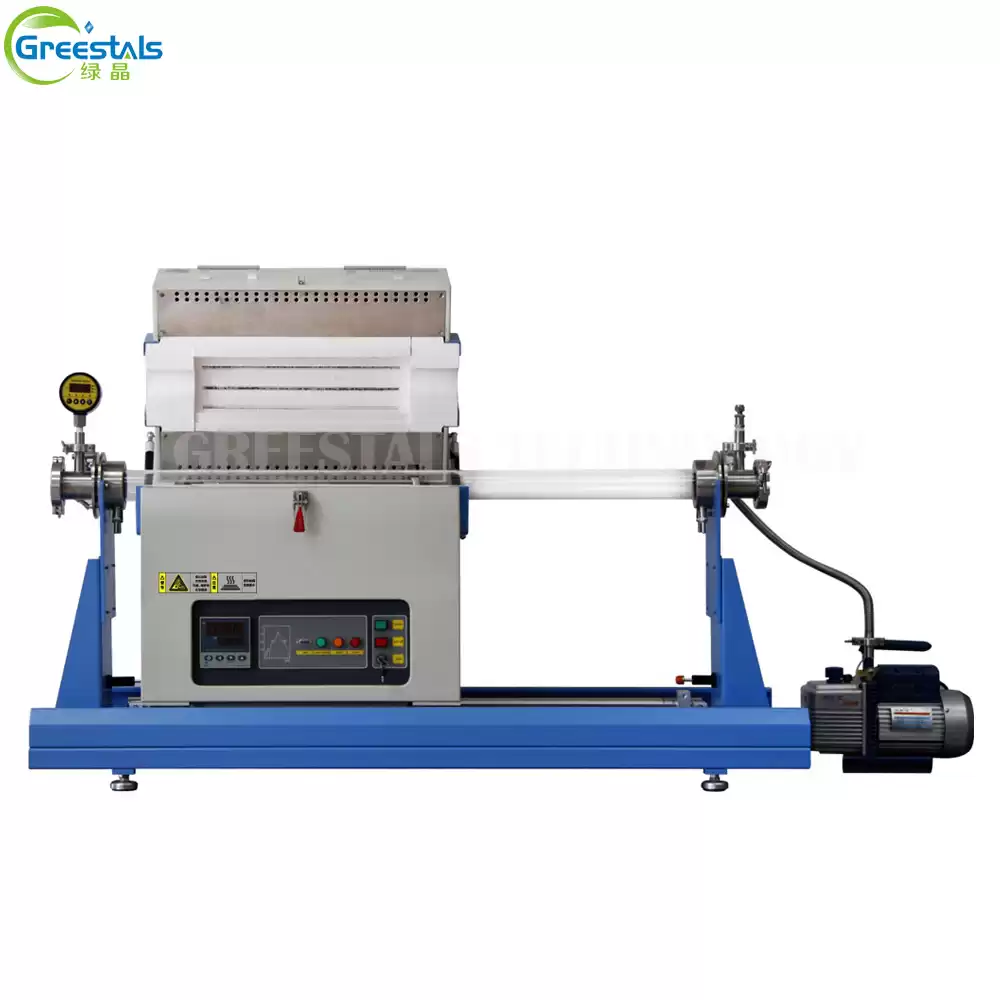

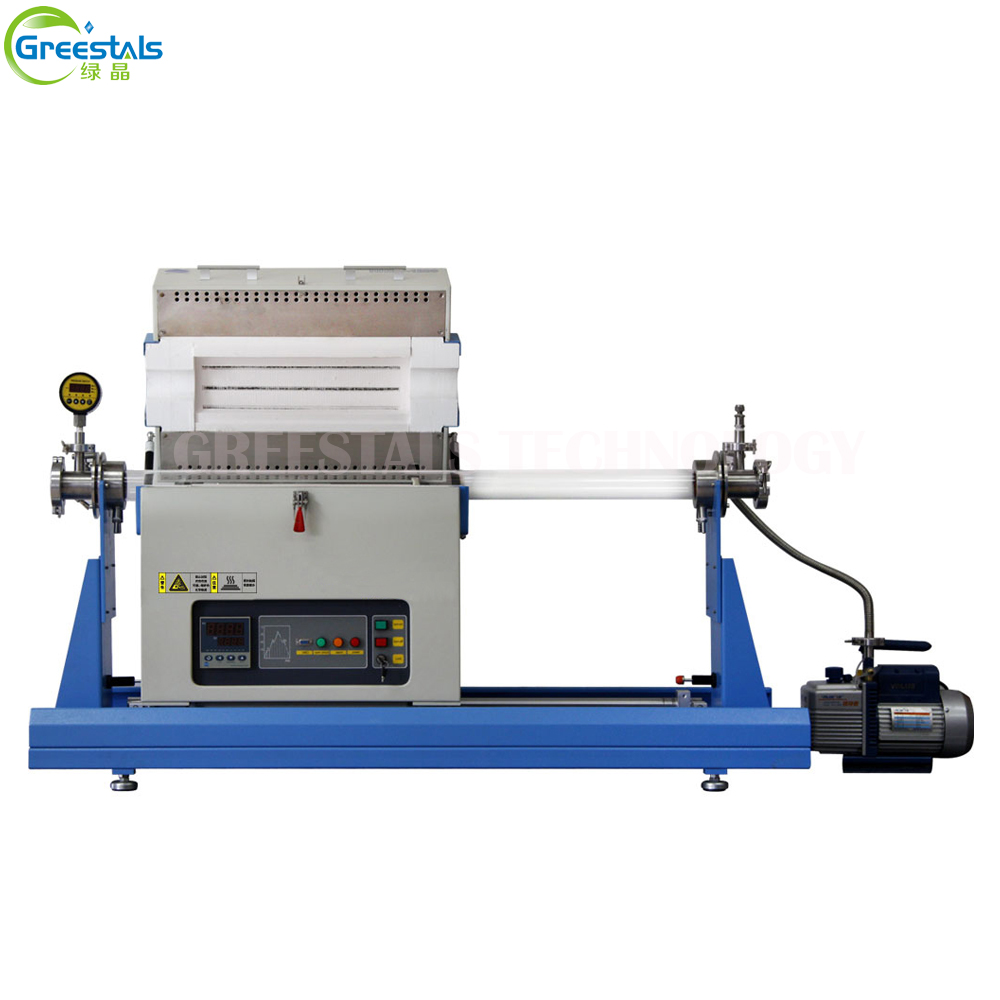

2.Furnace body
can move around, and can realize rapid cooling, satisfies the experiment materials requirement of sudden cold, sudden changes in heat.
3.Chamber of furnace adopt imported high pure
polycrystalline alumina fiber,
heat preservation performance is good, durable, high tensile strength, no
miscellaneous ball, high purity, energy saving effect is superior to other
domestic fiber material, embedded resistance wire used high resistance alloy
wire 0 cr27al7mo2, durable in use, the highest heating temperature is 1200 ℃.
4.Reserved
vacuum, gas path fast interface, can company with our vacuum system, the mixed
gas system optionally.
5.Provide
data conversion interface, cooperate with our company custom software, and
computer networking, can realize single or many sets of electric furnace remote
control, real-time tracking, historical records, the output statements, and
other functions; Can be installed the paperless recording device, realize data
storage and output.
6.Built-in
thermocouple, real-time monitoring of constant temperature zone temperature.
7.Cover
open automatically power off function, over temperature alarm function and
power leakage protection, safe and reliable operation.
Main uses:
Used for universities, research
institutions, industrial and mining enterprises to do graphene growth, CVD
experiment, high temperature sintering atmosphere, atmosphere restoring and
vacuum annealing.
Specification:
|
Model
|
SHKGL-1200
|
|
Approved by
CE certificate, ensure the safety operation of the machine. Certificate No.:
GB/1067/4189/12 Issue 1
|
|
Temperature
zone settings
|
Single
heating zone
|
|
Heating
zone length
|
440mm
(Customizable)
|
|
Rated power
|
4KW
|
|
Overall
size
|
1450×500×730
|
|
Weight
|
125KG
|
|
Furnace
Chamber
|
Imported
high pure polycrystalline alumina fiber, good heat preservation performance.
|
|
Furnace
tube size
|
Φ40/60/80/100×1200mm
|
|
Heating
elements
|
0Cr27Al7Mo2
|
|
Thermometric
component
|
N-mode
thermocouple
|
|
Temperature
control mode
|
The temperature
control system uses artificial intelligence technology, with PID control,
self - tuning function, 30 the heating and cooling program
|
|
Seal mode
|
Stainless
steel the KF quick flange extrusion seal
|
|
Standard
vacuum degree
|
≤50Pa
(Conventional mechanical pump + Pointer pressure gauge)
≤10Pa (High
mechanical pump+ digital pressure gauge)
≤0.005Pa (Molecular pump system)
|
|
Working
temperature
|
≤1150℃
|
|
Max
temperature
|
1200℃
|
|
Constant
temperature accuracy
|
±1℃
|
|
Fast
temperature rising rate
|
30℃/min
|
|
Recommend
temperature rising rate
|
10℃/min
|
|
Working
power
|
AC220V
50HZ/60HZ
|
|
Standard
accessories
|
Seal
flange 1 piece
O-ring 4 pieces

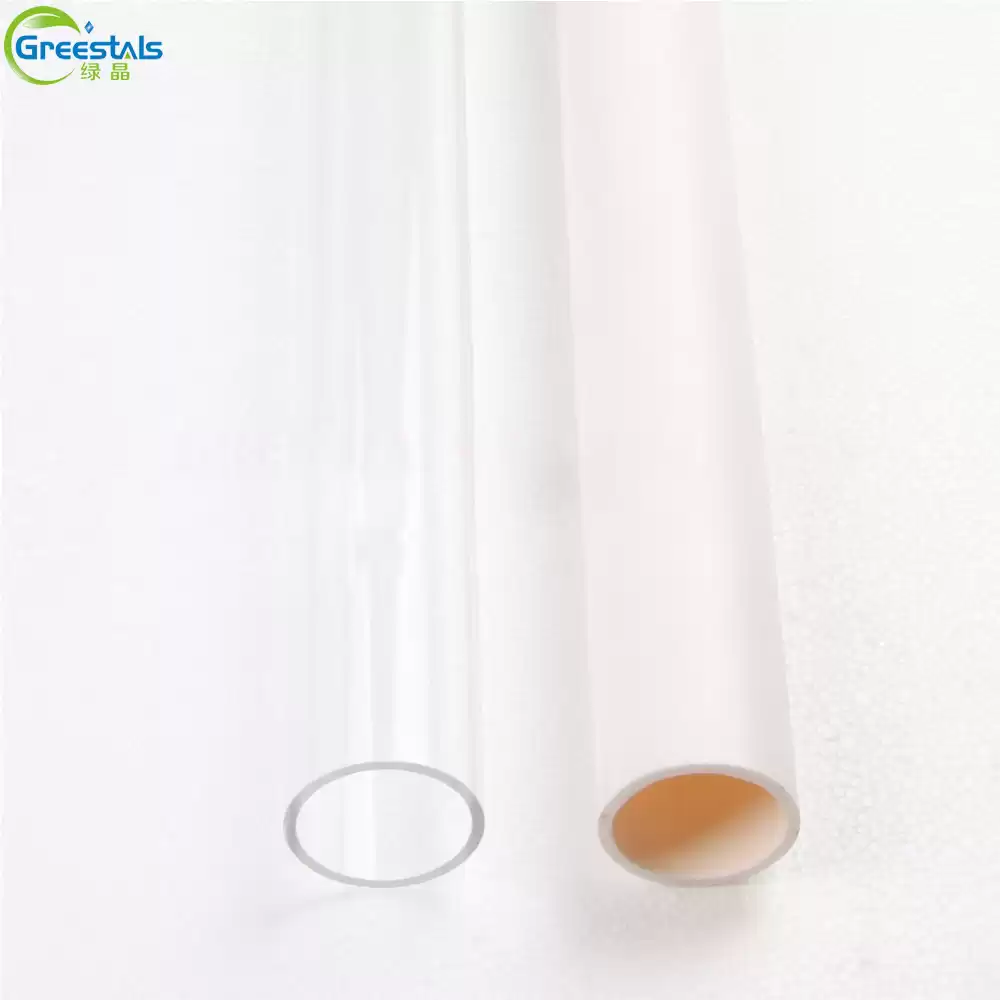

Quartz
tube 1 piece
casing
cap 4 pieces
Crucible
hook 1 piece
|
|
Optional
purchase accessories
|
Furnace
hobs; Mixed gas system; Low, medium and high vacuum system; All kinds of
alumina crucibles; Alumina tube or quartz tube; Computer control software;
Paperless recorder, etc.
|
