Products Introduce:

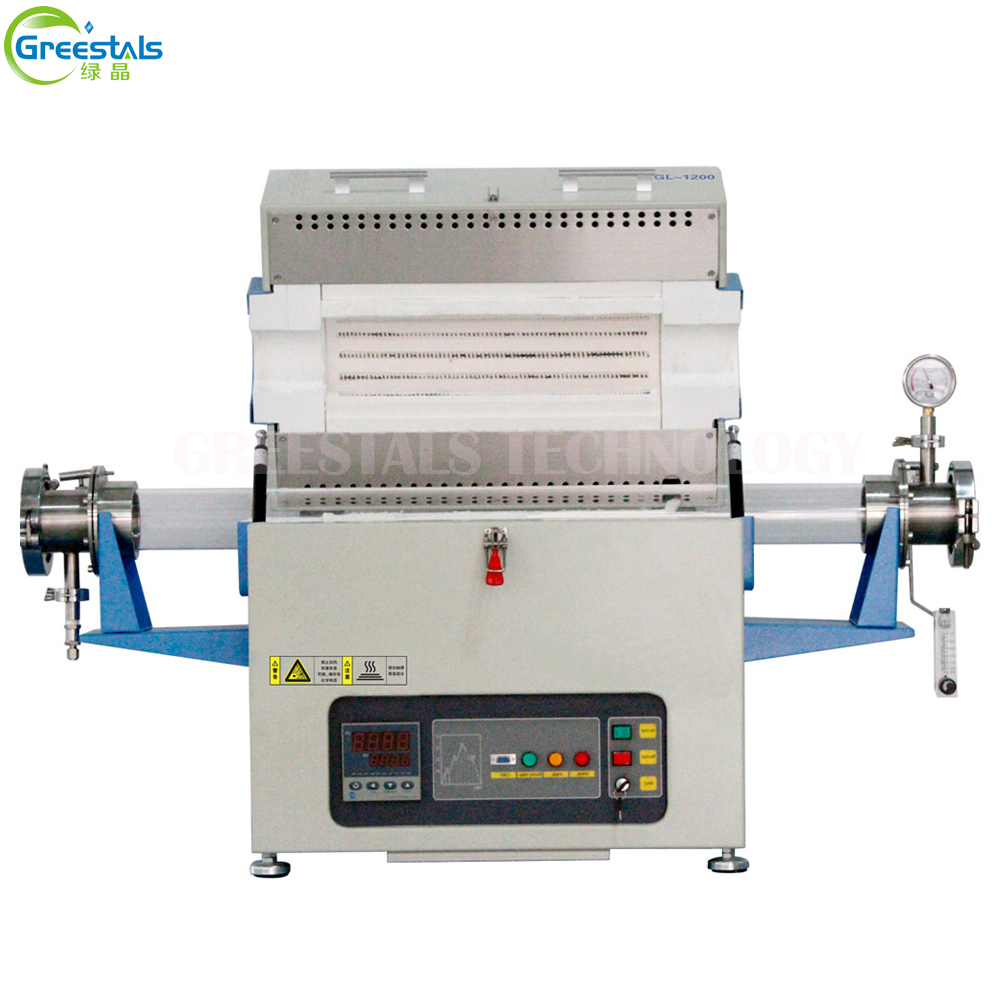

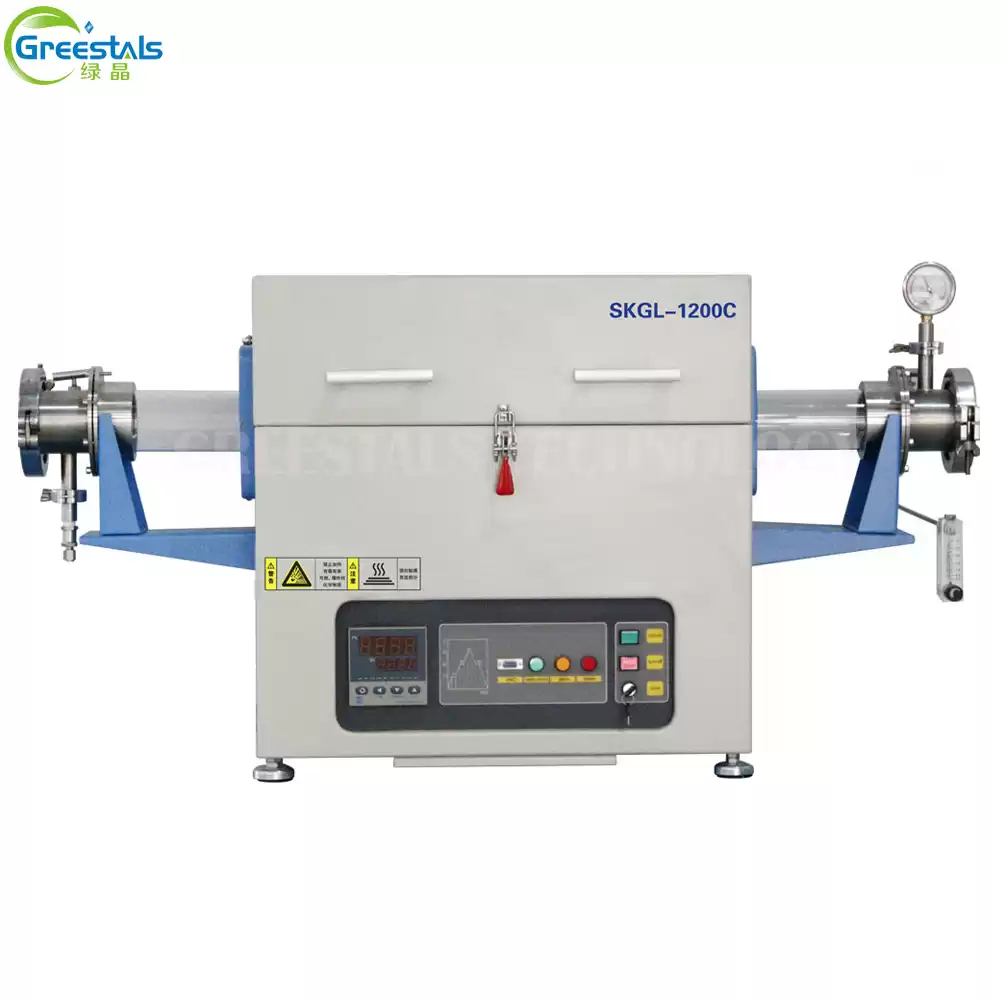

SKGL-1200C open type vacuum atmosphere tube furnace
with resistance wire as heating elements, adopted double shell structure and
intelligent program temperature control system, phase trigger, SCR control.
Furnace chamber adopted imported polycrystalline alumina fiber material,
between the double furnace shell with air cooling system, fast heating and
cooling, and can open the lid for rapid cooling. Reasonable structure,
beautiful appearance.
Function and features:

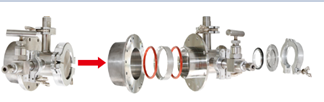

1. Adopted KF quick flange sealing, only need a clamp
flange to connect. It is very convenient to take in and out the specimen.
Avoiding bolt leakage by artificial operation and reduced the ratio of heating
tube damaging which caused by installation flanges.

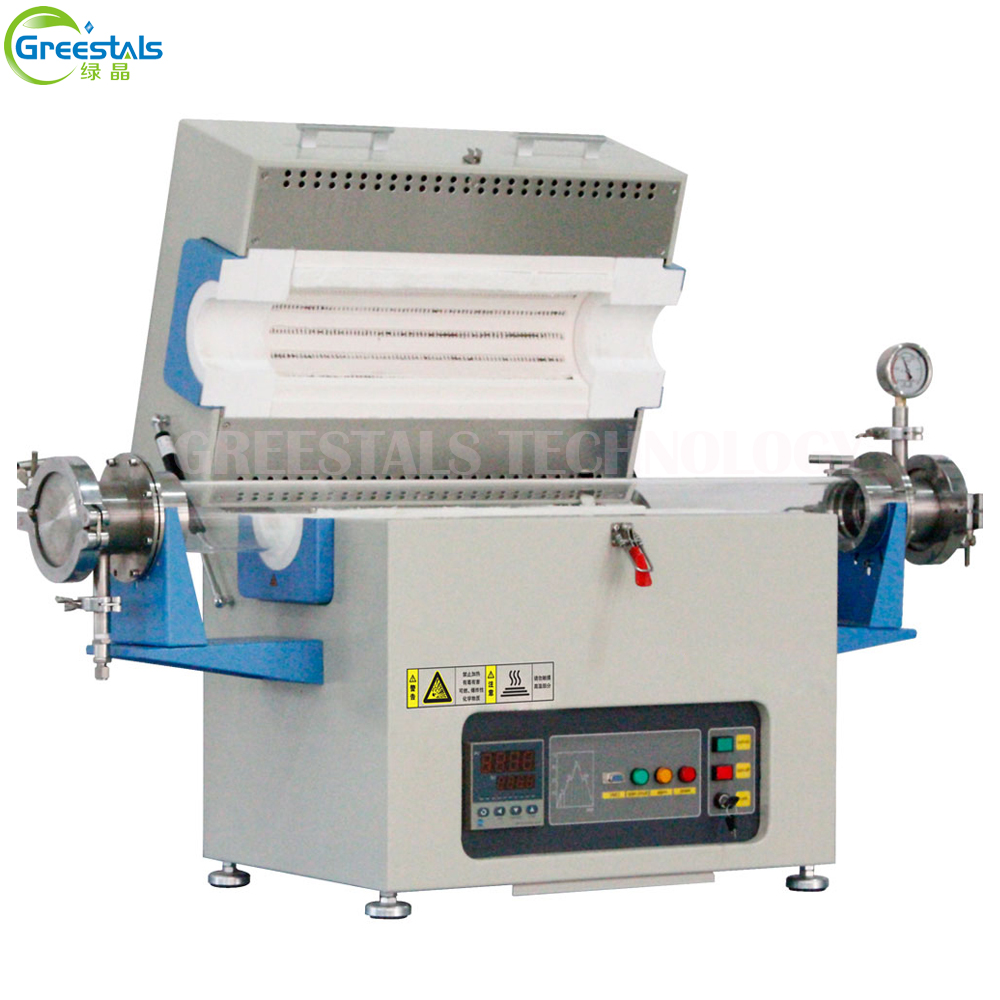

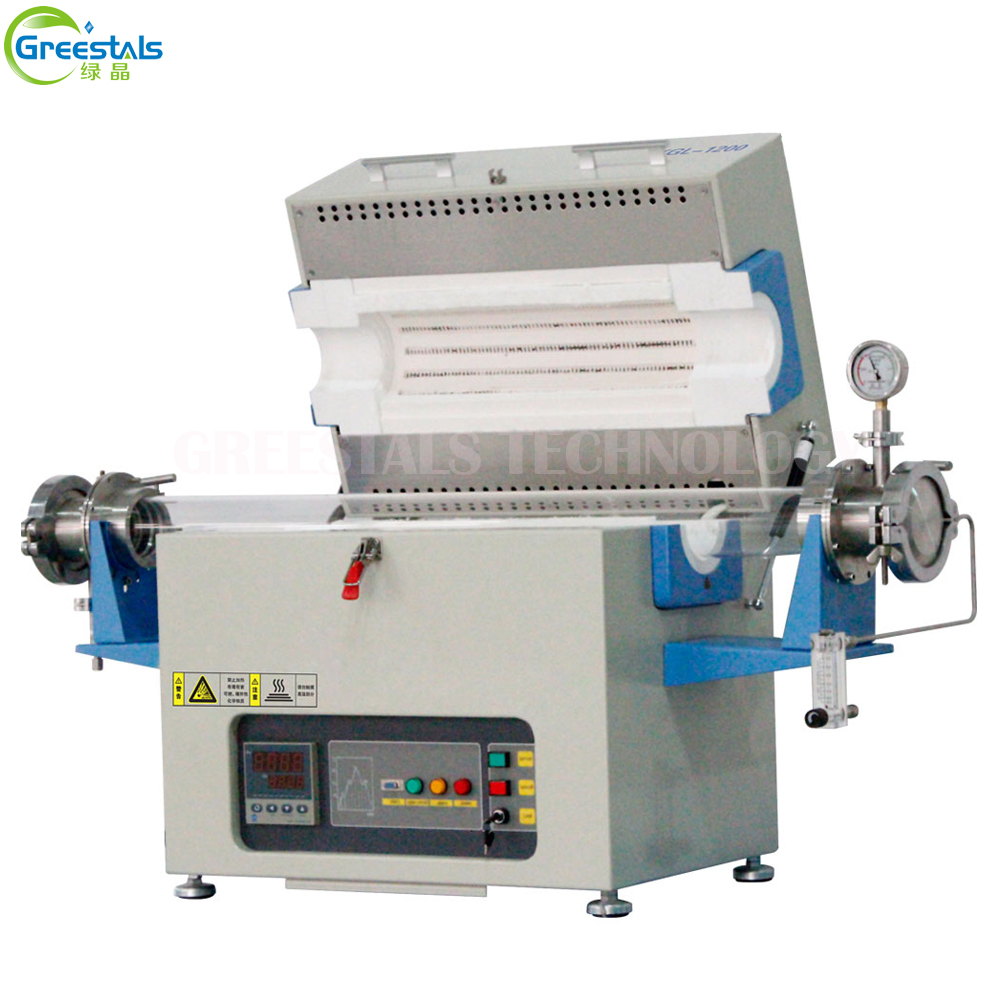

2. Furnace lid can be opened, real-time observation of
the heated material, and can rapidly cool to meet the material suddenly cold
and hot experiments.
3. Adopt imported polycrystalline fiber vacuum
absorption furnace chamber; the resistance wire is used high quality
resistance alloy silk 0Cr27Al7Mo2, servicing time more longer. Max temperature
can reach 1200℃.
4. Reserved vacuum, gas road fast interface, could
working with our vacuum system or mixed gas system.
5. Reserved 485 convert interface, can be connected with
PC through software. It has remote control, real time tracking, history recorder,
and output report function. And can be installed the paperless recorder for
data storage and output.
6. Built - in thermocouple, real-time monitoring the
temperature of the heated material.
7. Cover open automatically power off, over-temperature
alarm, leakage protection, safe and reliable operation.
Main applications:
Used for universities, research institutions, industrial
and mining enterprises to do high temperature sintering
atmosphere, atmosphere restoring, CVD experimental and
vacuum annealing.
Specification:
|
Model
|
SKGL-1200C
|
|
Approved by CE certificate, ensure the safety operation of the machine.
Certificate No.: GB/1067/4189/12 Issue 1
|
|
Furnace chamber
|
Imported high pure polycrystalline alumina fiber, excellent heat
preservation
|
|
Furnace tube
|
Φ60 (OD)*1000mm (Length) high purity Quartz tube
|
|
Working temperature
|
≤1100℃
|
|
Max temperature
|
1150℃
|
|
Constant temperature accuracy
|
±1℃
|
|
Max. Temperature rising rate
|
30℃/min
|
|
Recommend temperature rising rate
|
10℃/min
|
|
Temperature zone settings
|
Single heating zone
|
|
Heating zone length
|
440mm
|
|
Constant temperature zone length
|
200mm
|
|
Heating elements
|
0Cr27Al7Mo2
|
|
Thermometric component
|
N-mode thermocouple
|
|
Temperature control mode
|
 The temperature control system uses
artificial intelligence technology, with PID control, self - tuning function,
30 the heating and cooling program
|
|
Seal mode
|
Stainless steel the KF quick flange extrusion seal
|
|
Optional vacuum degree
|
≤50Pa (Pump + pressure gauge)
≤10Pa (High configuration pump + pressure
gauge)
≤0.005Pa
(Molecular pump system)
|
|
Rated power
|
4KW
|
|
Overall size
|
690*410*600mm
|
|
Weight
|
80KG
|
|
Working power
|
AC220V 50HZ/60HZ
|
|
Standard accessories
|
Seal flange 1 piece
O-ring 4 pieces
Quartz tube 1 piece
casing cap 4 pieces
Crucible hook 1 piece
|
