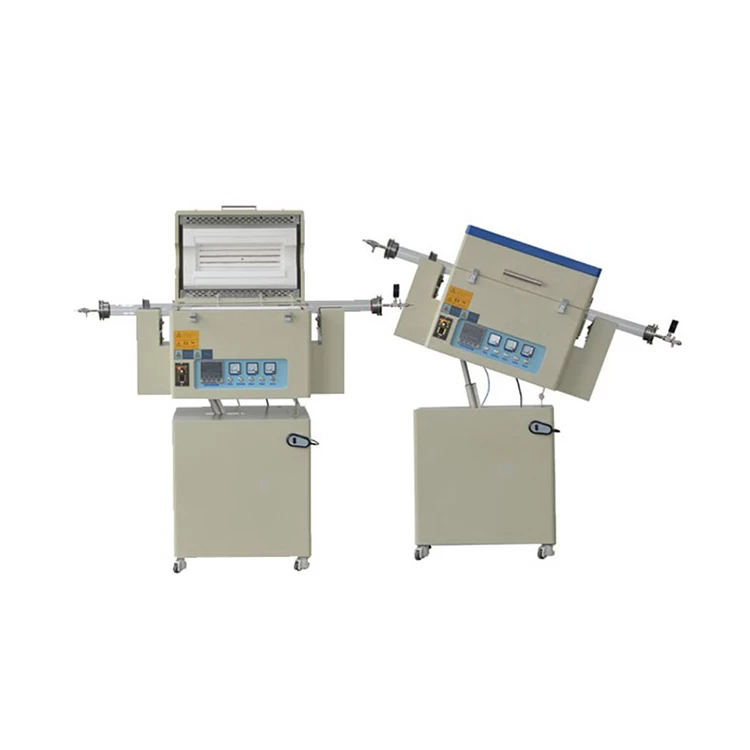

1200℃ single-temperature zone rotating tube furnace

1200℃ single-temperature zone rotating tube furnace



1200℃ single-temperature zone rotating tube furnace


SPECIFICATIONS



Model

TOB-DSP-1200℃-SRI

TOB-DSP-1200℃-SRI

Power

3.5  KW

4 KW

Furnace tube size(mm)

Dia 60(OD) X1200

Dia 120(OD) X1200

Dimension

580X370X1050

600X440X1100

Power supply voltage

220V

Phase number

Single-phase

Temperature control mode

一.Yudian temperature control

30 sections can only use PID temperature regulation.

二.FP93 temperature control (from Japan)

(Replace imported instruments, for an additional fee)

1,40 section program temperature control can be divided into 4,2,1 group program,

if the program is divided into four groups, each program segment 10,

2,6 group PID control, low, medium and high temperature can each with a set of PID,

such that each segment is capable of controlling the temperature is very accurate.

Control accuracy

+/- 1 ℃

Tube rotation speed

Stepless variable speed motor, speed can be adjustable between (1-25 turn / min)

Motor rotation power

40W

Furnace tilt angle range

0-30 degrees

Electric lift support frame power

40W

Trigger

Phase-shift trigger

SCR

106 / 16E Germany Simon Kang

Max temperature

1200 ℃

Rated temperature

1100 ℃

Heating rate

≤30 ℃/ Min (Available upon request modification)

Recommended heating rate

≤20℃/ Min

Heating length

400mm

Thermocouple Type

K type

Surrounding surface temperature

≤45℃

Security System

With the furnace air switch and fuse, when the current exceeds the rated current,

 it will automatically jump open, effective protection electric stove.

Switch protection system

The furnace trip switch is installed, when the lid open relay will automatically

cut off the main power supply, effectively ensure the safety of users.
