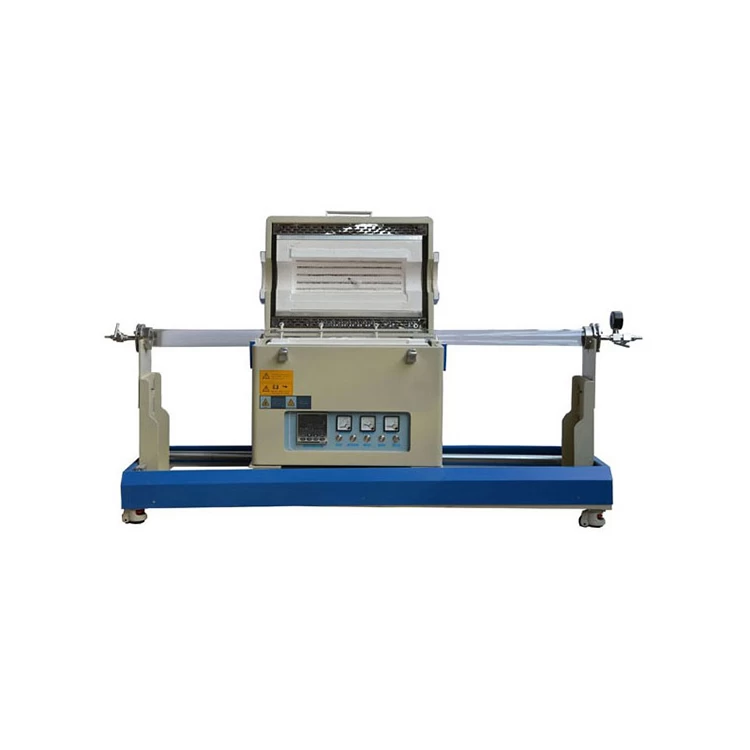

1200 ℃ single-temperature zone rapid heating furnace

1200 ℃ single-temperature zone rapid heating furnace



1200 ℃ single-temperature zone rapid heating furnace

SPECIFICATIONS

Model

TOB-DSP-1200℃-SZI

TOB-DSP-1200℃-SZII

TOB-DSP-1200℃-SZIII

Power

2.5 KW

3.5 KW

3.5 KW

Furnace tube size(mm)

Dia 60(OD) X1460 mm

Dia80(OD)X1460

Dia100(OD)X1460

Dimension

1500X490X600

1500X490X600

1500X490X600

Power supply voltage

220V

Phase number

Single-phase

Control mode

Yudian temperature control

30 sections can only use PID temperature regulation.

FP93 temperature control (from Japan)

(Replace imported instruments, for an additional fee)

1,40 section program temperature control can be divided into 4,2,1 group program,

if the program is divided into four groups, each program segment 10,

2,6 group PID control, low, medium and high temperature can each with a set of PID,

 such that each segment is capable of controlling the temperature is very accurate.

Control accuracy

+/- 1 ℃

Trigger

Phase-shift trigger

SCR

106 / 16E Germany Simon Kang

Max temperature

1200 ℃

Rated temperature

1100 ℃

Heating rate

≤30 ℃/ Min (Available upon request modification)

Recommended heating rate

≤100℃/ Min

Heating length

400mm

Thermostatic length

150mm

Thermocouple Type

K type

Surrounding surface temperature

≤45℃

Security System

With the furnace air switch and fuse, when the current exceeds the rated current, it will automatically jump open, effective protection electric stove.
