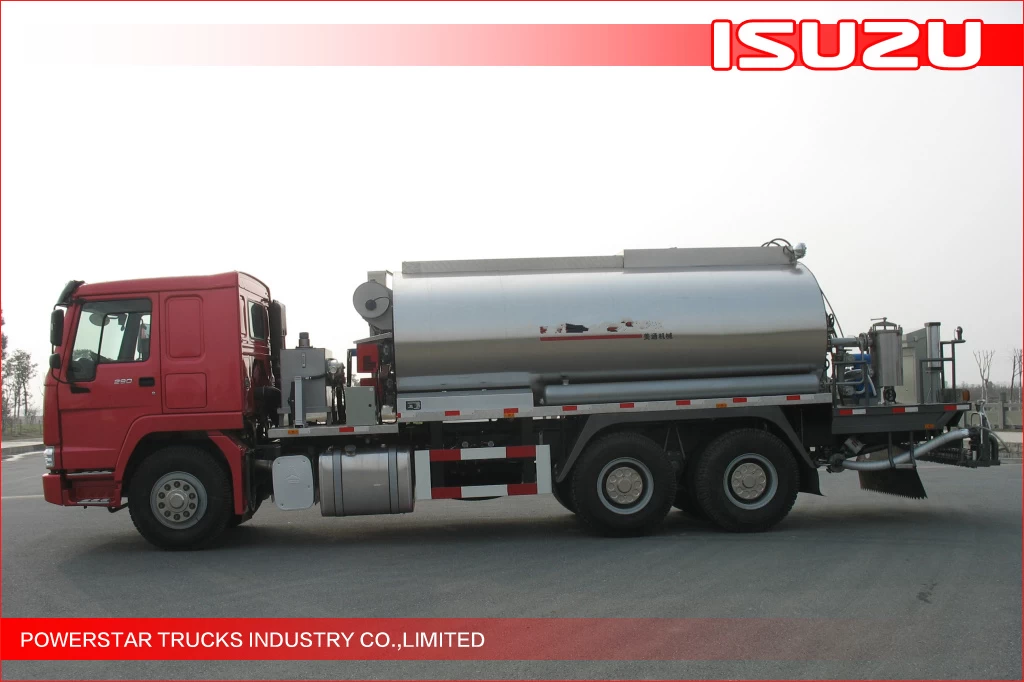

12000L 6x4 ISUZU asphalt distributor truck bitumen
distribution truck
Description:
ISUZU automatic
asphalt distributor is typical kind of
road construction machinery. We also provide automatic asphalt distributors and
rubber asphalt distributors as well as common distributors.
The asphalt distributor can transport asphalt or
spray asphalt binder on the ground. It is extensively used in the construction
of highways, urban roads, airports, and ports. It can be applied to seal coat,
prime coat, waterproof layer, bonding layer of different grades of highway
pavement, as well as transport liquid asphalt or other heavy oil.
Application
Isuzu Automatic asphalt distributor is a kind of road
machinery. It is applicable for layer-penetration oil, waterproof layer and
bond coat at the bottom layer of high-level asphalt road.
Key Features:
◆ The intelligent nozzle has
strong atomization capability so that the asphalt could be evenly sprayed and
the pavement could withstand more pressure and water penetration.
◆ PLC regulating spray volume
automatically
◆ Imported heat-resistance seal
elements
◆ Burner hood of optimization
design preventing damages by asphalt eruption through manhole
◆ High-viscosity asphalt pump
◆ Warning signs and lighting
installation for working at night
◆ Capacity can be customized
4000L, 6000L, 8000L, 10000L, 15000L and so on
Main
specifications:
|
Model
|
PT5250GLQ
|
|
Driving
Type
|
6x4 (Left
hand drive)
|
|
Wheelbase
|
4350+1300 mm
|
|
Engine
|
206 kw (280hp)
|
|
Tyre
|
11.00-20
|
|
Outline
Dimension of Complete Vehicle (L/W/H mm)
|
10500×2496×3350
|
|
Tank
Capacity (m3/density)
|
12000L~15000L
|
|
Seating
Capacity (including the driver)
|
3
|
|
Top
Speed (km/h)
|
90
|
|
Complete
Vehicle Weight (kg)
|
25000
|
|
Rated
Load (kg)
|
12000
|
|
Working
Speed (km/h)
|
1.2~6.5
|
|
Asphalt
Pump Discharge (L/r)
|
0.86
|
|
Max.
Spray Width (m)
|
6
|
|
Asphalt
Spray Volume (L/m2)
|
0.3~3.0
|
|
Drive
System
|
Driven by
hydraulic system
|
|
Max.
Pressure of hydraulic system (MPa)
|
15
|
|
Asphalt
Heat Preservation Way
|
Heat is
preserved by the heat transfer oil system.
|
|
Cleaning
Way
|
Cleaning through
using the high pressure air and diesel.
|
