Cesspit Emptier manufacturer supply, we CEEC TRUCKS can supply ISUZU 10CBM cesspool emptier truck, dongfeng 10 CBM vacuum sewage suction truck,
beiben 1927 cesspit emptier, isuzu 4*2 vacuum suction tanker trucks,
Faw 18 CBM heavy duty vacuum tanker trucks, all our cesspit emptier
widely export Asia Mongolia, Myanmar, Phillippine, Vietnam, and Africa congo, tanzania, zambia, south africa, algeria,
etc.
12000 m³ Septic Vacuum Pump Tanker Truck Dongfeng
Advanced features for CEEC vacuum sewage tanker trucks:
1. The vacuum pump adopts the truck-mounted pump provided by the professional manufacturer, which is characterized by compact enclosure, low rotation speed (energy saving), high vacuum degree (its vacuum degree is up 99.6%), wide operating pressure range ( its absolute limit working pressure is ranging from 200 to 8500Pa), low noise, low power consumption and high efficiency, etc. High pumping and suction speed.
2. The hydraulic lift system adopts the double-acting lift cylinder, while the control valves adopt the domestic well-known brand products.

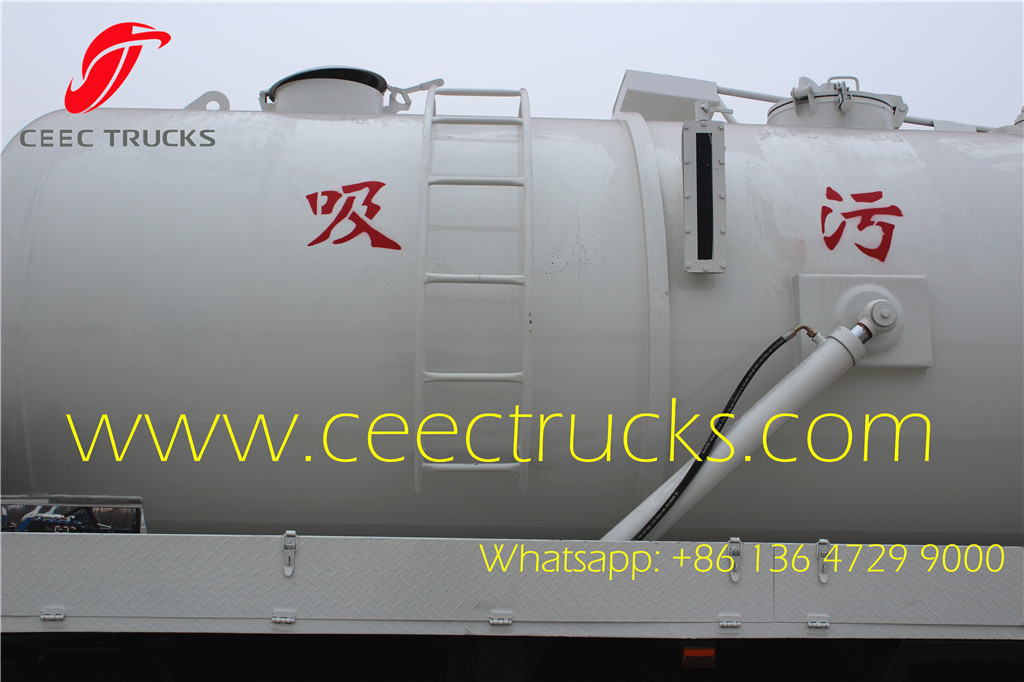

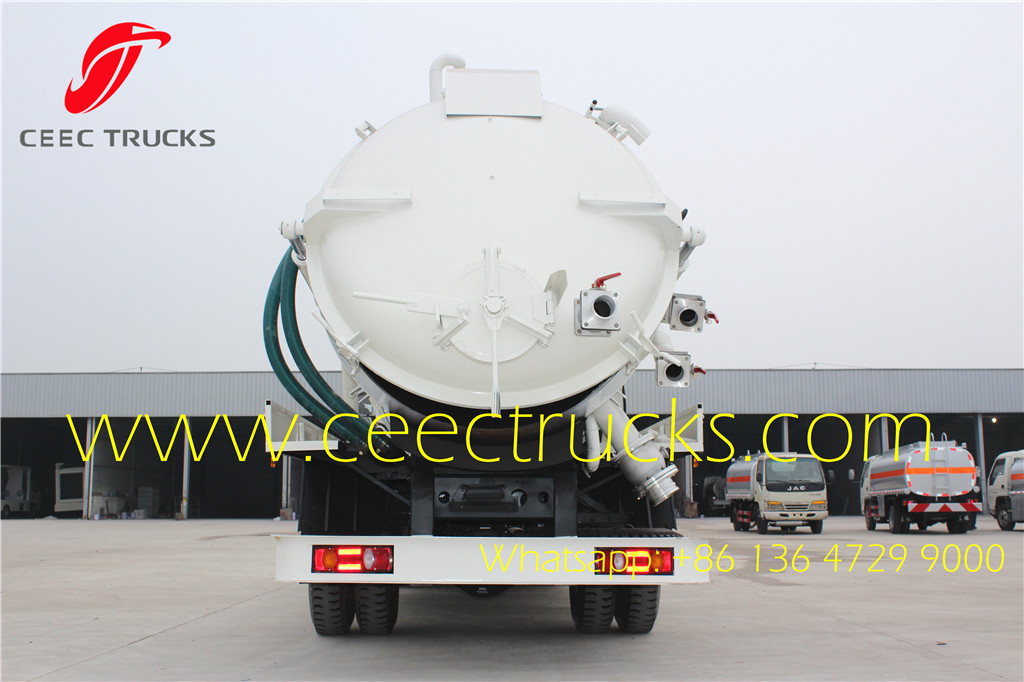

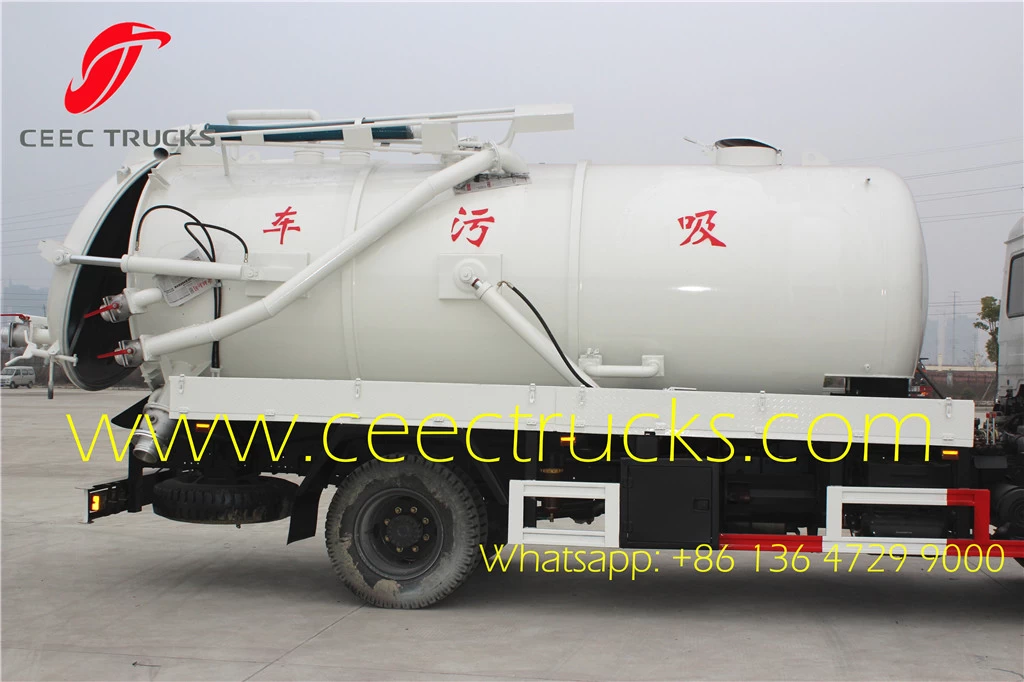

3. The tank body is cylindrical and the end socket is oval, so that the tank body is subject to uniform stress.

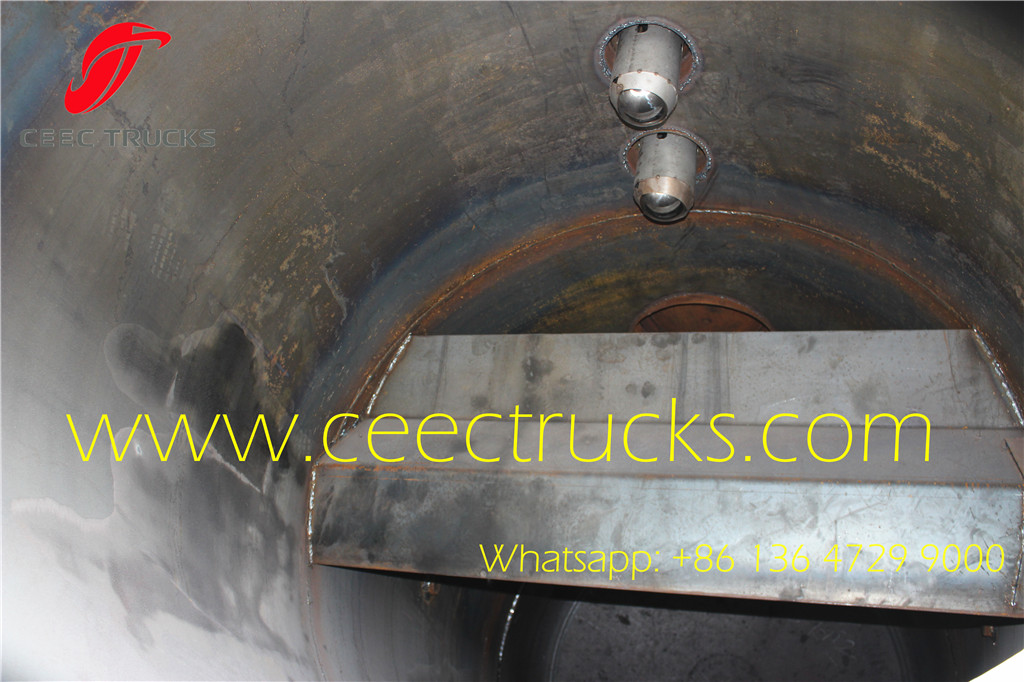

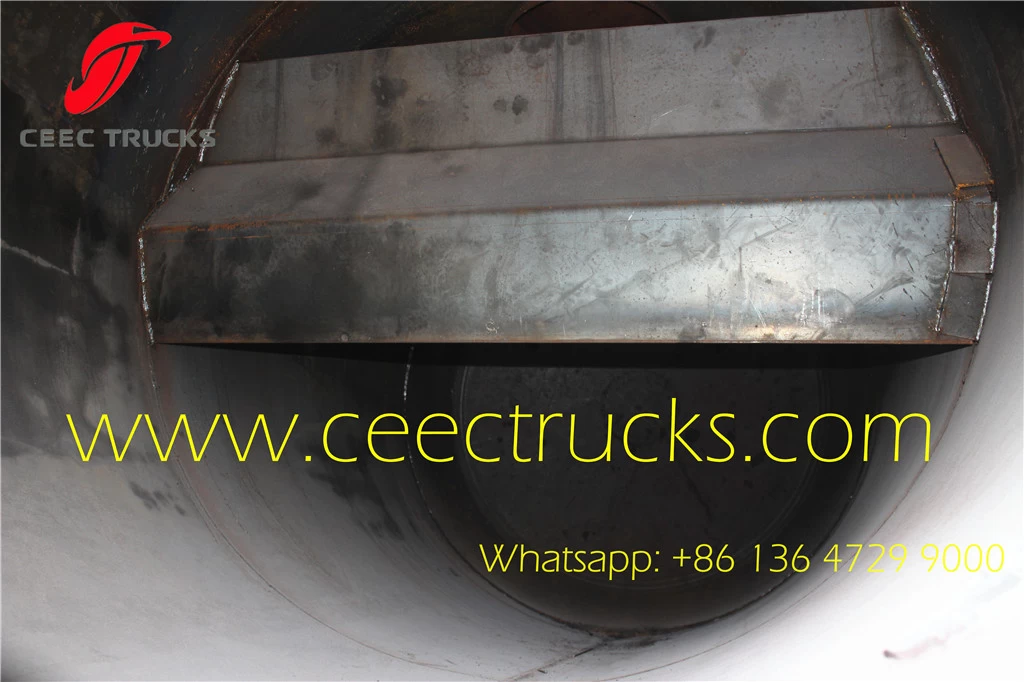

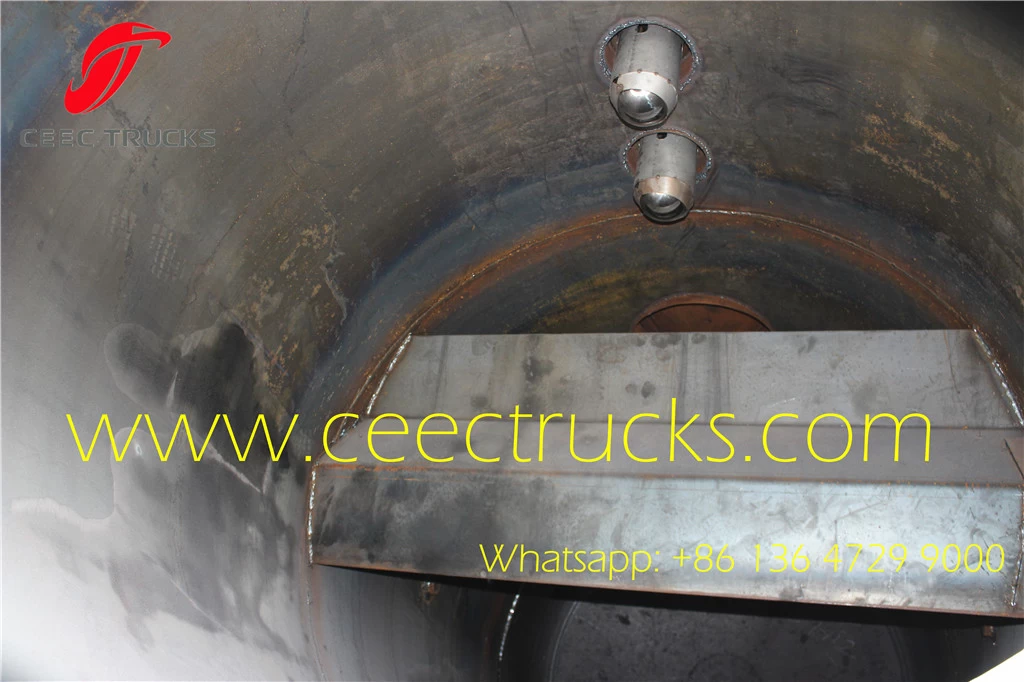

4. As the tank is mounted with the transverse swash plates to reduce the impact on the tank during the driving process of the vehicle, thereby ensuring the smooth running of the vehicle; additionally, the inner surface of the tank is provided with stiffening rings to ensure that there is no deformation and deflation on the tank body under negative pressure pumping state.
5. The air exhaust piping at the top of the tank is mounted with the anti-spill valve, which can effectively prevent dirt into the vacuum pump of the pneumatic circuit and spills.
Technical specifications for CEEC Sewer suction pump trucks:
Similar Keywords: septic
suction truck, sludge tipper, sewer scavenger, vacuum tank, truck
vacuum, sucker machine, sewage disposal truck, gully emptier, cesspool
emptier, sewer suction truck…
| Company name
|
CEEC TRUCKS INDUSTRY CO., LIMITED
|
Truck brand
|
CEEC TRUCKS
|
| Truck name
|
Sewage suction truck
|
Chassis model
|
|
| Tanker volum
|
10-12CBM
|
Total mass(kg)
|
16000
|
| Engine HP
|
160-240PS
|
Rated mass(Kg)
|
10-12 tons
|
| Engine type
|
Yuchai
|
Engine standard
|
Euro 3/4
|
| Vechicle size(MM)
|
8100*2500*3100
|
Fuel type
|
Diesel
|
| Tyre quantity
|
6
|
Tyre size
|
10.00-20
|
| Wheelbase (MM)
|
4500
|
Max speed(km/h)
|
90
|
| Front track
|
1810
|
Rear track
|
1620
|
| Performance
|
1. Sewage suction truck using domestic technology leader dedicated sewage pump suction, suction, suction far, particularly suitable for sewage sludge within the pumping, shipping and unloading rows, especially to absorb sewage mud, silt, gravel, brick blocks and other large objects, less moisture and other substances.
2. Pumping full of dirt (feces) tank time: ≤ 5min
3. Suction: ≥ 10m
4. Self-absorption self-discharge, long life, work fast, and easy transportation.

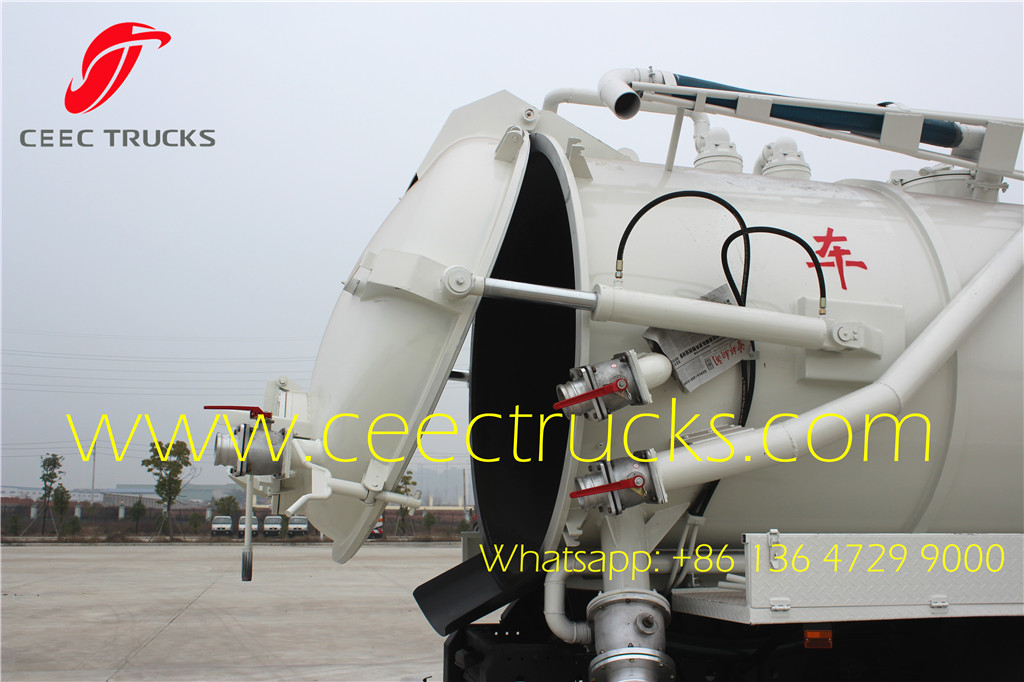

5. Sewage suction truck emissions are emissions and artesian pressure emissions in two ways, self-priming sewage suction truck from the row, the back cover to open the dump tank and impurities, pumping, high efficiency, self-absorption, self-scheduling and direct irrigation, etc.
6. Characteristics, operation fast and simple. Suitable for large, medium and small town’s sanitation, municipal departments.
|
| Special equipment
|
☆ Sewage suction truck tank can be used: carbon steel, stainless steel.
☆ Sewage suction truck dedicated in part by the PTO drive shaft.

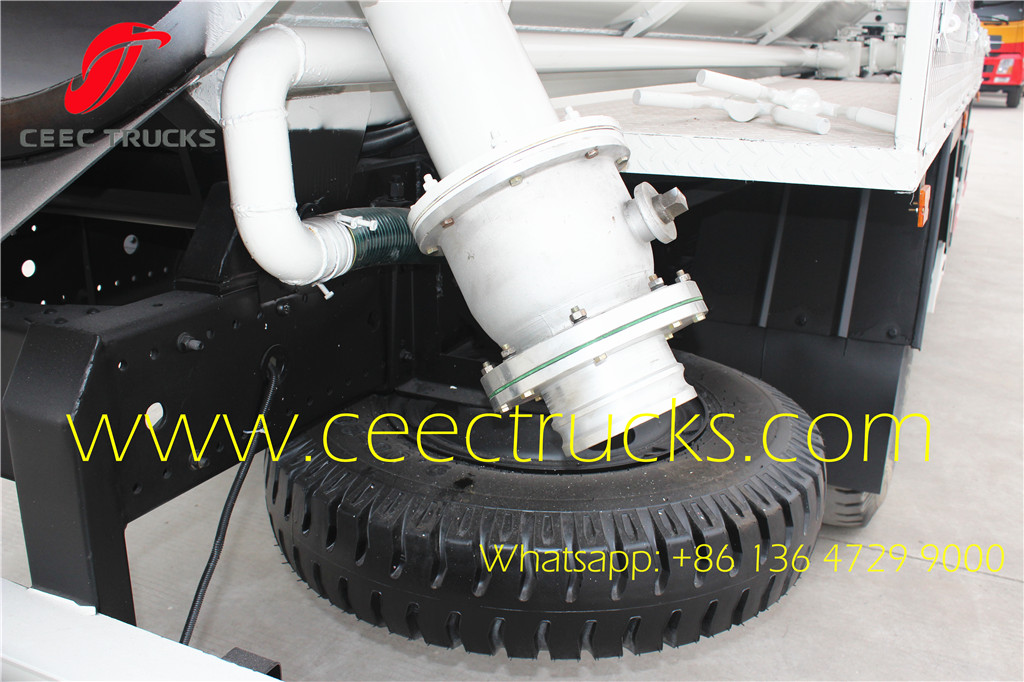

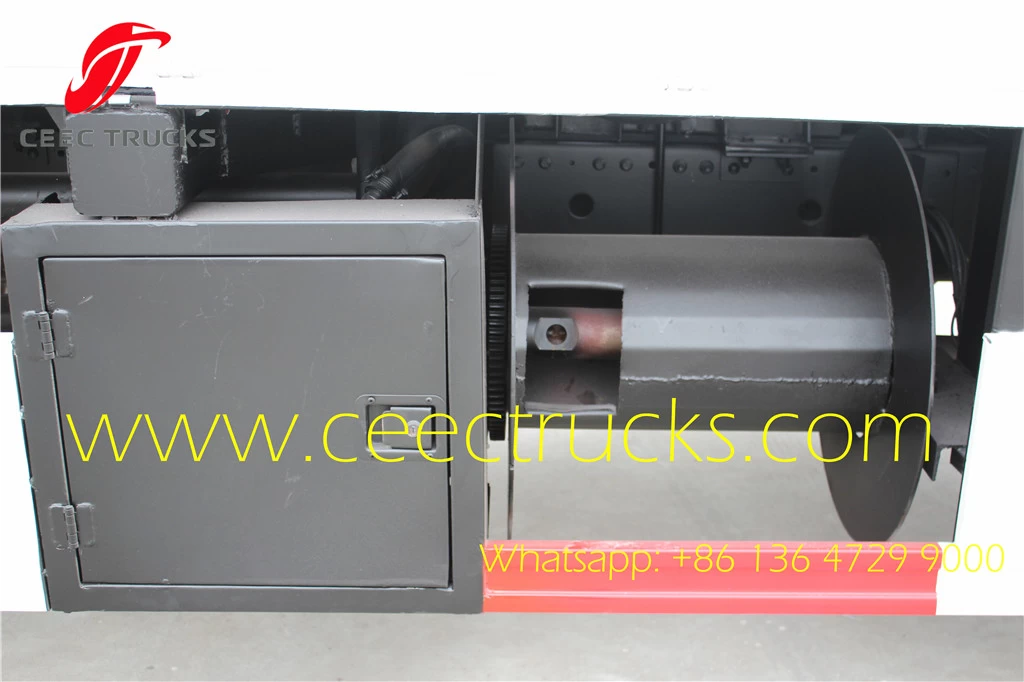

☆ Special vacuum suction sewage pump, high pressure forming manure tank, water and gas separator, oil and gas separation, multi-valve, boom, smoke pollution guns, pipe network system components, and equipped with a vacuum gauge, depending on the pollution window (control), hand-washing device.
|
CEEC Recommend environmental protection truck series ISUZU, Beiben Truck
