1200KW 1500Kva 1000kva 50Hz Silent Diesel Generator Workshop Mitsubishi

1200KW 1500Kva 1000kva 50Hz Mitsubishi Diesel Generator


Facebook Twitter Pinterest LinkedIn 分享
Product Description

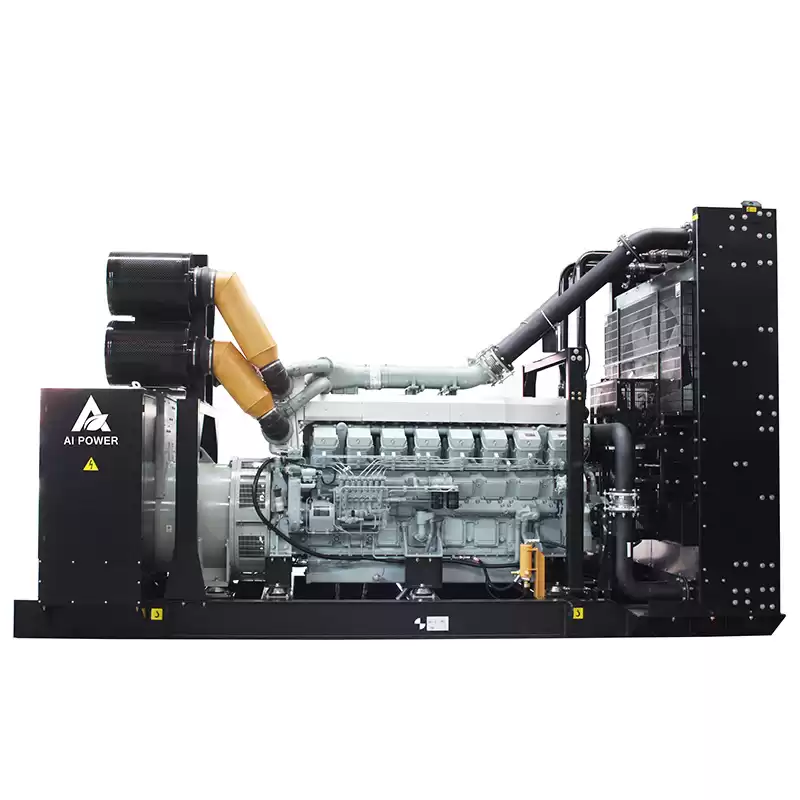

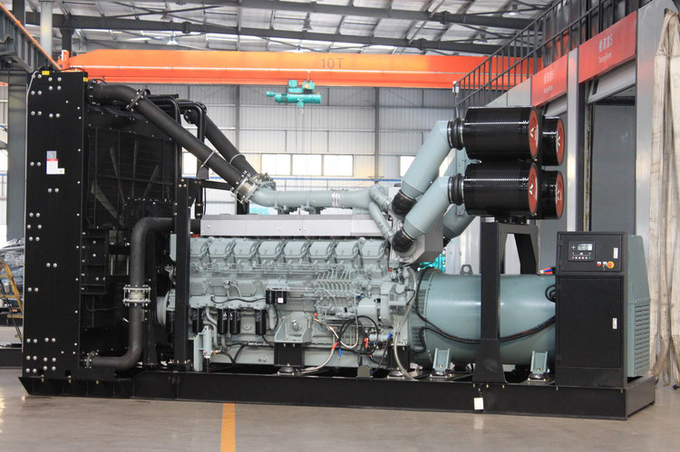

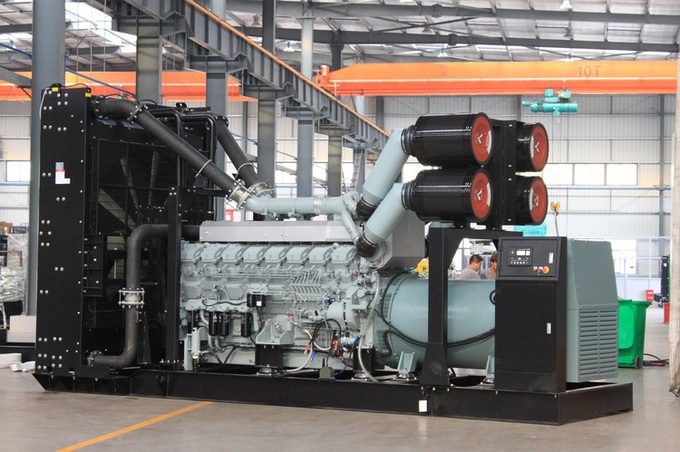

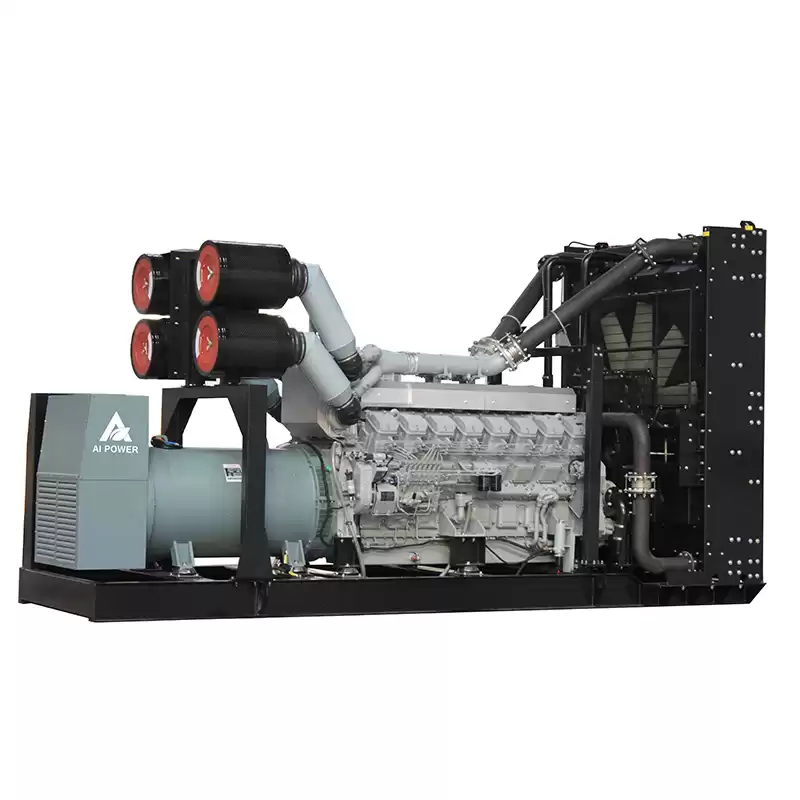

1200KW 1500Kva 1000kva 50Hz Silent Diesel Generator Workshop Mitsubishi


Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

Product Detailes
Engine
GENERAL ENGINE DATA
Engine manufacture
Shanghai MHI Engine Co.,Ltd
Engine brand
SME (Licensed by Mitsubishi)
Engine model
S16R-PTAA2-C
Engine speed (rpm)
1500
Standby power without fan(mKW)
1939
Prime power without fan(mKW)
1728
Type
4-Cycle, Water cooled
Aspiration
Turbo-charged, Air to Air cooler
Cylinder
16 cyliner 60°V
Bore * Stroke (mm)
170*180
Displacement (Liter)
65.37
Compression Ratio
14.0:1
AIR INLET SYSTEM
Maximum Intake Air Restriction (mm H2O)

With Clean Filter Element
400
With Dirty Filter Element
635
Intake Air flow(standby/prime power) (m3/min)
171/152
EXHAUST SYSTEM
Maximum Allowable Back Pressure(mm H2O)
600
Exhaust Gas flow(standby/prime power) (m3/min)
453/403
LUBRICATION SYSTEM
Oil Pressure (Mpa)

at Idle
0.2-0.3
at Rate Speed
0.49-0.64
Max. oil temperature (°C)
110
Total system capacity(Includes oil filter) (liter)
230
COOLING SYSTEM
Coolant Capactiy (Engine only) (liter)
170
Standard Thermostat (modulating)Range (°C)
71-85
Maximum Coolant Temperature at Engine Outlet (°C)
98
FUEL SYSTEM
Fuel Injector
Mitsubishi PS8 × 2
Fuel Consumption (g/kWh)

standby power
217
Prime power
217
STARTING SYSTEM
Battery Charging Alternator (V-Ah)
24-30
Starting Motor Capacity (V-kW)
24-7.5x2
Recommended Minimum Battery Capacity (Ah)

At 5°C and above
300
Below 5°C through -5°C
600
ALTERNATOR
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
LSA52.3S6
Control system
AREP
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)

----------------Cont.H-40°C
2000/1600
----------------Standby-27°C
2255/1804
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single



AI Company

Advanced&Intelligent.

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

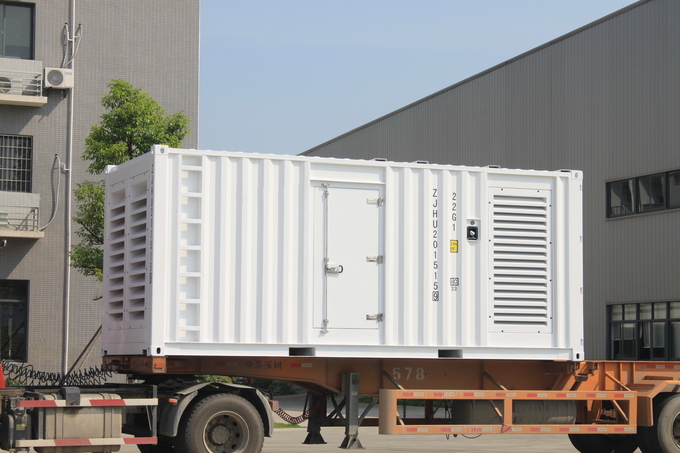

Packing & Delivery



FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What’s your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
