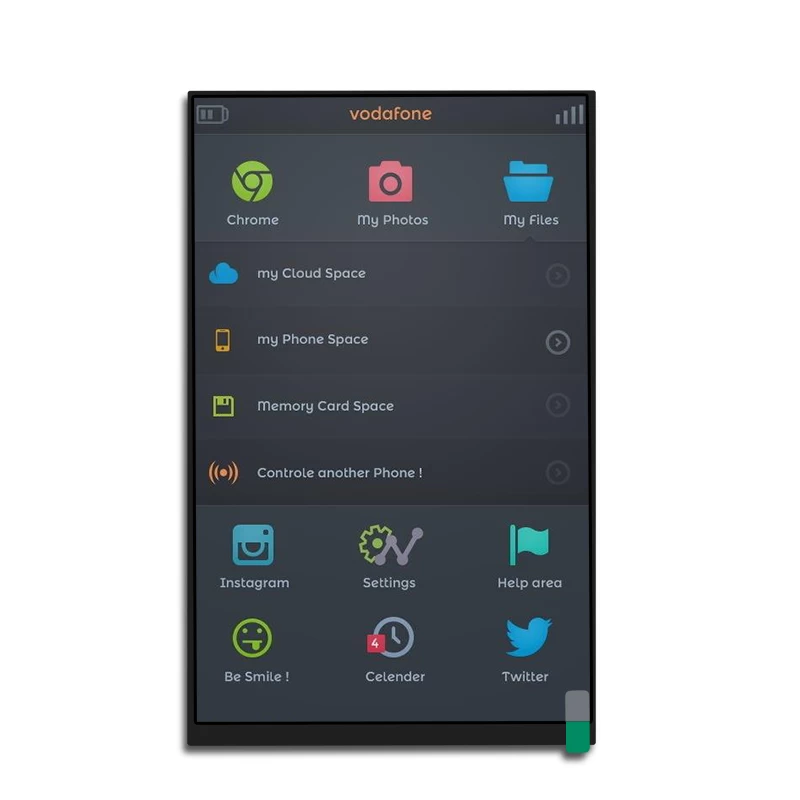

1200x1920 resolution 8.0 inch IPS TFT LCD display with MIPI interface

1200x1920 resolution 8.0 inch IPS TFT LCD display with MIPI interface


Facebook Twitter Pinterest LinkedIn 分享

1200x1920 resolution 8.0 inch IPS TFT LCD display with MIPI interface


Specification
Part No. TST080WUM-NL0
Outline Dimension(mm) 114.6x 184.1x 2.15
Active Area(mm) 107.64 x 172.224
Resolution(dots) 1200*RGB*1920
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 1200RGB(H)xRGBx1920(V)
Touch panel without, available to custom
Dot Pitch 0.0299(W)x0.0897(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black,IPS, 8.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface MIPI
Module lifetime(Hours) 50,000-100,000
