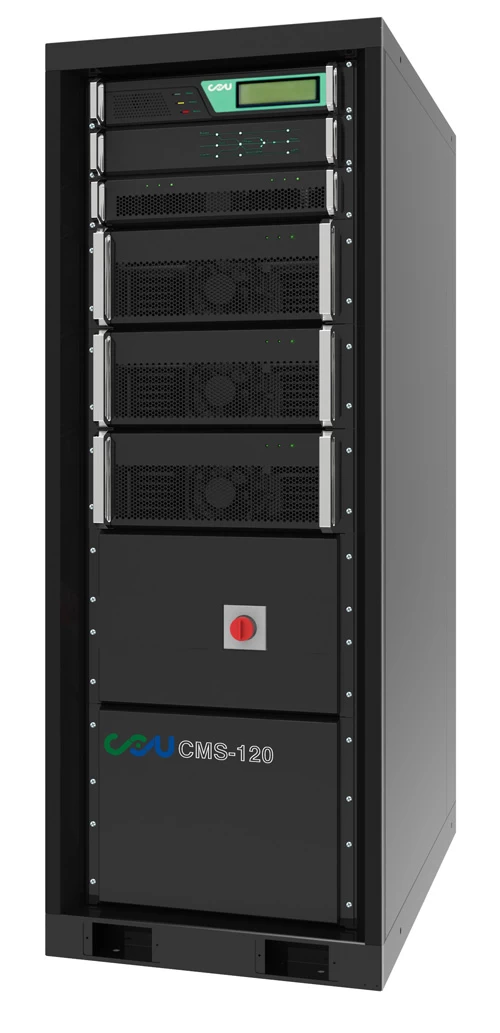

120KVA 3 Phase UPS Modular Structure

UPS frame Capacity: 120
USP module Capacity: 40KVA
3/3; 50/60Hz; BOTTOM/TOP feed

High Frequency MODULAR UPS, scalable from 40 KVA to 120 KVA.

Guarantee for critical projects.

Description

Overview
Non-isolated, world class, redundant, scalable, 3 Phase Online UPS power protection system designed to cost effctively provide high levels of availability. Sicon CMS is a true modular uninterruptible power supply, its architecture can scale power as demand grows or as higher levels of availability are required, perfect integrating into today's data center designs. Sicon CMS online double conversion ups is industry-leading efficiency, availability, and performance for small, medium, large data centers and mission critical environments.

Feature

3/3

System frame/chassis: 120kVA

UPS module: 40 kVA

Uninterruptible Power Supplies 40kVA- 80kVA -120kVA

Transformer Free UPS technology, lower space and weight

Rational redundant structure · N+X redundancy · Online double Conversion (VFI-SS-111)

High efficiency: AC/DC, DC/AC 95%, DC/AC 98% efficiency

THDI ≤ 3%

Input PF ≥ 0.99

Output PF = 0.9

Static and Maintenance bypass switch · Short circuit and overload protection · RS232 serial ports and dry contacts

Optional SNMP, Modbus adapters

Optional configuration: GENSET, EPO, Transformer, Battery Bank, IPDS

2 year warranty · 10 years spare parts support · high frequency ups

Application

Date Center

Products	Model	Contact Sicon
Sicon CMS 10kVA, Scalable to 50kVA, 380V 400V 415V	CMS-50/10	enquiry@scupower.com
Sicon CMS 10kVA, Scalable to 100kVA, 380V 400V 415V	CMS-100/10	enquiry@scupower.com
Sicon CMS 25kVA, Scalable to 150kVA, 380V 400V 415V	CMS-150/25	enquiry@scupower.com
Sicon CMS 25kVA, Scalable to 200kVA, 380V 400V 415V	CMS/A-100, CMS/A-200	enquiry@scupower.com
Sicon CMS 25kVA, Scalable to 250kVA, 380V 400V 415V	CMS-250/25	enquiry@scupower.com
Sicon CMS 50kVA, Scalable to 350kVA, 380V 400V 415V	CMS-350/50	enquiry@scupower.com
Sicon CMS 50kVA, Scalable to 500kVA, 380V 400V 415V	CMS-500/50	enquiry@scupower.com
Sicon CMS 50kVA, Scalable to 800kVA, 380V 400V 415V	CMS-800/50	enquiry@scupower.com
Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P5W	CMS-90/15UH5	enquiry@scupower.com
Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P5W	CMS-120/15UH5	enquiry@scupower.com
Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P5W	CMS-150/15UH5	enquiry@scupower.com
Sicon CMS 15kVA, Scalable to 90kVA, 208V 220V 3P3W+PE	CMS-90/15	enquiry@scupower.com
Sicon CMS 15kVA, Scalable to 120kVA, 208V 220V 3P3W+PE	CMS-120/15	enquiry@scupower.com
Sicon CMS 15kVA, Scalable to 150kVA, 208V 220V 3P3W+PE	CMS-150/15	enquiry@scupower.com
Sicon ERMS 6kVA, Scalable to 12kVA, 220V 230V 240V 1P3W	ERMS-12/6	enquiry@scupower.com
Sicon ERMS 6kVA, Scalable to 24kVA, 220V 230V 240V 1P3W	ERMS-24/6	enquiry@scupower.com
Sicon ERMS 6kVA, Scalable to 36kVA, 380V 400V 415V	ERMS-36/6	enquiry@scupower.com
