120v 277v ac dc 12V 60W 0-10V dimmable constant voltage led driver dimmable power supply
Smarts Electronics' 277v led driver dimmable 0-10V 12V from 30watts to 300watts available with isolated circuits and overload protection. This 277vac 0-10V Dimmable LED Driver is designed to work with any recent standard wall dimmer (0-10V or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 0% to 100% without any noise or flickering. Note that this revolutionary LED Driver does not require a minimal load in order to offer you optimal dimming performances.

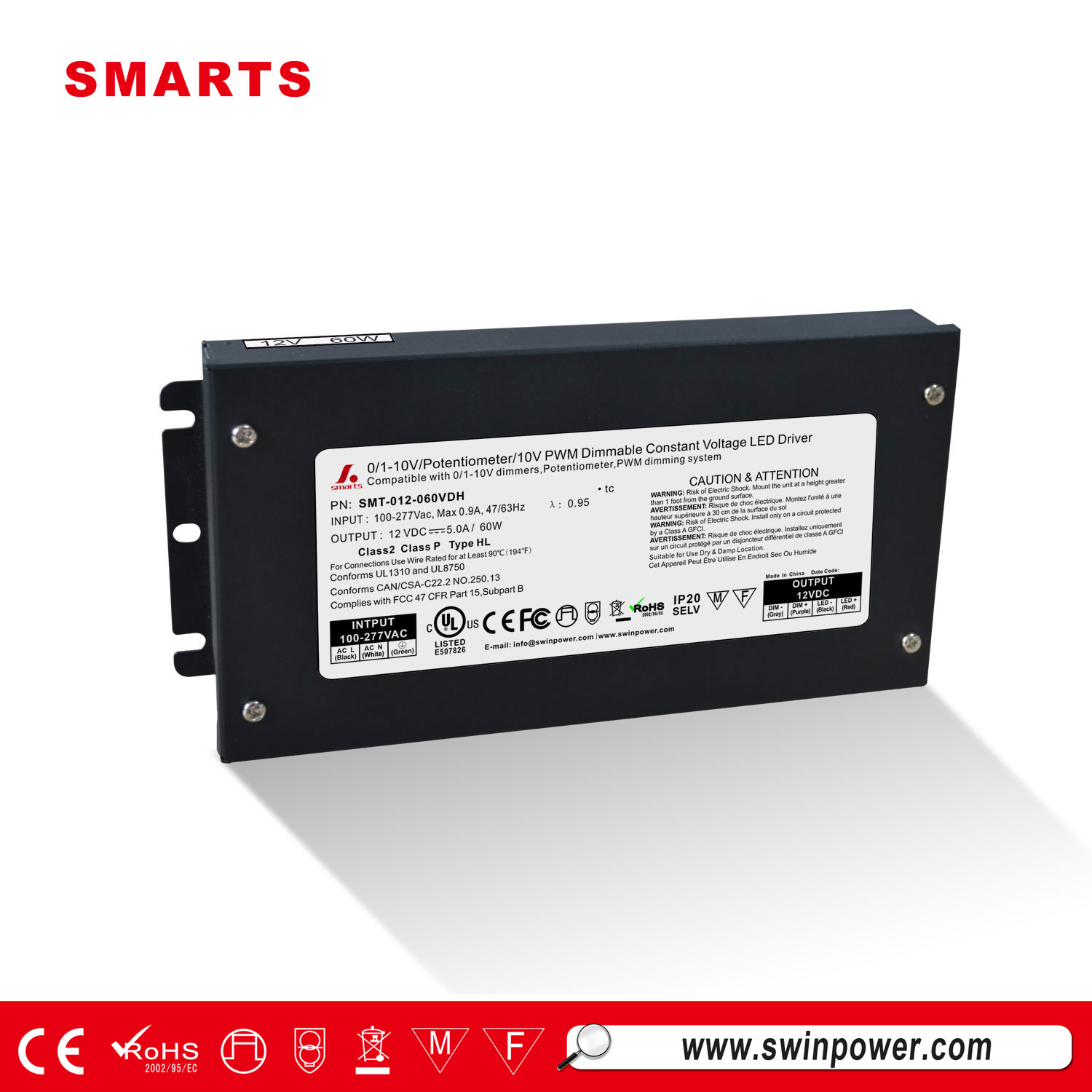

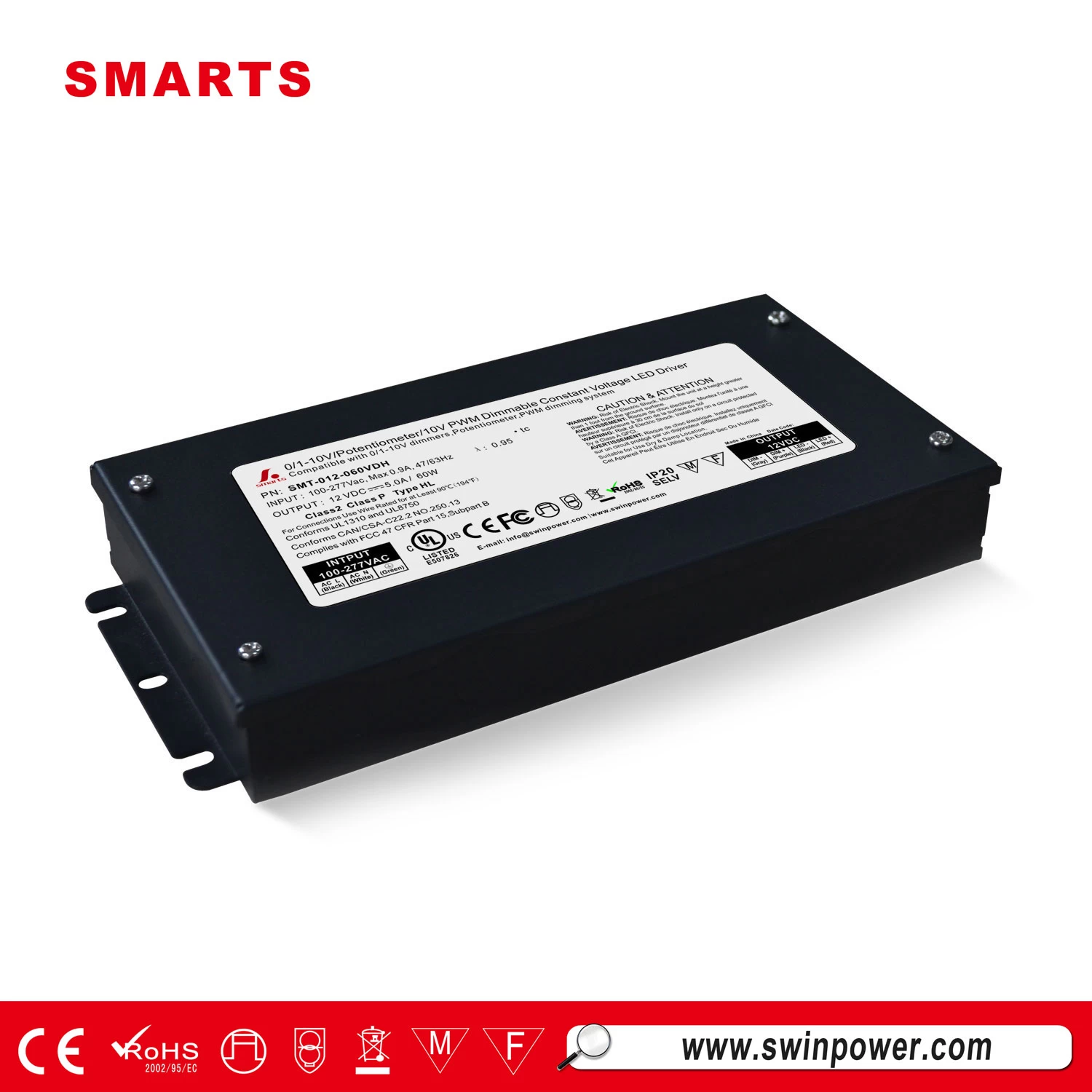

Dimmable Class 2 277v led driver 12v 60w
Input: 100 -277V AC
Output: 12V DC 5A max (60W)
Certification: UL/cUL CE Rohs
Dimensions Power Supply: 188*92*41mm
Weight: 1 kg
|
model
|
SMT-012-060VDH
|
SMT-024-060VDH
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
|
Voltage Regulation
|
±0.5%
|
|
|
Rated current
|
5.00A
|
2.50A
|
|
|
Load Regulation
|
±1%
|
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
0.98@120VAC 0.95@277VAC
|
0.98@120VAC 0.95@277VAC
|
|
|
Full Load Efficiency（Typ.）
|
>88%
|
>89%
|
|
|
AC Current（Typ.）
|
0.9A/110VAC
|
|
|
Inrush Current （Typ.）
|
14A, 50%, 780us
|
|
|
Leakage current
|
<0.50mA
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
|
Over voltage
|
≦140VAC(90~135V) , ≦285VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
|
|
Others
|
Weight
|
About 1.1Kg
|
|
|
Size
|
188*92*26mm（L*W*H）
|
|
|
packing
|
10PCS/CTN
（L*W*H）
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

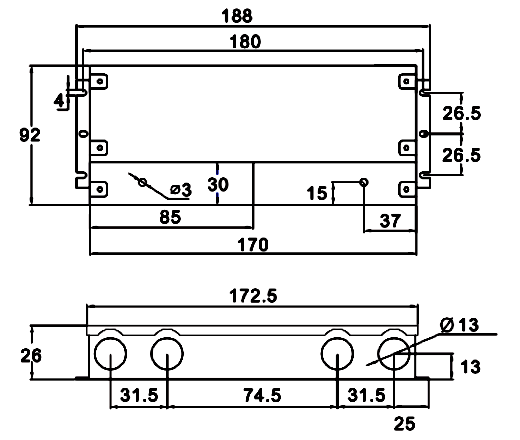

Mechanical Specification
Can we make our company information on the label?
Answer:
--As per the policy of UL, we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the UL department discover it . Really sorry for that and caused you so much trouble..
--If making changes on the labels are necessary for your company, I suggest you multi-list of our UL certification , then we can help you design the new label as requested.
