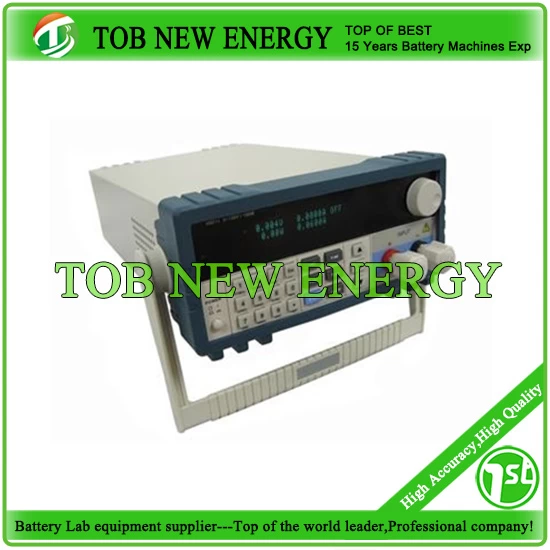

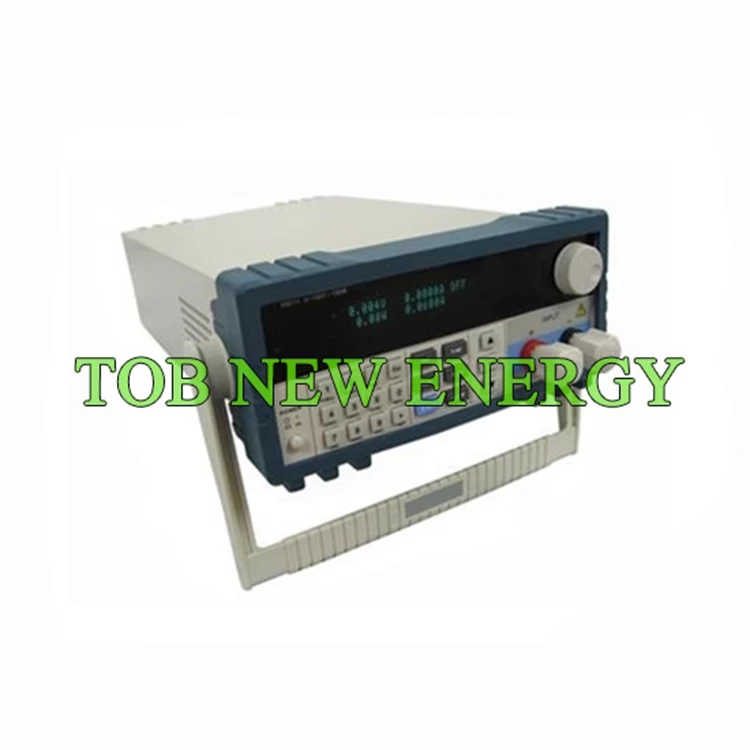

120V/30A/300W DC Programmable Electronic Load

Model

DC Electronic Load    TOB-IT8512

Input Rating

Power

300W

Current

0-30A

Voltage

0-120V

CC Mode

Range

0-3A

0-30A

Resolution

0.1mA

1mA

Accuracy

0.05%+0.1%FS

0.1%+0.1%FS

CV Mode

Range

0.1-18V

0.1-120V

Resolution

1mV

10mV

Accuracy

0.05%+0.02%FS

0.05%+0.025%FS

CR Mode

Range

0.1-99Ω

100-4KΩ

Resolution

0.01Ω

1Ω

Accuracy

1%+0.3%FS

1%+0.8%FS

CW Mode

Range

0-100W

100-300W

Resolution

1mW

10mW

Accuracy

1%+0.1%FS

1%+0.1%FS

Voltage Measurement

Voltage

0-18V

0-120V

Resolution

1mV

10mV

Accuracy

0.02% + 0.02%FS

0.02% + 0.025%FS

Current Measurement

Current

0-3A

0-30A

Resolution

0.1mA

1mA

Accuracy

0.1% + 0.1%FS

0.2% + 0.15%FS

Battery Test

Battery Input:0.1-120V; Max.Measurement:Capacity=999AH

Dynamic Test

Transition List:0-1kHZ

Short Circuit

Current(CC)

=3A

=30A

Voltage(CV)

0V

Resistance(CR)

=40mOh

Temperature

Operating

0~40oC

Nonoperating

-10oC~70oC

Dimension

W*H*D(mm)

214*88*354mm

Weight

Kg

3.5

1 Standard exported package : Internal anticollision protection, external export wooden box package

2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode

3 Responsible for the damage during shipping process, change the damage part for free

4 Supply with suitable voltage input and power plug according to customer's country requirements.

1 We supply machines with battery technology support.

2 We can also supply a full set of materials for lithium battery including polymer battery, cylinder battery, mobile phone battery, EV battery.

3 We can also supply a full set of lithium battery equipment for lab research, pilot scale research and production line.

4 We can also supply a full set of battery technology for battery design, research and producing.
