120v bimetallic thermostat switch for hair straightener

Hair straighteners are a popular hair styling tool, but choose one with a thermostat is safer.


  • CertificationISO,TS16949,SGS,CQC,TUV,UL,VDE,CTI

120v thermostat switch for hair straighteners and curling irons



Straighteners and curling irons are popular hair styling tools that some girls use every day. But prolonged use can cause overheating and burn your hair, so it's especially important to choose a straightener with a temperature switch thermostat.It protects the hair from overheating damage.VA1 and VAA1 are thermostat switches with bimetal strips,they have a slow-action design, the contacts are turned on or off slowly, without an obvious difference between on and off, and can be kept at a constant temperature.

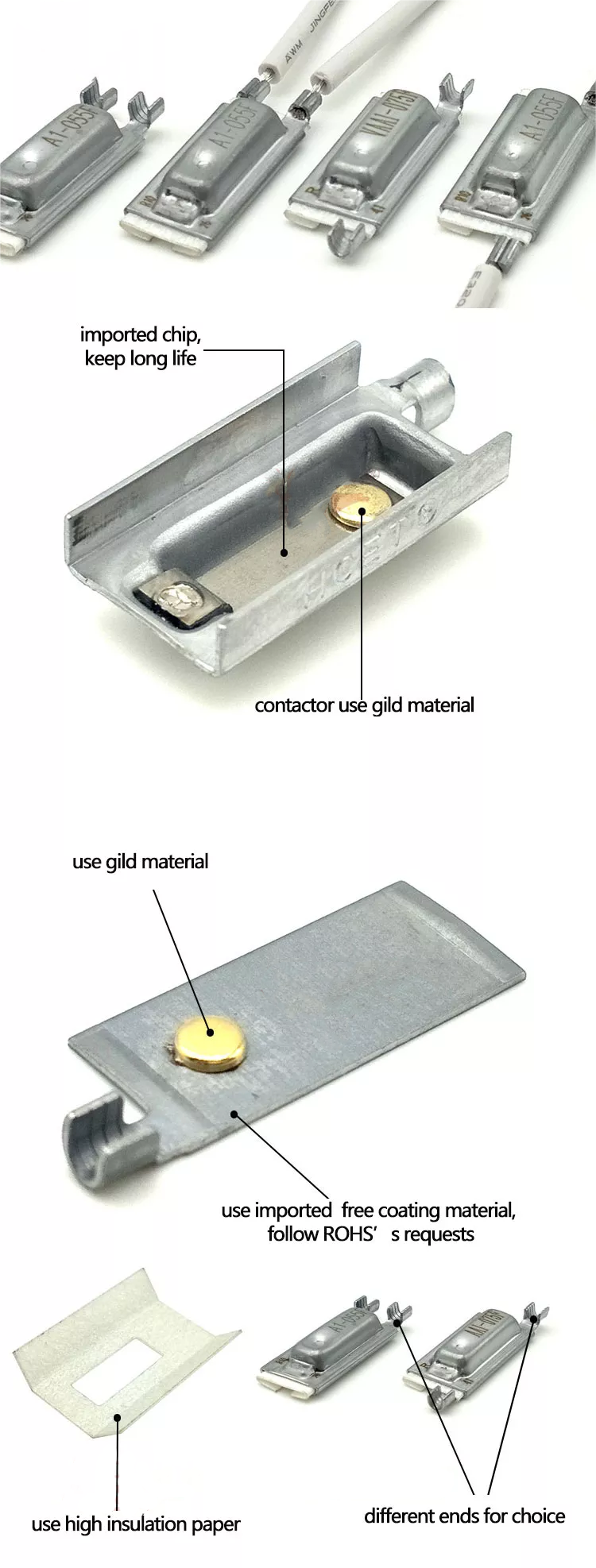

Features

1. High-quality chips imported from the United States

To ensure that the disconnection time and protection temperature are more accurate and reliable.

2. Gilded moving and static contacts

Make the internal resistance of the thermal protector smaller, ensuring a longer life and more reliable.

3. With insulating liners

Prevents the formation of a current loop inside the thermal protector.

4. Various terminals

Various terminals are available for customers to choose according to installation requirements.Ensure more flexible and convenient installation.

5. Wire length can be customized

Wire specifications can be customized according to customer requirements, the default length is 70mm.



Specifications

Item No.

VA1/VAA1

Electrical specifications

5 amps/120 volts AC resistive

5 amps/24 volts DC resistive

Operating temperature range

5°C~200°C

Temperature tolerance

± 3°C, ± 5°C, ± 8°C

Case material

Metal

Case size(mm)

24.2*9.5*4.5

Wire

Optional and customized

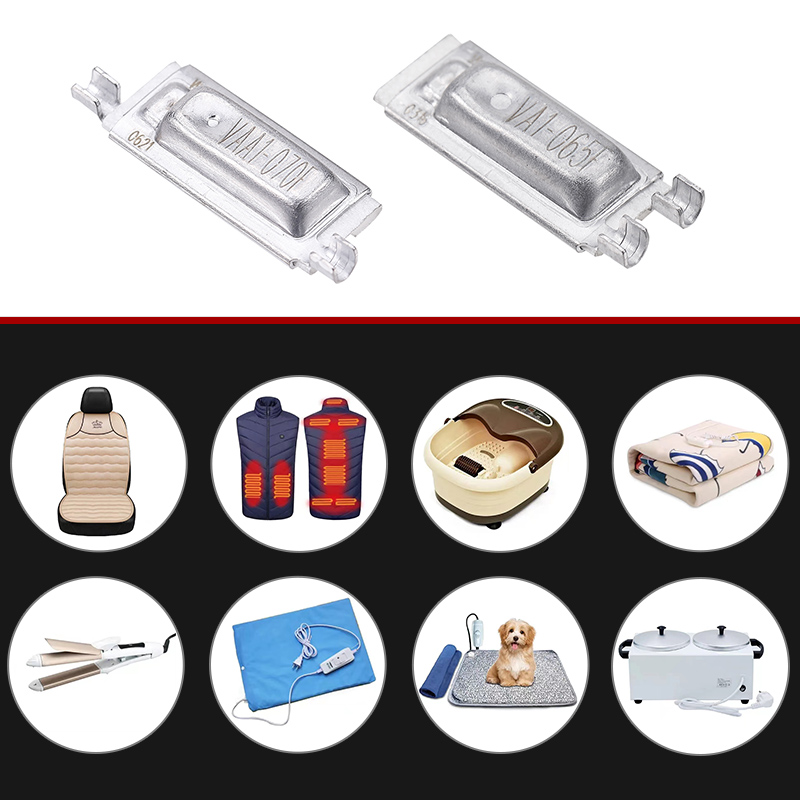

Applications

VA1 thermostat

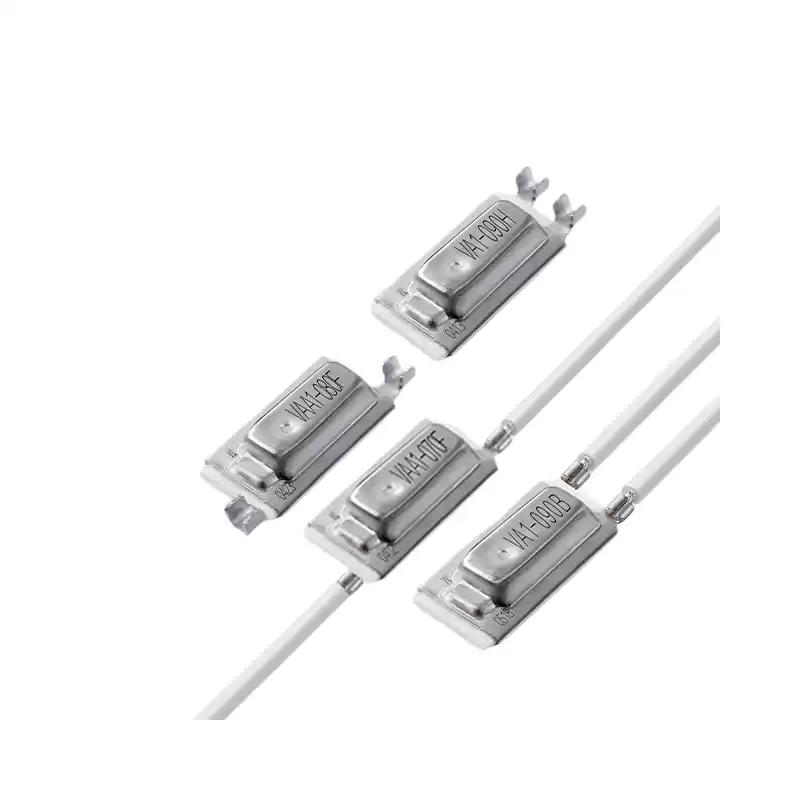

Product display

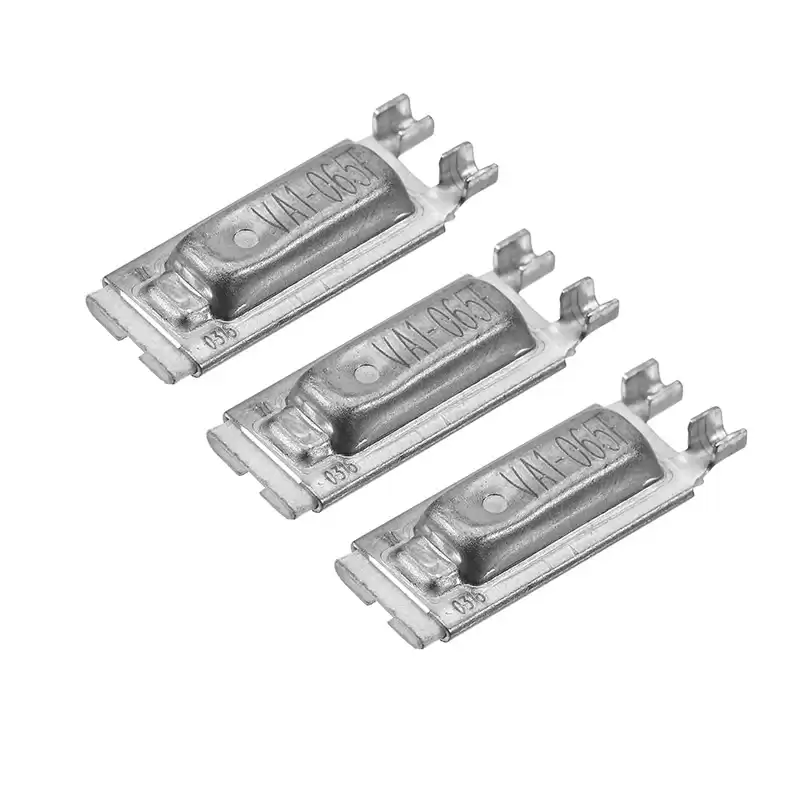

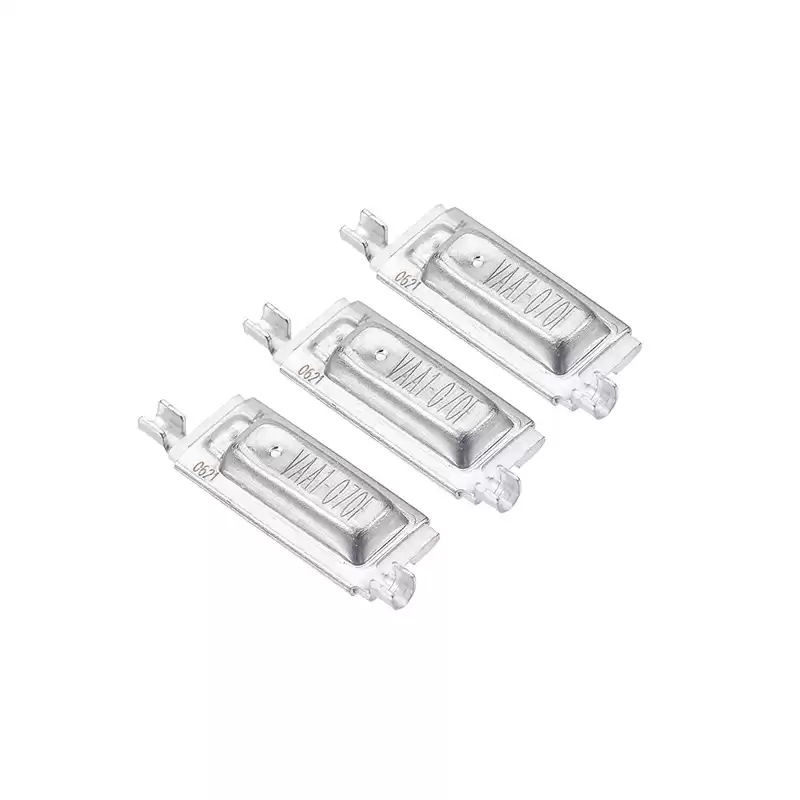

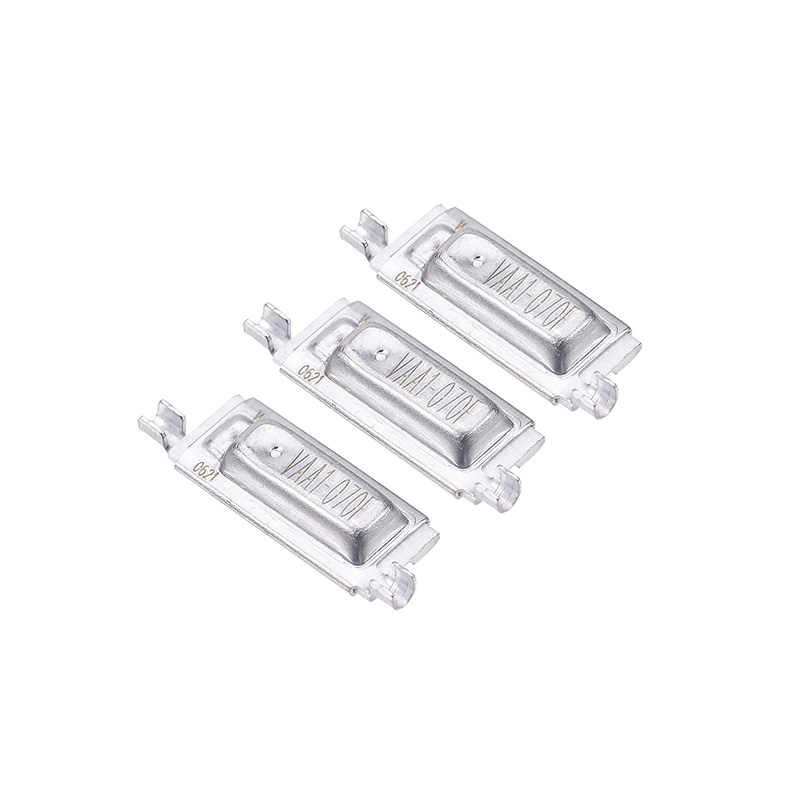

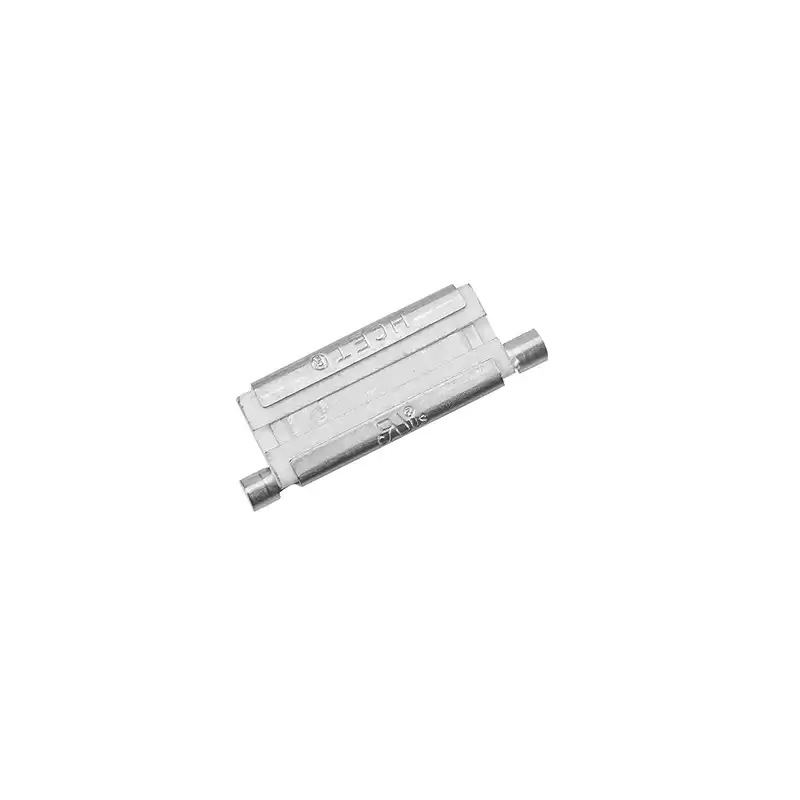

120v thermostat switch

Size details

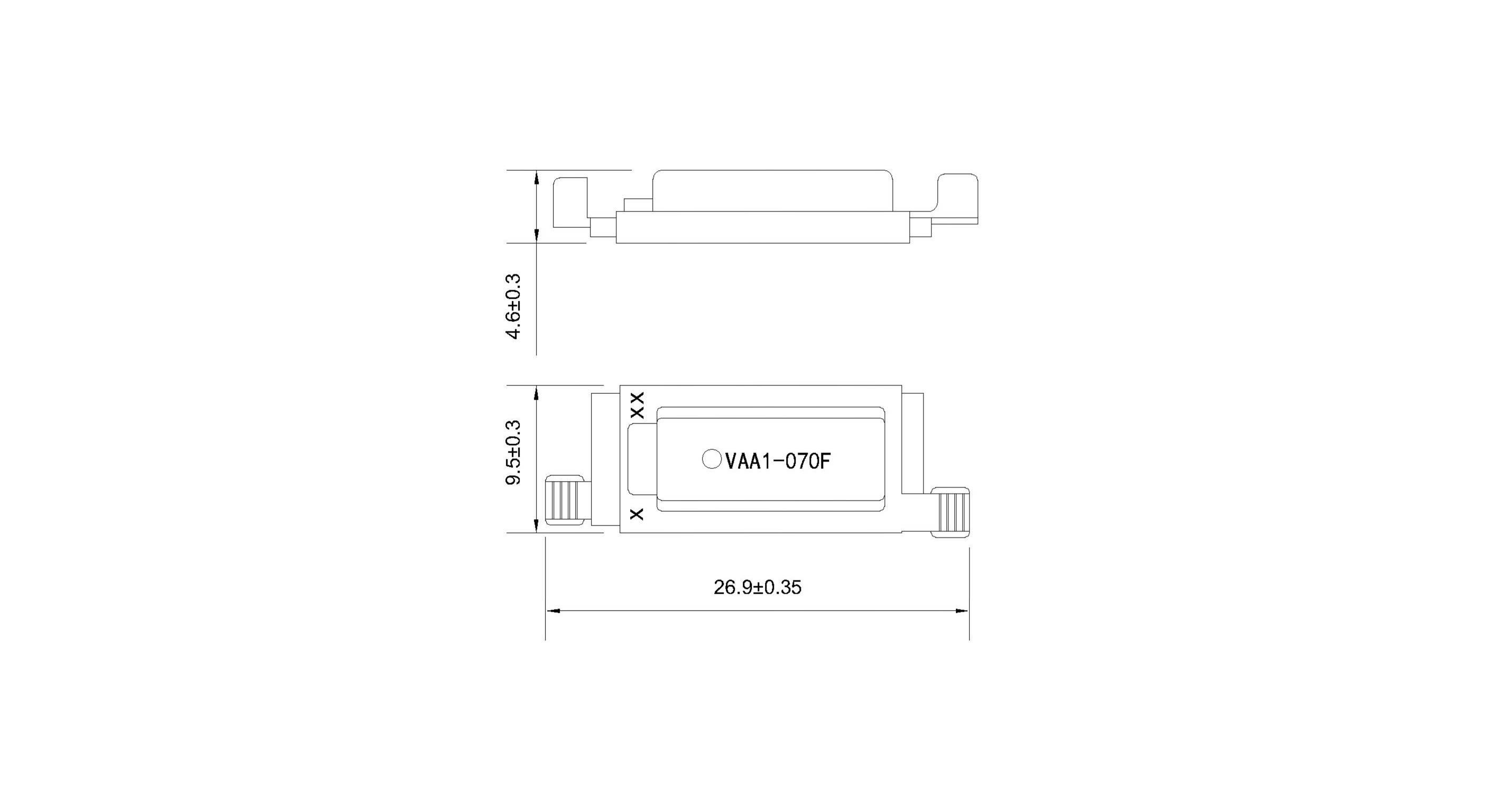

120v thermostat switch drawing

Packing & Delivery

Packing:

Packed in standard export cartons.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery time:

Delivery time for small orders:7-15 days.

Delivery time for special requirements orders:15-30 days.
