120v led strip light driver 120W 12v 24v for USA market
The led driver usa are intrinsically safer transformers because they are well used with Cambria 203 MR16 Low Voltage Landscape Light.
Specification
|
Model
|

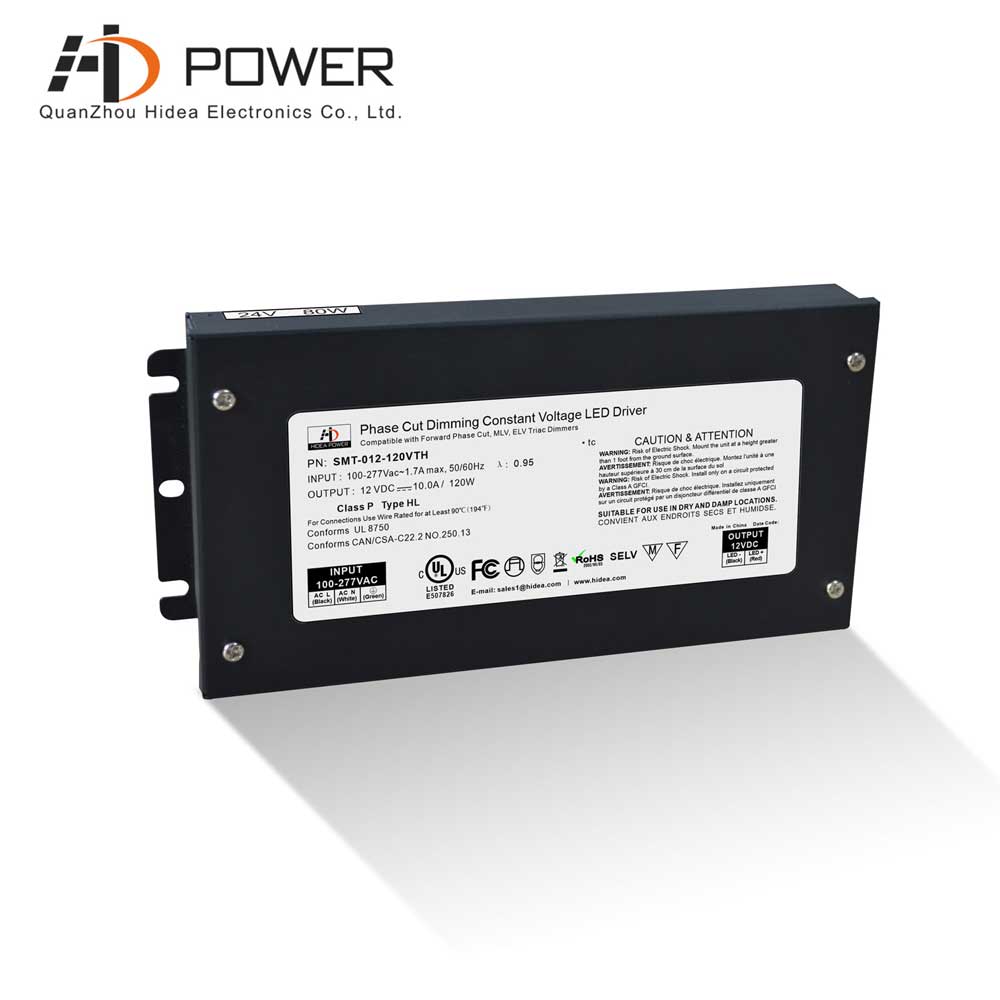

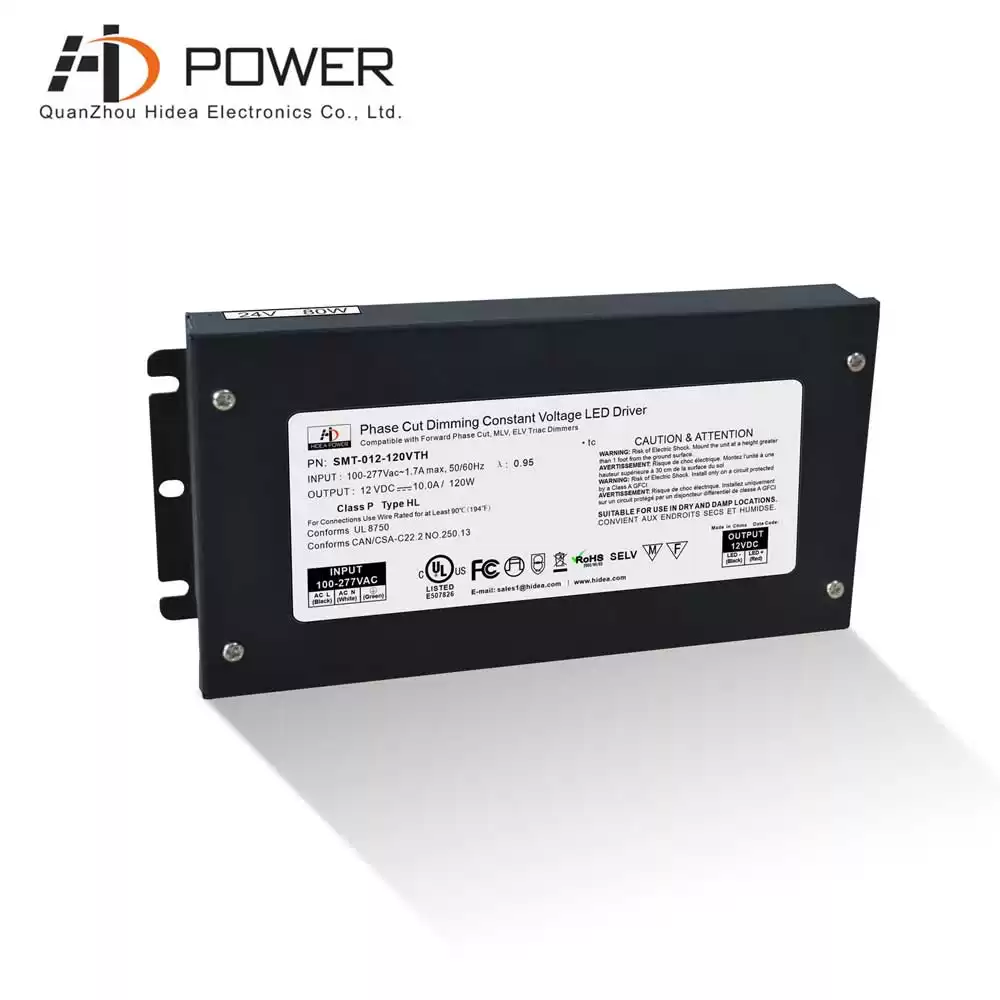

SMT-012-120VTH (1.0 ver)
|
SMT-024-120VTH (1.0 ver)
|
|

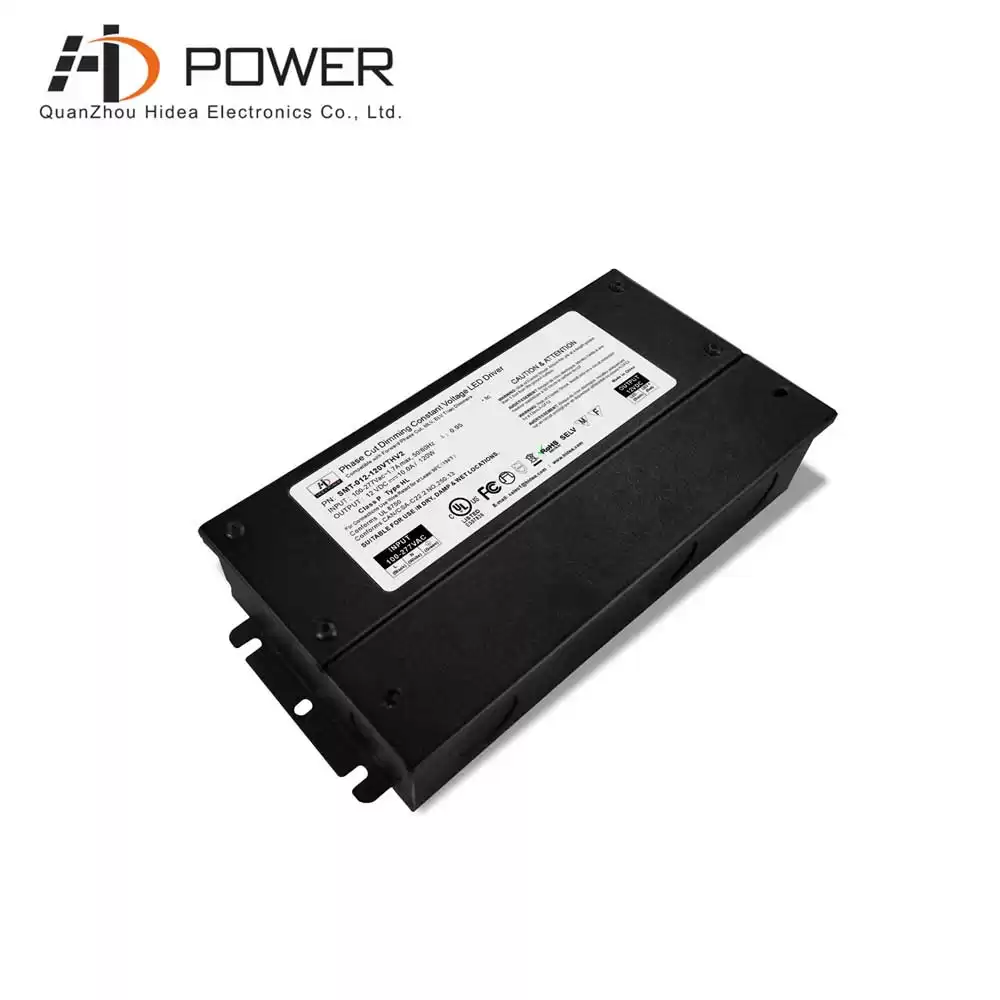

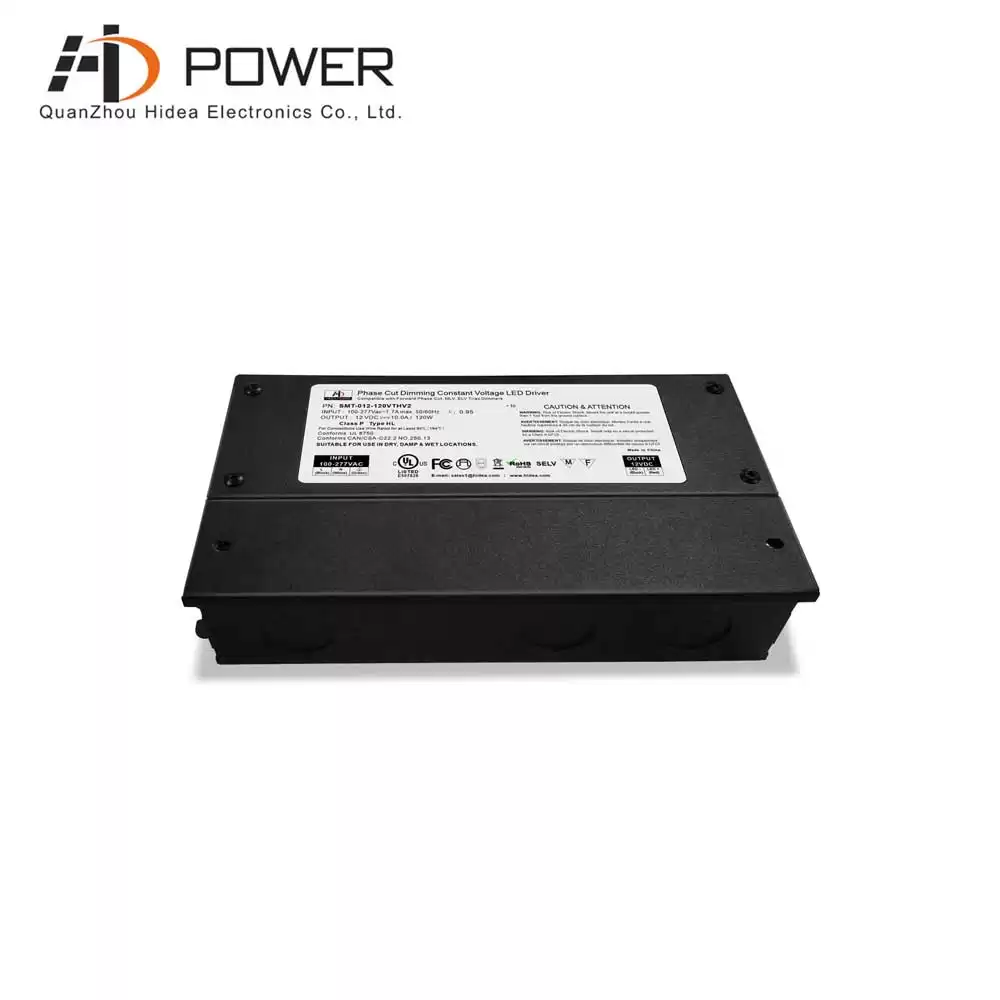

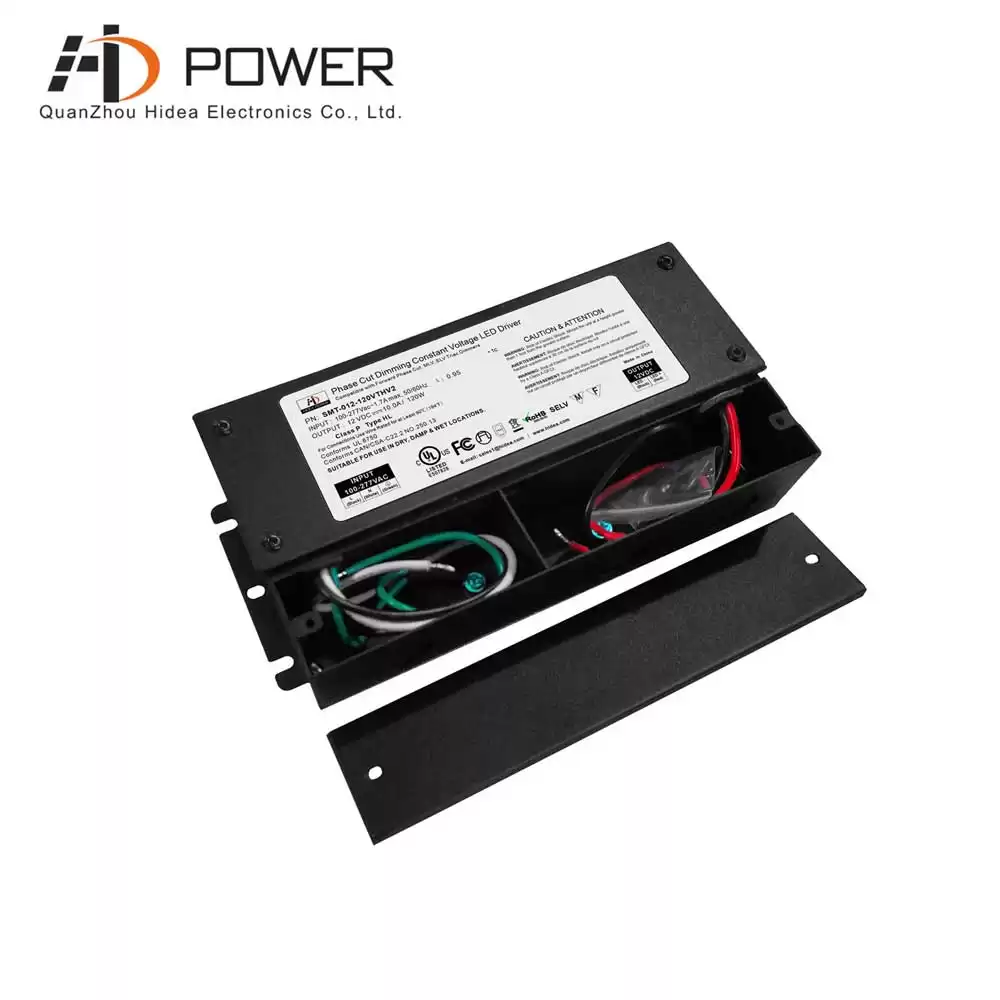

SMT-012-120VTHV2 (2.0 ver)
|
SMT-024-120VTHV2 (2.0 ver)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Rated Current
|
10A
|
5A
|
|
Rated Power
|
120W
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63HZ
|
|
Power Factor(Typ.)@ full load
|
0.99@120VAC 0.96@277VAC
|
0.98@120VAC 0.96@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
82%
|
|
AC Current(Max.)
|
1.7A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90% RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.3Kg
|
|
Size
|
1.0 version: 220*93*41mm (L*W*H); 2.0 version: 220*94.5*40mm (L*W*H)
|
|
packing
|
329*279*176mm , 10PCS/ctn
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible Light Type
This Mini Neon has the same robust construction as Polar 2 Neon with our led 24v driver, but with higher impact due to the thin lens design. Available in 120V with eight color choices.
Related Products
|
 The led strip light driver 120W has high PF >0.9 and high efficiency >90% for the non dimmable type application.

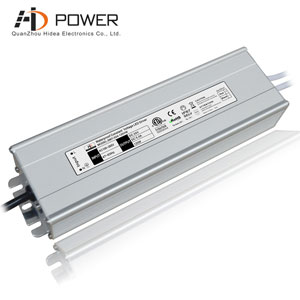

Mode：SMT-012-120VW
Dimming Mode : Non-Dimming
Output Power : 120W
intput voltage：100~265V AC
Size：215×69×43MM （L*W*H）
|
