120w 0-10V dimmable led power supply IP67 aluminum 12v

120w 0-10V dimmable led power supply;12v 120w 0-10V dimmable led power supply;


  • Input Voltage100-277VAC
  • Output Voltage120W
  • Output Current10A
  • Working ModeConstant Voltage
  • CertificationCE SAA ROHS
  • Warranty3 years

120w 0-10V dimmable led power supply IP67 aluminum 12v



 Specifications


  • 1.Dimming mode: 0/1-10v constant voltagedimmable led driver
  • working mode : constant voltage type
  • I/P: 100-265vAC/ 170-375vAC /47-63Hz
  • Ambient temp.:-20 degree~40 degree full load
  • overload,over heat, over voltage, short circuit protection
  • We give 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)



 Product parameters




Model

SMT-012-120VD

SMT-024-120VD

SMT-036-120VD

Output

DC Voltage

12V

24V

36V

Voltage Accuracy

±0.5V

Rated current

0-1.0A

0-5.0A

0-3.33A

Rated power

120W

120W

120W

Ripple&noise Max.

200mVp-p

350mVp-p

350mVp-p

250mVp-p

400mVp-p

290mVp-p



Input

Voltage Range

100-130VAC170-265VAC



Frequency Range

4763HZ



Power Factor ( Typ.

>0.90@110V ,220VAC

>0.90@110V,220V

Full Load EfficiencyTyp.

>88%

86%

87%

>88%

88%

AC CurrentTyp.

1.263A/120VAC  0.891A/170VAC  0.689A/220VAC  0.572A/265VAC

Leakage current

0.25mA/110V,220VAC



Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is

removed

Over voltage

315VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13. IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level surge4KV

Others

Weight

1.32Kg

Size

230*68.5*43mmL*W*H

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and

    25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a

    0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

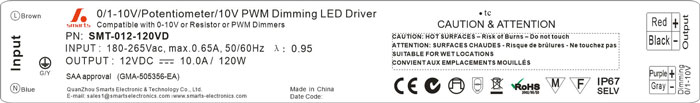

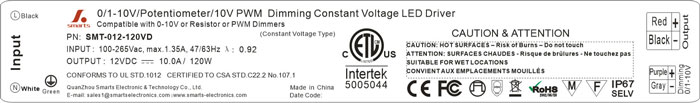

  label

120w 0-10V dimmable led power supply120w 0-10V dimmable led power supply

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



 Application


  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

led driver 120w







 Packaging & Shipping


120w 0-10V dimmable led power supply IP67 aluminum 12v
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1300   g 15 kg 10 pcs 329*279*176mm


led driver 120w



Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes...View this Supplier's Website



 Our team


led driver 120w


 Factory & Equipments view


led driver 120w



 Our Services


  • Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial  experience. It will guarantee your order 100% safe
  • Price is negotiable if you have large quantity demand
  • 100% QC inspection Before Shipping
  • Best Quality & Best Service with Competitive price
  • Shipping will be the most economical for you and freight cost is informed in advance
  • consideration.decision for the shipping terms will be made according to your requirements
  • We have our engineer team, if you have any question about your LED applications, let  us know freely, we will give you the best solution
  • Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
  • OEM design & OEM packing welcome
  • Samples will be ready within 7 working days




 FAQ


Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI

       dimmable led drivers, enclosure power suppliers, power adapters.



Q2. What's shipping mode can we choose?

A2:1.FedEx/DHL/UPS/TNT/Express for samples;

      2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

      3. Customers specifying freight forwarders or negotiable shipping methods!



Q3. What's the MOQ?

A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4. What can you do if the product is broken?

A4: We promise to replace new ones to you if there is any defective happen during

      the warranty period, but we need pictures or video to prove the defective comes

      from our quality problem.



Q5. How about the protection of product?

A5: Most of our products have protection of short-circuit, overload, over voltage,

       over current and reserve polarity. About the specific product, please consult

       our sales stuff.



Q6. How about the transportation?

A6: For small order,express will be best.And for bulk order,sea ship way is best but

       take much time. For urgent orders,we suggest via air to airport plus our ship partner

       send to your door. We will cooperate with your choice.



Q7. What's the Payment do you have?

A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via

        T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the

        near future.
