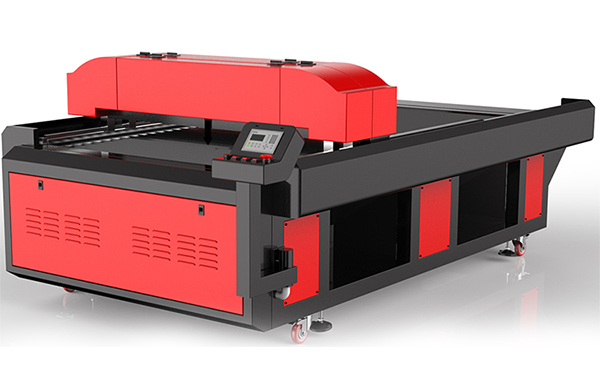

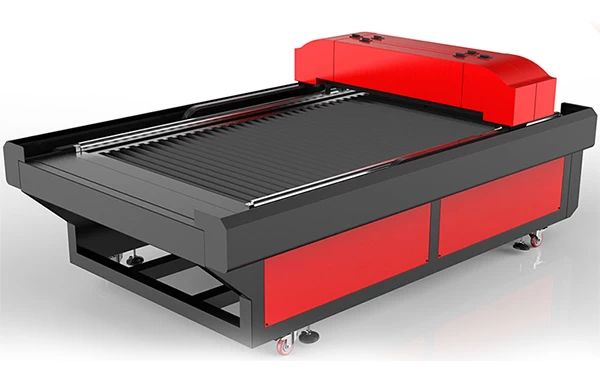

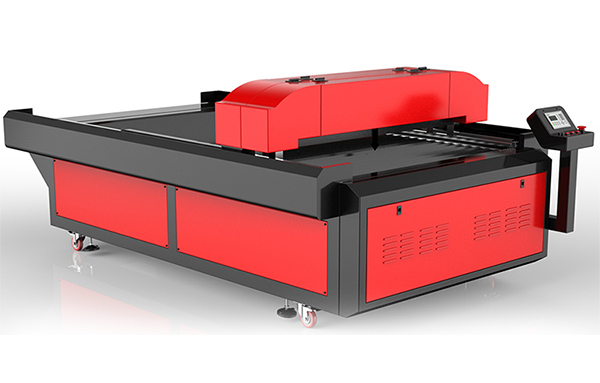

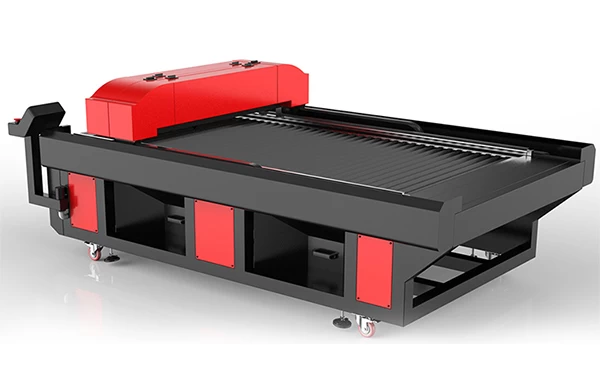

120W 150W Co2 Laser Cutting Machine 1300*2500mm Table
Baisheng Laser the fastest flatbed co2 laser engravers on the market,Big cutting table ,
the co2 laser cutter allows large sheets of material to be cut at fast speeds with options of a high power 120W 150/280w co2 long life (10,000hr) laser tube.
120W 150W Co2 Laser Cutting Machine 1300*2500mm Table
CO2 Laser cutter machine allows large sheets of material to be cut at fast speeds.
Co2 Laser Cutting Machine Main Parameters:
- 1300 x 2500 mm work table.(1600 x 2500 mm,2000*3000mm options)
- China Ruida or Topwisdom control software included
- Cutting speed 0-200mm/s
- Laser tube life 10,000 hours
- Software supported: CorelDraw, 2D Design, Art cut, Auto Cad,
- Graphics supported: DXF, PLT, JPEG BMP
- Driving method by stepper motor
- Resetting position accuracy 0.01mm
- Power supply 220 /240v single phase
- Communication: USB Port
- High quality cutting and precise engraving ability.
- Aluminum blades fixed table. Or honeycomb table
- Red dot pointer system for easily and quickly lining up your work
- Flow sensor to protect your laser tube.
- Closed loop smart control water cooling system-S&A brand water chiller
- 12 month warranty excluding consumables.
- On-line technical support by phone & email,wechat,whatsapp.
- Fully trained specialist laser service engineers.
- Auto Distance Control to follow contours
-
Laser tube :CDWG or Yongli or Reci
- A minimum of 12 months warranty excluding consumables: laser machine and tubes 8 months.

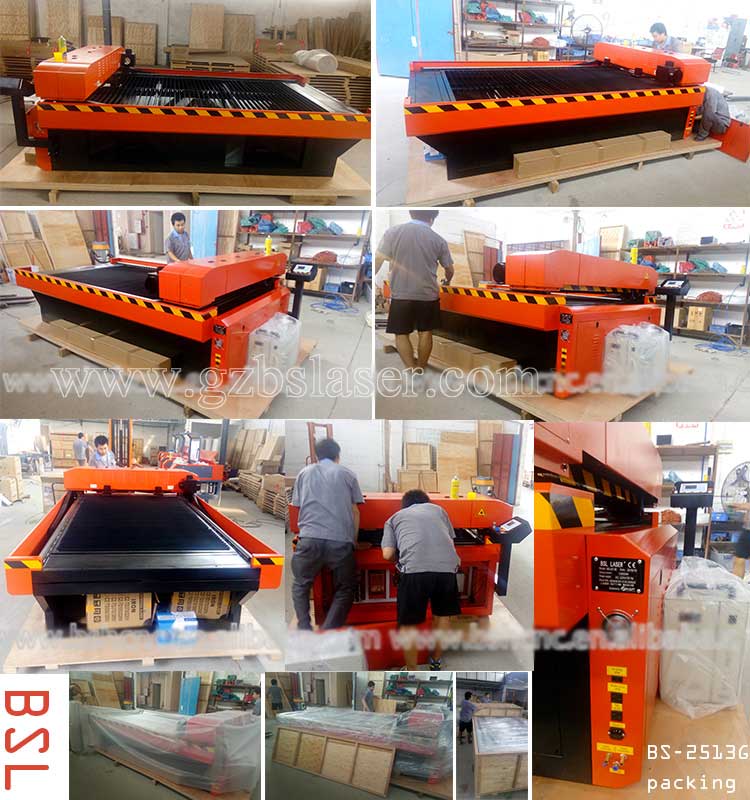

Black color option

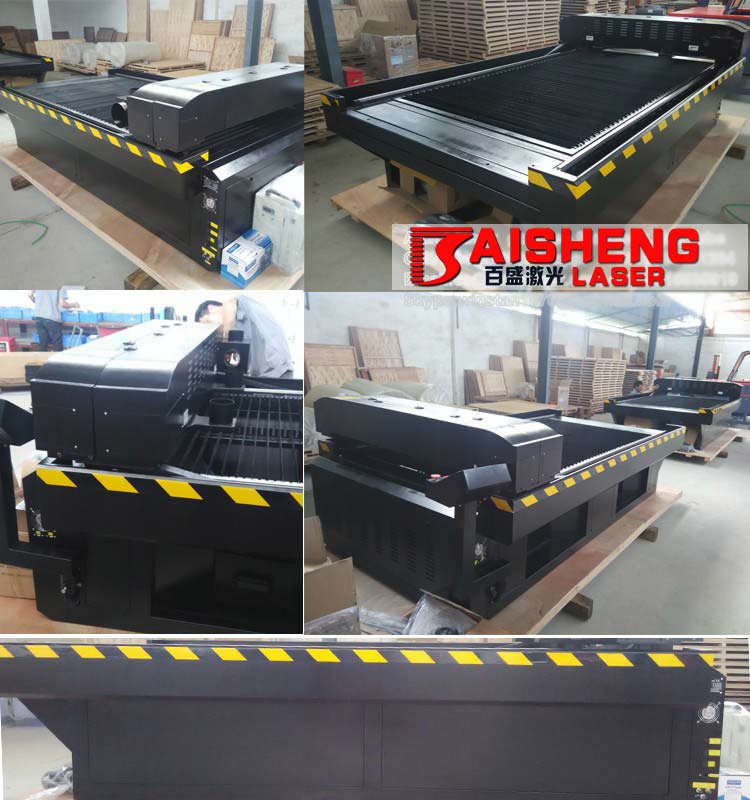

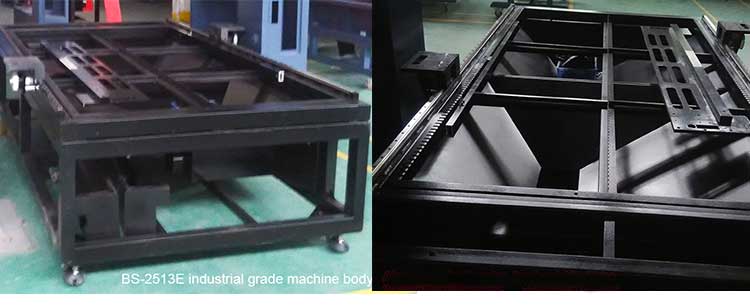

Solid Machine bed ,durable and providing possibility of precise cutting .

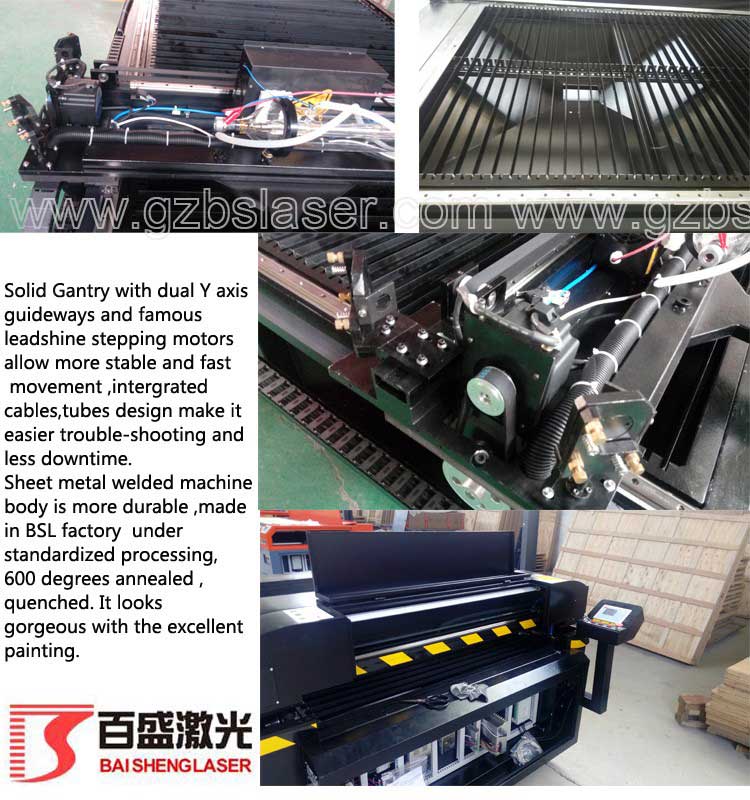

Leadshine stepper motor and CSK guideway
The BS-2513 has hard wearing stainless steel bearings and linear guide rails for precision, accuracy and repeatability. It is able to cut max 30mm acrylic with 280W,and others plywood, MDF, Fabrics, rubber plus many more materials.
All our machines are CE approved.
