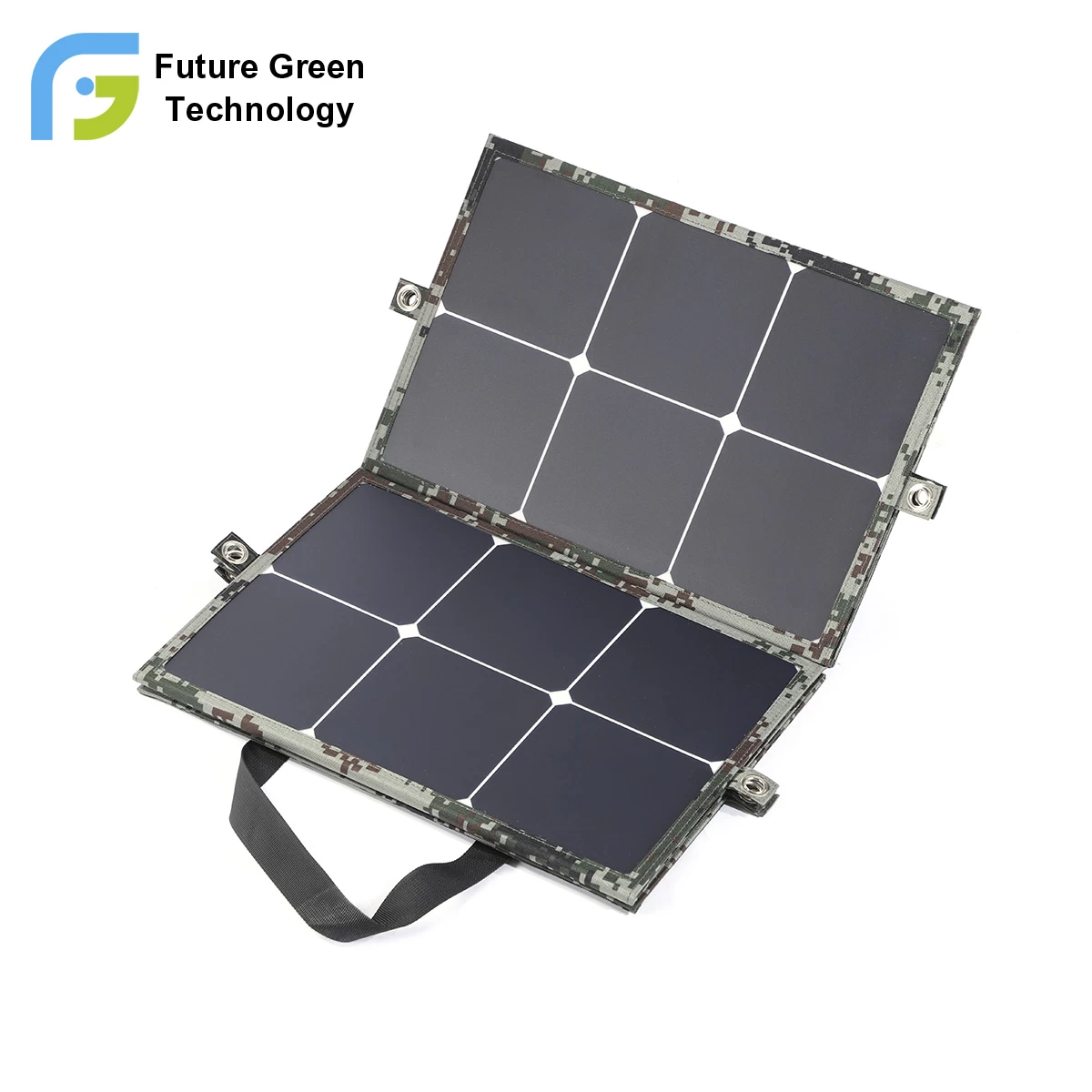

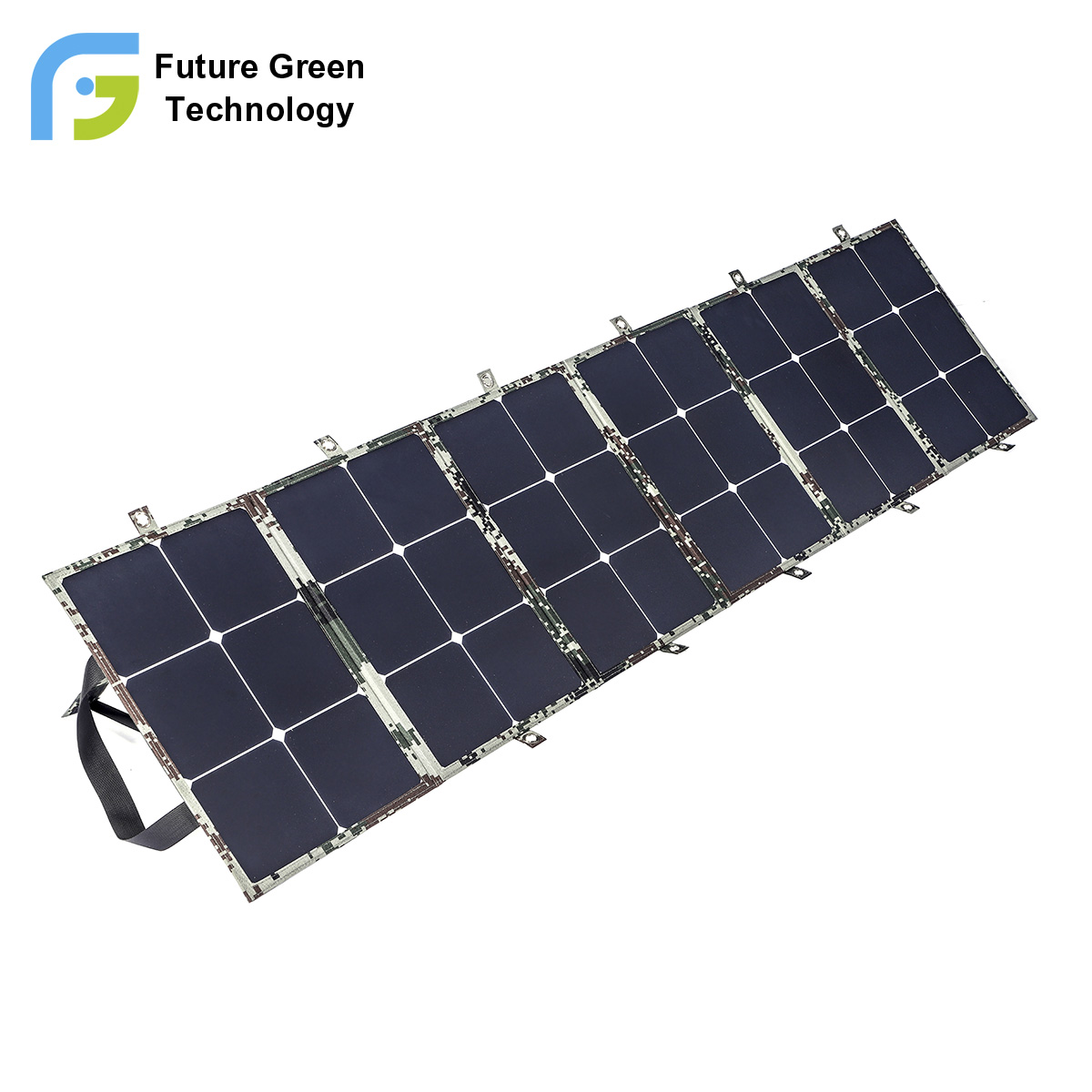

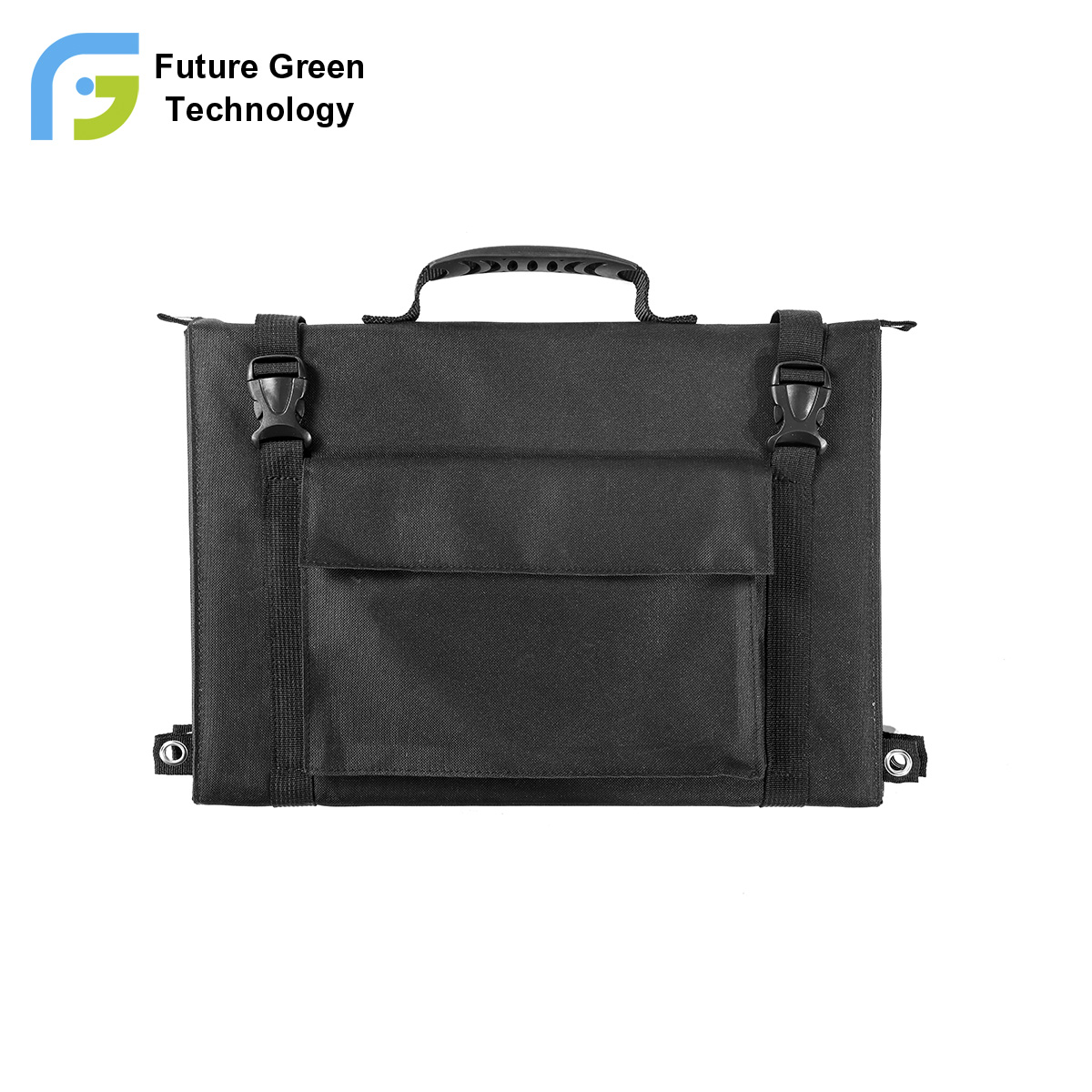

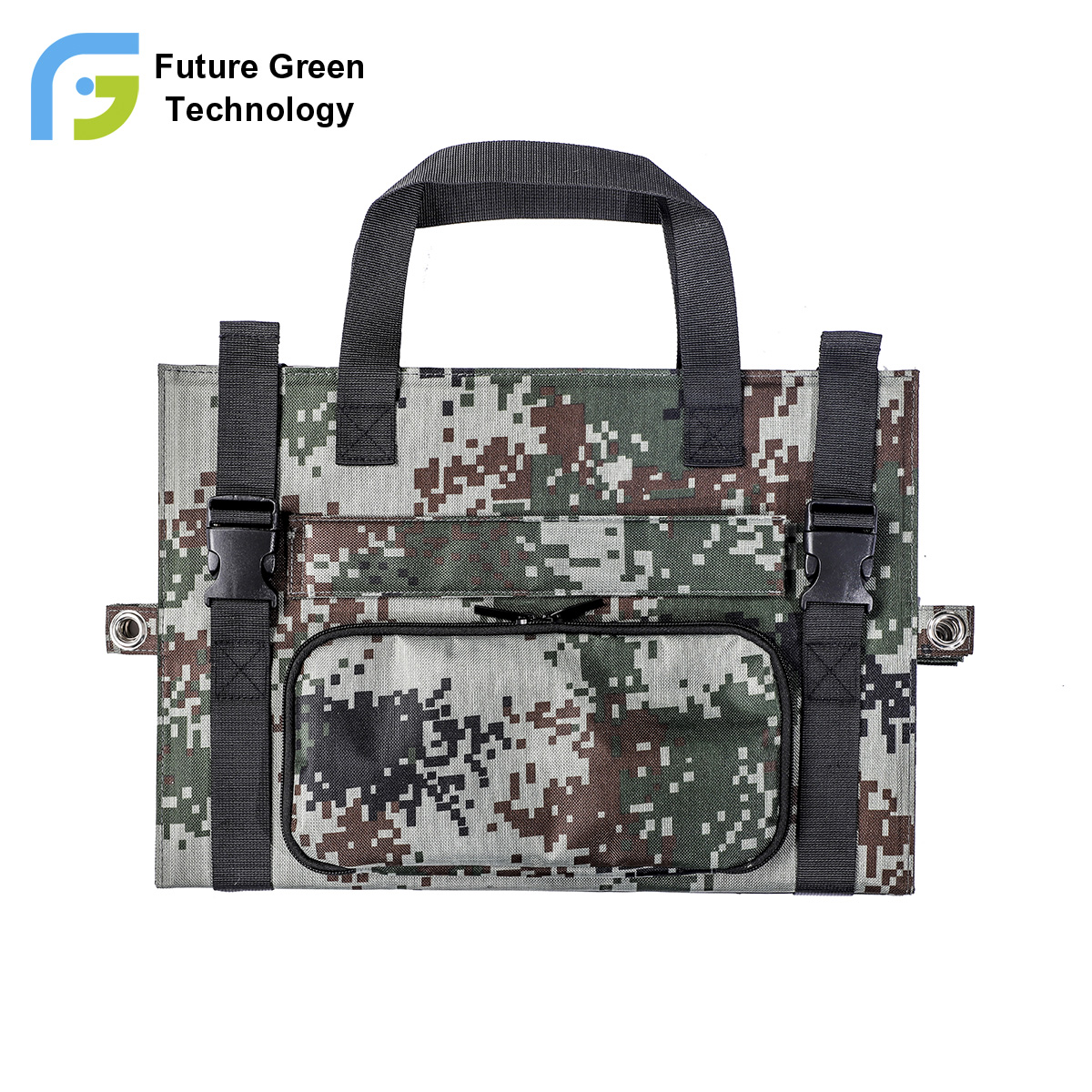

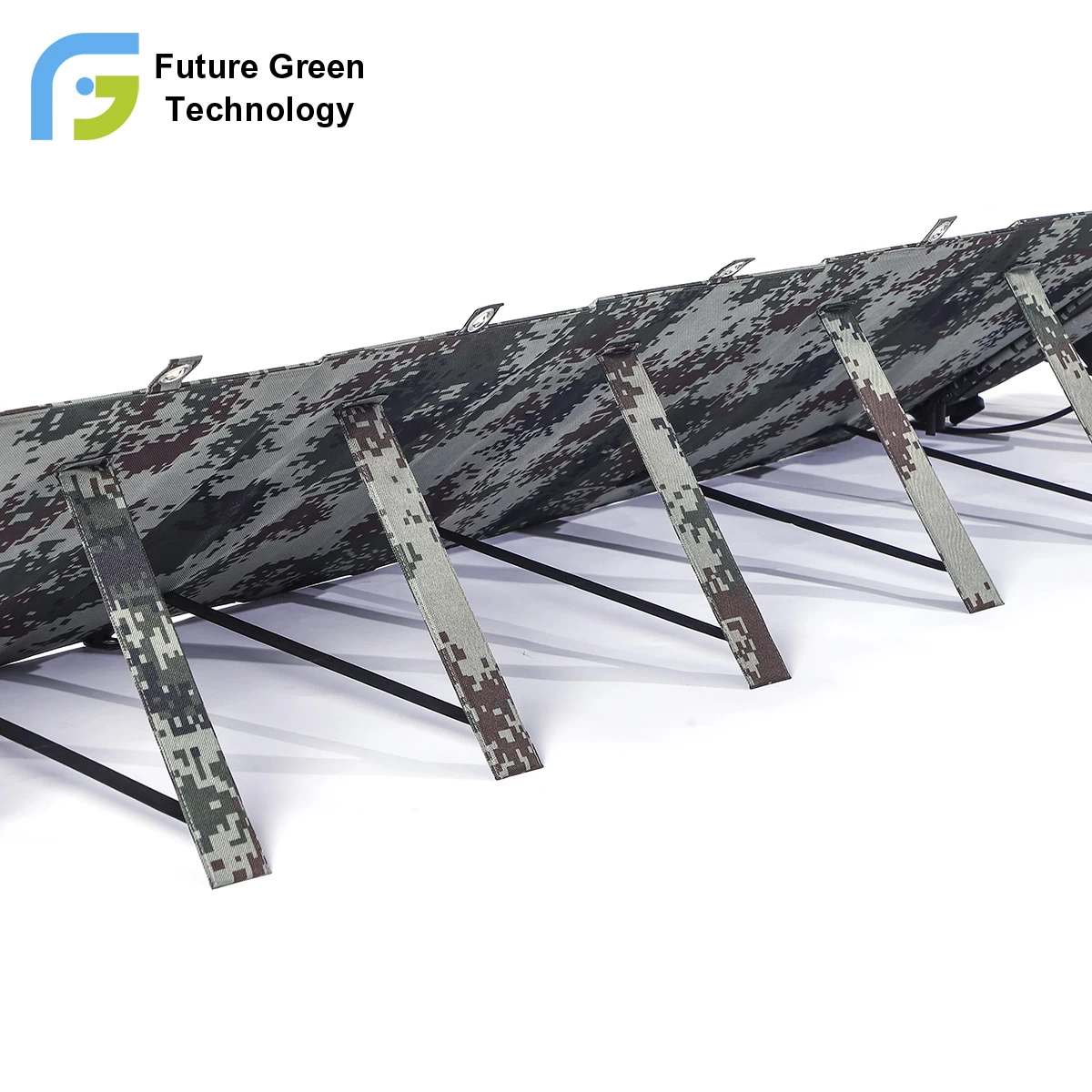

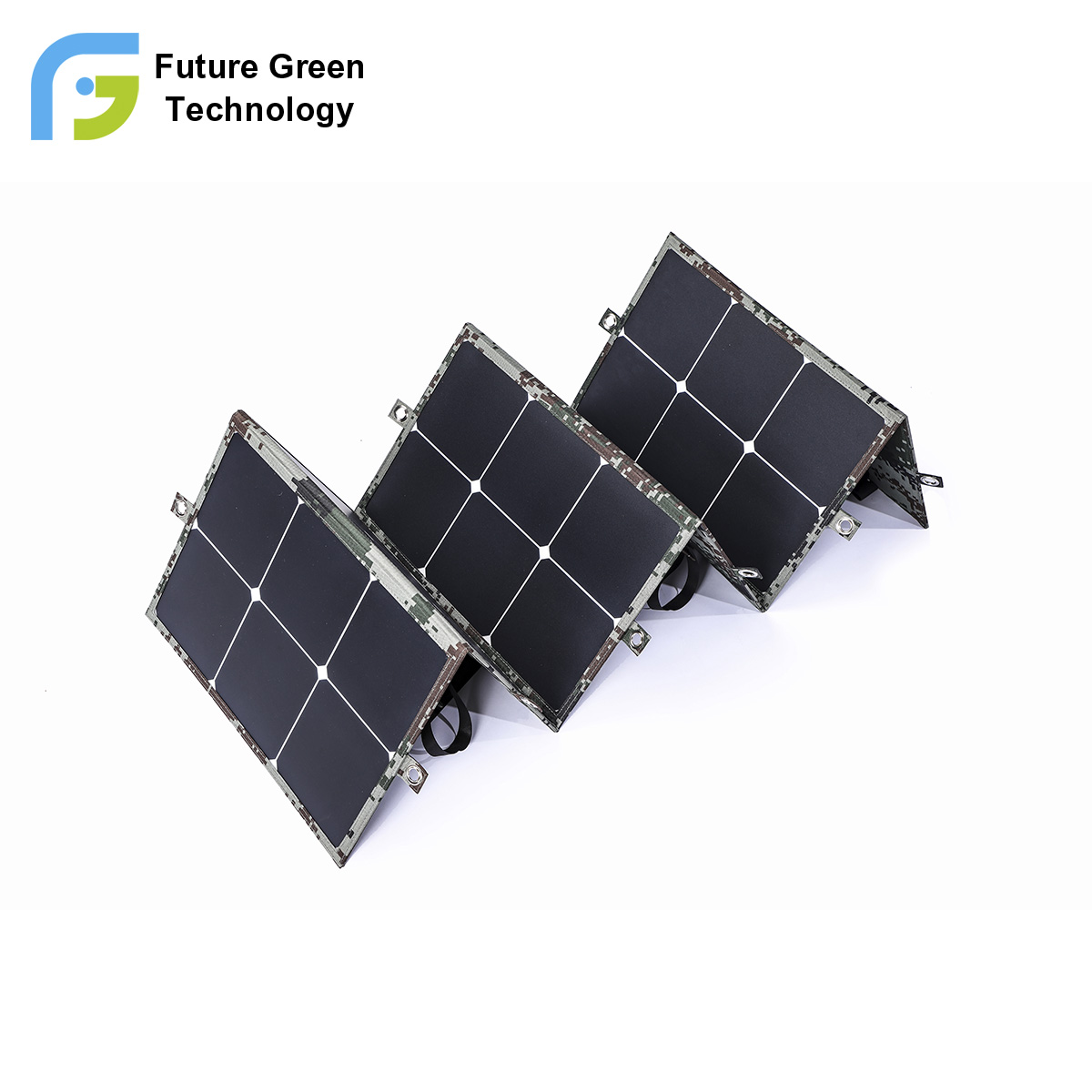

120W Flexible ETFE Panel Portable 6 Fold Bag with USB

  • High-efficiency Solar cells
  • Fully adjustable 10A charge controller with LCD display and USB output
  • Compatible with gel, AGM batteries and power bank
  • Low-voltage system avoids electric shock hazards

Facebook Twitter Pinterest LinkedIn 分享

120W Flexible ETFE Panel 6 Fold Portable Bag with USB


Solar Panel Details:

Electrical Characteristics
Product code FL-120W20V
Maximum power(Pmax) 120W
Voltage at Pmax(Vmp) 19.8
Current at Pmax(Imp) 6.06
Open-circuit voltage(Voc) 23.4
Short -circuit current(Isc) 7.42
Power temperature coefficient -0.38%/ºC
Voltage temperature coefficient -0.27%/ºC
Current temperature coefficient +0.05%/ºC
Cells Efficiency(%) 23.70%
The maximum system voltage 45VDC(IEC)
Output power tolerance ±3%
Cells USA A grade solar cell
No.of cells and connections Module dimension 36(6*6)
Weight 340*240*5mm
Certification 1.23KG CE,RoHS,ISO



Packaging & Shipping:
1.Package: Carton Box for packaging or Wooden Box advised for Samples to protect in transportations. The package designed by Clients is welcomed.
2.Shipping: DHL,FEDEX,UPS,EMS,AirWay and By Sea.
Samples are Available for Testing and Market Test.

Our Services:
 Samples and OEM, Warranty, and After-Sale Service:

  •  Welcome Solar Panel Sample Test
  •  OEM Welcomed
  •  Warranty:25 Years
  •  After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
How To Ask for Support if product failure in a warranty?
1. email us about the PI number, serial number, Product S/N number, PCB board number most importantly, is the description of failure products on the condition that it is operated correctly, to the best, show us more detailed pictures or video.
2. we will submit your case to our after-sales department.
3. Usually, within 24 hours, we will email you the best solutions.

FAQ:
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2:  I Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and cost less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3:  7 days for sample; 15 days for bulk order.
Q4: What is the warranty of solar panels?
A4: 25 years warranty on FGET-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
