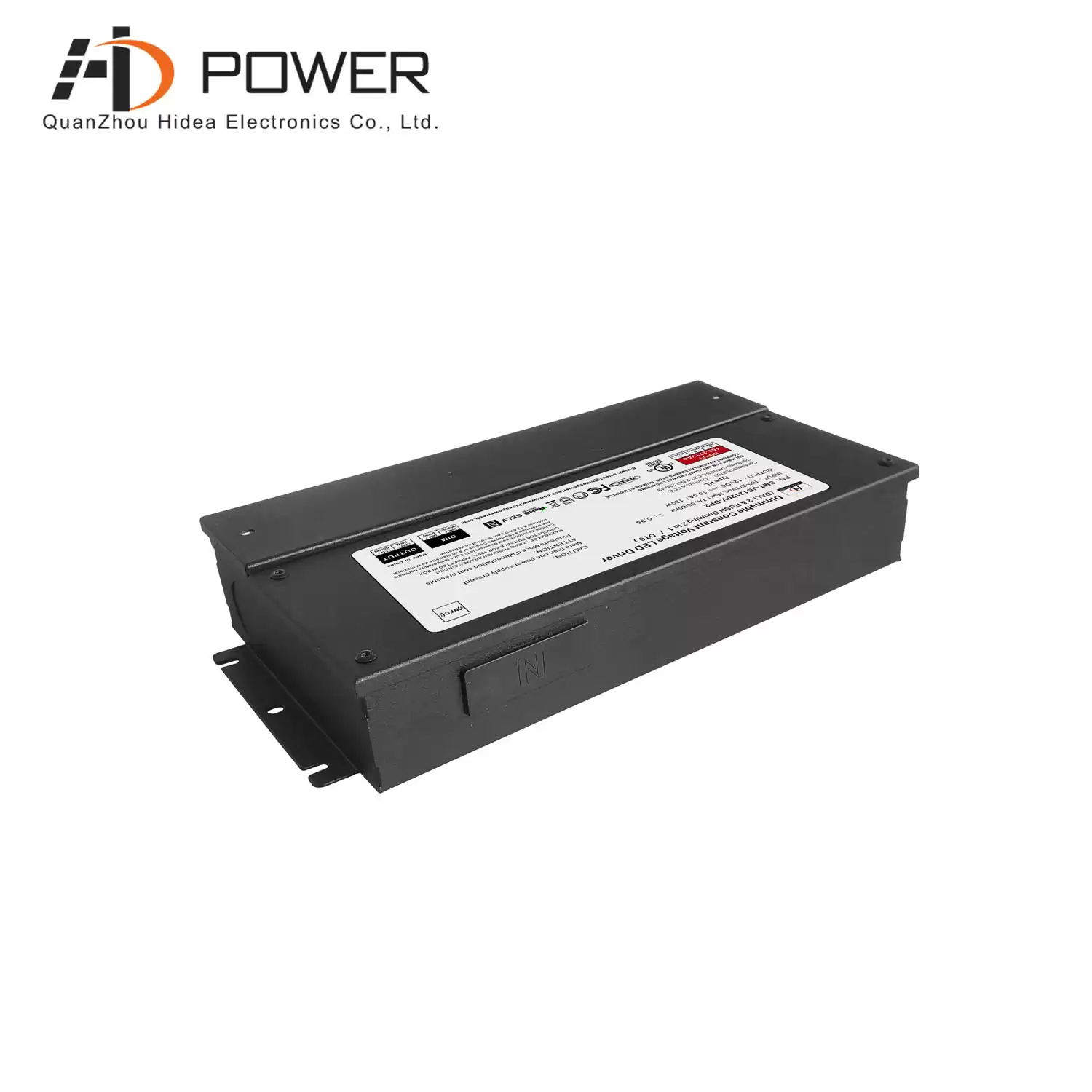

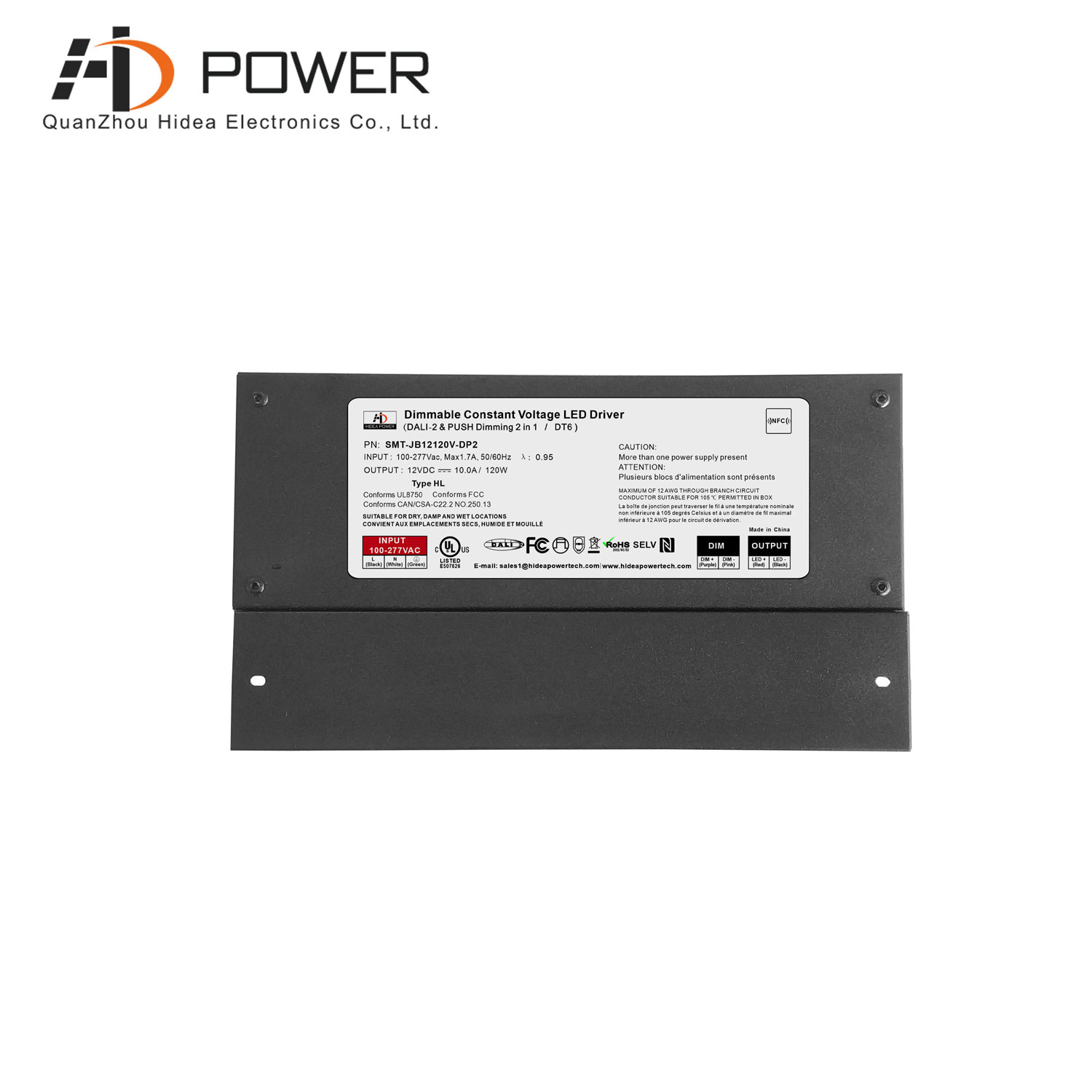

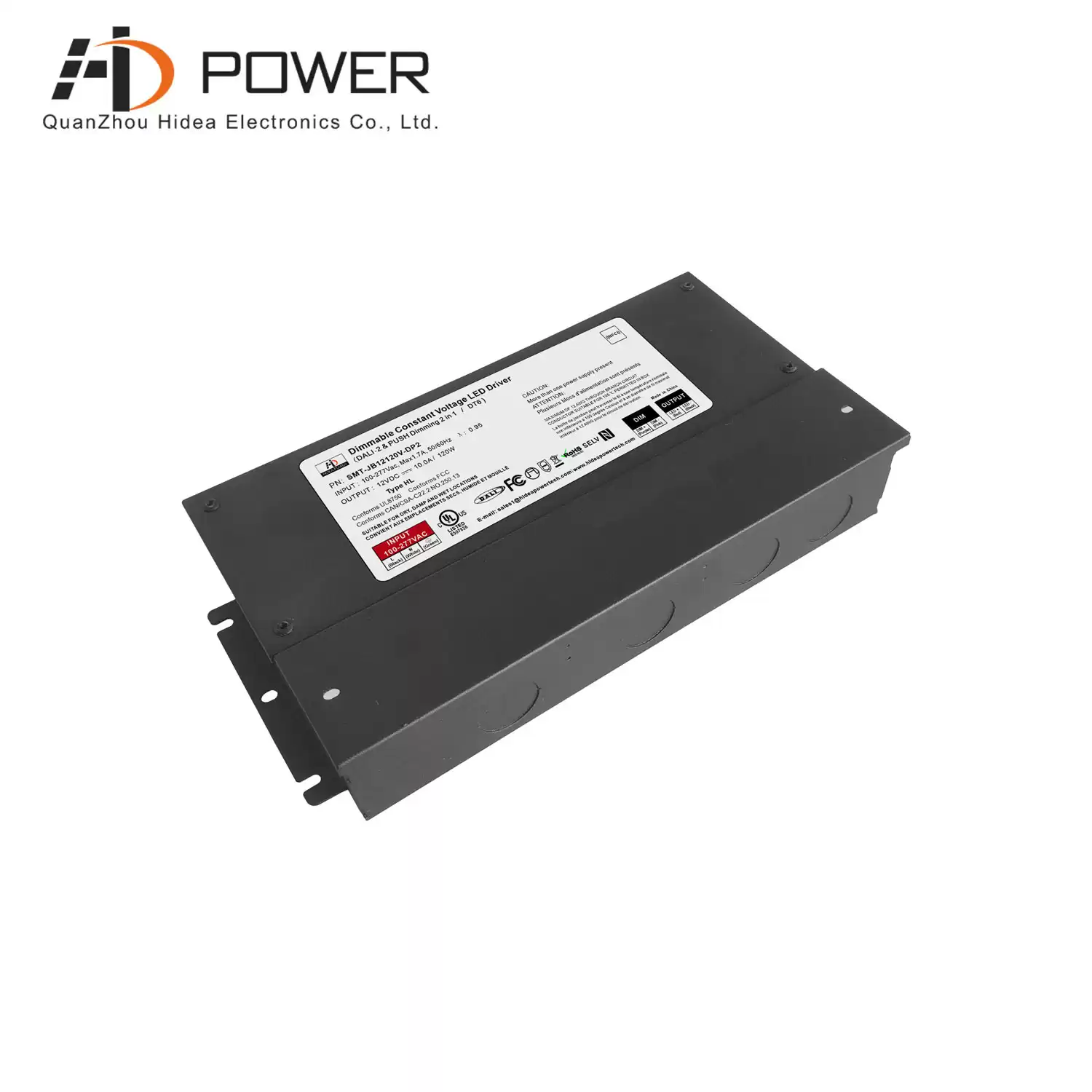

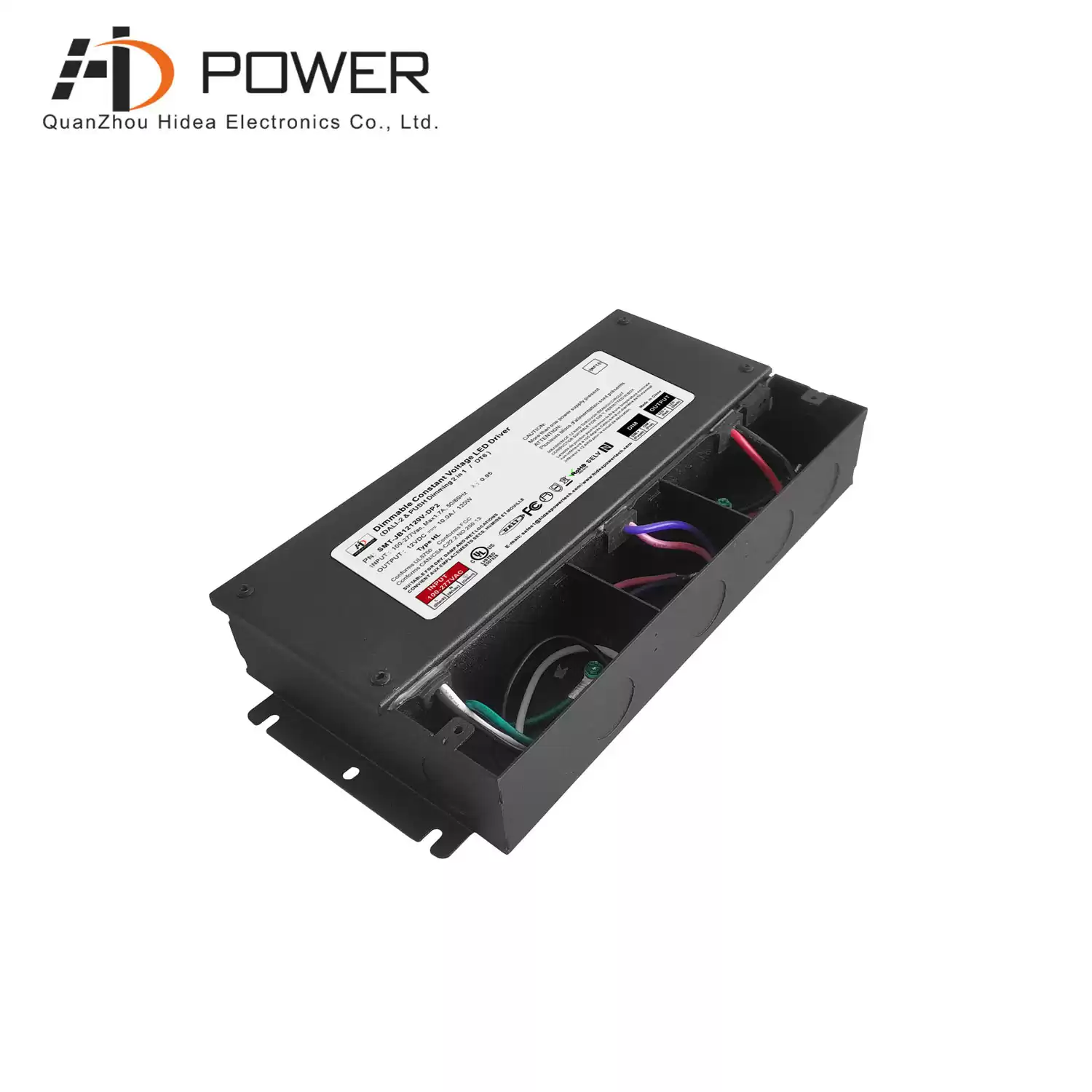

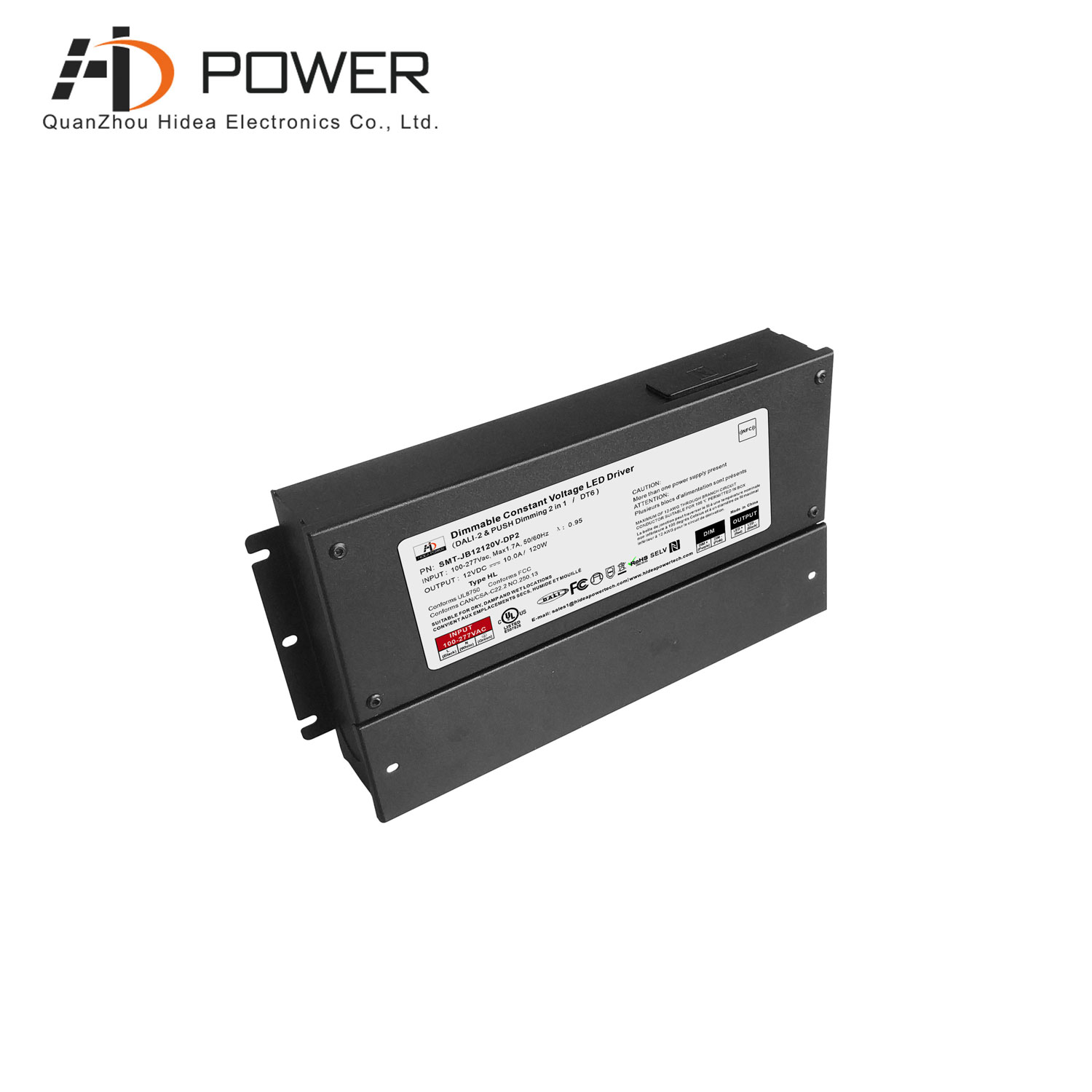

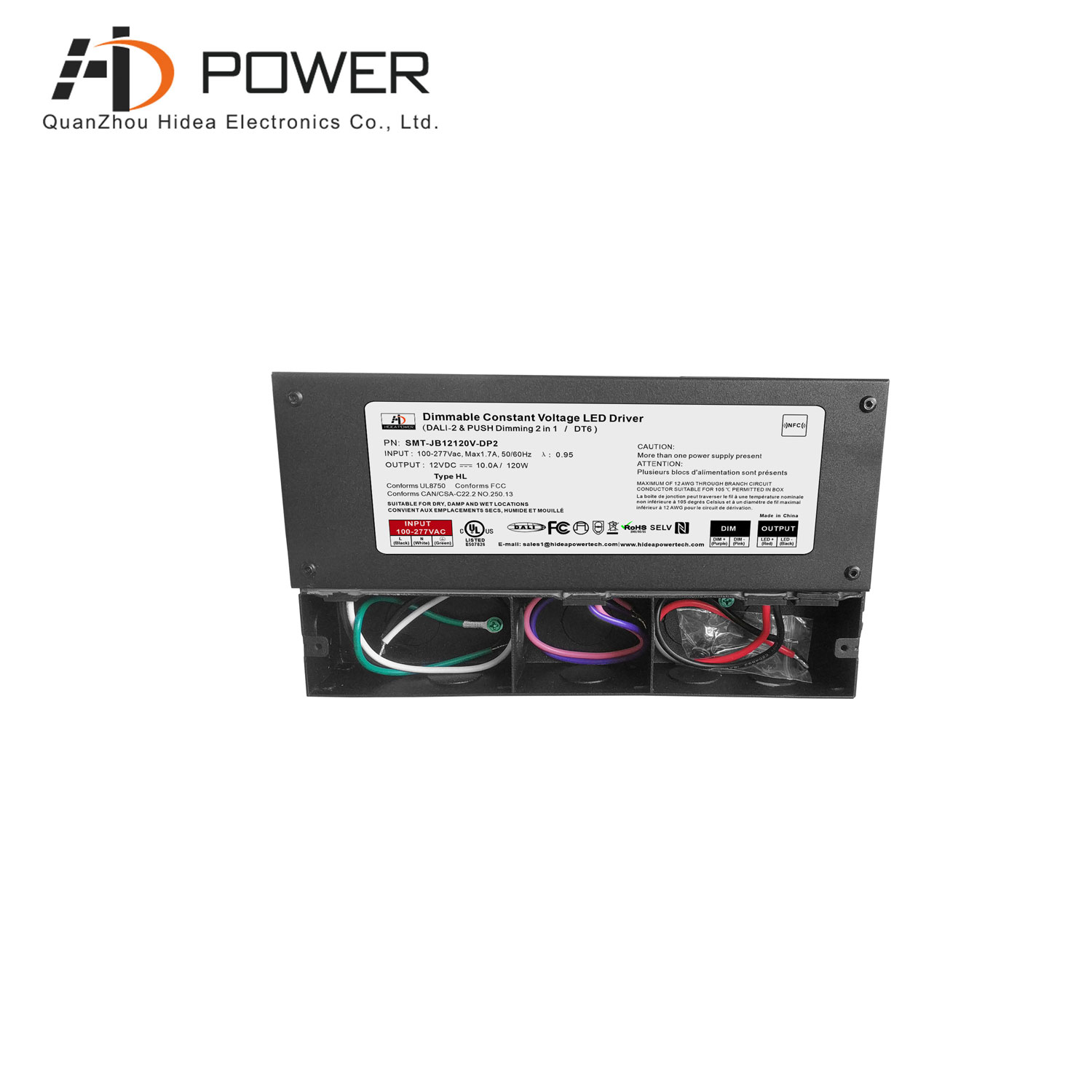

120W led dali-2 & push dimmable driver for led strip lights manufacturers
The built-in 120W LED driver with NFC function can set the address code and fine tune the output voltage through the application, suitable for smart led lighting projects
Specification
|
Model
|
SMT-JB12120V-DP2
|
SMT-JB24120V-DP2
|
SMT-JB36120V-DP2
|
SMT-JB48120V-DP2
|
|
Certificate
|
UL/cUL/SELV / CE
|
|
Output
|
DC Voltage
|
12V
|
24V
|
36V
|
48V
|
|
Voltage range(adjust by NFC)
|
12-13.5V
|
24-26V
|
36-38V
|
48-50V
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
10A
|
5A
|
3.33A
|
2.5A
|
|
Rated power
|
120W
|
|
Load Regulation
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
Power Factor (Typ.) @ full load
|
0.99@120VAC 0.97@277VAC
|
|
Efficiency(Typ.) @ full load
|
87.5%@120VAC
89%@277VAC
|
88%@120VAC
89%@277VAC
|
89.5%@120VAC
91%@277VAC
|
89.5%@120VAC
91%@277VAC
|
|
AC Current (Max.)
|
1.5A
|
|
Inrush Current (Typ.)
|
23.2A, 50%, 360us @120VAC 54A, 50% , 280us @277VAC
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, automatically recover after fault condition removed
|
|
Over temperature
|
Ambient temp. over 55℃±10℃, output will be off; recovers automatically after temp. drops.
|
|
Over Load
|
≤120% ,hiccup mode, recover automatically after fault condition is removed
|
|
Environment
|
Working TEMP.
|
-40 ~ +70℃ (see below derating curve)
|
|
Working Humidity
|
20 ~ 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 ~ +80℃,10 ~ 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 ~ 50℃)
|
|
Vibration
|
10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
EN61347-1; EN61347-2-13 UL8750
|
|
Withstand voltage
|
I/P-O/P:1.80KVAC I/P-FG:1.80KVac O/P-FG:1.80KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC Emission
|
EN55015 EN61000-3-2 EN61000-3-3 FCC Part 15 Subpart B
|
|
Others
|
Net Weight
|
0.9Kg
|
|
Dimension
|
241*125*42.7mm(L*W*H)
|
|
Packing
|
300*280*215mm 10pcs /CTN
|
|
Notes
|
1.All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
|
|
2.Under low input voltage, reduced output is required to ensure a long life.
|
Related Products
|

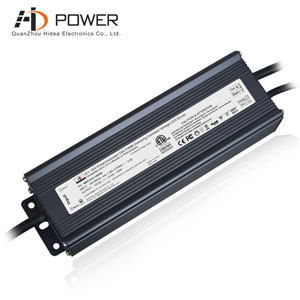

100-265vac 120W dimmable led driver Aluminum case waterproof and dust resistant, 3 year warranty, capable of flicker-free dimming
