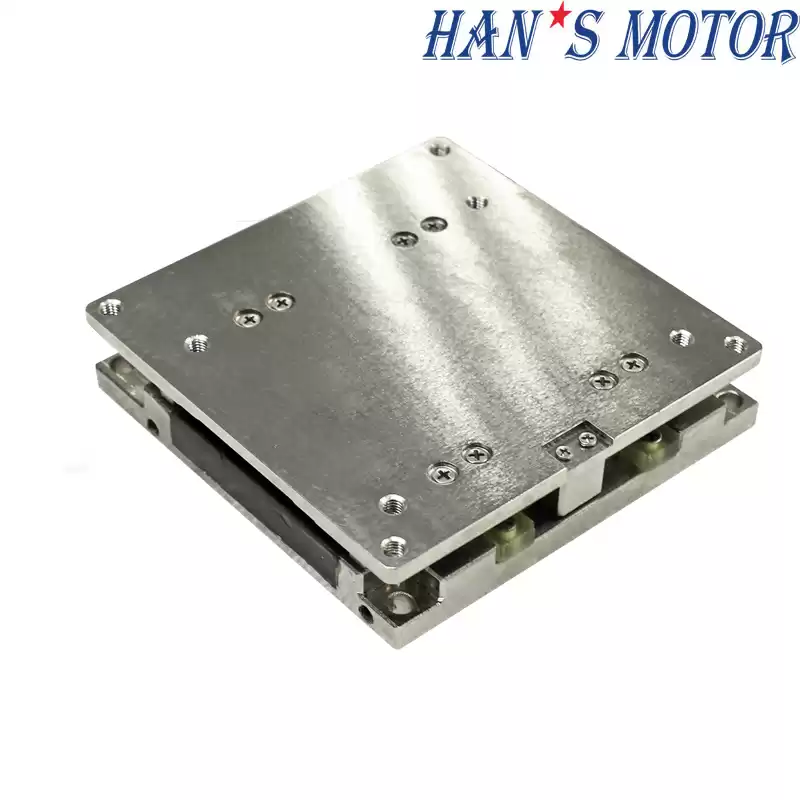

Product name:120x120mm square linear moving stage slide table cnc kit XY miniature stage
Stage Introduce:
The LMA series miniature stages are designed for applications requiring high positioning accuracy. Two stutures are available: stainless steel and aluminum alloy. With precise mounting surface, high resolution linear encoder.
1. 1G acceleration
2. repeated positioning accuracy ±0.5m
3. stainless steel or aluminum alloy structure
4. precise mounting surface
5. surface coating protection
Selection Rules
LMA120-25-XXX-A
XXX = G01 Grating feedback, resolution: 0.1μm
G05 Grating feedback, resolution: 0.5μm
Motor and Stage Specifications
Motor specifications
|
|
Units
|
Value
|
Continuous Force (Tmax)
|
N
|
17
|
Peak Force
|
N
|
85
|
Motor Constant
|
N√W
|
4.77
|
Max.Continuous Power Dissipation
|
W
|
12.71
|
Continuous Current (Tmax)
|
Arms
|
0.5
|
Peak Current (1S)
|
Arms
|
2.5
|
Force Constant (25℃,±5%)
|
N/Arms
|
34
|
Back EMF Constant (25℃,±5%)
|
Vrms/m/s
|
11.3
|
Electrical Resistance(25℃,±5%)P-P
|
Ω
|
24.2
|
Inductance(25℃,±20%)P-P
|
μm
|
0.72
|
Max Coil Temperature
|
℃
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
mm
|
40
|
Magnetic Attraction
|
N
|
300
|
Stage specifications
|
|
Units
|
Value
|
Max. Load
|
kg
|
4
|
Effective Stroke
|
mm
|
25
|
Resolution
|
μm
|
0.1
|
Max.Speed(1)
|
mm/s
|
700
|
Repeat accuracy
|
μm
|
±0.5
|
Weight
|
kg
|
1.7
|
Working environment temperature
and humidity
|
0-40℃、20-80%RH
|

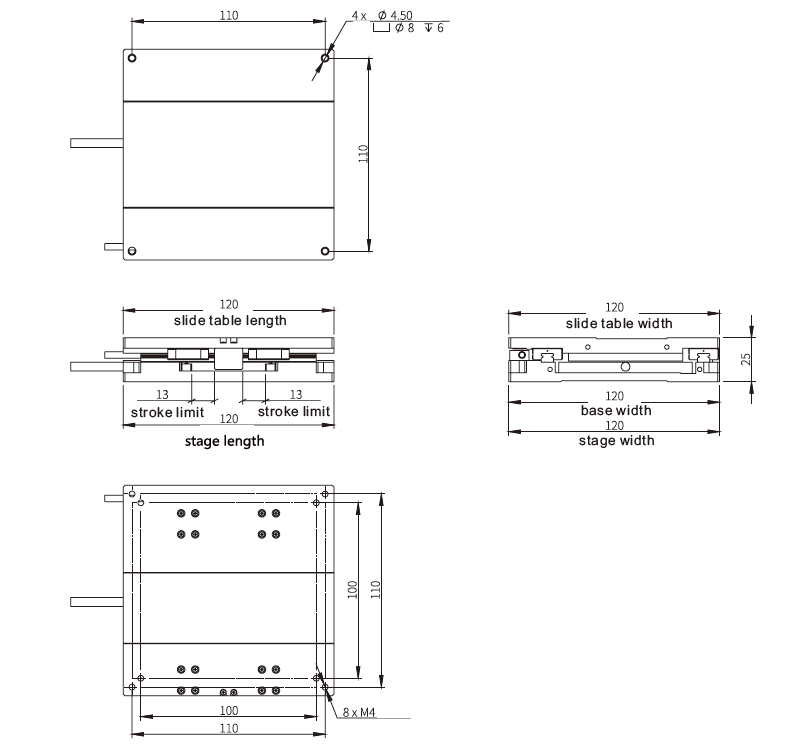

Installation dimensions

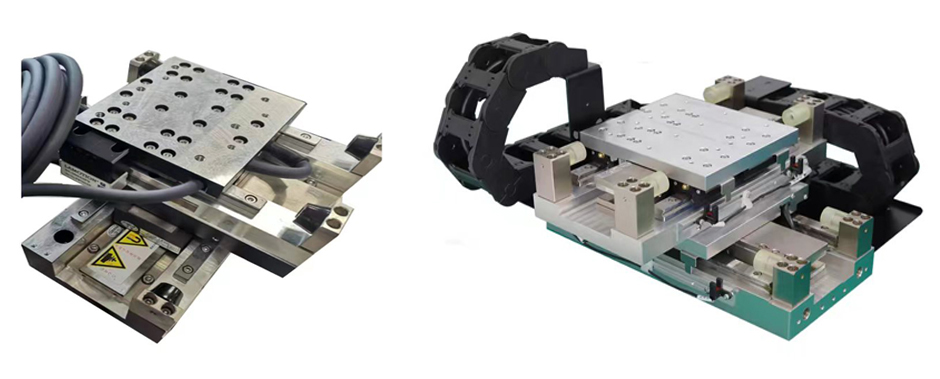

X-Y Platform Case

Laser Group Show
Our Company Show

Production Center Show

Packaging & Delivery
Packaging Details.: plywood packing
Port.: Shenzhen ( Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
