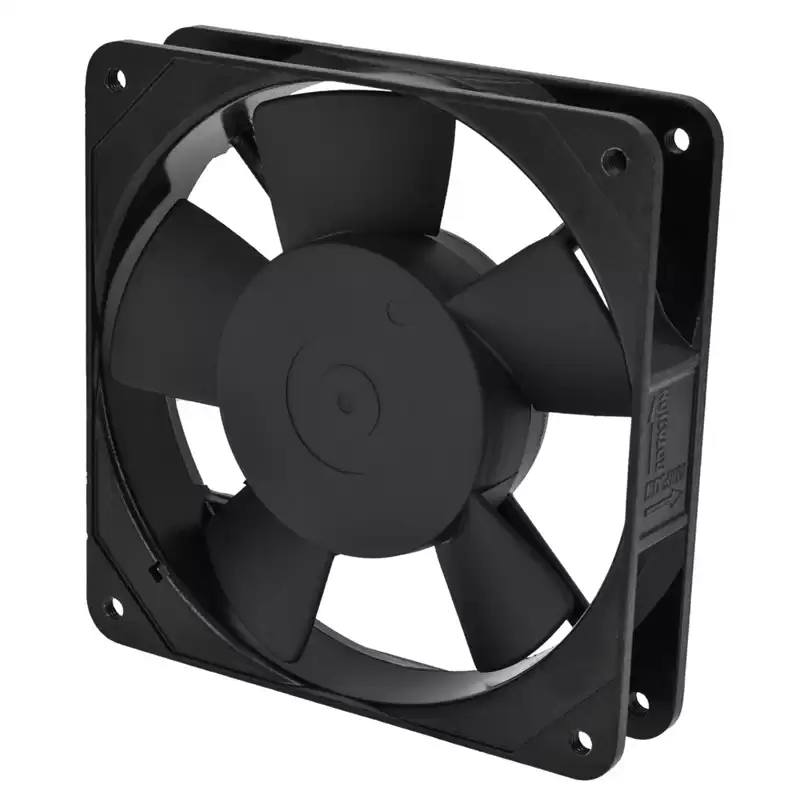

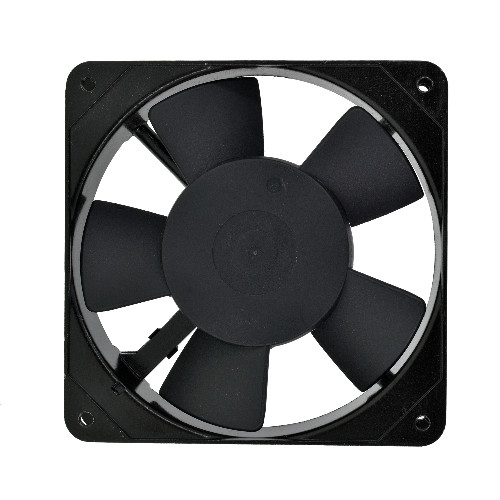

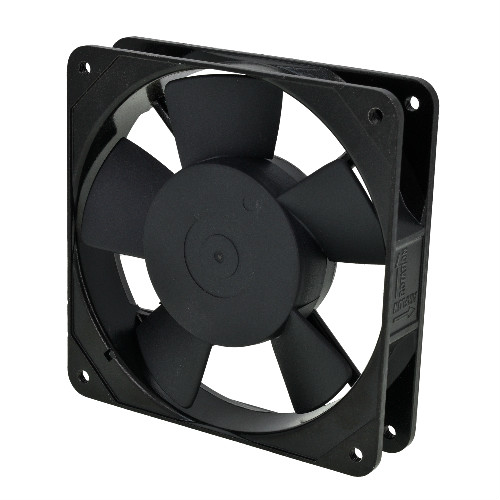

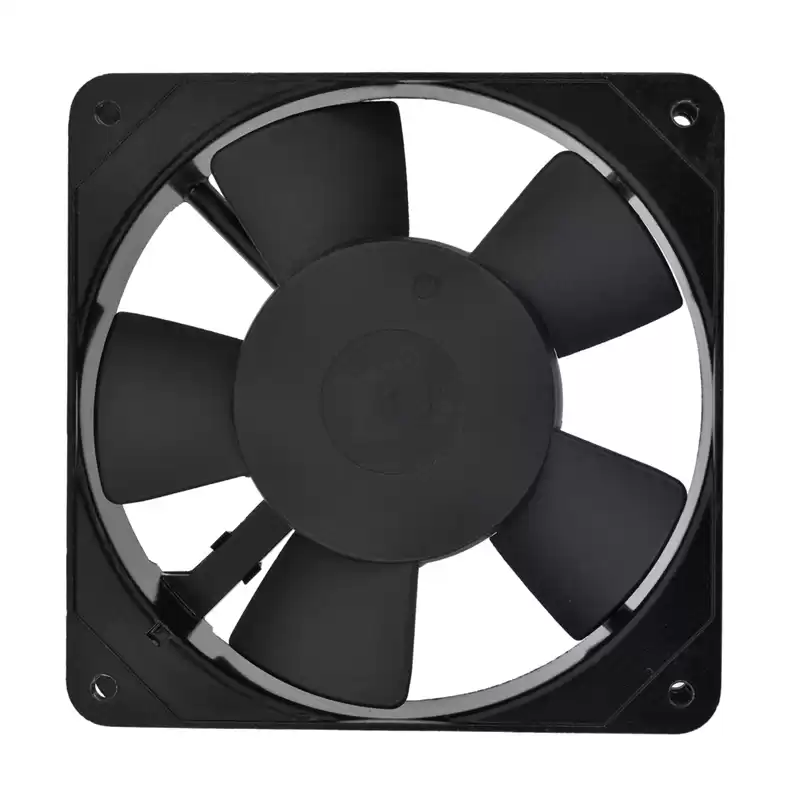

120mm x 120mm x 25mm, AC 2200 RPM Brushless Axial Fan. This size axial fans are available in several parameters to accommodate diverse to meet customer requirements.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

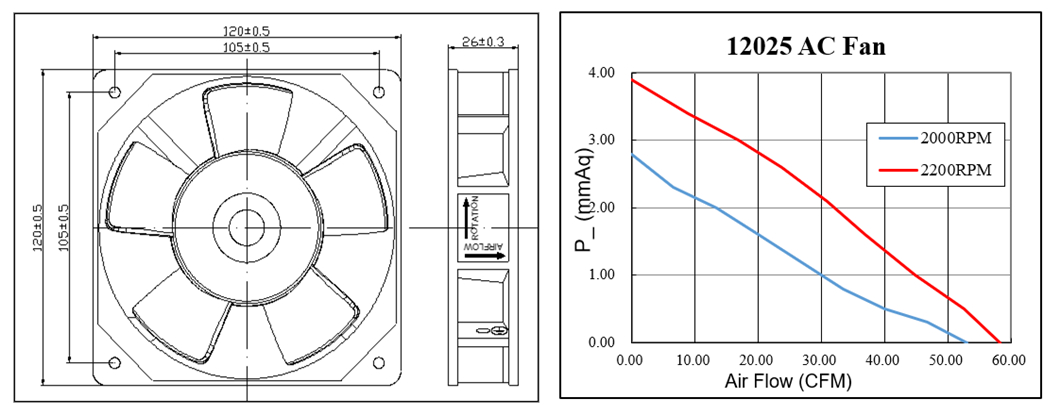

Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 25 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.5 mm / 4.13 in.
-

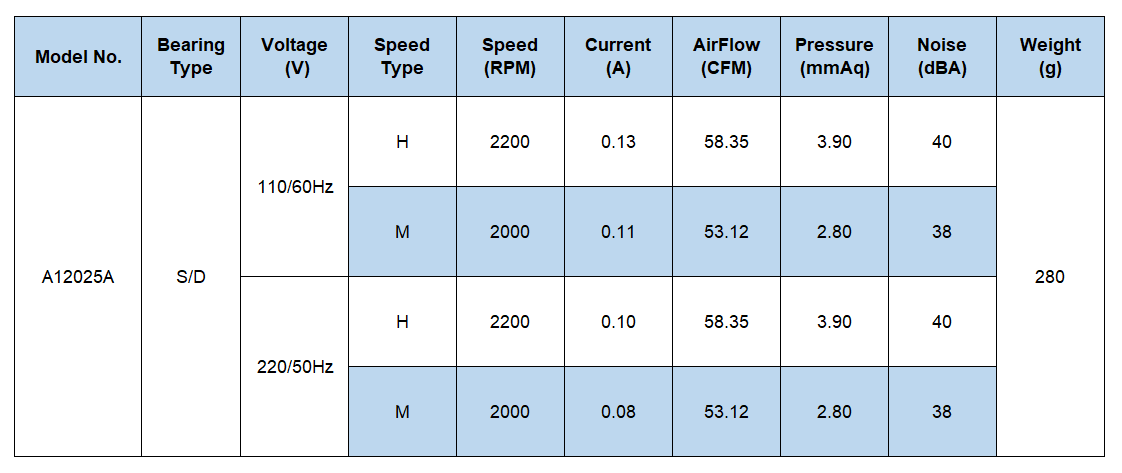

Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.08 ~ 0.13 Amp | Speed: 2000 ~ 2200 RPM | Airflow: 53.12 ~ 58.35 CFM | Noise: 38 ~40 dBA | Pressure: 2.8 ~ 3.9 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.
AC AXIAL FAN 120x120x25mm(4.72"x4.72"x0.98")
General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
High speed, low noise, brushless axial fan adopts AC motor;
-
Double ball bearing system has a lifespan of 50,000 hours;
-
Can work normally in the low temperature environment of -10℃~70℃;
-
Feature aluminum construction frame with thermoplastic impeller for harsh environments;
-
The coil of our cooling fan motors is made by F class 100% copper wire which bring longer lifetime to our fans.
More Models
These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.
Application
DC/AC axial fans are commonly used in household appliances, office equipments, home theater equipments, power system and vehicle system, ect.
-
Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
-
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
