125 KVA Super Silent Diesel Cummins Generator Set 6 Cylinders 6BTA5.9-G2

Cummins 6BT Series Engine, 100KVA To 200KVA , Soundproof Type



125 KVA Super Silent Diesel Cummins Generator Set 6 Cylinders 6BTA5.9-G2


Ai Power products adopts internationally and domestically reputed high-quality engines and alternators including DCEC, CCEC engine, UK famous engine, MTU from Germany, Doosan from South Korea, Stamford, LeroySomer, and Marathon for our industrial diesel generator sets, marine generator, movable generator, lighting towers, generator spare parts and switchgear, power transformers. Those products are featured by personalization, intelligence, environmental protection and high quality. They are widely used in buildings, hospitals, banks, mine, ports, construction, data center, power station and high voltage projects.


Product Description

Engine Model 6BTA5.9-G2
Engine manufacturer CUMMINS
Number of Cylinders 6 cylinders
Cylinders arrangement Vertical in line
Cycle 4 stroke
Aspiration Turbocharged and after water cooled
Bore×Stroke 102mm x120mm
Displacement 5.9L
Compression ratio 17.5:1
Prime Power/Speed 106kw/1500rpm
Standby Power/Speed 116kw/1500rpm
Speed Governor electrical
Cooling System Forced water cooling cycle
Steady speed droop ≤1%
Total lubrication system capacity 16.4L
Coolant capacity (engine only) 9.1L
Fuel Consumption at 100% Load 211 g/kw.h
Starter Motor DC24V

Product Overviews

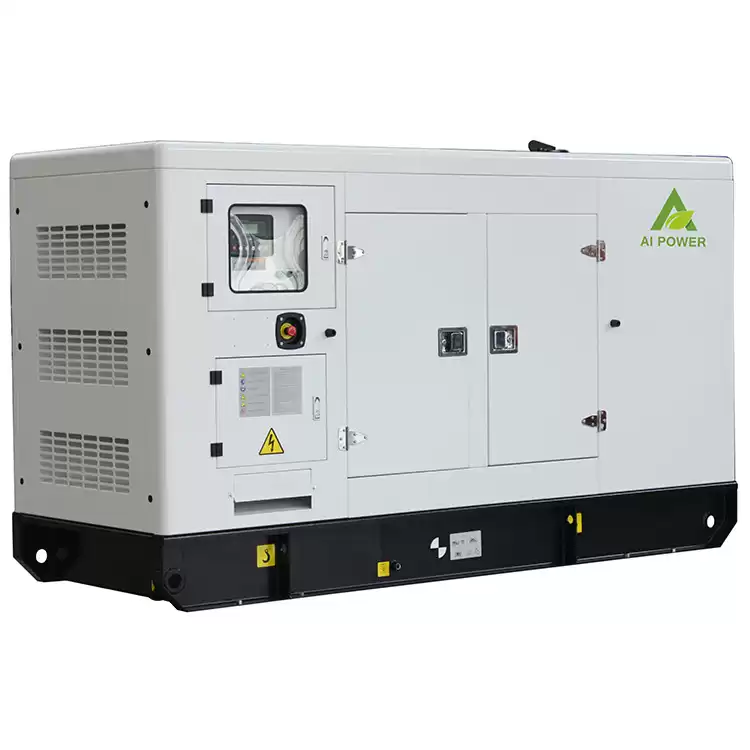

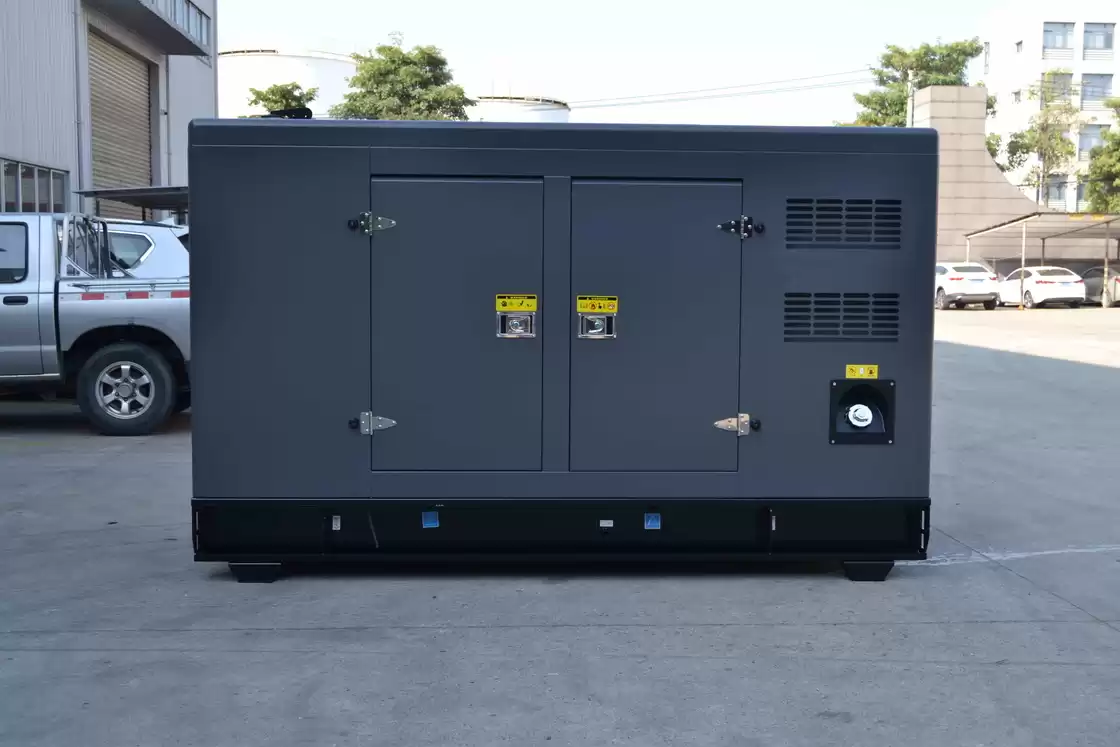

Ai Power silent generator is featured by its elegant design, lower noise level, high quality soundproof materials, thick steel metal plate. Its rainproof and soundproof function has been proved in the last 16 years experiences. It adopts international famous brand paint and skilled technicians to make the canopy powder paint. It has full transparent view windows for monitoring generator parameters.


Silent Performance Features:

● More than 2mm thick steel to make the canopy.

● High quality paint materials and strict powder paint processing.

● large-scale impedance combined type silencer effectively reducing noise of the generator.

● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.

● High quality soundproof and insulation materials could efficiently reduce noise.

● Transparent viewing window make the control panel clear at a glance.

● Lifting ear is mounted in the base frame for easy pull.

● Elegant appearance and reliable quality.

● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.

● ISO standard 20’, 40’ and 40HQ sea container canopy for options.

● Standard sea container canopy is easier for shipping.

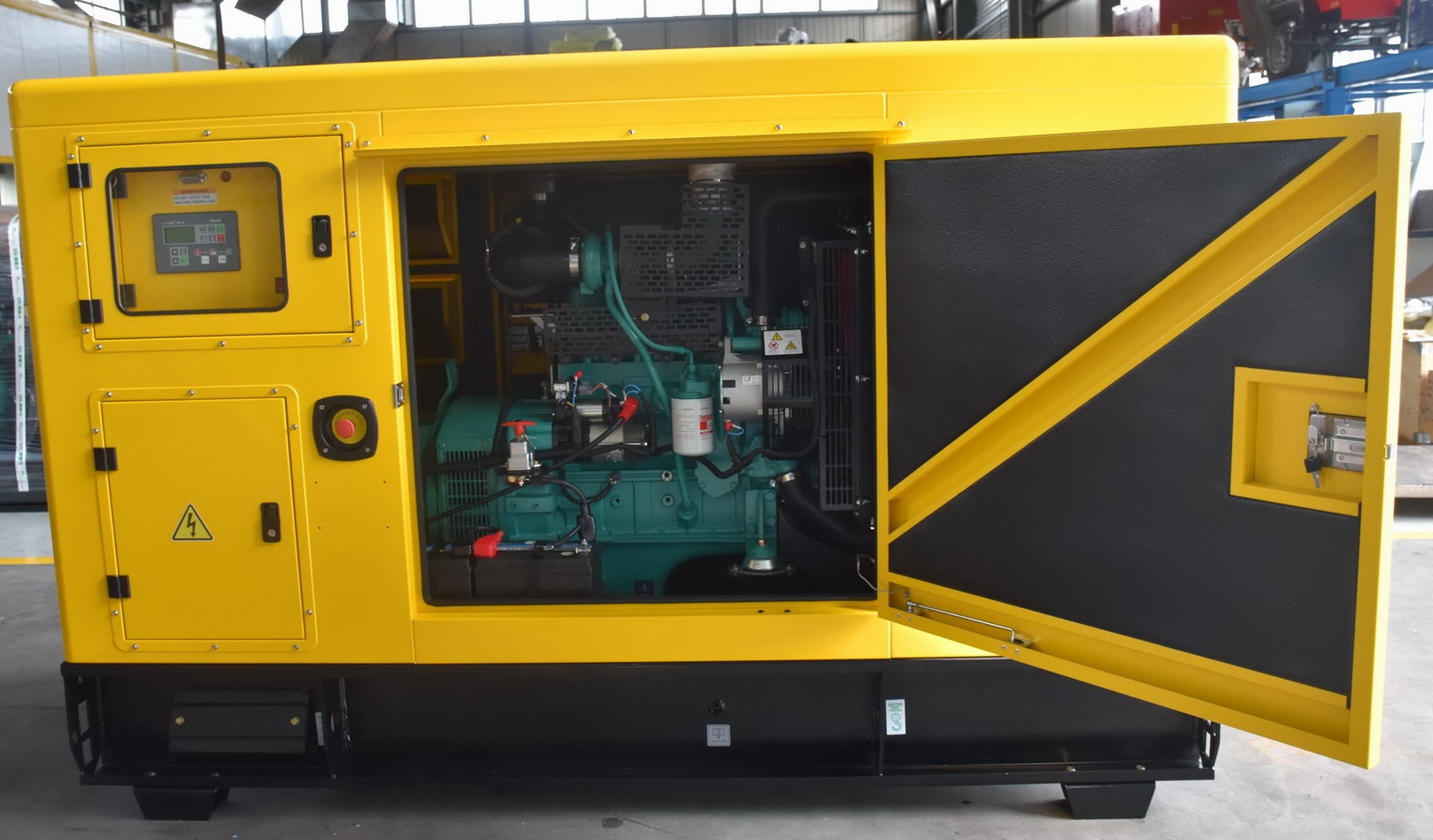

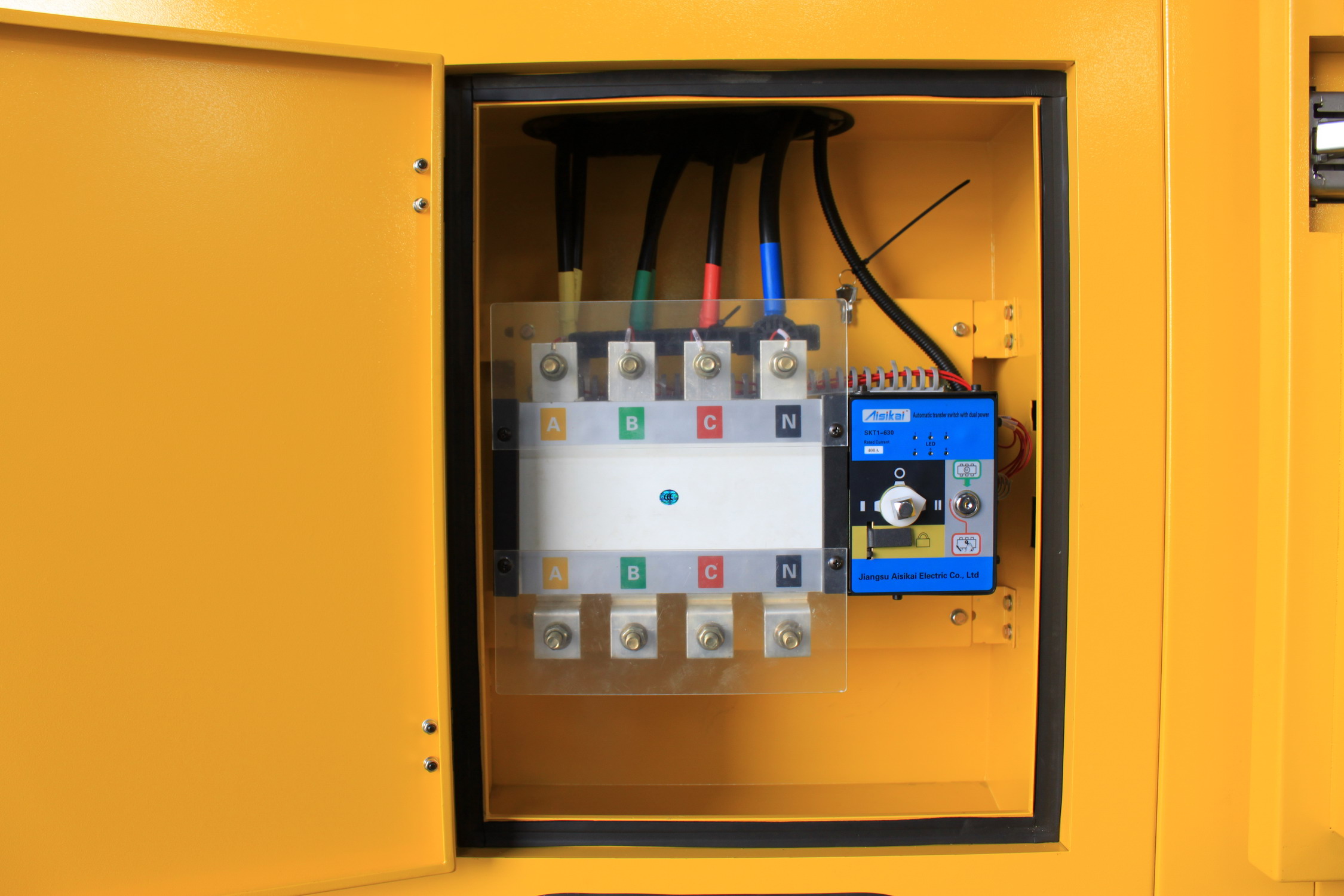

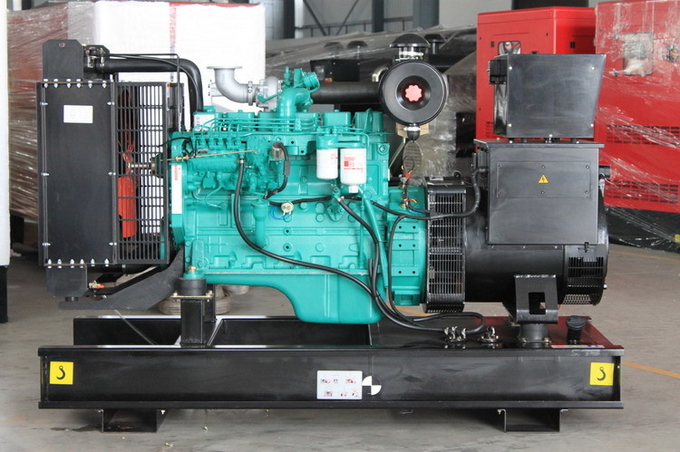

Product Details


FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
