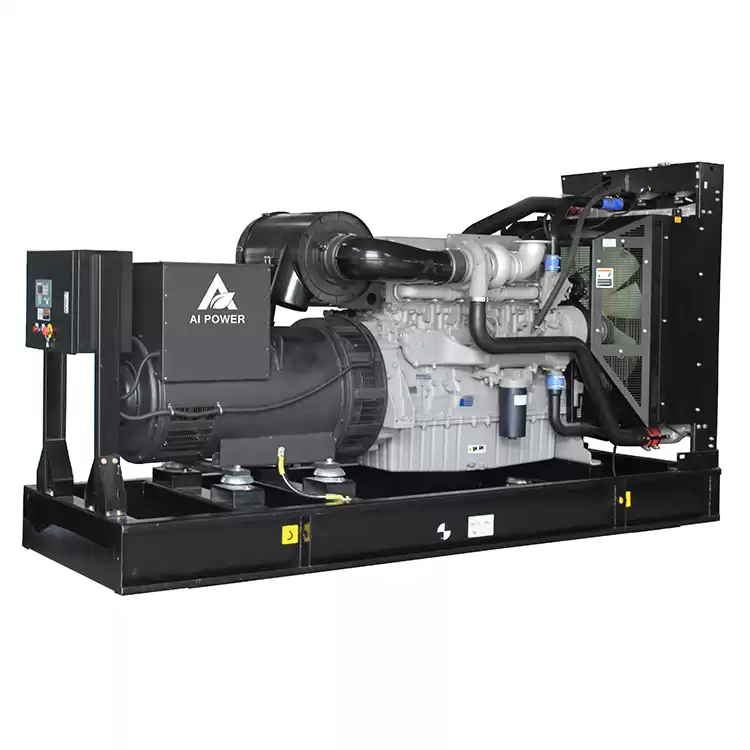

Rate Power Perkins 1000kw 1250kva Diesel Perkins Generator Fuel Consumption

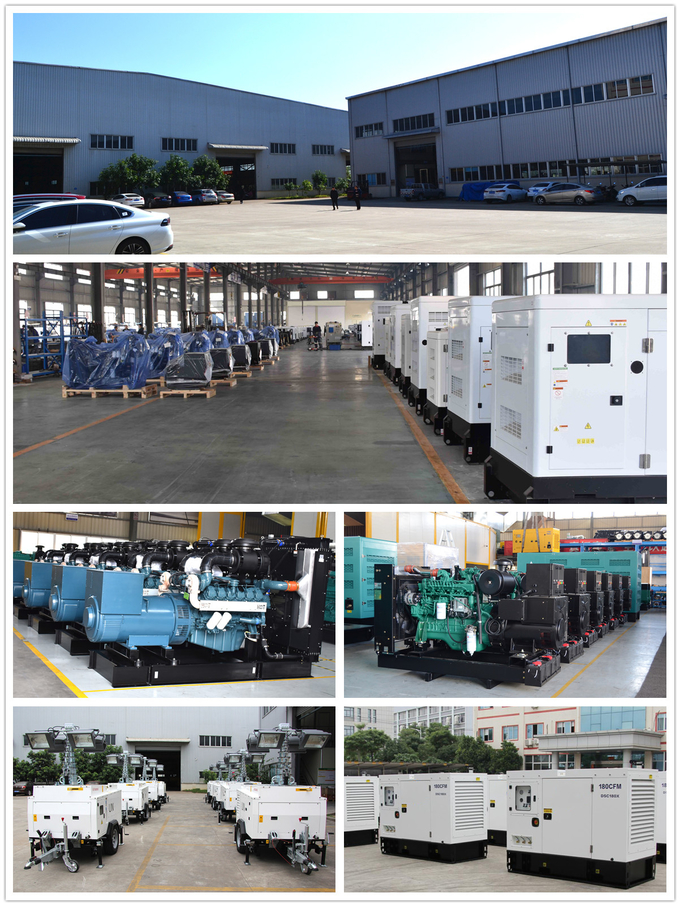

AI Power Factory Introduction
High quality, reliable and complete power unit
Compact design
Easy start and maintenance possibility
Every generating set is subject to a comprehensive test program which includes full load testing, checking and provision of all control and safety shut down functions testing
Fully engineered with a wide range of options and accessories: Canopy, sound proof canopy and on - road trailer
Whole Generator Set Output Ratings
|
Generator set model
|
Voltage
|
Hz
|
Phase
|
P.F.
|
Prime Power
|
Standby Power
|
|
(V)
|
|
|
|
KVA
|
KW
|
KVA
|
KW
|
|
AP1500
|
230/400
|
50
|
3
|
0.8
|
1350
|
1080
|
1500
|
1200
|
4000 Series 4012-46TWG3A Engine Data
The 4012-46TWG engine has been developed using the latest engineering techniques and builds on the strengths of the already very successful 4012 Series family and addresses today’s uncompromising demands within the power generation industry.
|
Engine Power Output at rated rpm
|
Perkins Engines Company Limited
|
|
Aspiration and Cooling
|
Perkins
|
|
Engine model
|
4012-46TWG3A
|
|
Total Displacement
|
45.5L
|
|
Bore and Stroke
|
160X190
|
|
|
|
No. of Cylinders
|
6 in-line
|
|
Engine Speed
|
1500rpm
|
|
Compression Ratio
|
13.6:1
|
|
Governor
|
ELECTRONIC
|
|
Compression ratio
|
13:01
|
|
Fuel Consumption at full load
|
259L/H
|
|
Oil Capacity
|
177L
|
|
Coolant Capacity
|
201L
|
|
Air Intake – Engine
|
109 m³/min
|
|
Exhaust Gas Flow
|
180m³/min
|
Heavy duty Perkins diesel engine
Four stroke, water, cooled, turbo charged
Direct injection fuel system
Mechanical Governor system 12/24 V D.C. starter and charge alternator
Replaceable fuel filter, oil filter and dry element air filter
Cooling radiator and fan

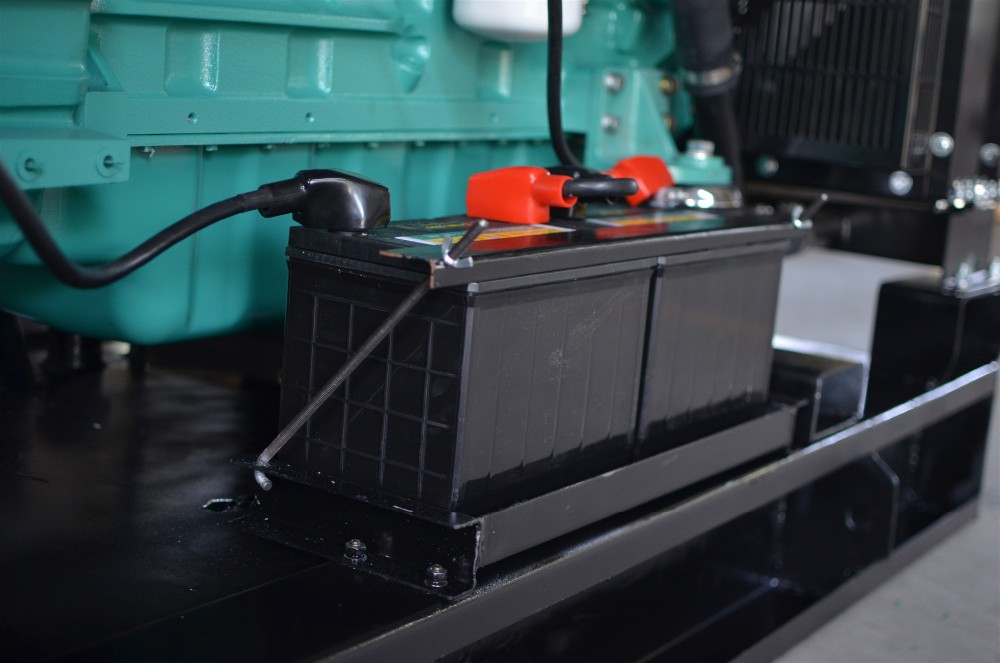

Starter battery (miantenance free) including
Rack and Cables Flexible fuel connection hoses and manual oil sump drain valve Industrial capacity exhaust silencer and steel bellows
Jacket water heater(at automatic models)
Operation manuals and circuit diagram documents
Alternator Specs
|
Optional Brands
|
Stamford/Leroy Somer/Faraday/Marathon
|
|
Exciter type
|
Single bearing,brushless,Self-excited
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|

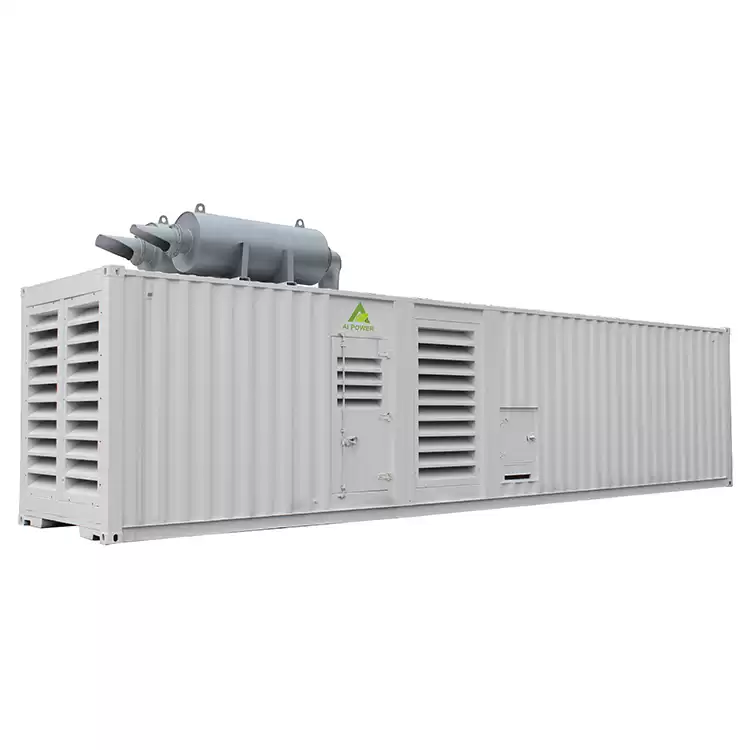

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.
