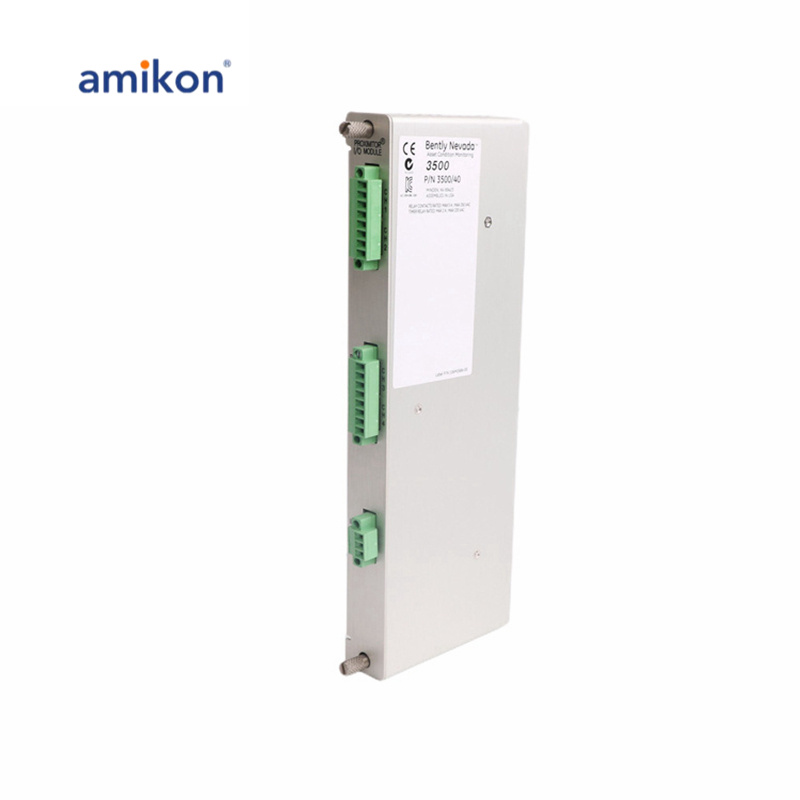

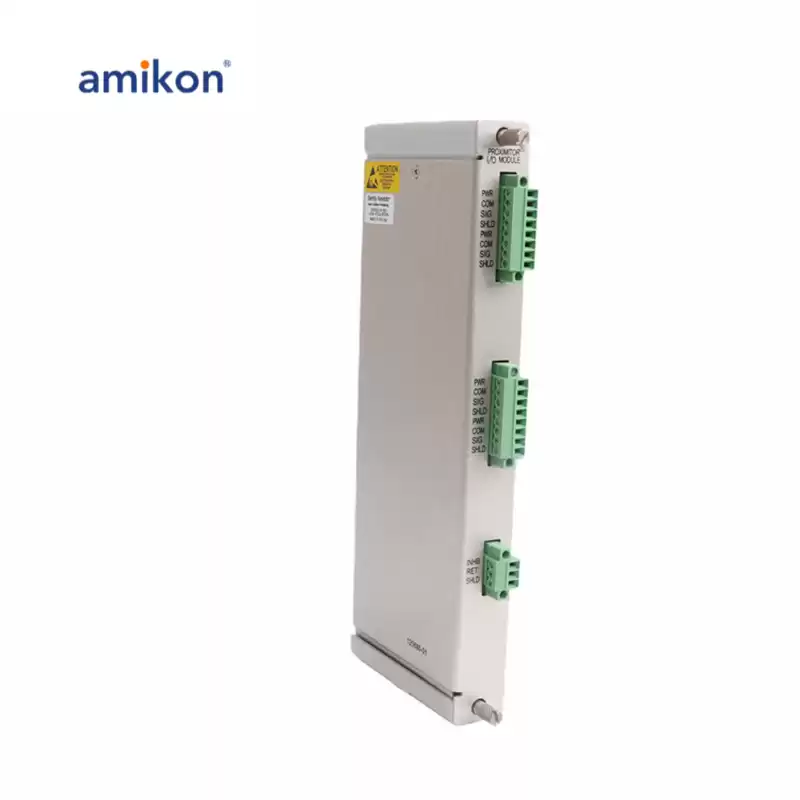

125680-01 Bently Nevada Proximitor I/O Module

125680-01 is a Proximitor I/O Module developed by Bently Nevada. It is a part of the Bently Nevada 3300 series. The Bently Nevada 3500/40M Proximitor Monitor is a 4-channel monitor that accepts input from proximity transducers, conditioning the signal to generate various vibration and position measures, and compares the conditioned signals to user-programmable alarms.

Features
The 3500 Rack Configuration Software allows the user to program each channel of the 3500/40M to perform the following functions: Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, and REBAM.
The monitor channels are set up in pairs and can perform up to two of these functions simultaneously. Channels 1 and 2 can do one thing, but channels 3 and 4 can do something else (or the same thing).
Depending on the arrangement, each channel often conditions its input signal into various parameters known as "static values." The user can establish alert setpoints for each current static value as well as Danger setpoints for any two active static values.

125680-01 Function
The major function of the 3500/40M monitor is to provide:
Machinery protection by continuously comparing monitored parameters to predefined alarm setpoints in order to drive alarms.
Critical machine information for both operations and maintenance personnel.
Product Characteristics
Weight: 0.38kg
Dimension: 2.5x11.2x24.2cm
