Product Name:125KHZ LF PVC Prelam WIth A4 Size
Description
Prelaminated inlay LF is suitable for use in the production of ISO standard cards. Meihe uses a proprietary manufacturing process to produce its prelaminated inlays.
Specification
1.Operating Frequency: LF 125KHz,
2.Chip IC: EM4200,TK4100,T5577,T5577 Compatible
3.Protocol: ISO1443,ISO15693,ISO18000
4.Material: PVC/PET
5.Dimension: 310mm*468mm,Max size 520mm*420mm,A4 210mm*297mm
6.Layout: 3*7,5*5,3*8,4*8,4*6,2*5,2*4, or any customization of CR80 card or any unit antenna
7.Thickness: HF: normal 0.45mm, 0.5mm,min 0.3mm
LF: normal 0.6mm,min 0.5mm
UHF: 0.6mm,0.5mm
8.Antenna: HF:air antenna,altrasonic embeding or air etching
LF:air antenna or altrasonic embeding
UHF:AL etching
9.Bonding: LF: wire bonding
HF:FUDAN,ULTRALIGHT,ICODE SLI
UHF: ALIEN, H3
10.Read range: depands on the reader and the chip
11.Working temperature: -25℃~55℃
12.Storage temperature: -25℃~65℃

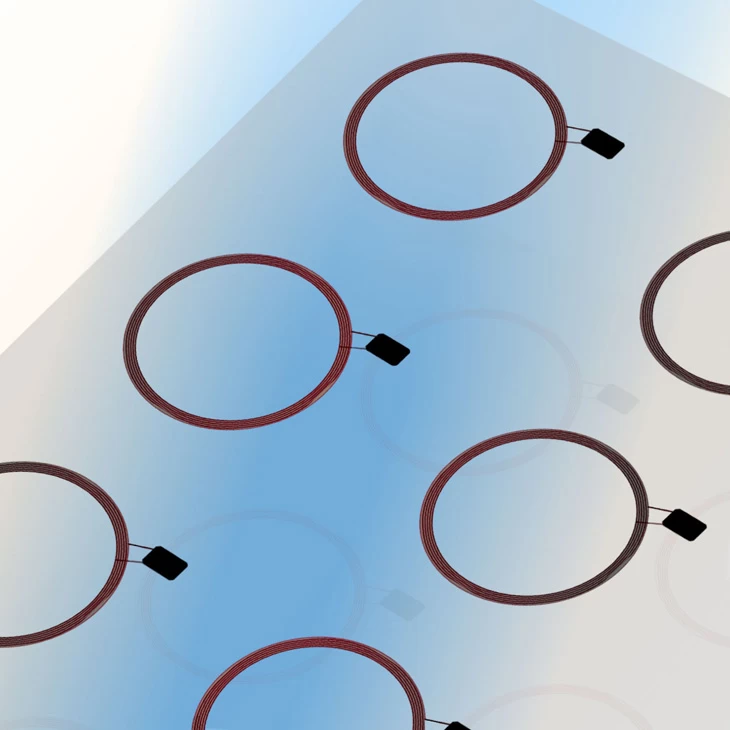

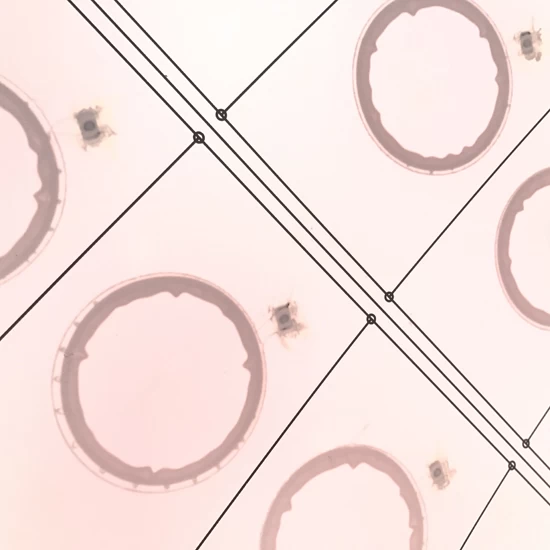

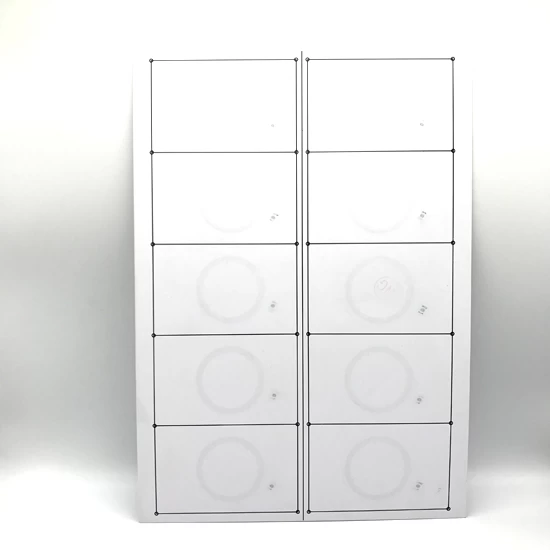

Production Picture
