125khz TK4100 EM4305 White Round Coin RFID PVC Tag

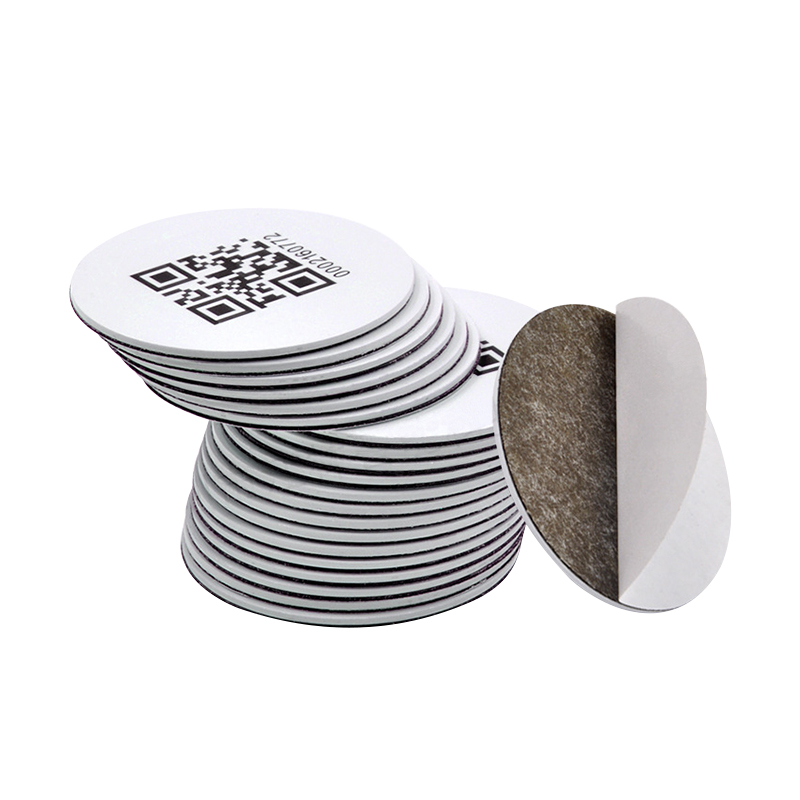

RFID Disc Tag is laminated with PVC, water-proof tag. The tag could be with adhesive back, this RFID tag could be mounted on nonmetallic surface. And because of our Direct Bonding technology the surface would more flatter that could have great printing performance. Silk screen and Offset printings are available upon request.The material could be transparent PVC and white PVC .
|
Material:
|
PVC, PET
|
|
Color:
|
White, Transparent
|
|

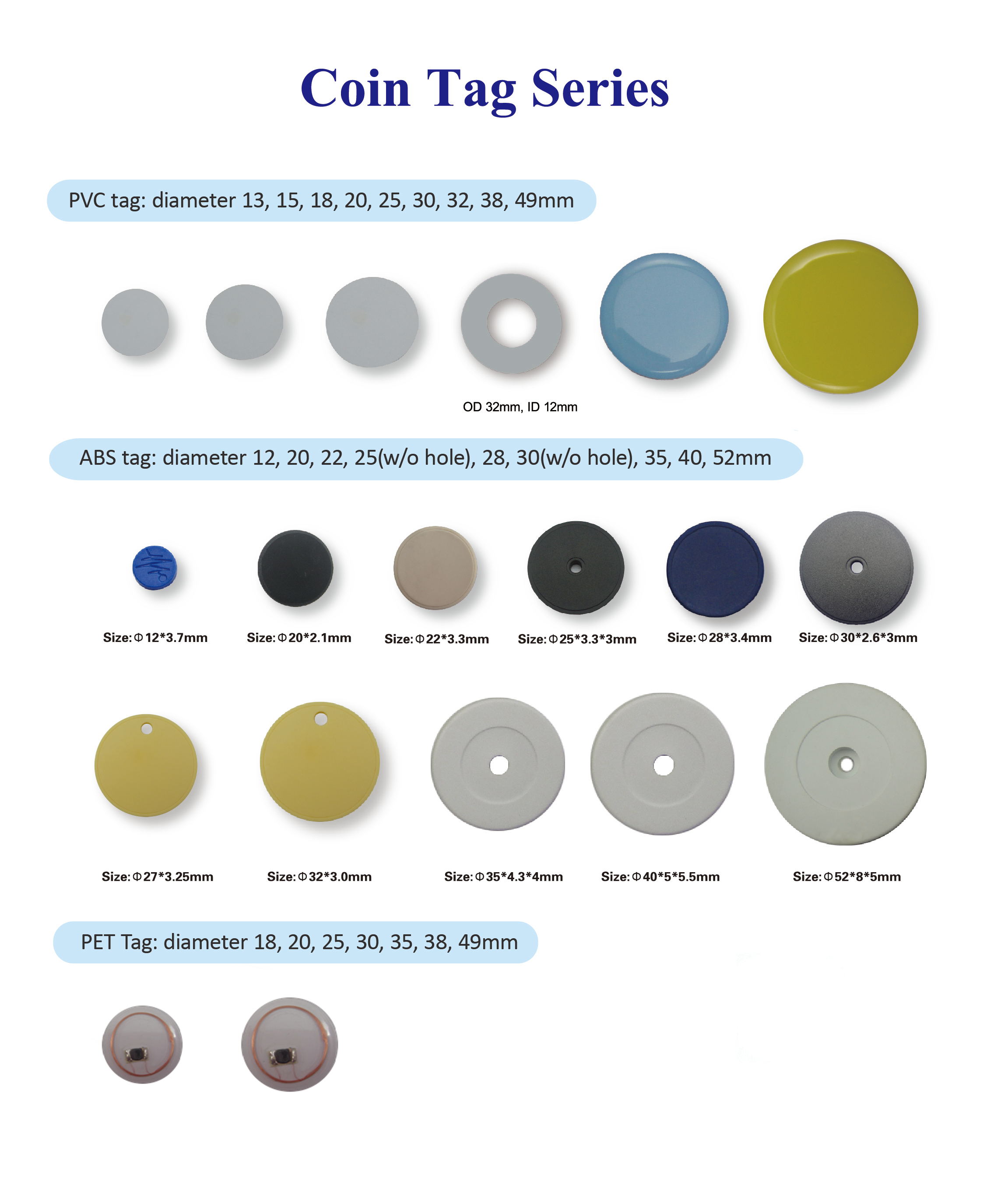

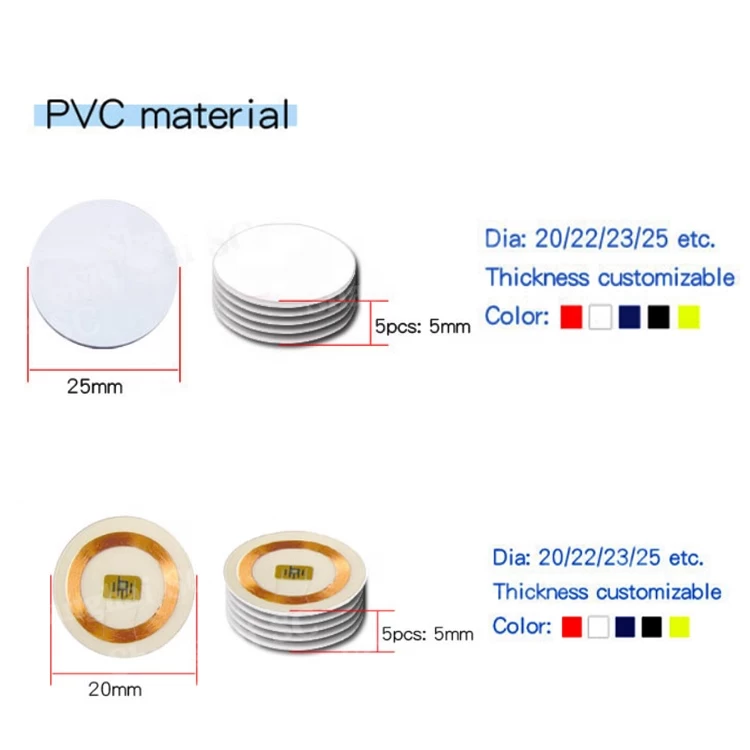

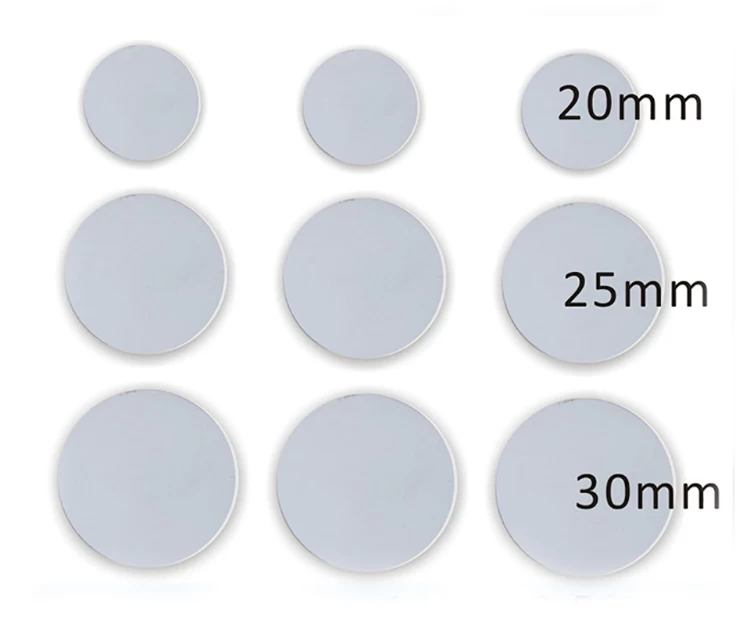

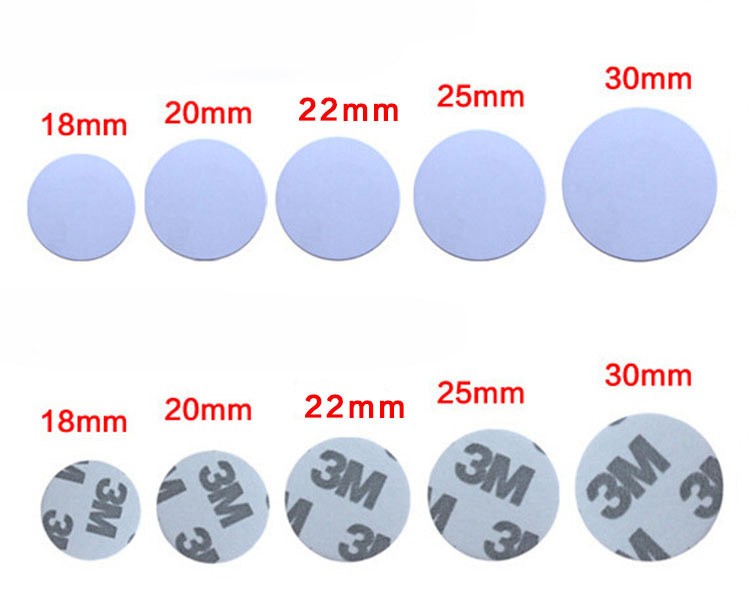

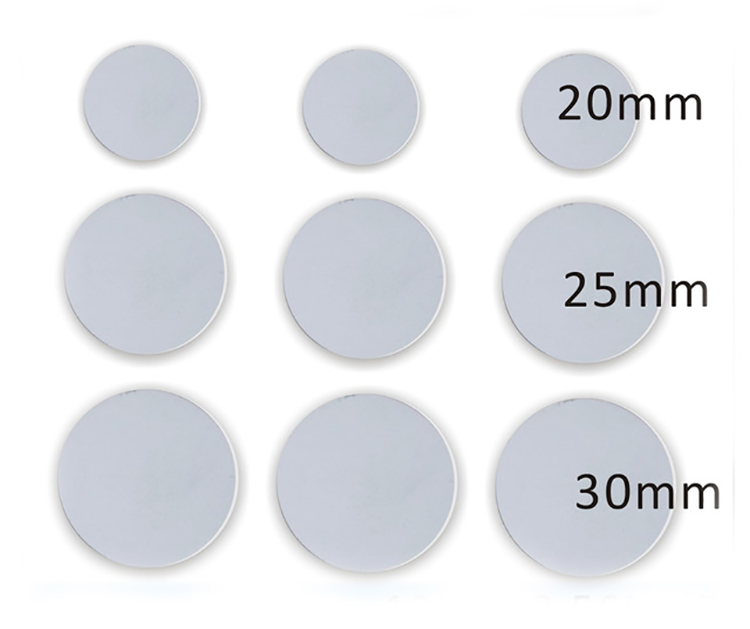

Size:
|
(LF) 15 / 18 / 20 / 25 / 30 / 32 / 35 / 40 / 50 mm ;
(HF) 13 / 15 / 18 / 20 / 25 / 30 / 32 / 35 / 40 / 50 mm ;
(UHF) 20 / 25 / 30 / 32 / 35 / 40 / 50 mm
|
|
Thickness:
|
1.0~1.2mm or customized size
|
|
Resistance:
|
Indoor environment, with wafer & dust proof
|
|
Operating Temperature:
|
-25 to 60β
|
|
Storage Temperature:
|
-40 to 70β
|
As the laminating process, disk tag is a cheap, flexible solution with optional thinkness, read range, even material as well.
Optional:
- Ink-jet printing
- Laser process
- Chip encoding
- Anti-metal layer

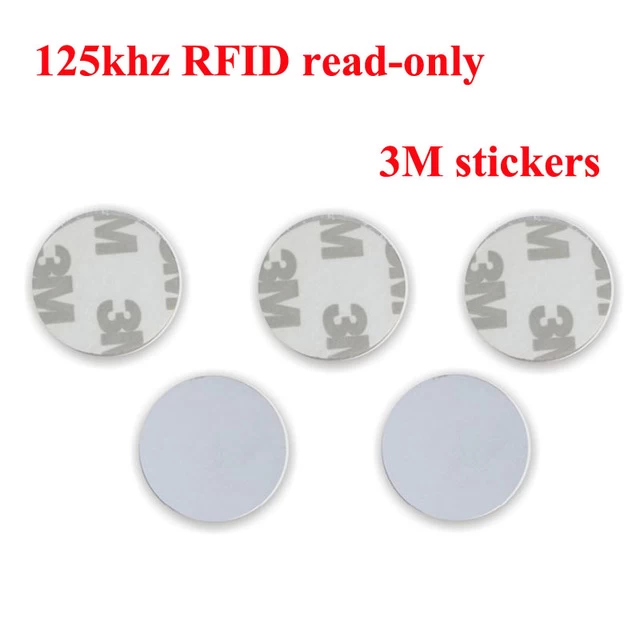

- 3M adhesive layer
Application:
- Process Control & Factory Automation
- Asset tracking
- Device embedded
- Material identification/Item Identification
- Pharmaceutical management
- Security
- Inventory control
- Machine identification tag
