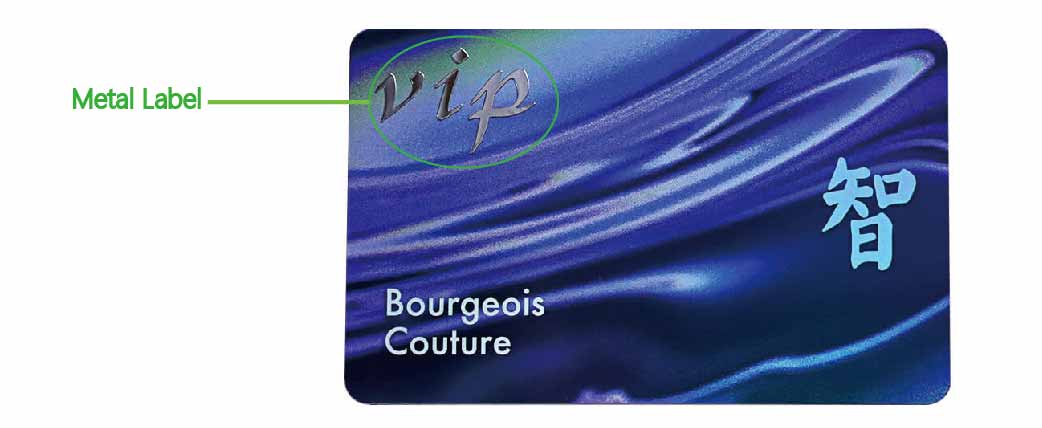

125MHz LH T5577 RFID Hotel Key Cards With Metal Label
T5577 RFID Hotel Key Card as a programmable RFID card, it can be read and write supported. ATA5577 chip card is belong to the latest type of Temic card. T5577 chip technology is fully compatible with T5557 chip card. T5577 key card contains a unique serial number, we call UID code, commonly it is for ID identification, and is also with unique encryption performance, which allow multi-level authorization. That's why more and more people choose T5577 chip as their RFID room cards, because it is very convenient and for people to encrypt it and raise the security of application environment.
Main Features
|
1, 330-bit user writable memory, the encoded content can be protected with password
|
|
2, Can be used to emulate EM-ID card, configurable for ISO/IEC 11784/785 compatibility,
|
|
3, compatible with E5550, T5557, T5567 etc.
|
4, various personalization is available.
|
Specification
|
Chip : T5577
|
Material: PVC/PET/ABS/PC, copper wire
|
Size: 85.5*54*0.87MM or as your requested
|
|
Print: Offset Printing , Silkscreen Printing
|
Protocol: ISO14443A
|
Frequency: 125khz
|
Temperature: -40℃ to + 80℃
|
Working Mode: Passive
|
Memory: 330-bit user-writable,
|
Reading range: 6-12cm, depends on reader
|
Packing: 200pcs/box , 2000pcs/carton
|
|
Weight: 12kg / 2000pcs
|
|
Application: time and attendance, property identification, process control, parking, logistics, animal identification, industrial automation, meeting attendance, supermarket, warehouse management, personnel management, security systems.
|
Available Crafts: Unique name/number/date etc, Signature strip, QR Code, Barcode, Magnetic stripe , Hot foil etc.
|
