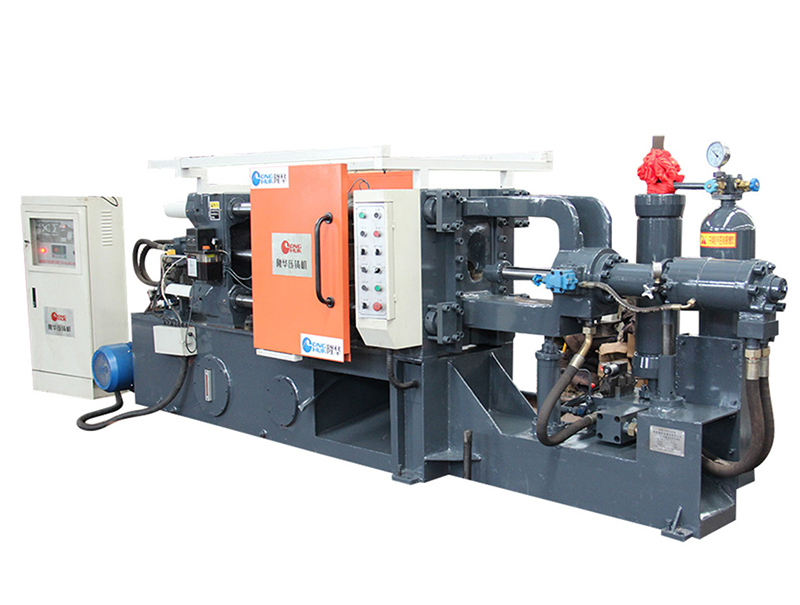

High pressure intelligent die casting machine
Purpose of the machine
Long Hua die-casting machines are applicable to manufacture of automobile and motorcycle parts (engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.), electric escalator handrail/steps, industrial/road/railway/air/agricultural machinery, streetlights shells,potlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.
LH series of standard parameter table (125)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
7
|
|
Clamping Force
|
KN
|
1250
|
|
Space Between Tie Bars
|
mm
|
420*420
|
|
Tie Bar Diameter
|
mm
|
￠80
|
|
Die Opening Stroke
|
mm
|
350
|
|
Injecction Force(intensify)
|
KN
|
180
|
|
Plunger launch distance
|
mm
|
120
|
|
Injection position
|
mm
|
0 -- 140
|
|
Plunger Diameter
|
mm
|
￠40----￠60
|
|
Injection Stroke
|
mm
|
320
|
|
Casting pressure (intensify)
|
MPa
|
143/92/64
|
|
Casting Fiange Protrusion
|
mm
|
10
|
|
Casting Fiange Diameter
|
mm
|
110
|
|
(40Mpa) Max Casting Area Under 40Mpa
|
CM2
|
375
|
|
lnjection Weight(Al)
|
Kg
|
1.6
|
|
Die Height(Min--Max)
|
mm
|
200～500
|
|
Ejector Force
|
KN
|
100
|
|
Ejector Steoke
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
11
|
|
Machine Dimensions (L*W*H)
|
m
|
4.5*1.2*1.5
|
|
Referential Machine Weight For Uplifting
|
T
|
4.5
|
|
Oil Tank Capacity
|
L
|
300
|
WE reserve the right to make any technical improvement without further notice
R&Q
Q:Are you a trading company or a manufacturer?
Our factory is a manufacturer. Our advantage is production, export products of good quality, factory prices directly.
Q: why us?
1. Our machines have been recognized by the state quality supervision department for their high efficiency, energy saving, environmental protection and quality.
2.Our service has been recognized by international customers.
