1280×320 resolution 9.2 inch IPS TFT Lcd 3000 lumin. for automobile rearview mirror
|
Specification
|
|
Part No.
|
TST092MMDL-04
|
|

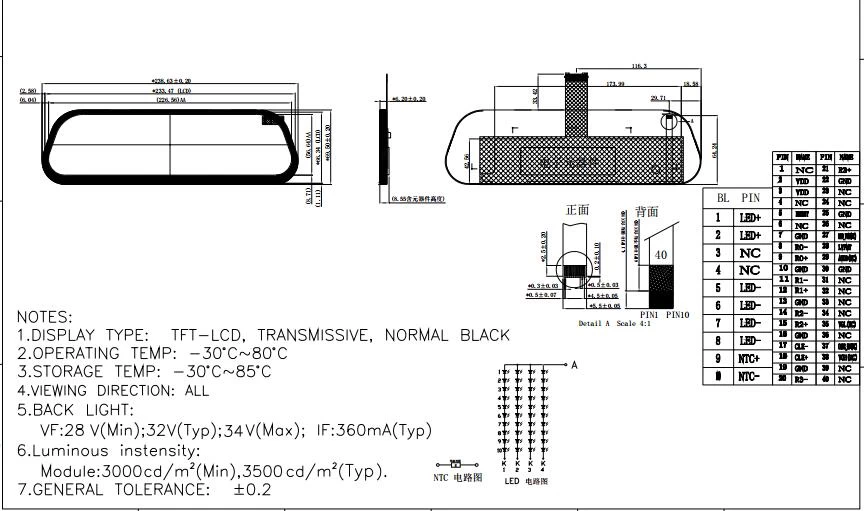

Outline Dimension(mm)
|
239.63×70.3×6.20
|
|
Active Area(mm)
|
|
|
Resolution(dots)
|
1280*RGB*320
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
1280RGB(H)xRGBx320(V)
|
|
Touch panel
|
94% transmittance RTP
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,IPS, 9.2 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
ALL
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
Digital
|
|
Module lifetime(Hours)
|
50,000-100,000
|
