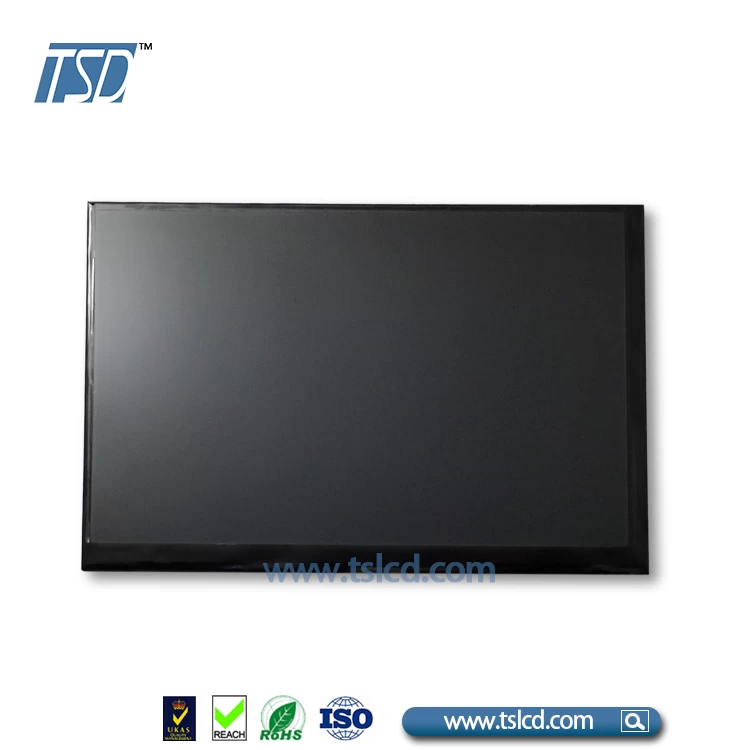

1280×800 resolution 7 inch IPS TFT LCD screen with LVDS interface
|
Specification
|
|
Part No.
|
TST070JDHG30-00
|
|
Outline Dimension(mm)
|
161.00x107.00x3.15
|
|
Active Area(mm)
|
149.76x93.60
|
|
Resolution(dots)
|
1280*RGB*800
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
1280RGB(H)xRGBx800(V)
|
|
Touch panel
|
available to custom
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal black, IPS, 7.0 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
ALL
|
|
Brightness
|
400 cd/m2
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
LVDS
|
|
Module lifetime(Hours)
|
50,000-100,000
|
