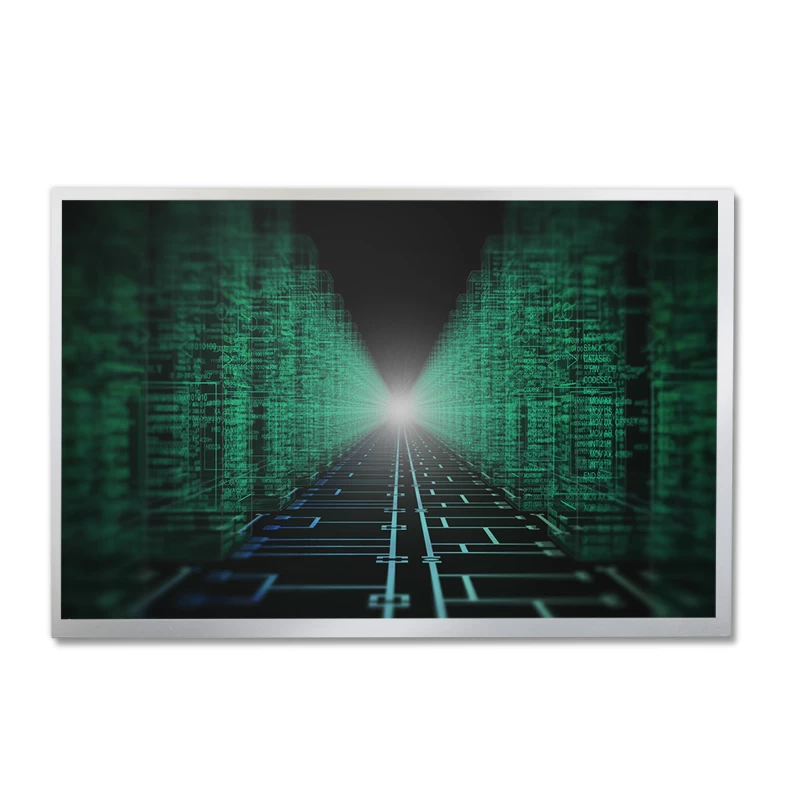

1280x800 resolution 12.1 inch ips lcd display monitors with LVDS interface



Specification
LCD type 12.1 inch ips display
Display type 12.1 inch TFT, 16.7M color, normally black
Driver element color active matrix thin film transistor
Viewing angle
 All
Outline Dimension(mm) 2777.7x180.6x8.7 mm
Active Area.(mm) 261.12x163.2 mm
Resolution(dots) 1280xRGBx800
Operating Voltage
 3.3V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally black
Luminance(cd/m2) 400(typ.)
Contrast Ratio 1200(typ.)
Application Notebook, advertisement display, etc.
Model Number
 TST121WXBH-01
Interface  LVDS
Module lifetime(Hours) 50,000-100,000
