128128 Graphic display Mono LCD with 2.2INCH COG FSTN ST7571-G4C IC 30 PIN

LCD Type:                     FSTN/Positive/Transflective/COG 2.2inch

Resolution:                   128×128

Outline Dimension:       48.70*57.20*4.00

Active Area:                  35.81*42.21

View area:                     40.00*45.20

Driver IC:                     ST7571-G4C

View Direction:              6 o'clock

PIN:                                30

Backlight:                      White LED

  • Resolution128*128
  • Outline Dimension (mm)48.70*57.20*4.00
  • Viewing Area (mm)40.00*45.20
  • Interface-
  • Driver ICST7571-G4C
  • BacklightWhite LED
  • PIN30
Facebook Twitter Pinterest LinkedIn 分享

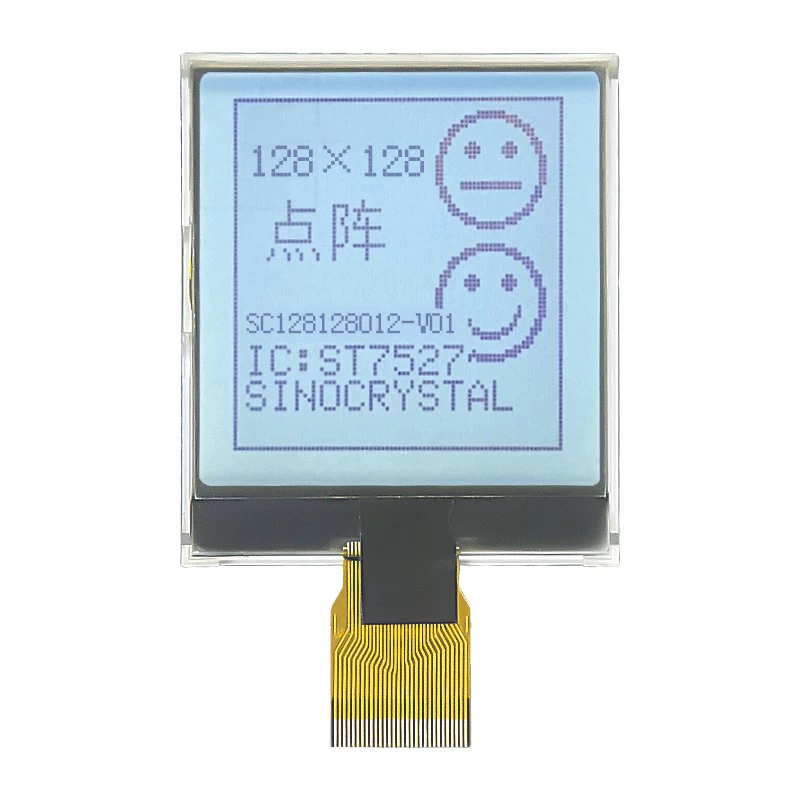

SC128128012-V01 is a Graphic LCD Display with 128*128 resolution, it built in with ST7571-G4C IC, 30 PIN, 6 o'clock View direction.

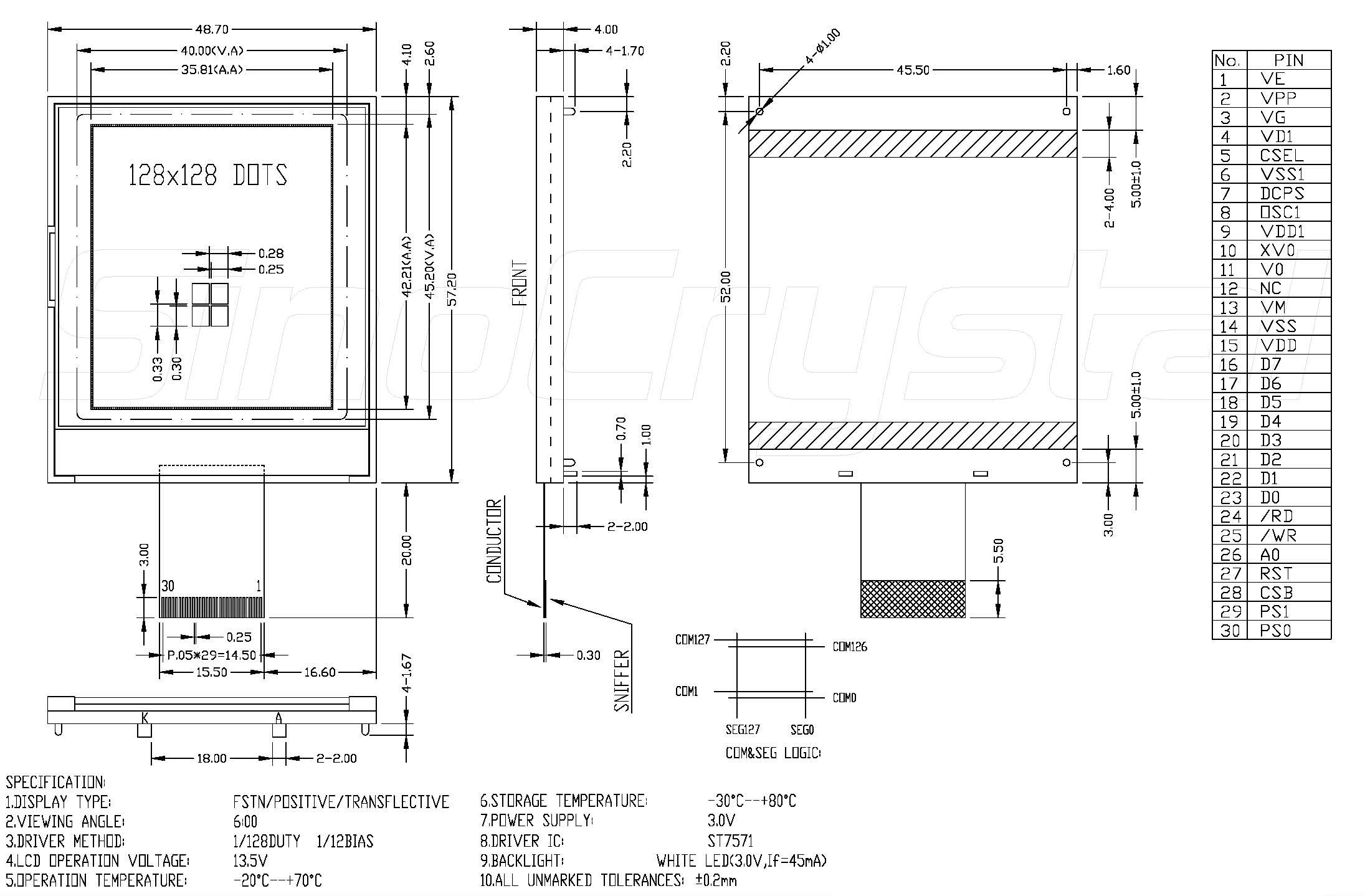

Drawing
