12864 Graphic LCD Display with COG Type ST7565R IC White LED Backlight 30 PIN

LCD Type:                     FSTN/Positive/Transmissive/COG 1.92inch

Resolution:                   128*64

Outline Dimension:       56.40*36.80*5.5

View area:                     49.80*23.80

Driver IC:                     ST7565R-G-1

View Direction:              6 o'clock

PIN:                                30

Backlight:                      White LED



  • Resolution128*64
  • Outline Dimension (mm)56.4*36.8*5.5
  • Viewing Area (mm)51.0*23.8
  • Interface-
  • Driver ICST7565R
  • BacklightWhite LED
  • PIN30
Facebook Twitter Pinterest LinkedIn 分享

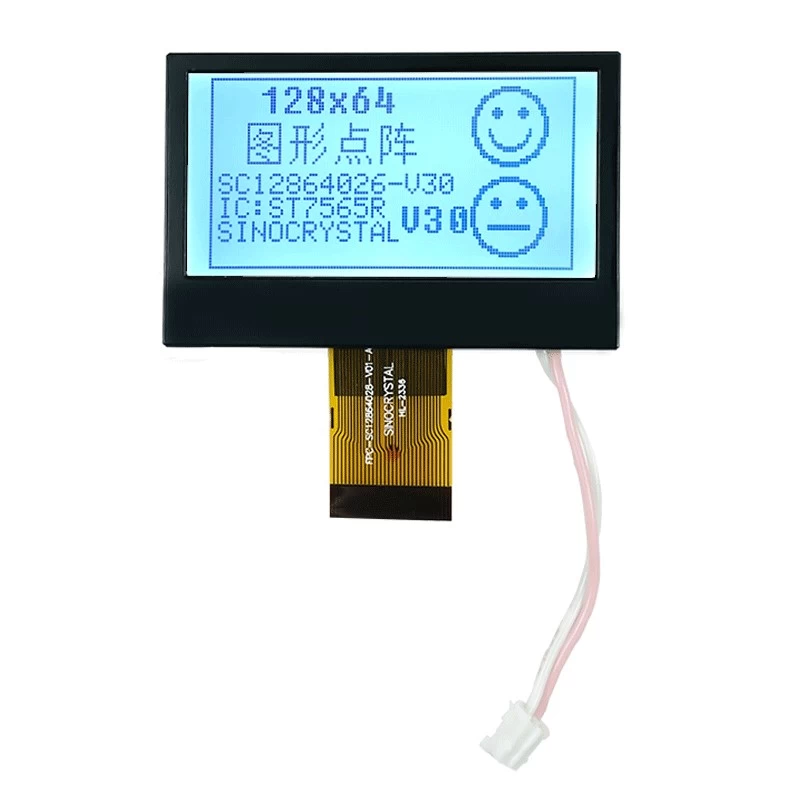

SC12864026-V30 is a Graphic LCD Display with 128*64 resolution, it built in with ST7565R-G-1 IC, 30 PIN, 6 o'clock View direction.

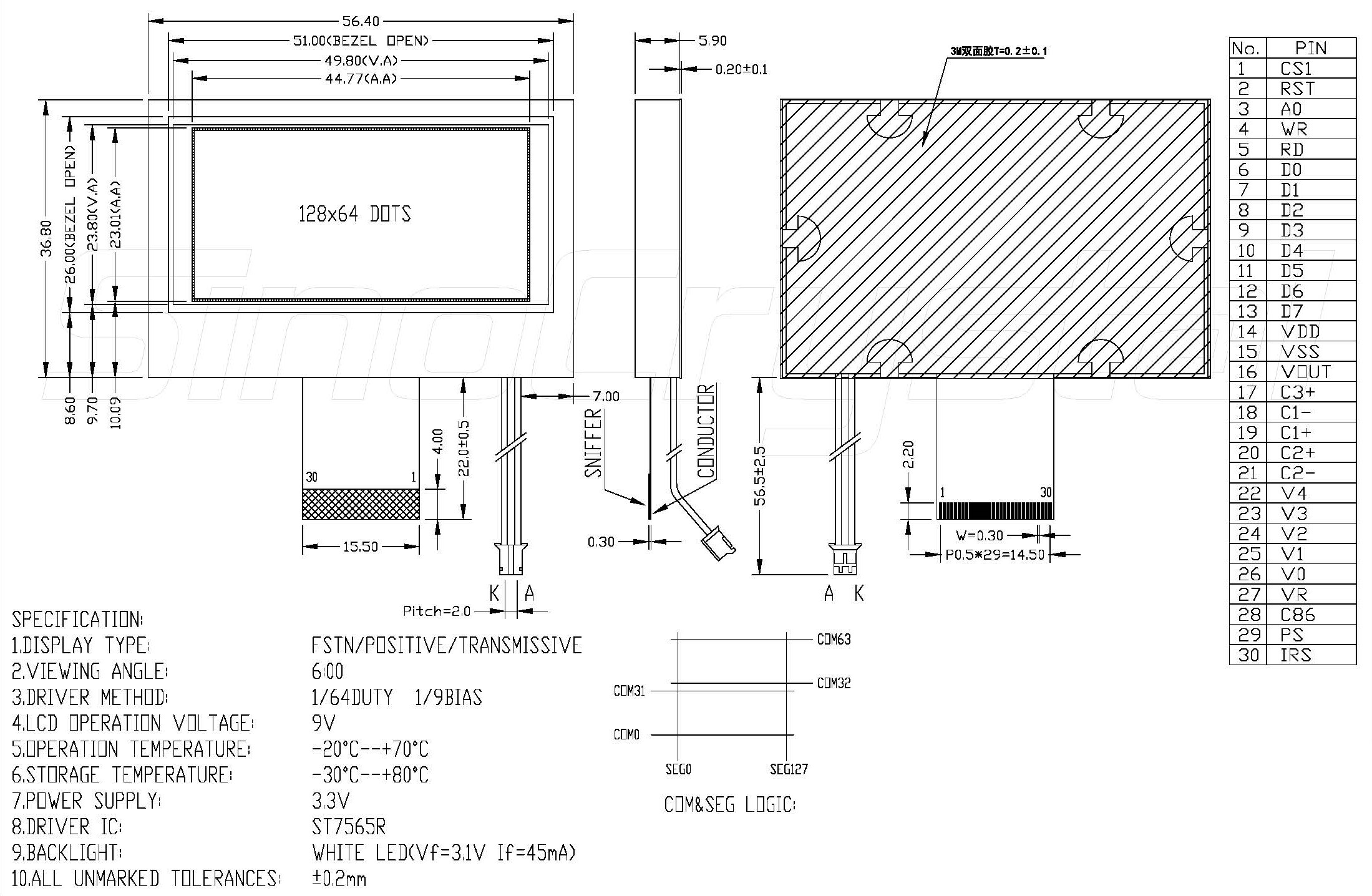

Drawing




General Specification


ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 128×64 Mm
 MODULE DIMENSION 56.4×36.8×5.5 Mm
 VIEWING AREA 51.0×23.8 Mm
 DOT SIZE 0.32×0.33 Mm
 DOT PITCH 0.35×0.36 Mm
 LCD TYPE FSTN/ POSITIVE/TRANSMISSIVE
 DUTY 1/64
 VIEWING DIRECTION 0.25 o'clock
 BACK LIGHT TYPE SIDE LIT LED
 BACK LIGHT COLOR WHITE
 APPROX. WEIGHT TBD G



Interface Definition


Pin No. Symbol Level Description
1 CS1 H/L Chip select signal
2 RST H/L Chip reset signal
3 A0 H/L Register selection input
H : Indicate that D0 to D7 are display data.
L:Indicate that D0 to D7 are control data
4 WR(R/W) H/L 8080 series: Write signal
6800 series: Read or Write signal
5 RD(E) H/L 8080 series: Read signal
6800 series: Enable signal
6--13 D0-D5
D6(SCL)
D7(SI) 		H/L This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface (SPI-4) is selected (P/S = "L") :
D7 : serial data input (SI) ;
D6 : the serial clock input (SCL).
D0 to D5 should be connected to VDD or floating.
14 VDD -- Supply voltage for logic
15 VSS -- Ground
16 VOUT -- Power for LCD
17 C3+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal.
18 C1- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1P terminal.
19 C1+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal. Reset signal.
20 C2+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2N terminal.
21 C2- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2P terminal. Chip select.
22-26 V4-V0 -- This is a multi-level power supply for the liquid crystal drive.
27 VR -- Contrast adjustment input.
28 C86 H/L C86 = "H": 6800 Series MPU interface.
C86 = "L": 8080 Series MPU interface.
29 PS H/L P/S = "H": Parallel interface
P/S = "L": Serial interface
30 IRS H/L RS = "H": Use the internal resistors
IRS = "L": Do not use the internal resistors.
