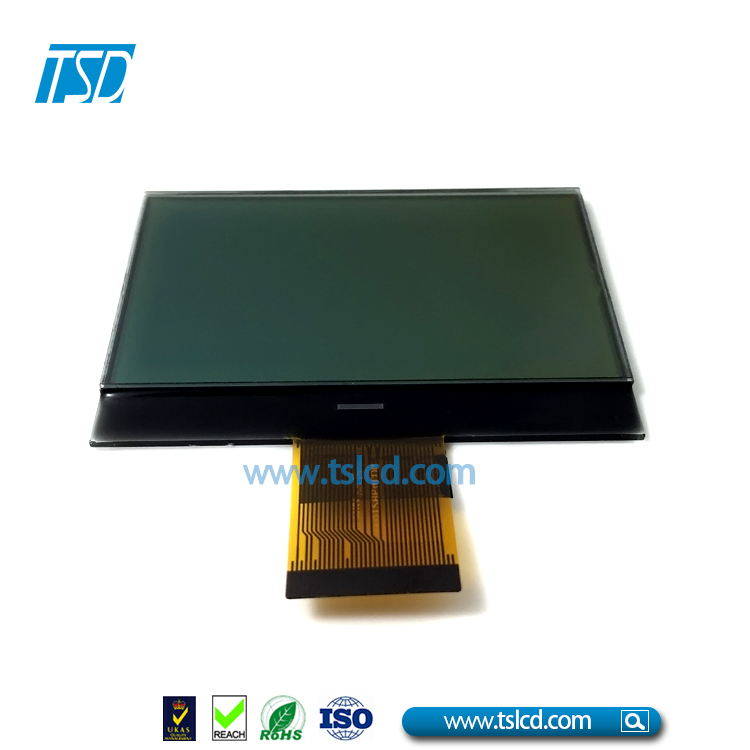

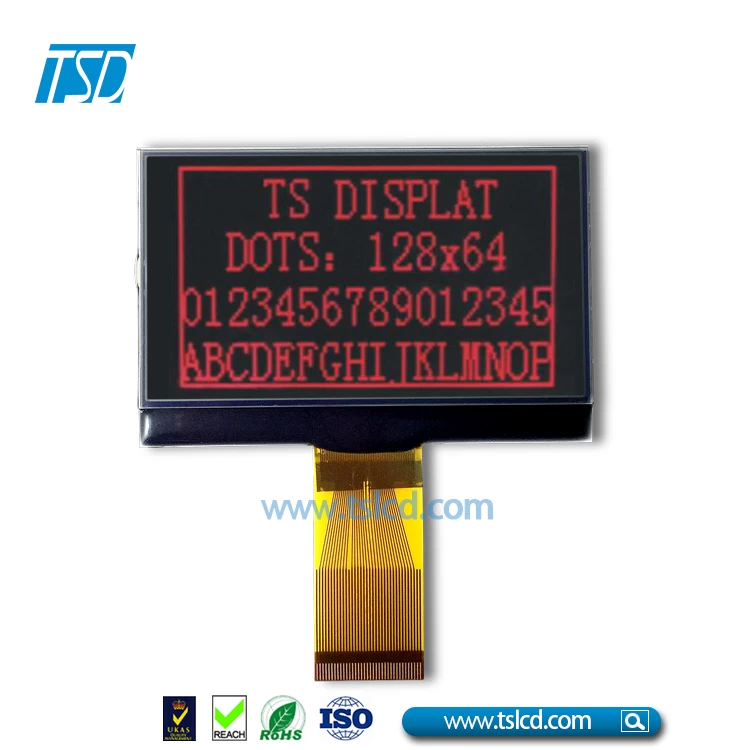

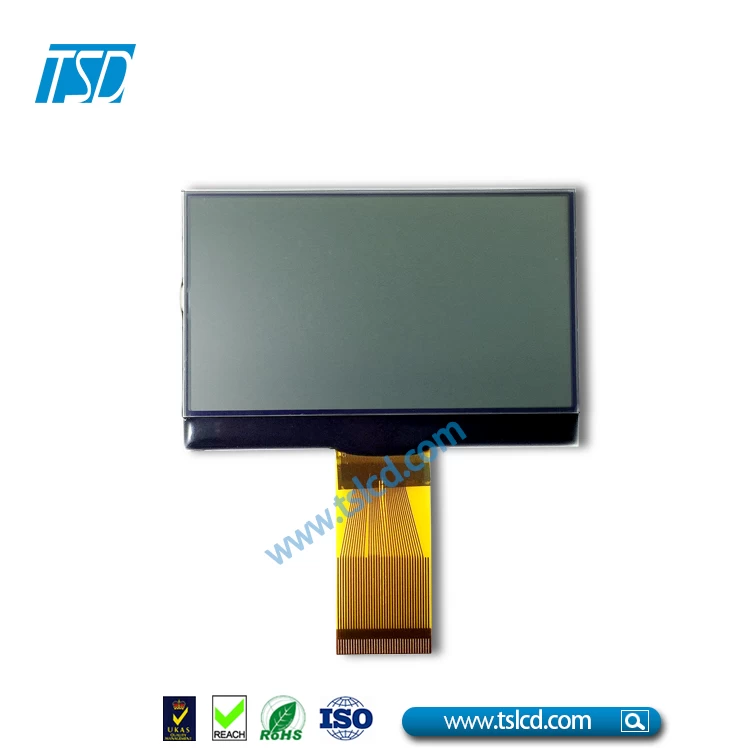

128x64 dots cog lcd

128x64 dots cog lcd

STN /FSTN lcd type

with /without backlight

SPI interface

Facebook Twitter Pinterest LinkedIn 分享
Item Value
Structure COG
LCD Display Mode STN-Gray, Positive, Transflective
Description COG 128x64 lcd module
Viewing Angle 6H
Driving Method 1/64 duty, 1/9 bias
Backlight With/ without
Control/Driver IC S6B0724
Outline(mm)                     69.1 x 50.0 x 2.8Max.
Viewing Area(mm) 65.5 x 38.0
Active Area(mm) 60.775x 32.935
Dot Pitch 0.475 x 0.515
Dot Size 0.45 x 0.49
Operating Voltage 3.3v typ.
Operating Temperature -20-70 °C
