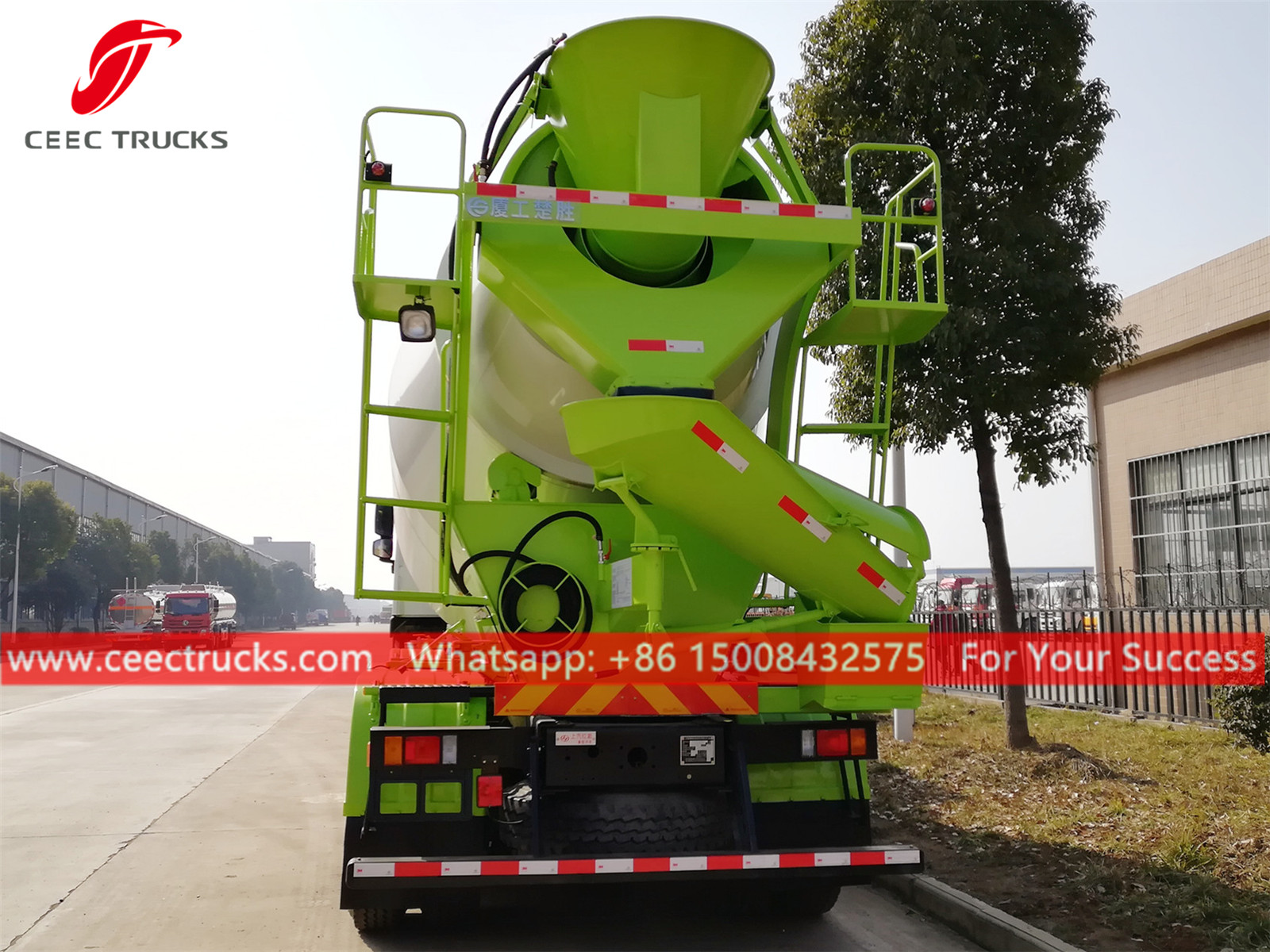

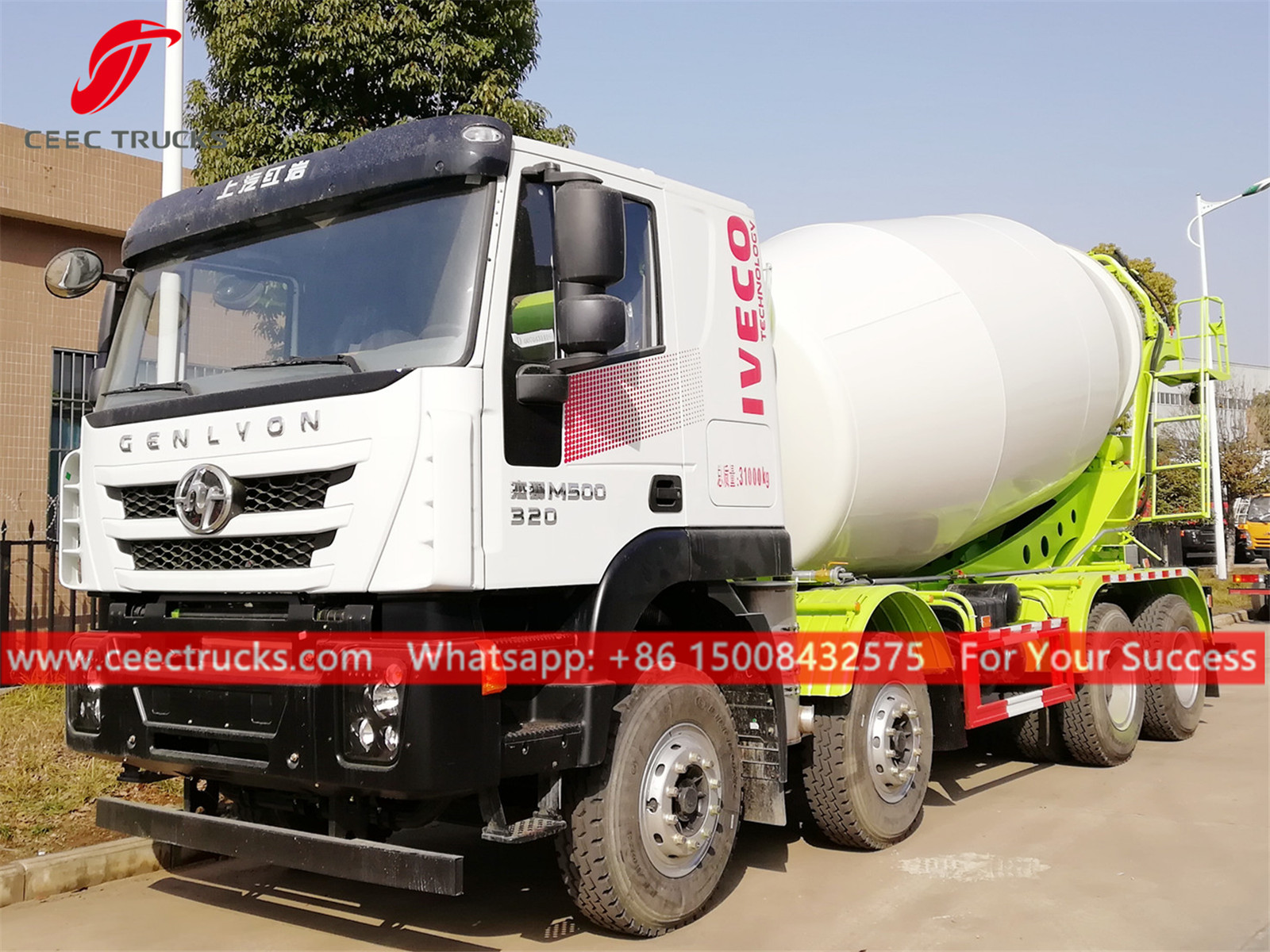

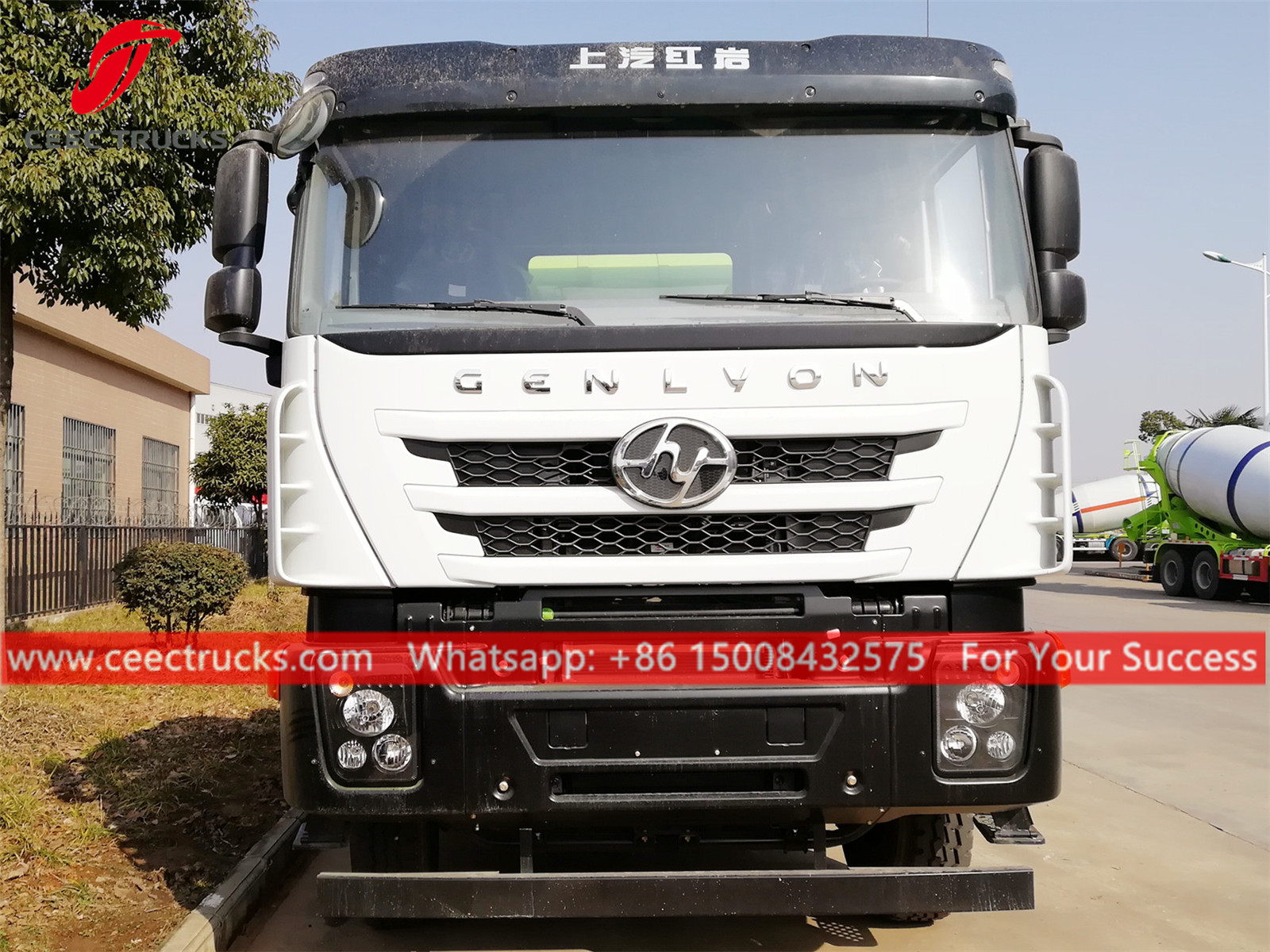

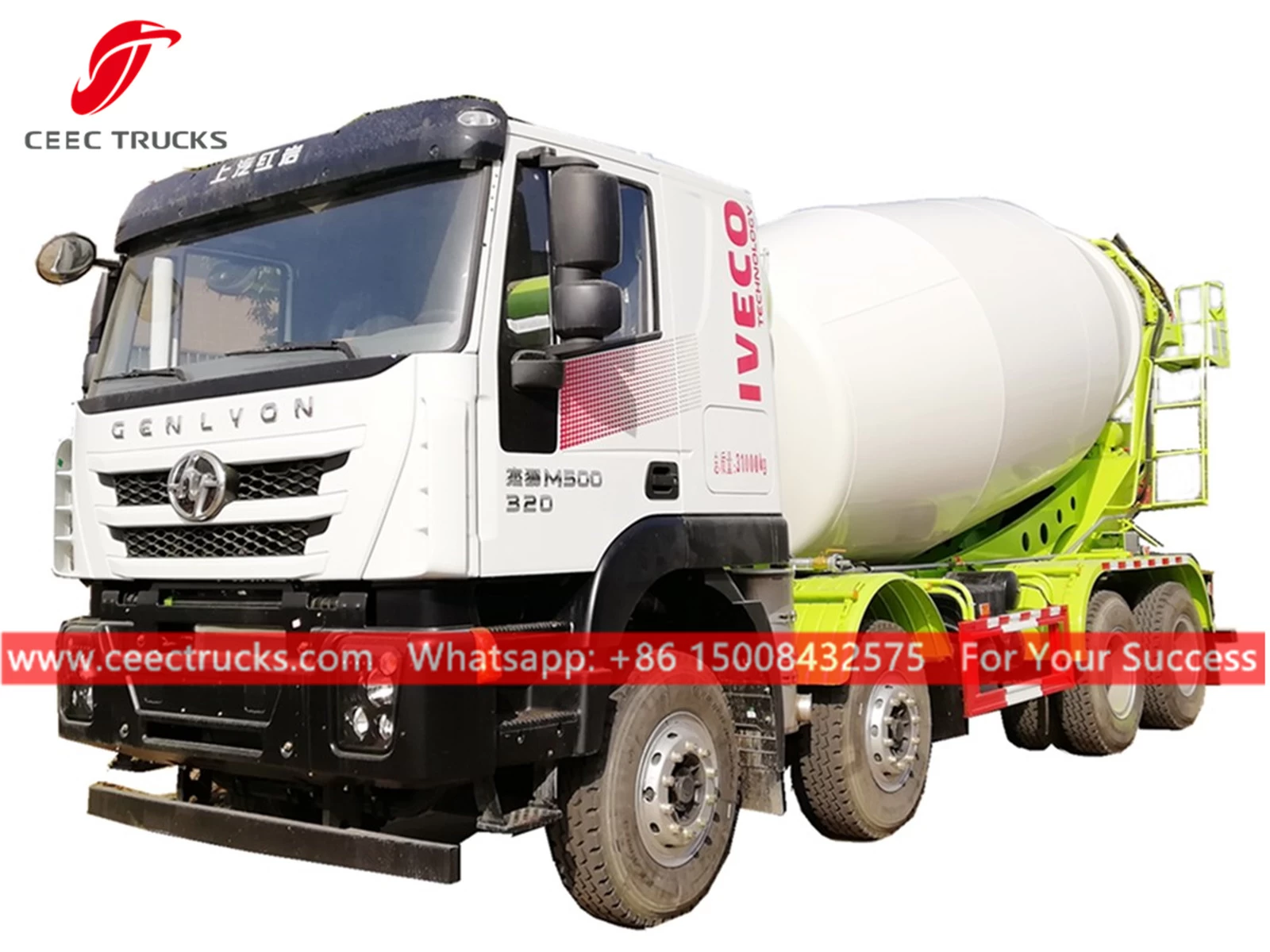

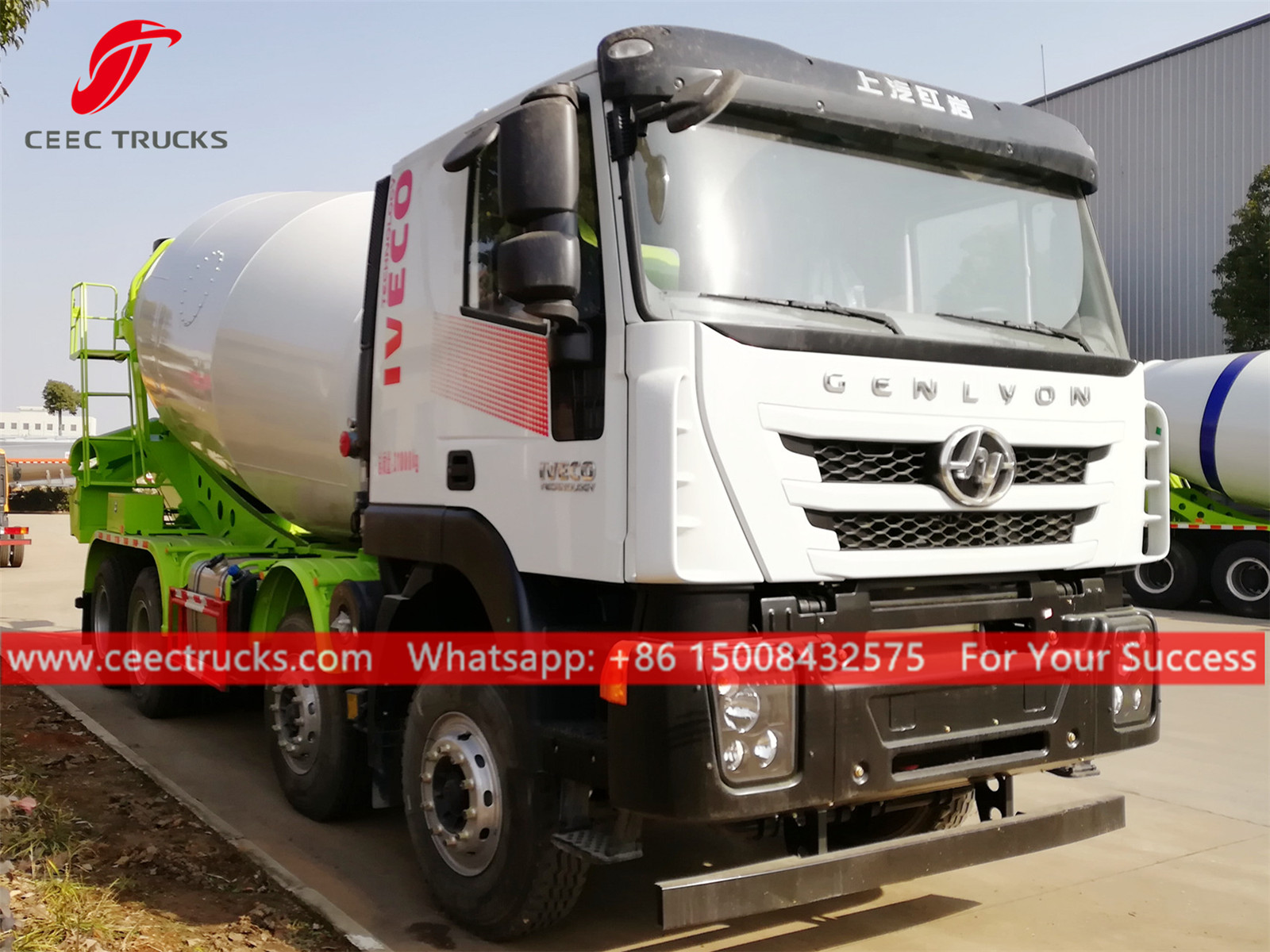

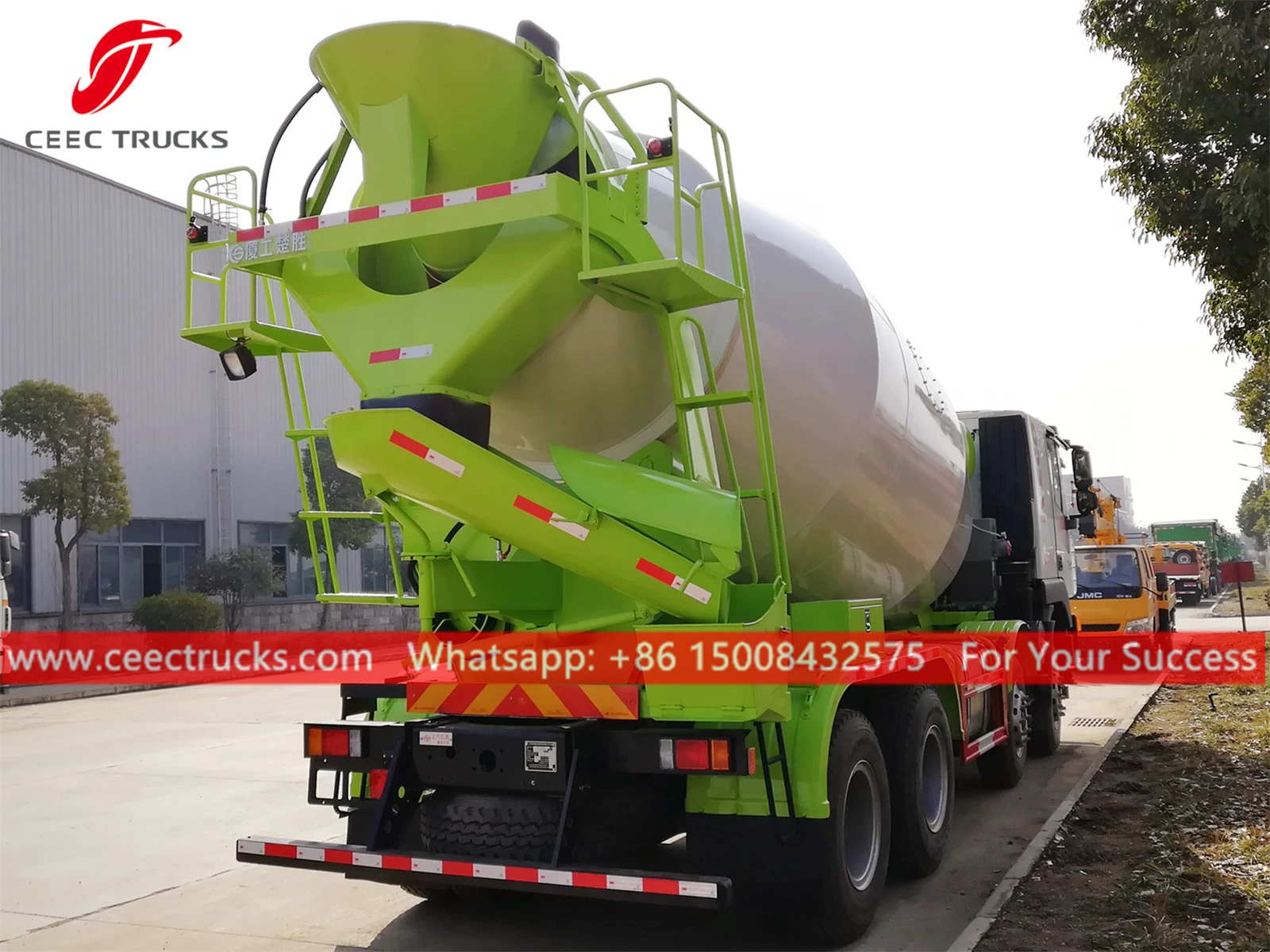

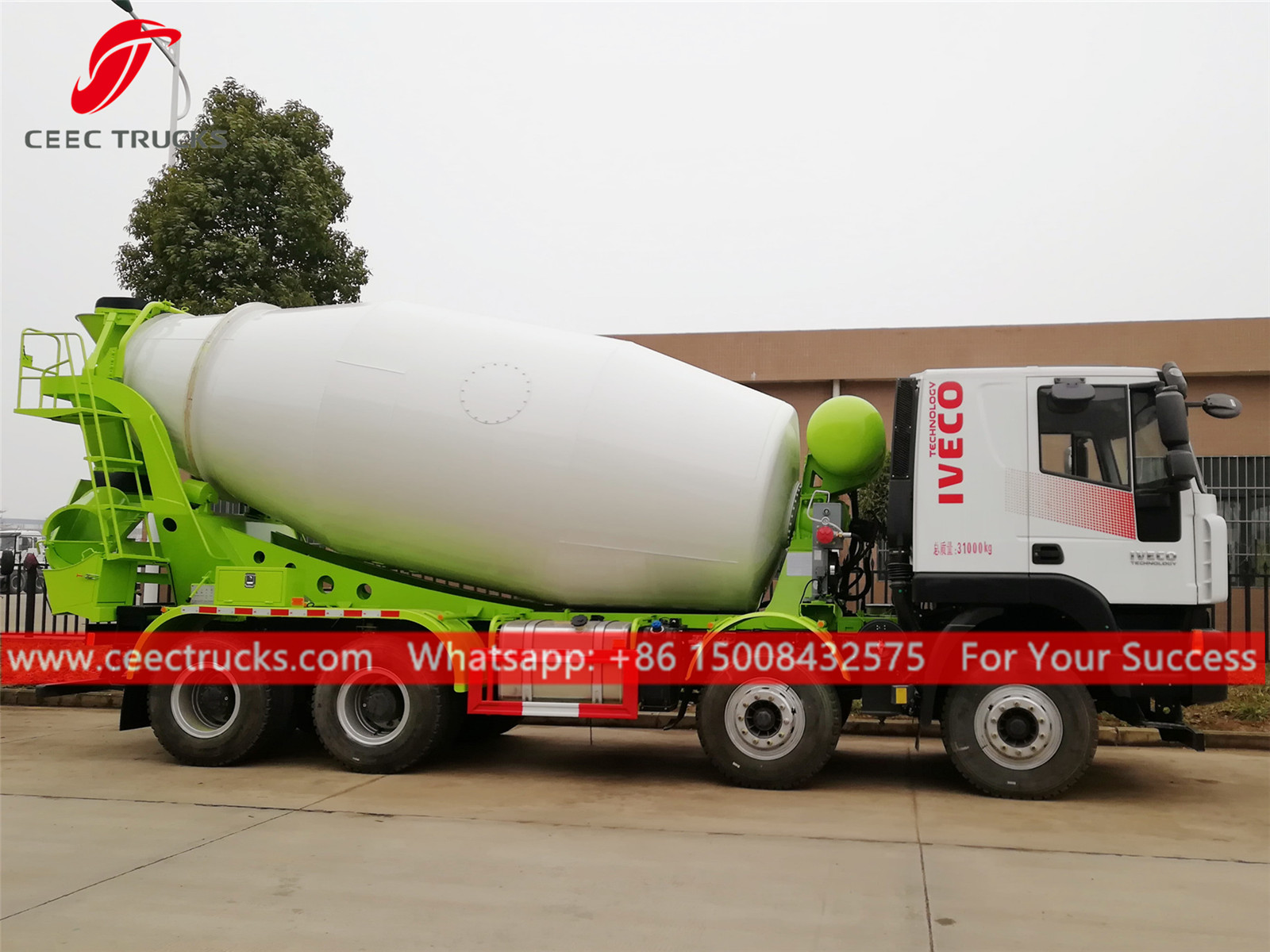

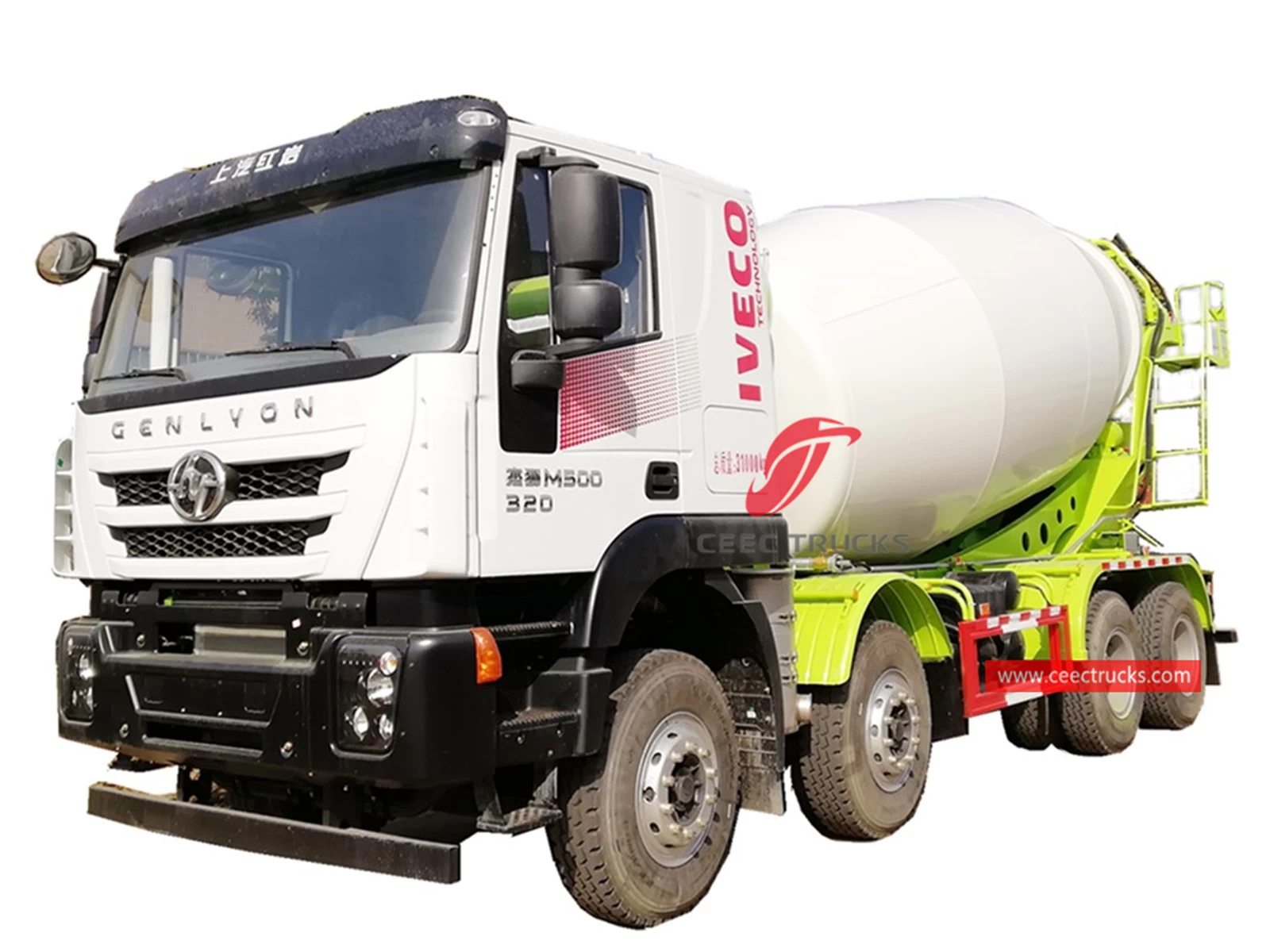

12CBM Concrete Mixer IVECO

IVECO quality 12cbm concrete mixer truck, 8x4 LHD chassis, CURSOR 320HP diesel engine, FAST 12-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.


Facebook Twitter Pinterest LinkedIn 分享



 Applications:

IVECO Genlyon Concrete Mixer truck (also called transit mixer, concrete transport truck, mixer truck, cement mixing truck, concrete mixer, cement mixer, volumetric mixer truck, agitator truck, Cement mixer truck, Transit mixer truck, ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- IVECO heavy duty chassis, perfect performance
---- CURSOR engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.

---- Various types of Hydraulic main parts are available.

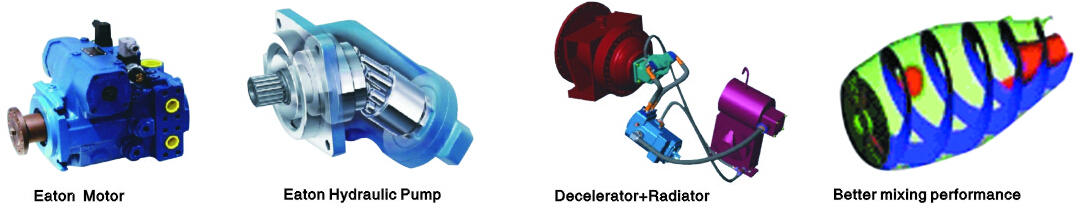

mixer truck advantage



 Specifications:



Transit Mixer vehicle IVECO Genlyon (12 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

IVECO

Overall Dimension

9385 * 2500 * 3995 mm

GVW / Kerb Weight

31,000kg / 13,960kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Cursor

Power

320 HP (235 KW)

Displacement

8709 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

8X4 (left hand drive)

Transmission

FAST 12 speed levers with 2 reverse

Wheelbase/No. of axle

1800+3000+1400 mm / 4

Tire Specification

11.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Mixer tank volume

12 cubic meter

Barrel wall Thickness

5 mm

Barrel wall material T520JJ

Loading speed

≥  1.2

Discharging speed

≥  2.7

Rest rate

≤  1

Control

Both side with hydraulci control

Pump Import Brand
Motor Import Brand
Reducer Import Brand

Color & LOGO

According to wish

All standard accessories: All tools. .

Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other body capacity can be choose.

** Other material and plate thickness can be choose.
