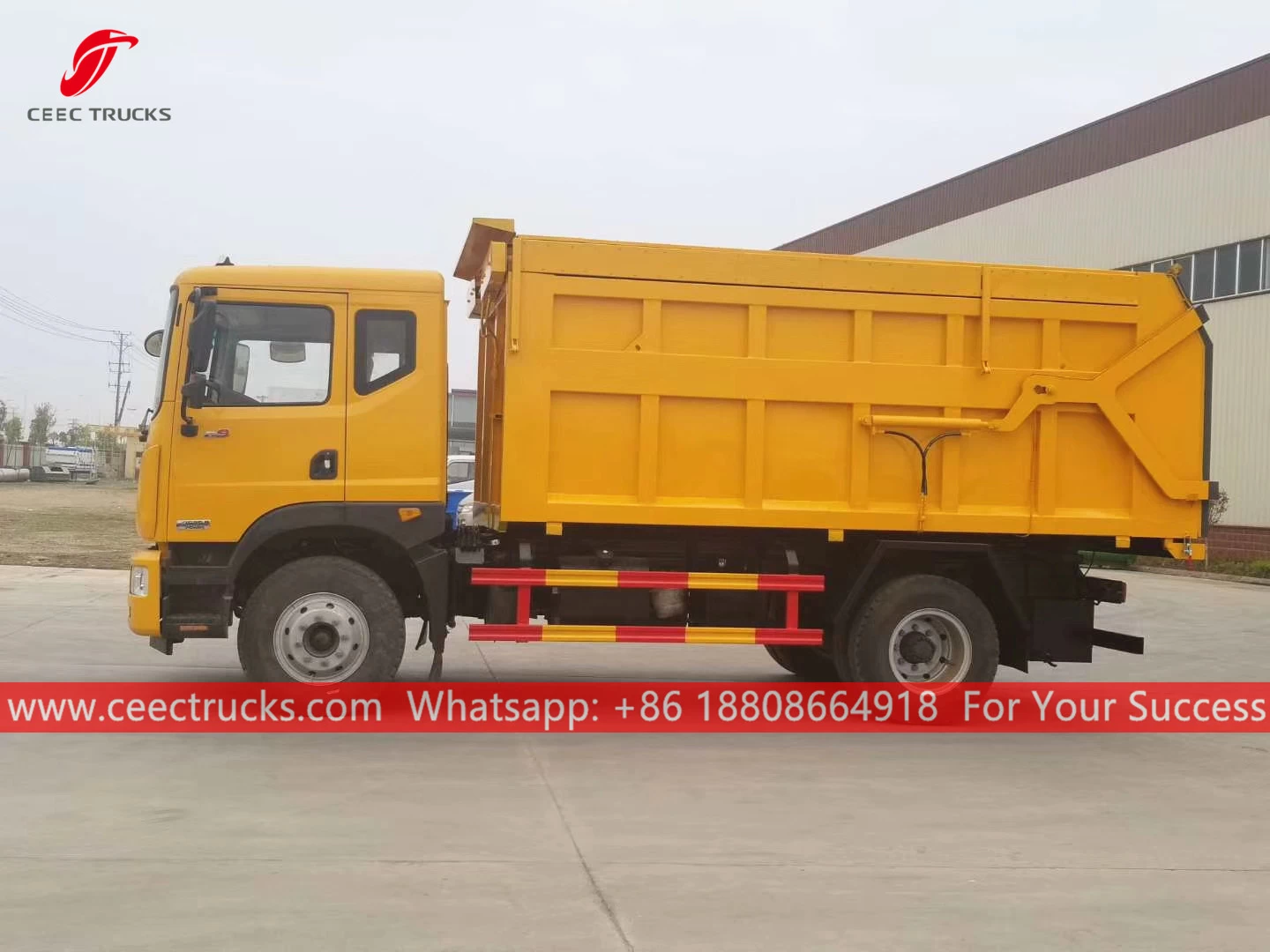

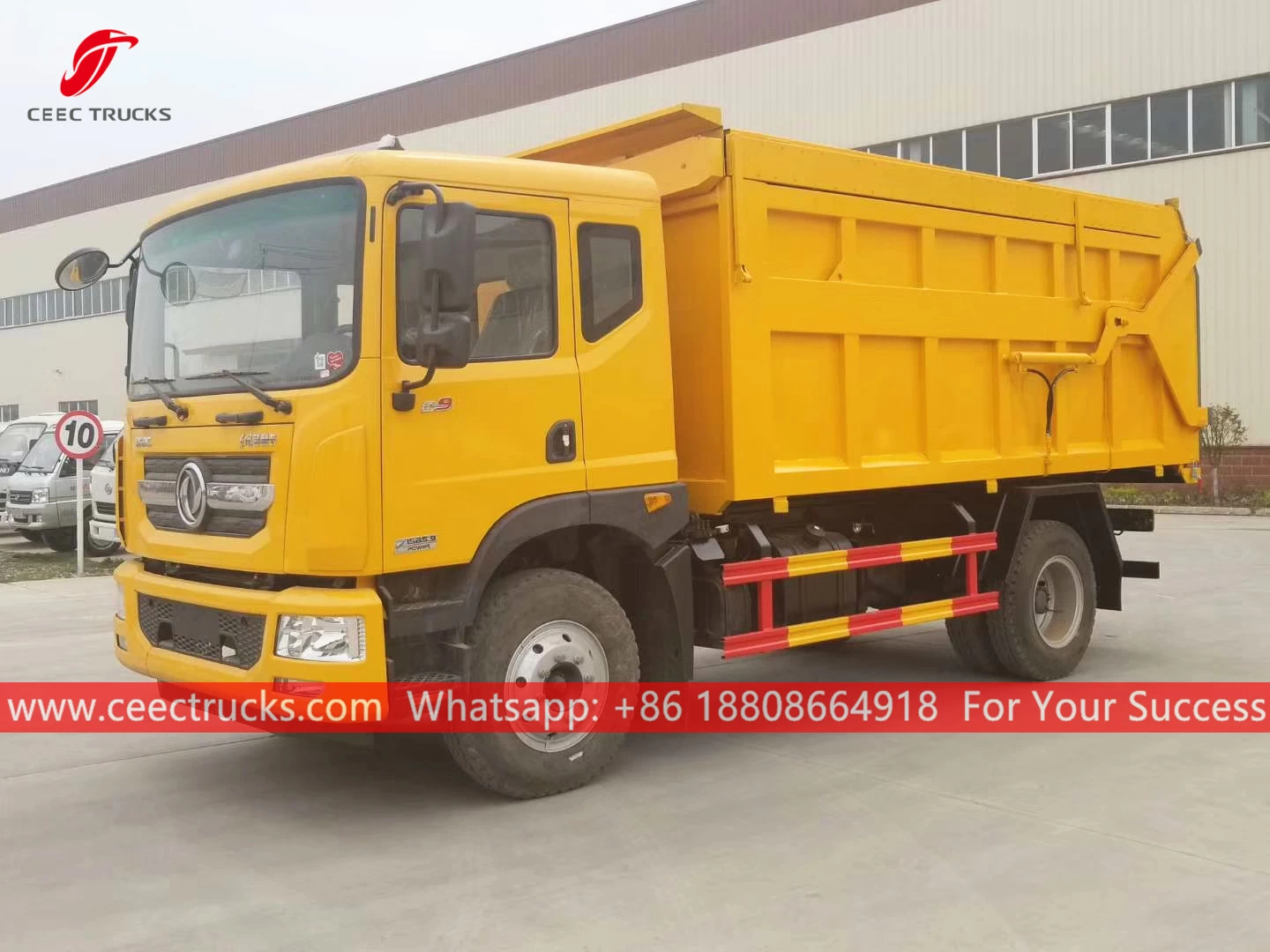

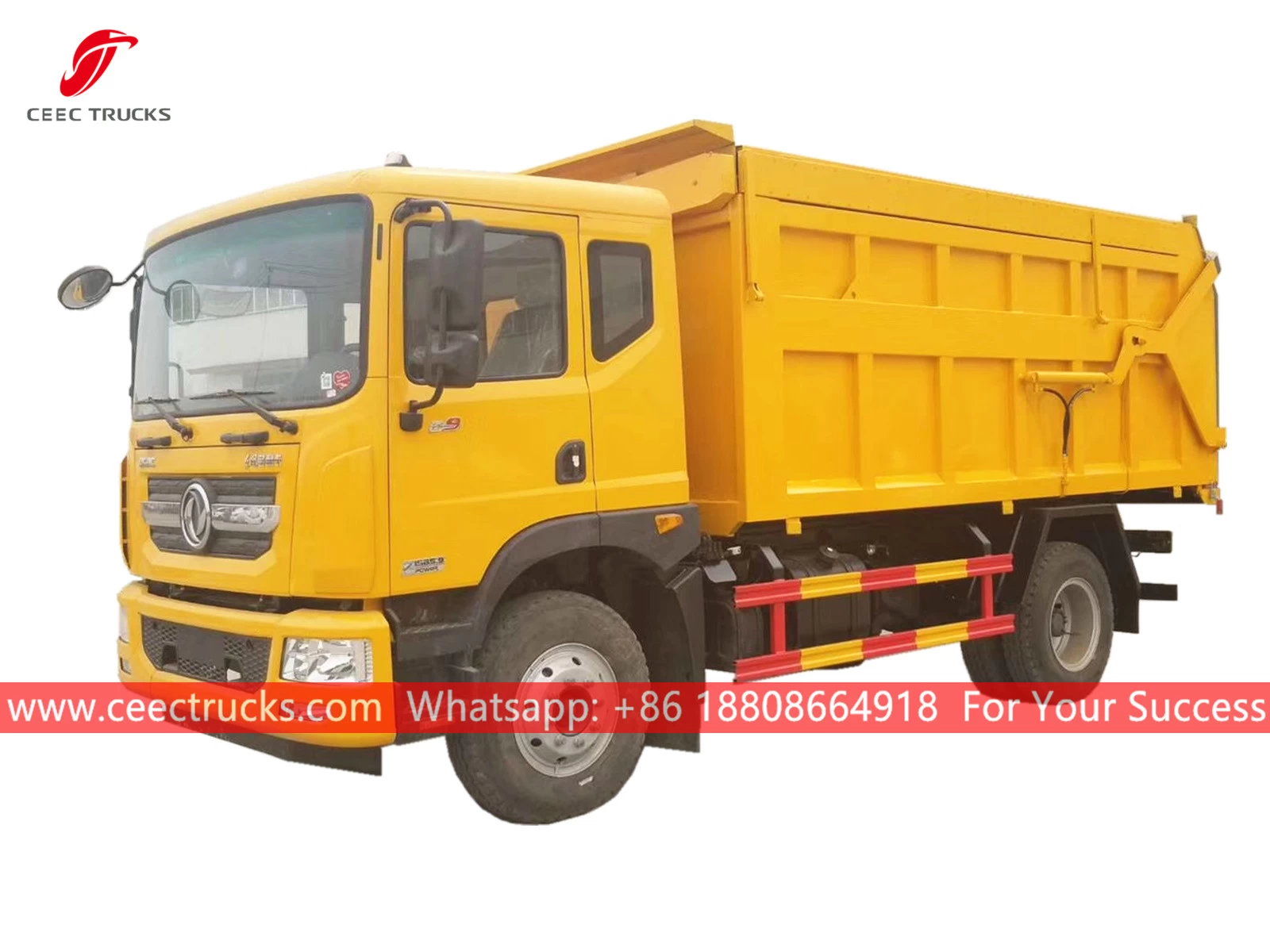

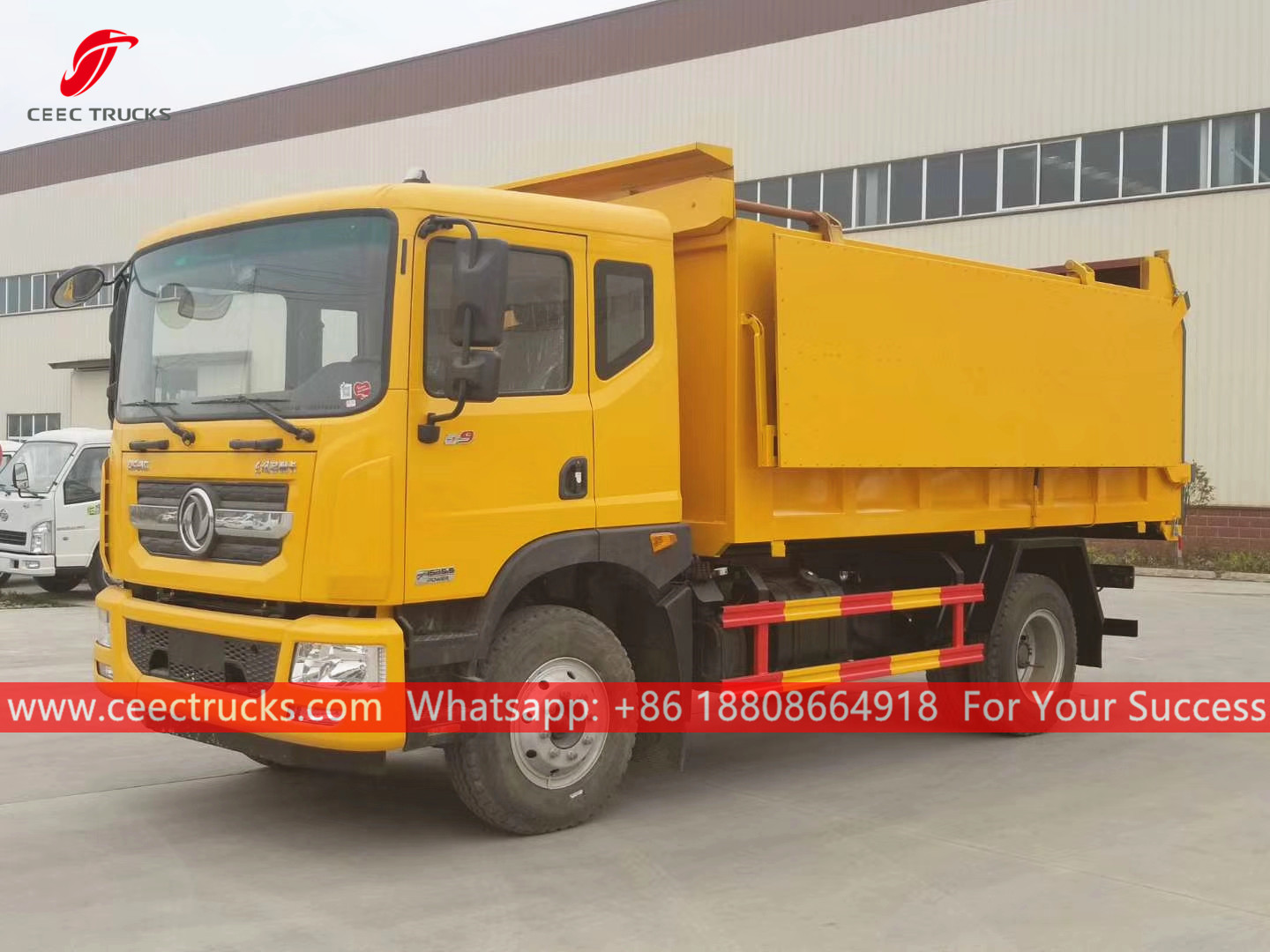

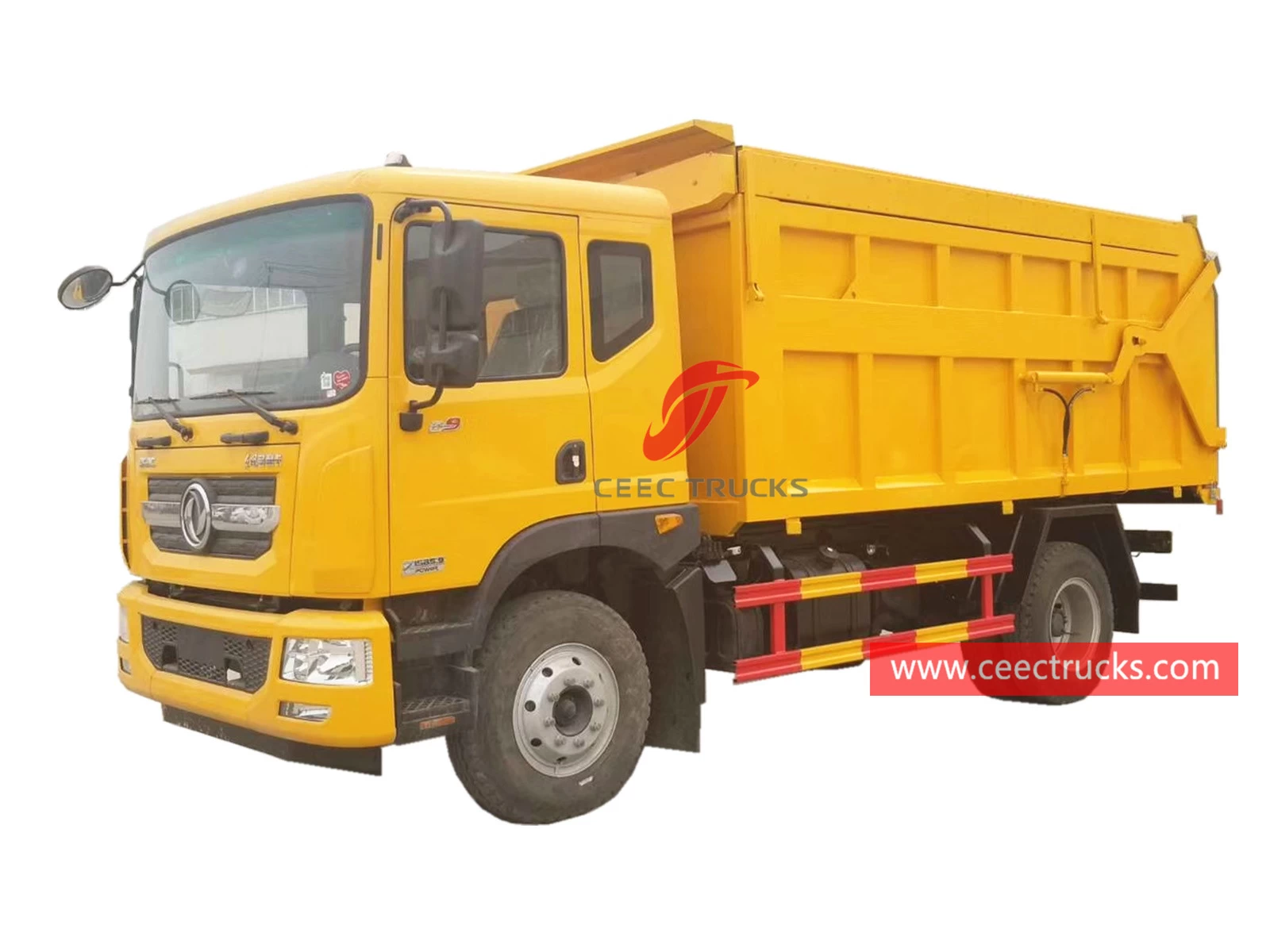

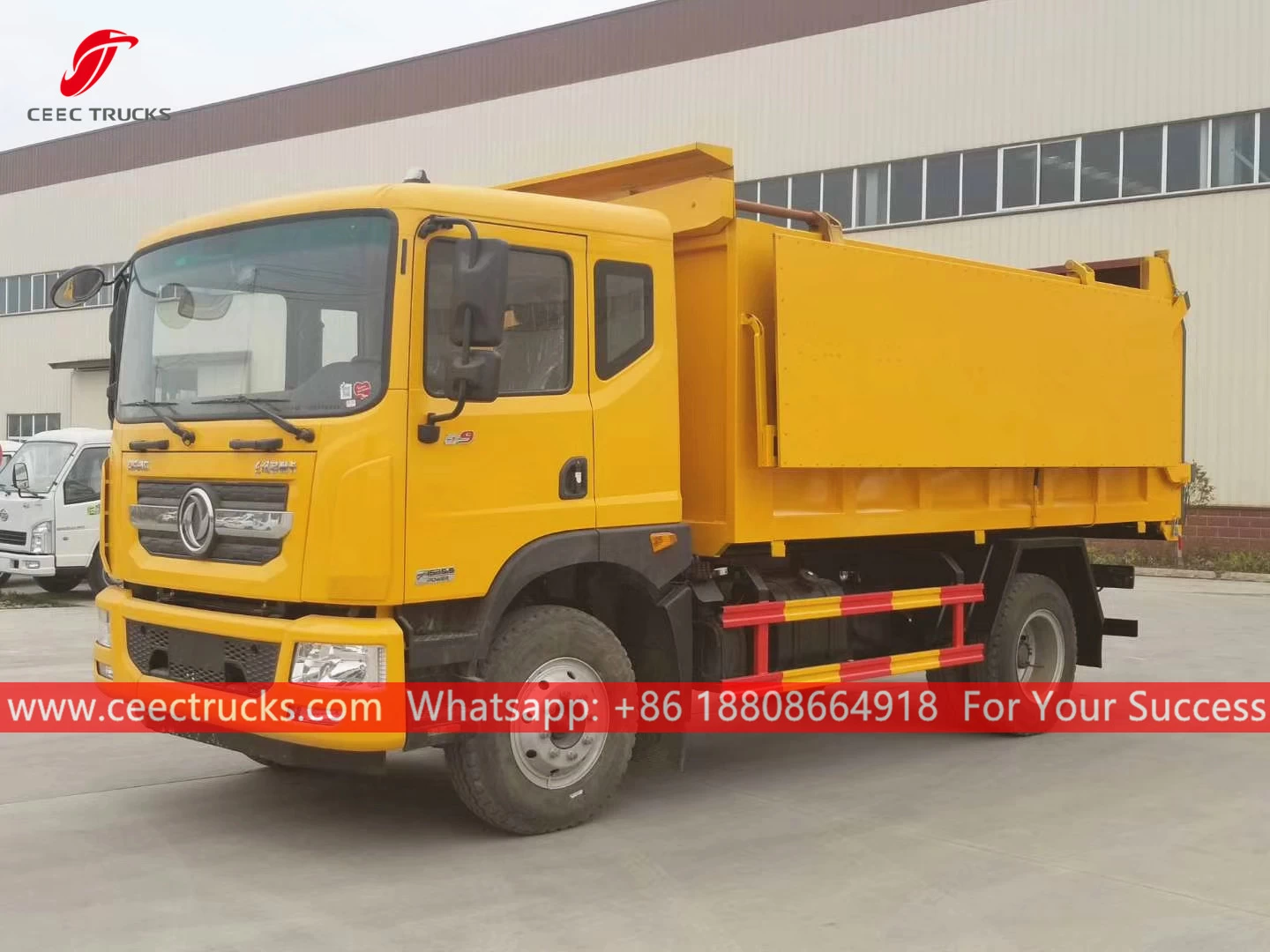

12CBM Docking garbage truck DONGFENG
DONGFENG 12cbm docking garbage truck, 4x2 chassis, 8-shift manual gearbox, CUMMINS 190HP diesel engine, mainly service for garbage station, Hydraulic rear door and upper cover for easy operation, middle lifting device. All painting and logos depend on requirement.
Applications:
Docking garbage truck Dongfeng (also called Garbage collection truck, garbage transportation truck, rubbish dump truck, garbage collector truck, waste delivery truck, garbage transport truck) is widely used in sanitation & municipal, industrial enterprises and residential area, and mainly designed to collect and transport municipal solid waste. If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you

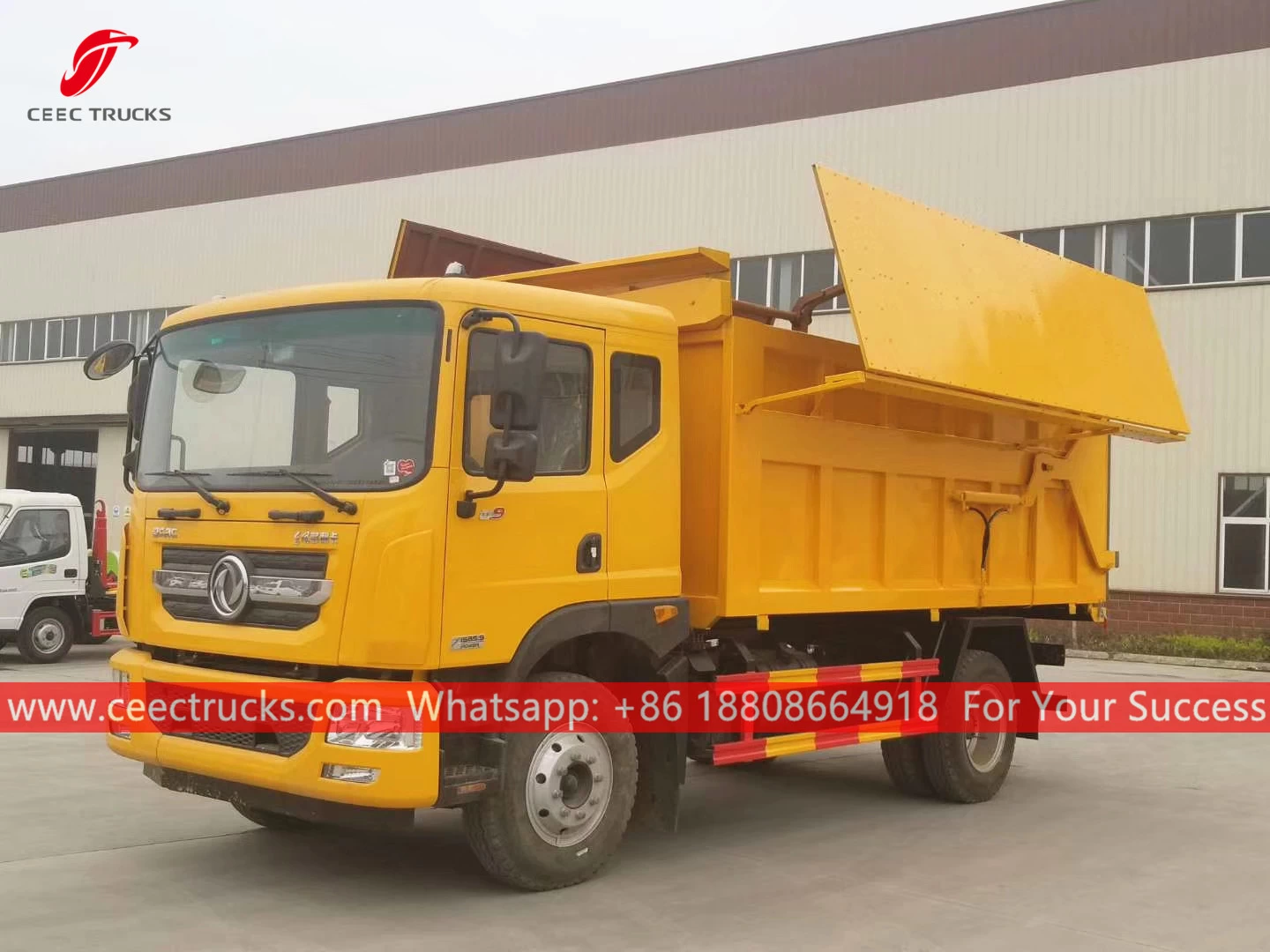

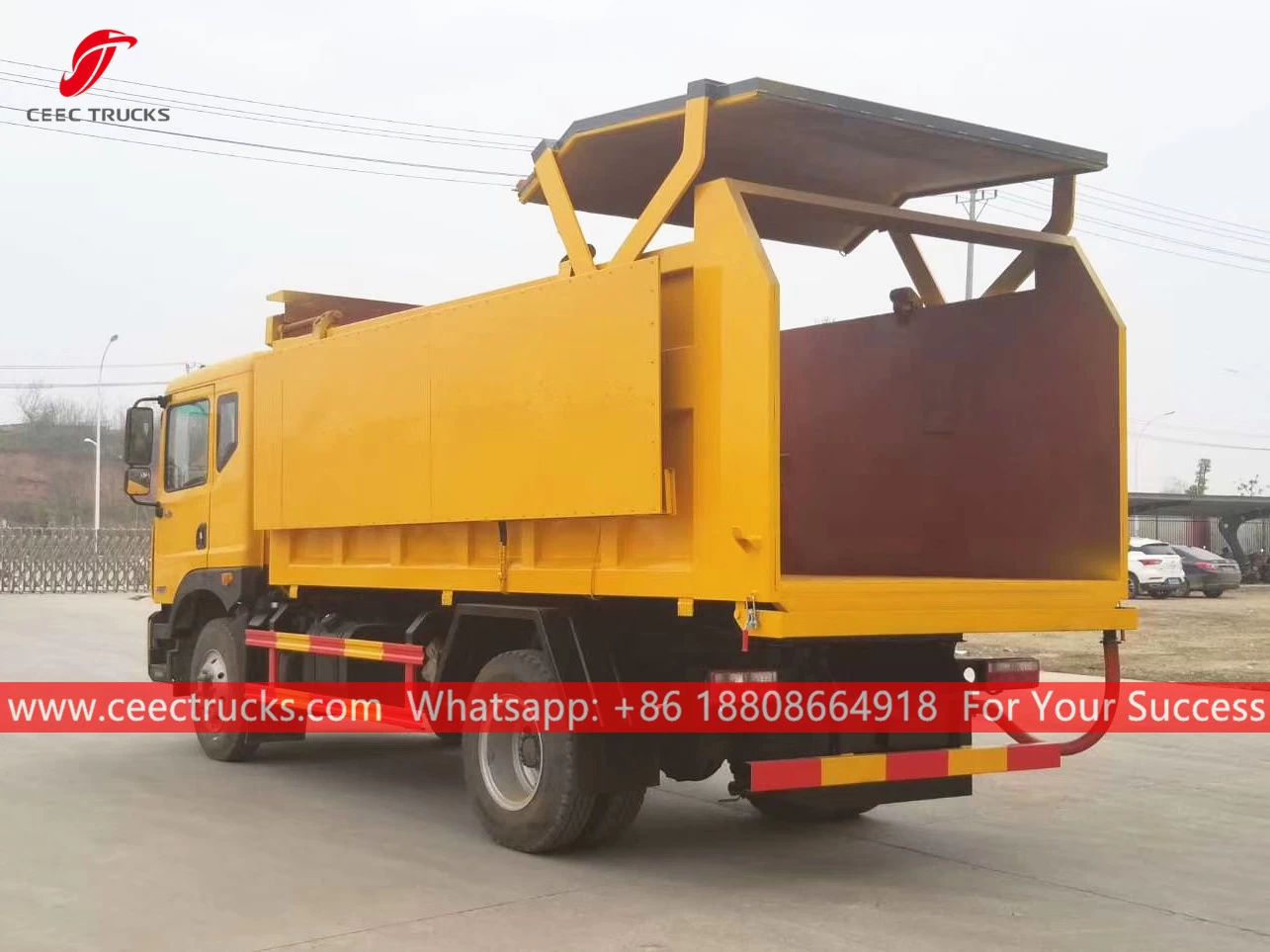

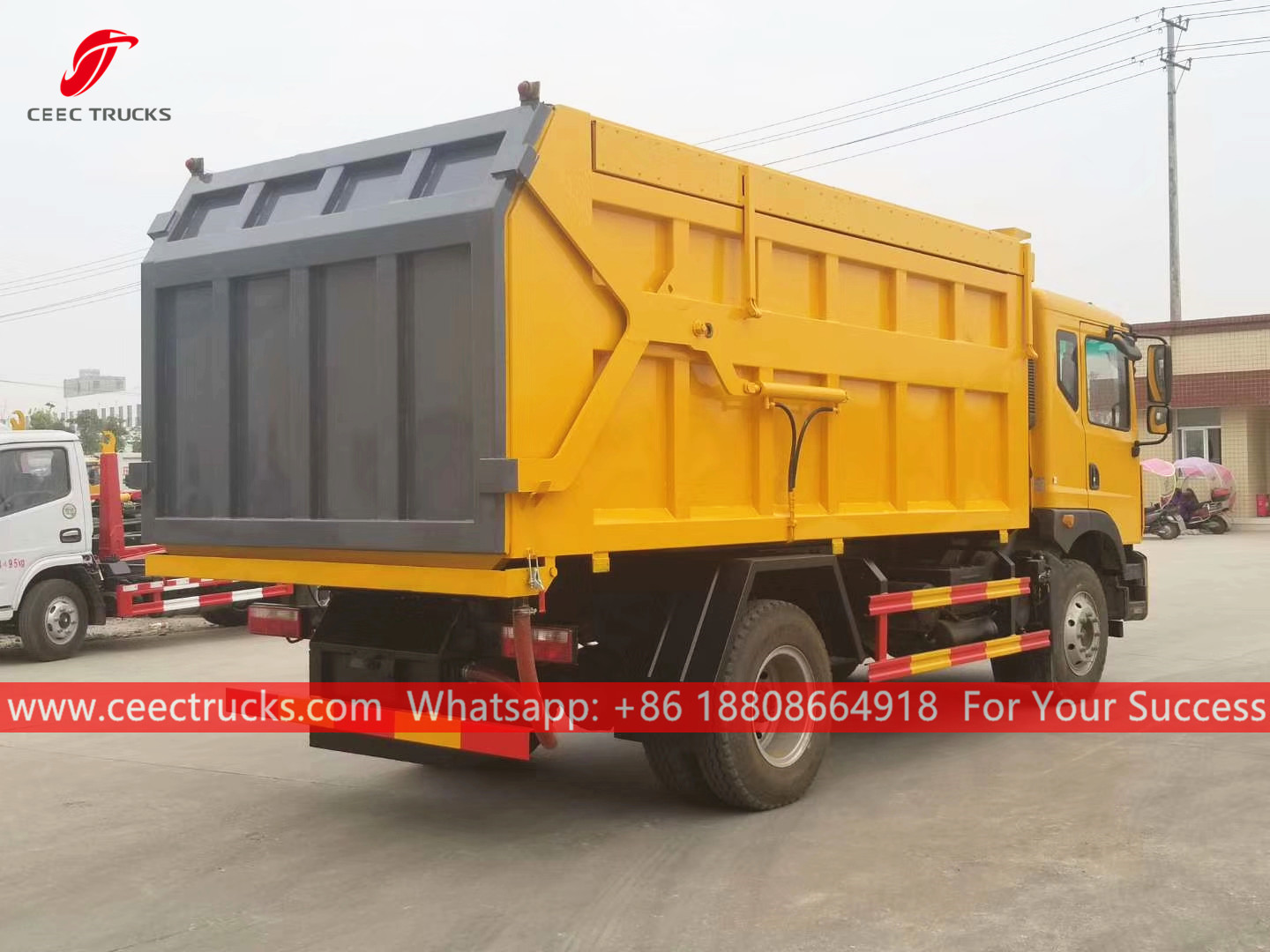

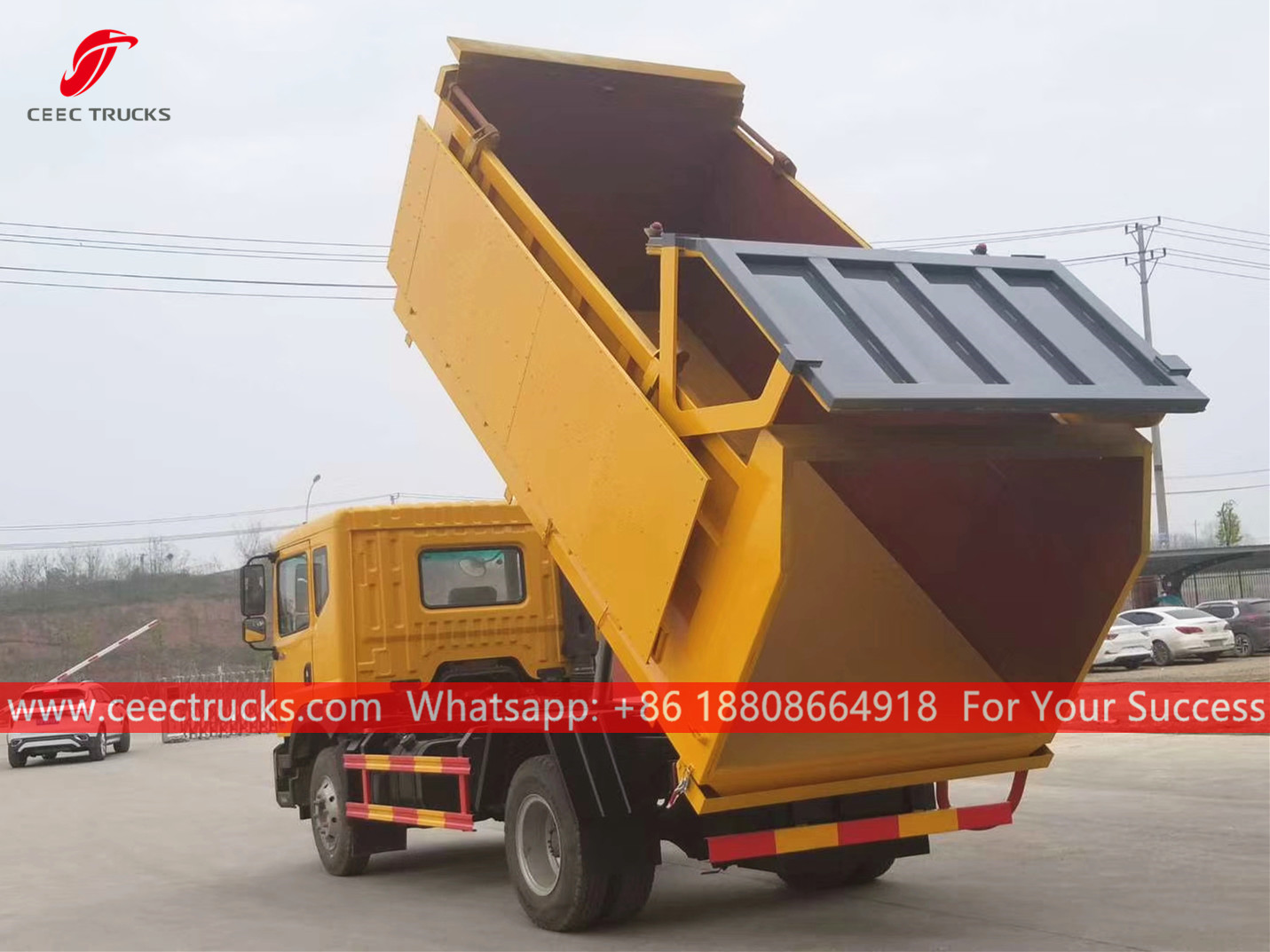

CEEC TRUCKS garbage collector rear is hydraulic open / close, means the truck could unload the waste by gravity. To avoid leakage of waste water, the garbage van is totally hermetic.
Key Features:
---- DONGFENG chassis, perfect performance
---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Garbage container capacity from 2 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
Hydraulic garbage transportation truck DONGFENG (12 cbm) |
||
General |
Vehicle Brand |
CEEC |
Chassis Brand |
DONGFENG |
|
Overall Dimension |
8200 * 2500 * 3150 mm |
|
GVW / Kerb Weight |
16,000kg / 7,300kg |
|
Cab |
Cab Capacity |
2 persons allowed |
Air Conditioner |
Heating/cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
CUMMINS |
|
Power |
190 HP (140 KW) |
|
Displacement |
5900 ml |
|
Emission Standard |
Euro 3 or 4 |
|
Chassis |
Drive Type |
4X2, (left hand drive) |
Transmission |
Manual 8 speed levers with 1 reverse |
|
Wheelbase/No. of axle |
4500 mm / 2 |
|
Tire Specification |
10.00-20 |
|
Tire Number |
6 tires and 1 spare tire |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Body capacity |
12 cbm |
Body material |
Carbon steel as standard |
|
Rear door model |
Hydraulic lifting rear door |
|

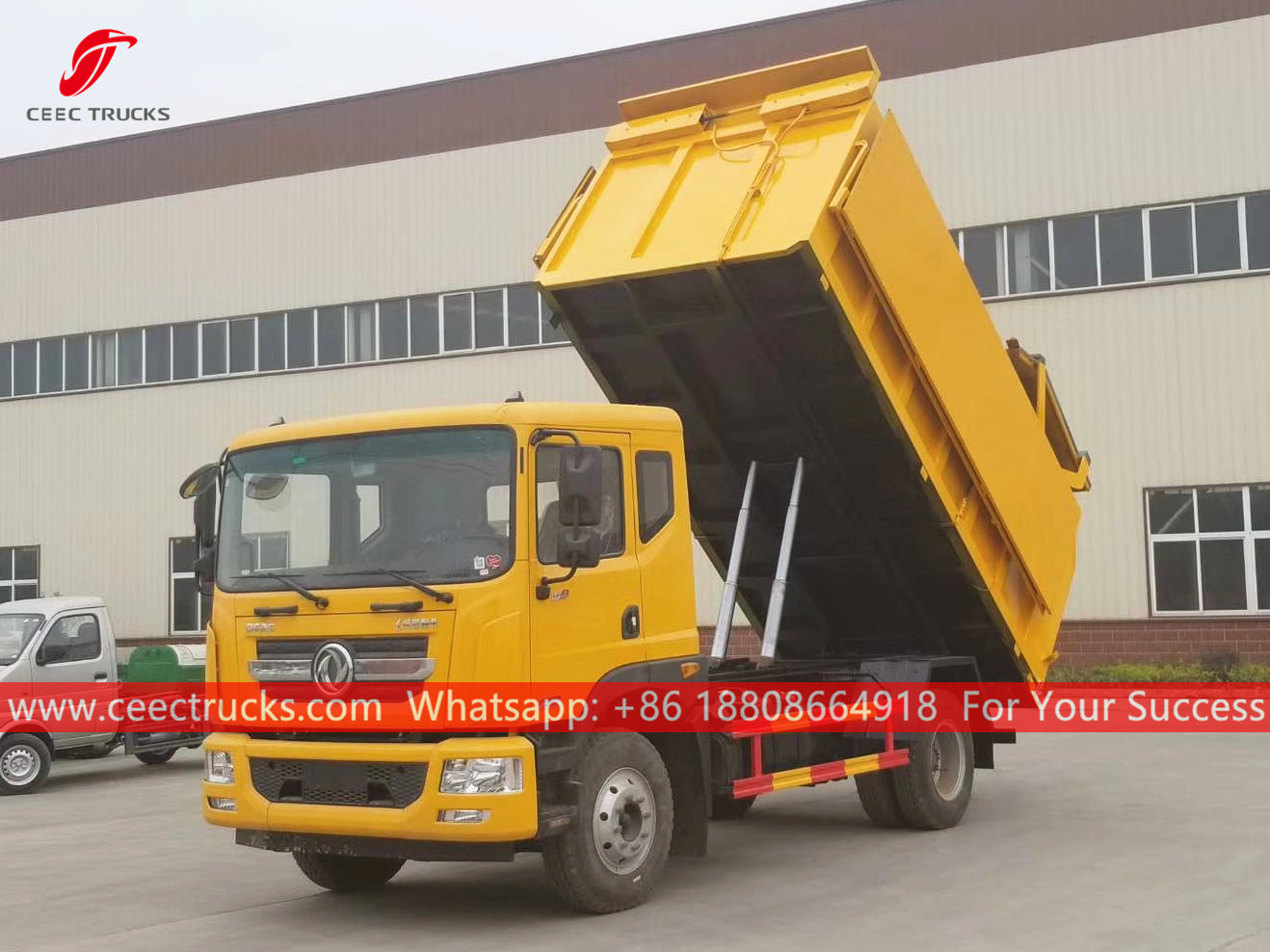

Body lifting cycle time |
15~20 s |
|
Usage |
Used in garbage station |
|
Control system |
Electrically Hydraulic control Manual hydraulic control |
|
Control panel |
English or Your language |
|
All standard accessories: Basic tool kit, English manual…… |
||
Optional |
** Container material could be stainless steel. ** A sealed cover for the container. ** A truck with several containers. |
