Electrical Specifications
|
|
Frequency
|
865-868MHz/902-928MHz
|
|
Gain
|
12dBi
|
|
Beam width
|
Hor：45° Ver：45°
|
|
Polarization
|
Circular
|
|
VSWR
|
≤1.4
|
|
F/B Ratio
|
≥20
|
|
Impedance
|
50Ω
|
|
Maximum power
|
50W
|
|
Lightning protection
|
DC Ground
|
|
Connector
|
SMA-Female
|
|
Mechanical Specifications
|
|

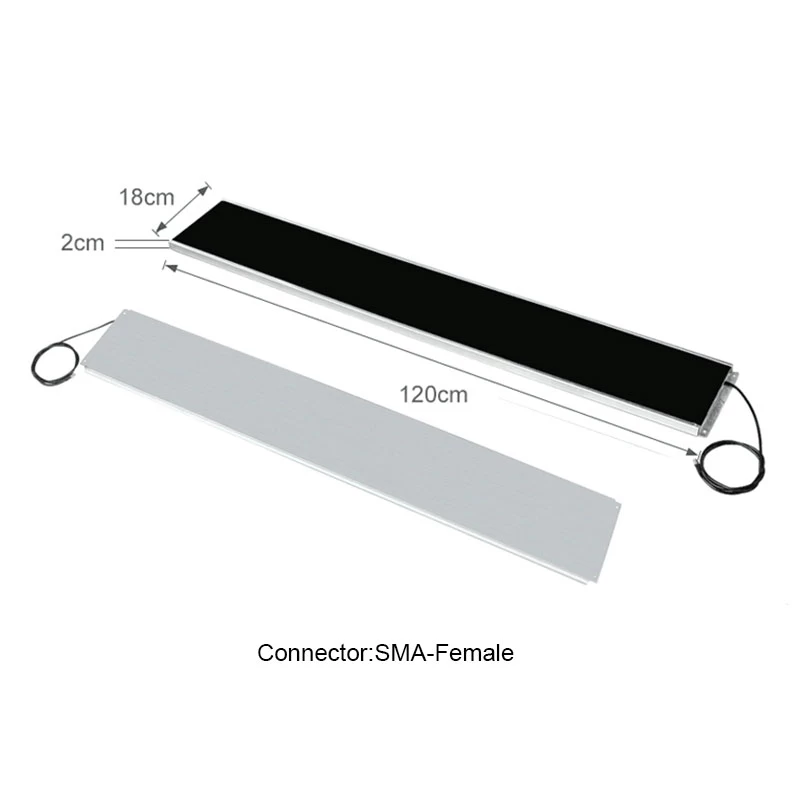

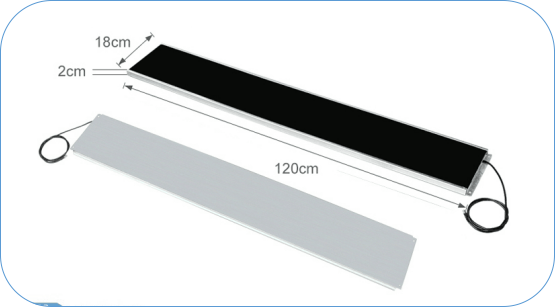

Dimension
|
1200*180*20mm
|
|
Net weight
|
3.5kg
|
|
Packing size
|
130*30*3cm
|
|
Gross weight
|
3.8kg
|
|
Radome material
|
Organic Glass
|
|
Radome colour
|
Black
|
|
Operating temperature
|
-40-70℃
|
