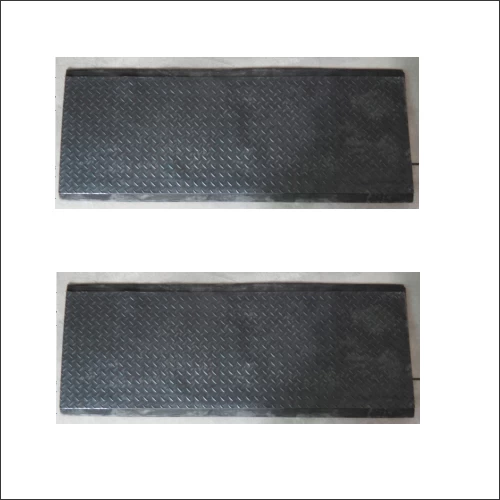

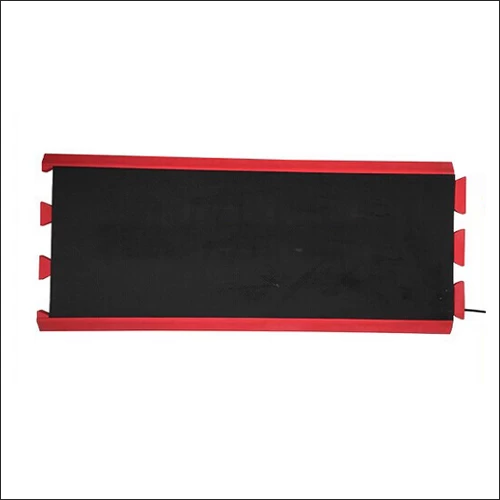

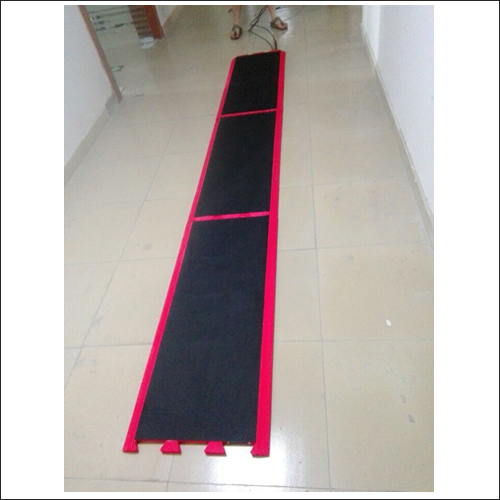

12dBi RFID UHF Marathon Floor Mat Cabinet Antenna

>>Application Scenarios

This antenna can connect with the UHF fixed reader,can be used at different kinds sports timing system, such as running race,bicycle race etc.


★ 920-928 MHz & 865-868 MHz .

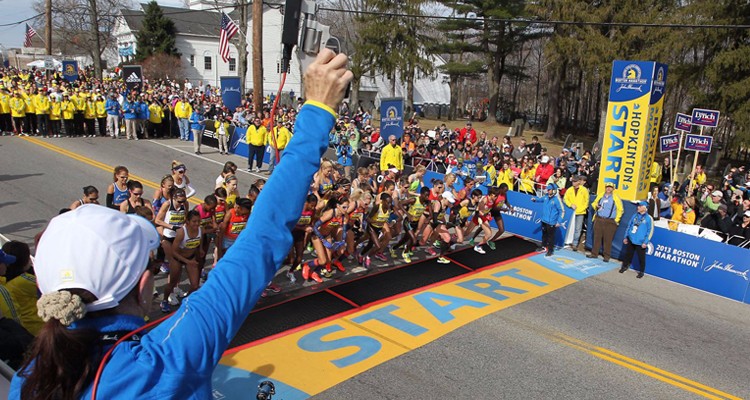

★ For sports management: runway identification system, marathon start - end and so on.
★ For access control intelligent management: personnel customs clearance management, items such as access.


>>Features

★ Outdoor all-weather work, anti-interference ability.
★ High gain, read and write speed, read and write distance, high data security, easy to use and so on.
★ Trample
★ Waterproof rating IP67




12 dBi Long Range UHF RFID race timing system for Marathon floor mat antenna(JT-625)

Antenna Name

Marathon Floor Mat Antenna

Model

JT-625

Working Frequency

902~928 MHz  865-868 MHz

Antenna Gain

12 dBi

Protocol

ISO 18000-6C, EPC global C1Gen 2

Horizontal Beam width

Hor: 70,Vert: 60

VSWR

Less than 1.3

Impedance

50

Polarization

Circular

Connector

TNC-male (Customizable)

Lightning Protection

GND

Dimension

1260*650 mm

Weight(kg)

7.8 kg

Reflector Material

Aluminum alloy

Radome Material

ABS

Operating Temperature

-40~80

Cable Length

3 m

Cable Type

50-7

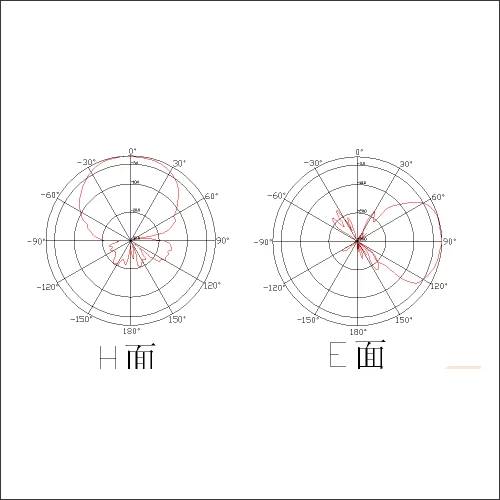

>>The Schematic Diagram
